0.96inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, SPI Interface
0.96inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, SPI Interface
SKU: 25133
0.96inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, SPI Interface
0.96inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, SPI Interface
0.96inch OLED Display Module
Embedded SSD1357 Driver Chip, SPI Communication
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features At A Glance
- 64×128 resolution OLED display, 65K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 64 × 128 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 3/4-wire SPI | DISPLAY SIZE | 10.862 × 21.736mm |
| DISPLAY PANEL | OLED | PIXEL SIZE | 0.0327 × 0.146mm |
| DRIVER | SSD1357 | MODULE SIZE | 32.5 × 26.0mm |

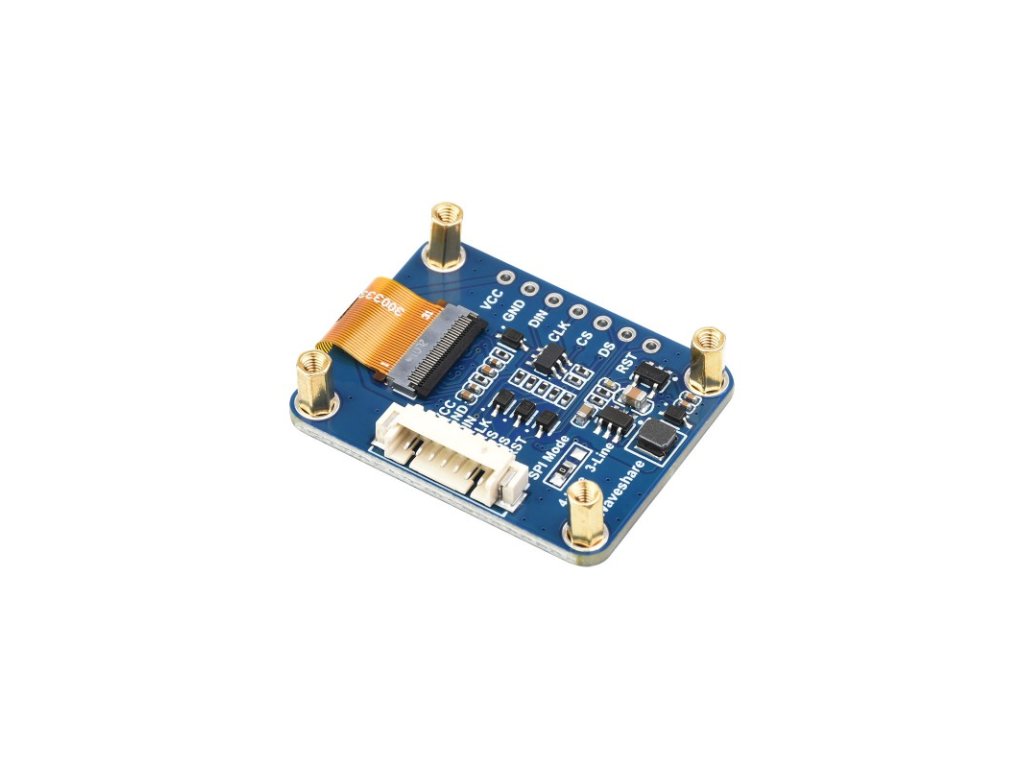

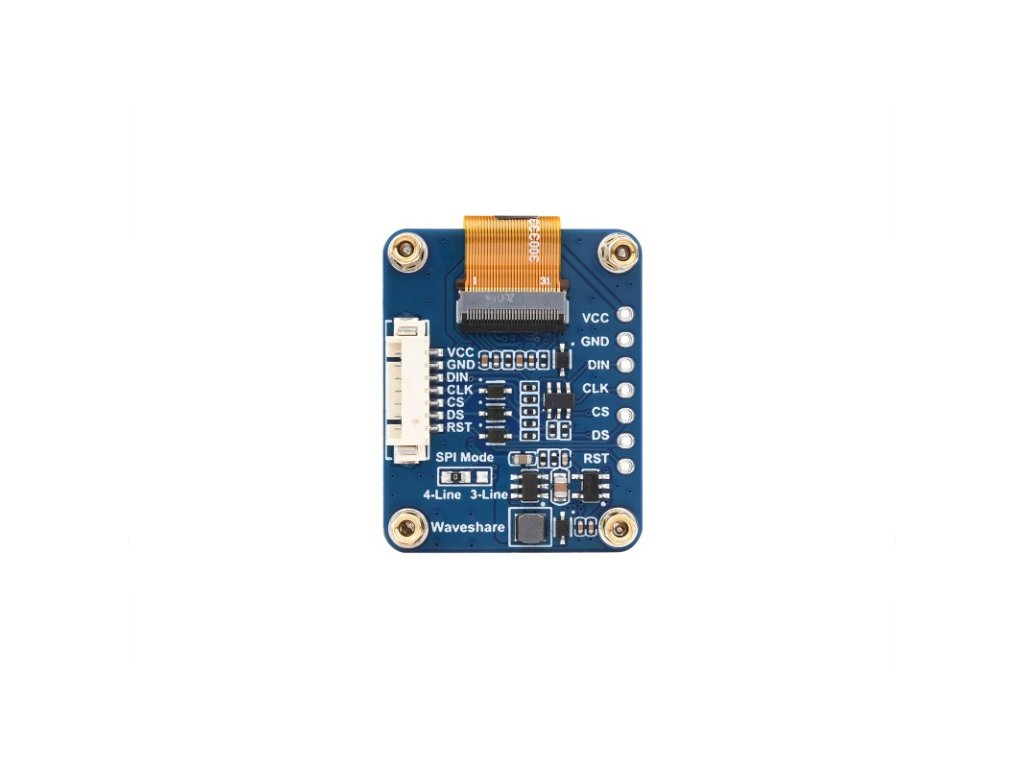

Control Interface
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
Hardware Connection

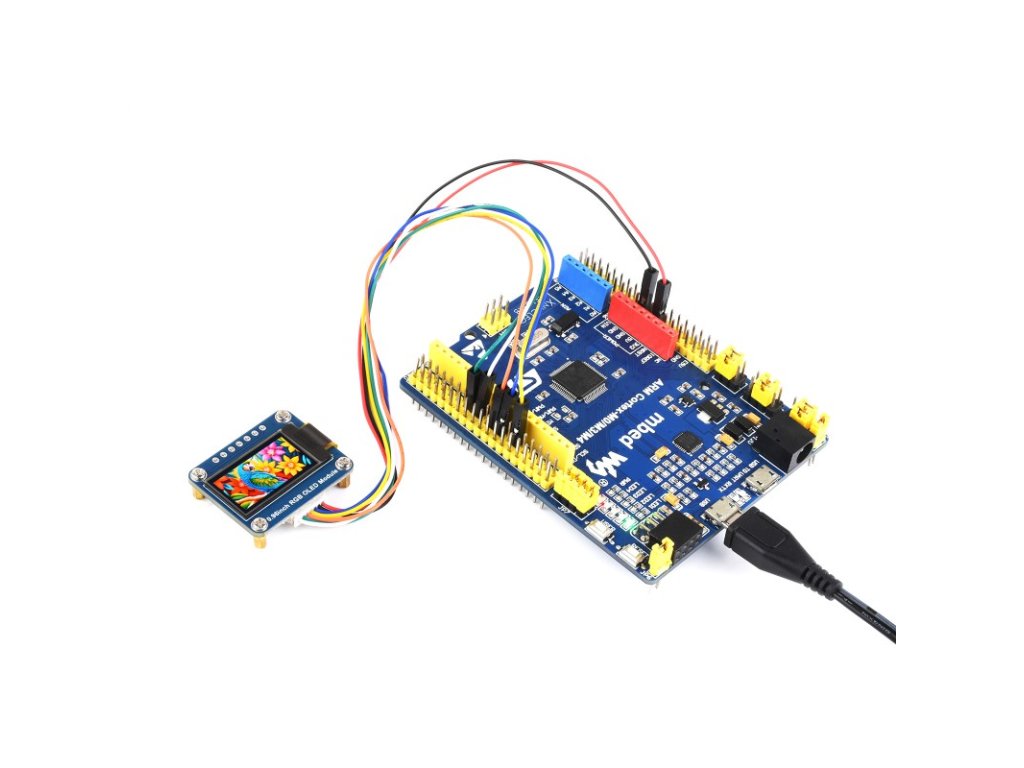

Connecting With Raspberry Pi
Connecting With Arduino Board
Usage Example
for reference only, the STM32 board is NOT included.

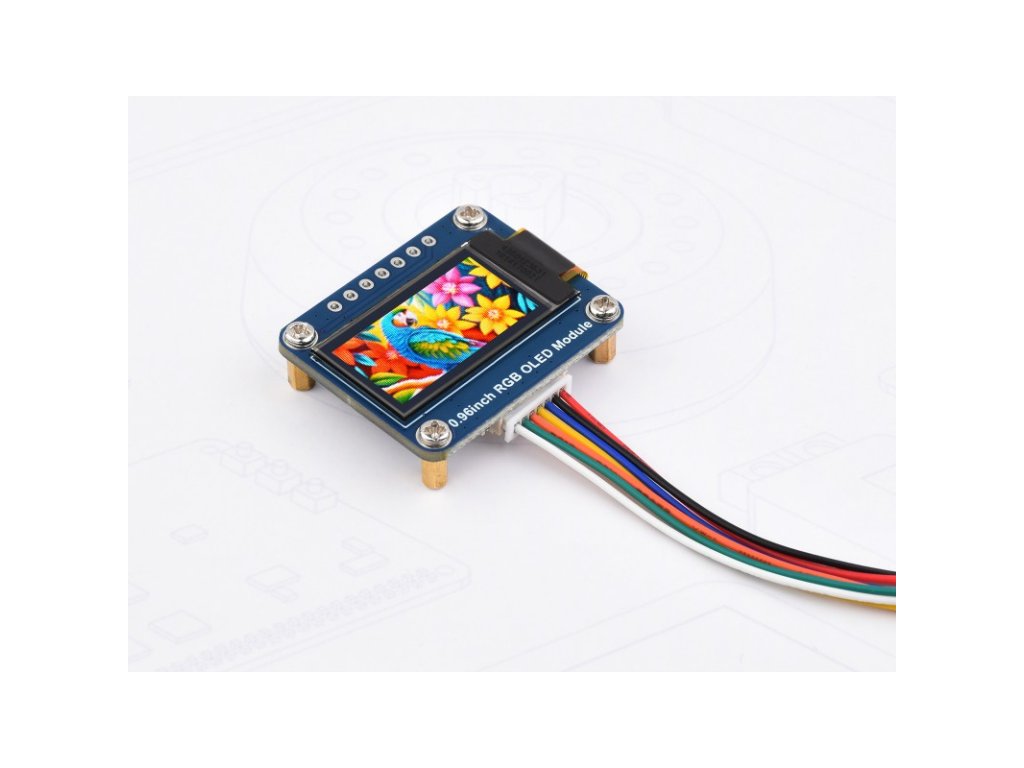

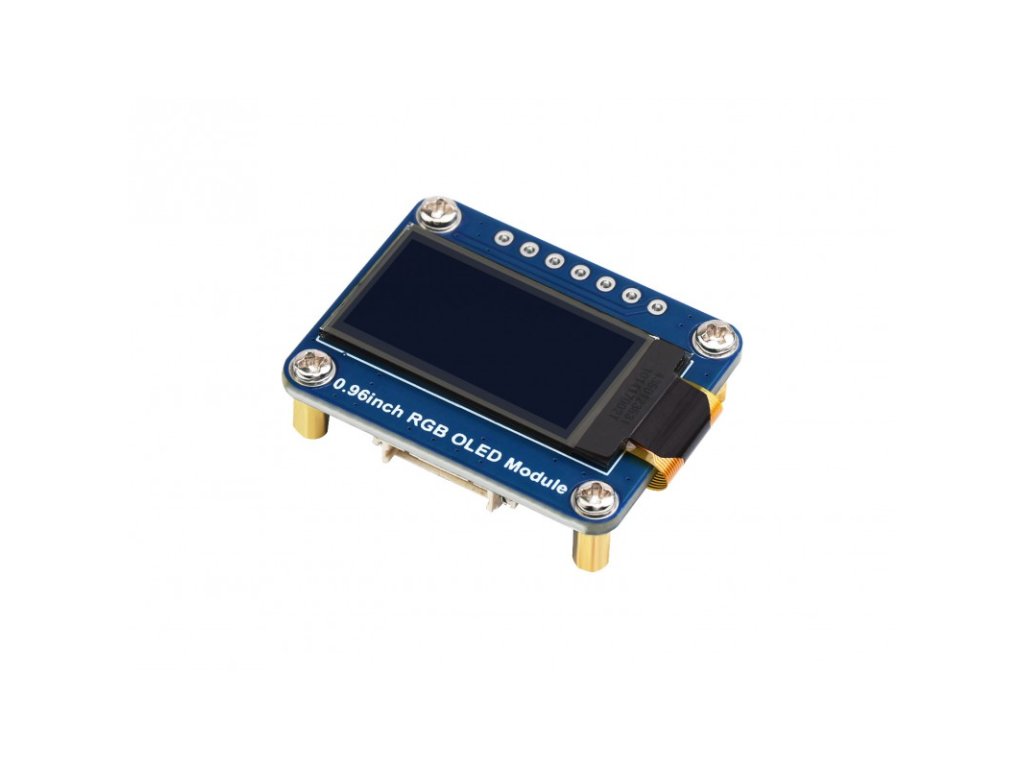

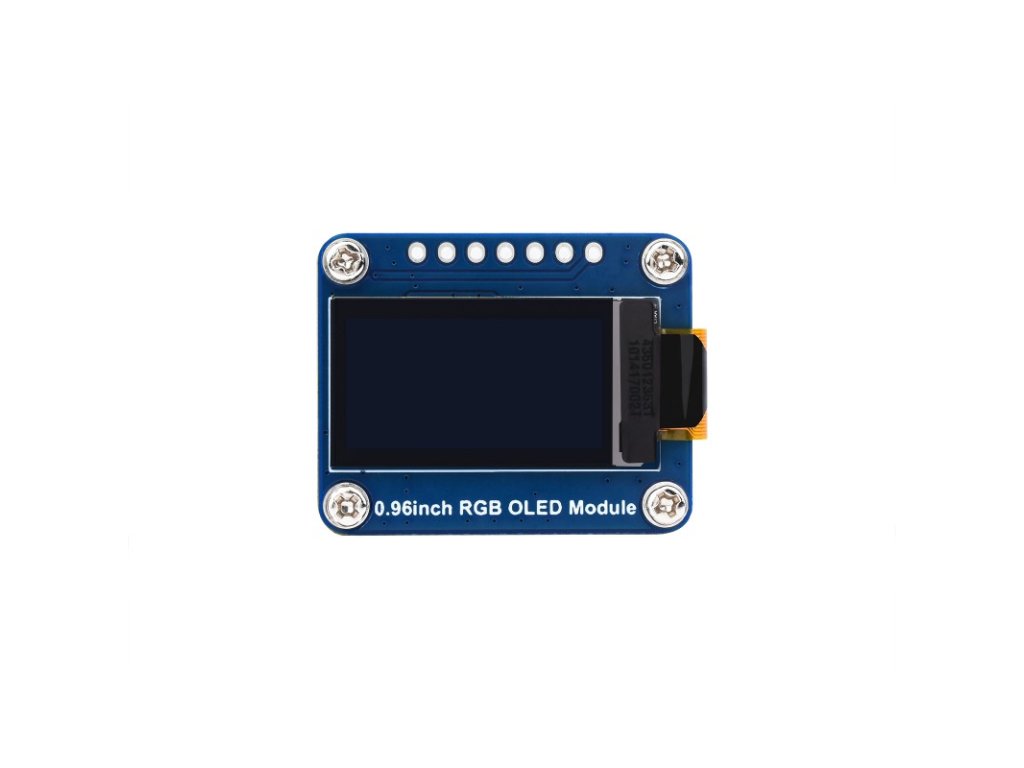

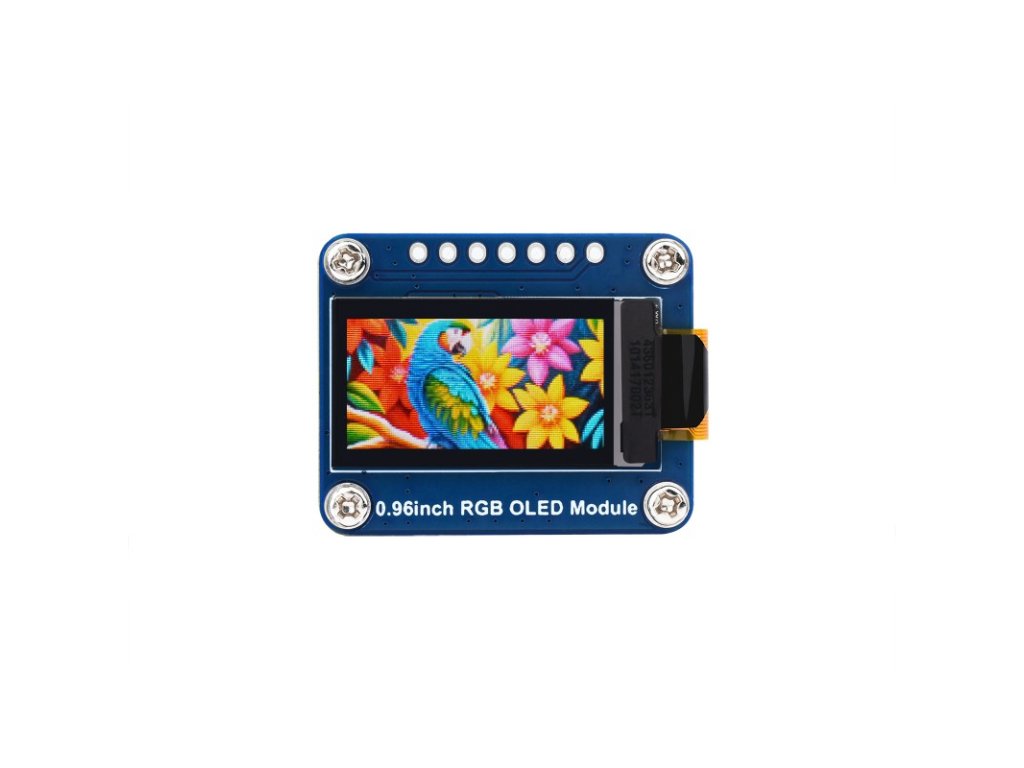

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.009 kg
- 0.96inch RGB OLED Module x1
- GH1.25 7PIN cable x1
