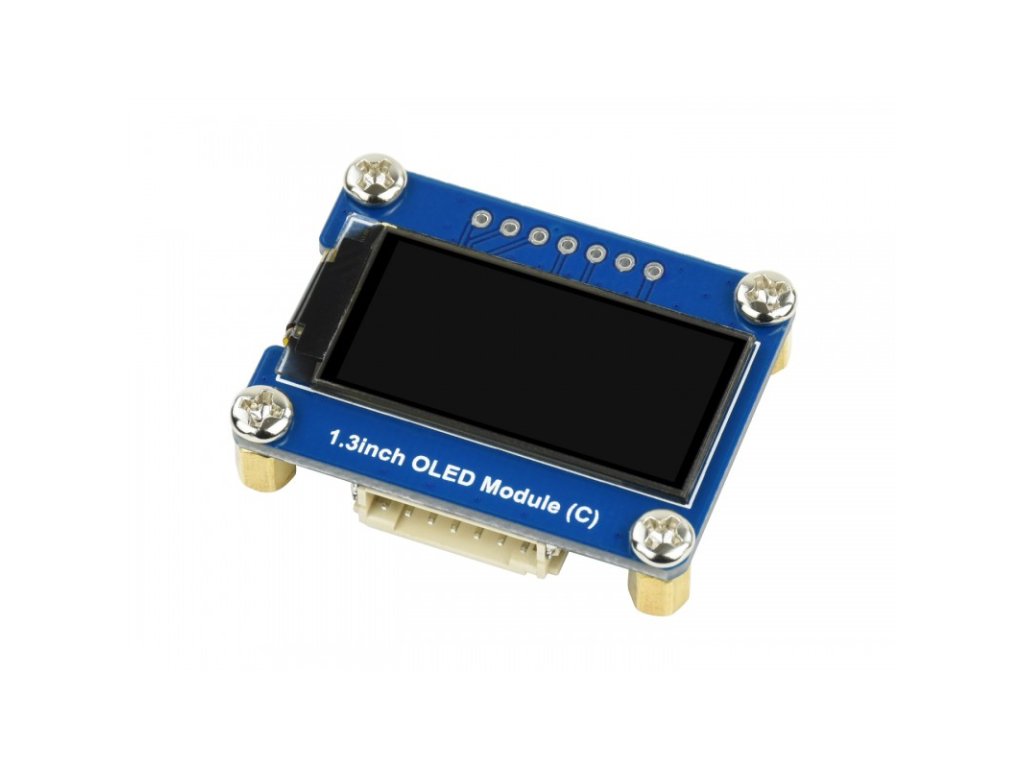

1,30 palcový OLED Display Module 64x128
1,30 palcový OLED Display Module 64x128
SKU: 18179
1,30 palcový OLED Display Module 64x128
Features At A Glance
- Adopts both 4-wire SPI and I2C interfaces, better compatibility, high transmission rate
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V | RESOLUTION | 64 × 128 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI, I2C | DISPLAY SIZE | 14.70 × 29.42mm |
| DISPLAY PANEL | OLED | PIXEL SIZE | 0.15 × 0.15mm |
| DRIVER | SH1107 | DIMENSIONS | 30.0 × 39.5mm |

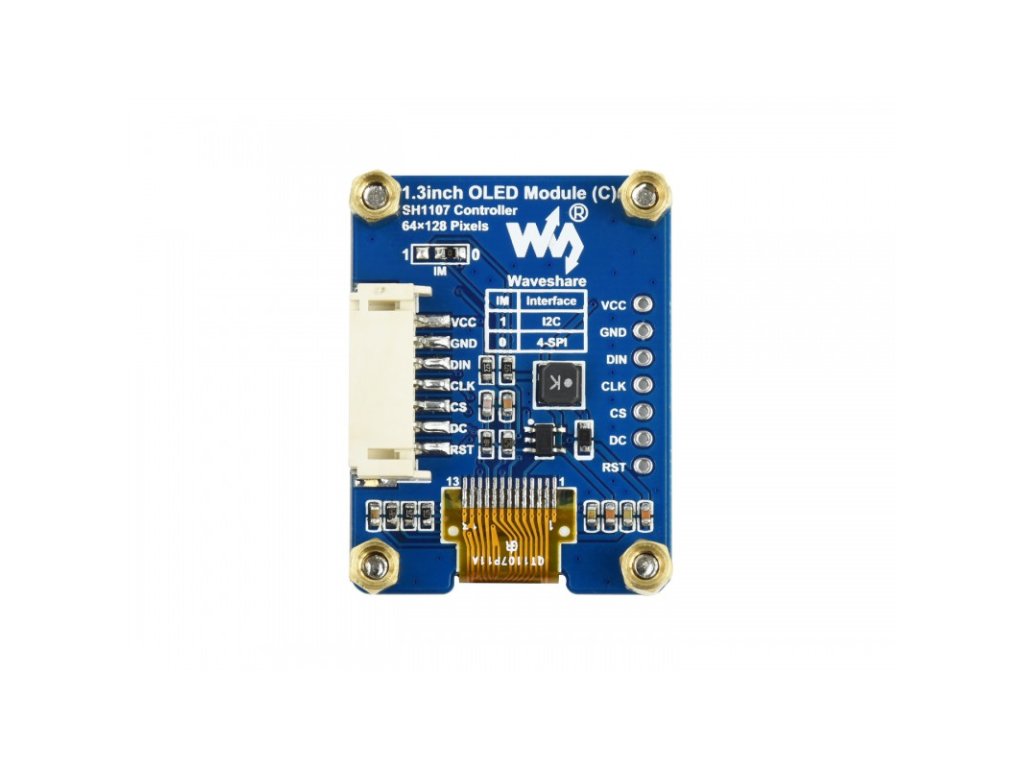

SPI Control Interface
Supports Controller Boards Like Raspberry Pi/Arduino/STM32
| VCC | Power (3.3V input) |
|---|---|
| GND | Ground |
| DIN | data input |
| CLK | clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board

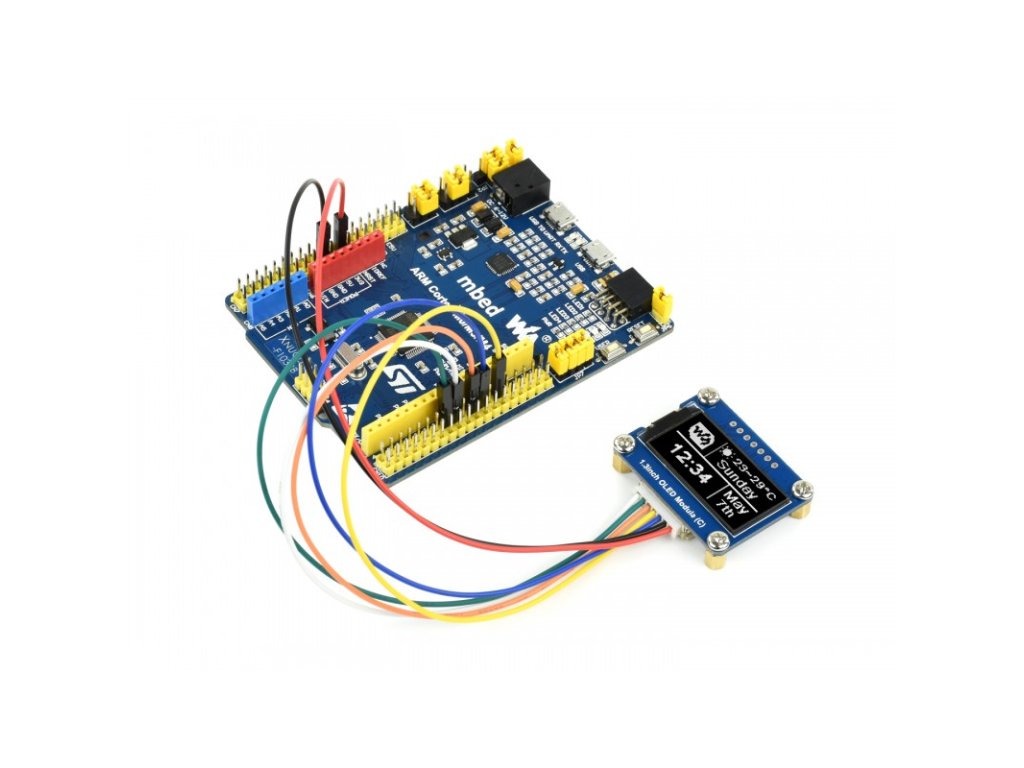

Living Example
Outline Dimensions
Weight: 0.016 kg
- 1.3inch OLED Module (C) x1
- PH2.0 7PIN 20cm cable x1
