1,30 palcový OLED Display Module for Raspberry Pi Pico, 64×128, SPI/I2C
1,30 palcový OLED Display Module for Raspberry Pi Pico, 64×128, SPI/I2C
SKU: 19376
1,30 palcový OLED Display Module for Raspberry Pi Pico, 64×128, SPI/I2C
1.3inch OLED Display Module For Raspberry Pi Pico, 64×128 Pixels, SPI/I2C Interface

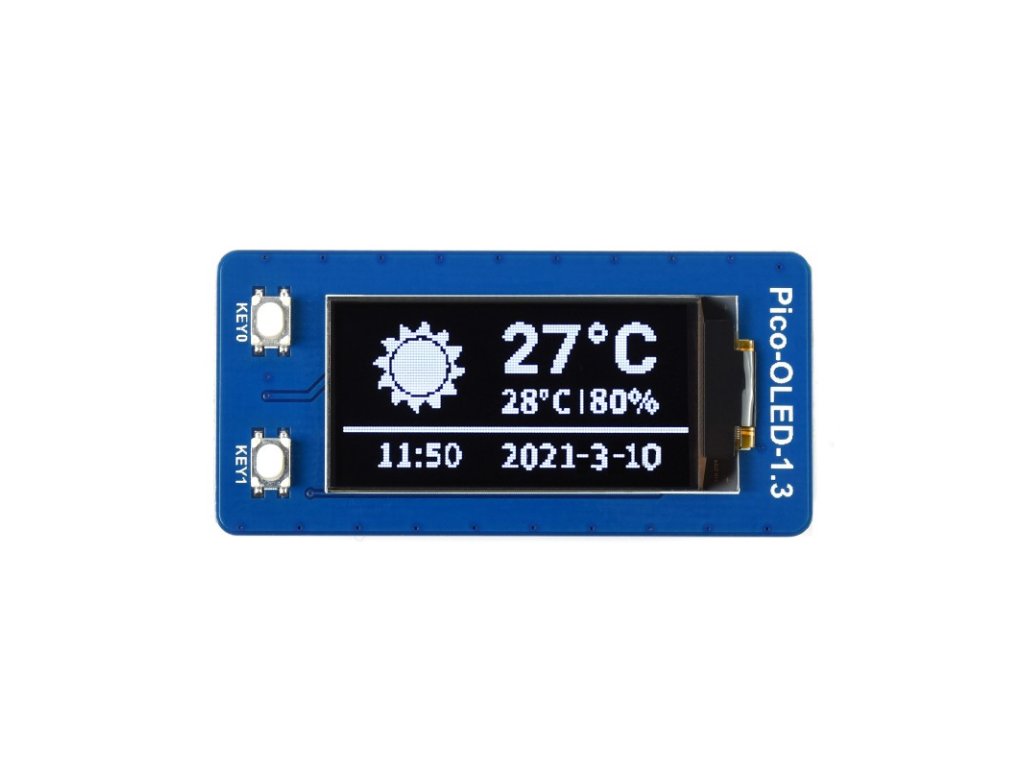

1.3" OLED Display Module For Pico
Embedded SH1107 Driver, Using SPI/I2C Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
- Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
- 2x user buttons for easy interacting
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| OPERATING VOLTAGE | 3.3V | RESOLUTION | 64×128 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI, I2C | DISPLAY SIZE | 14.70 × 29.42mm |
| DISPLAY PANEL | OLED | PIXEL SIZE | 0.15 × 0.15mm |
| DRIVER | SH1107 | DIMENSIONS | 52.00 × 25.00mm |
Raspberry Pi Pico Header Compatibility

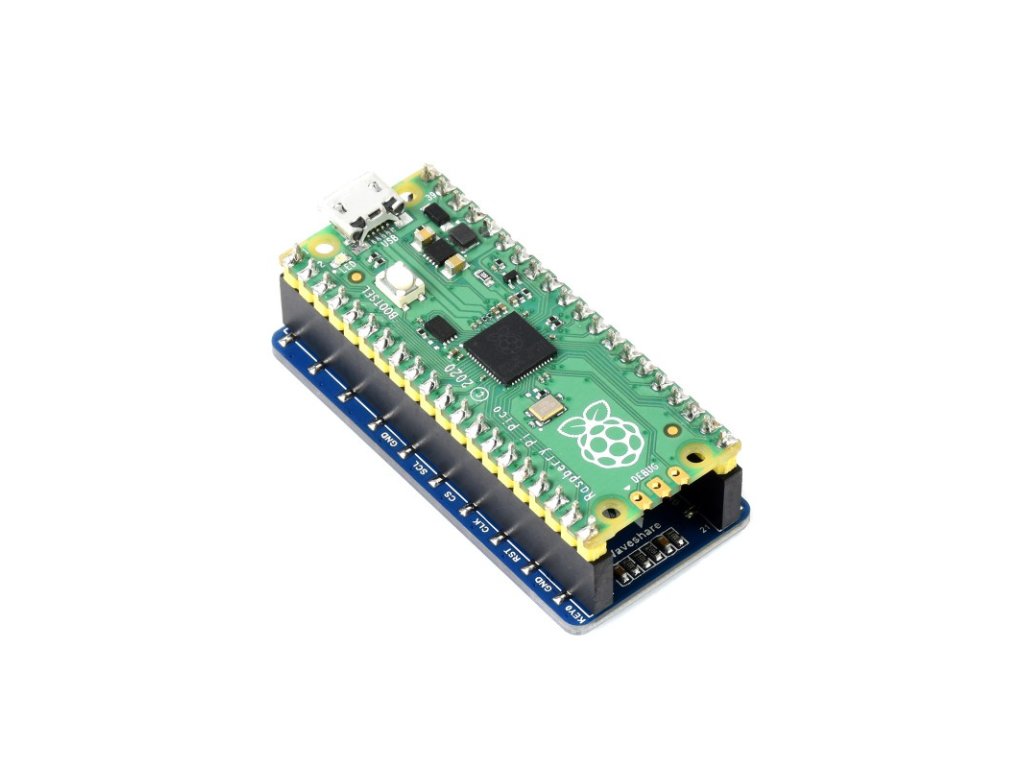

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

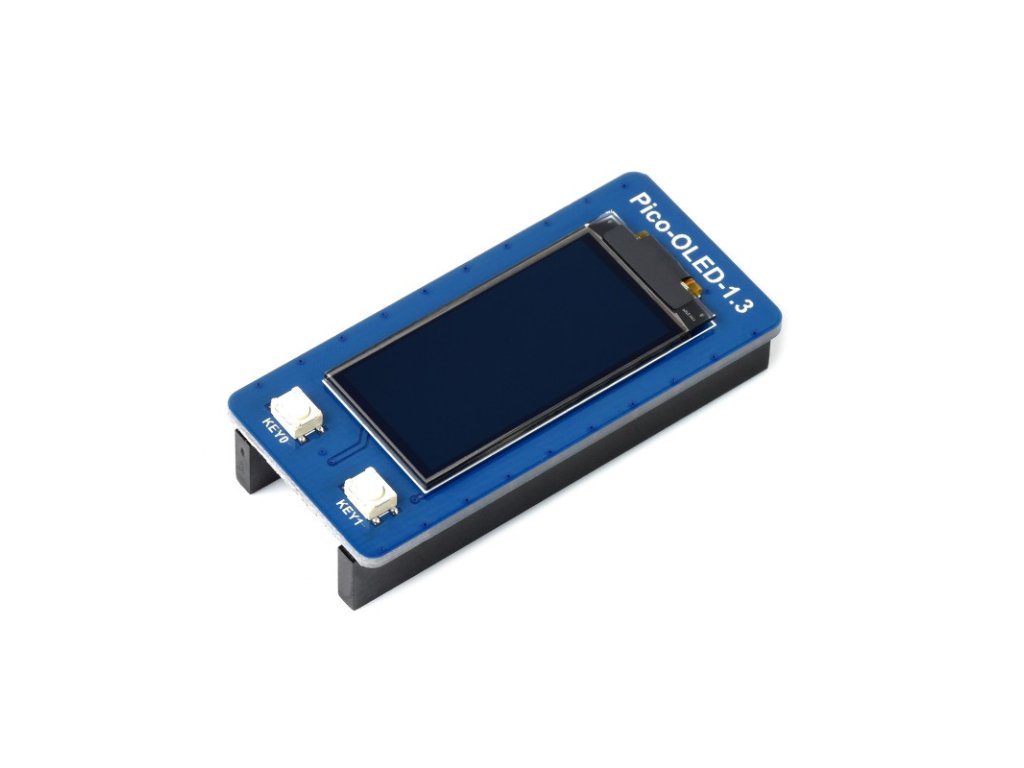

2x User Buttons For Easy Interacting
Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
Weight: 0.011 kg
- Pico-OLED-1.3 x1
