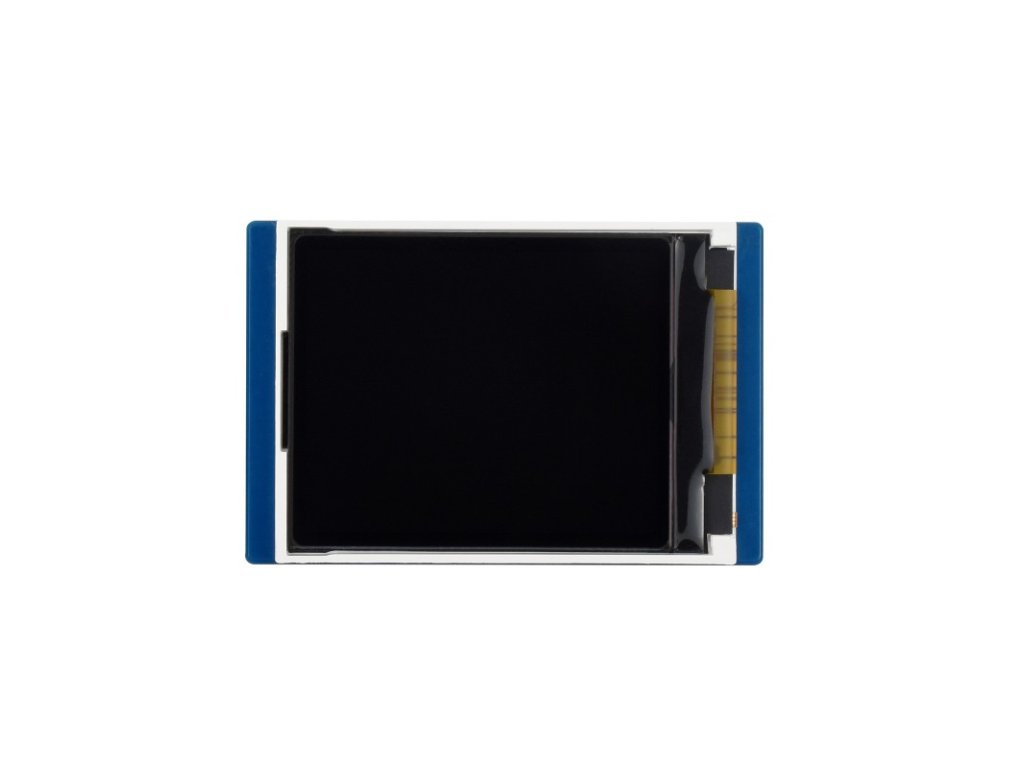

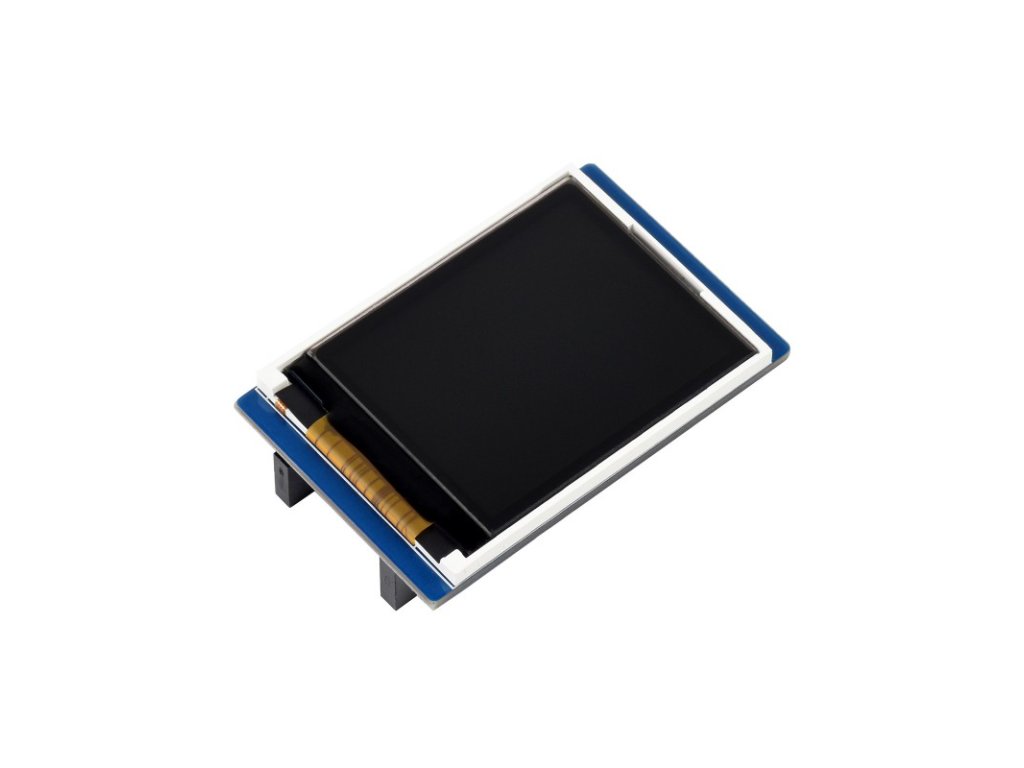

1.8inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 160×128, SPI
1.8inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 160×128, SPI
SKU: 19579
1.8inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 160×128, SPI
1.8inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 160×128 Pixels, SPI Interface
1.8" LCD Display Module For Pico
Embedded ST7735S Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
- Size
1.8" - Resolution
160×128 - Display Color
65K RGB - Interface
SPI - Driver
ST7735S
Features At A Glance

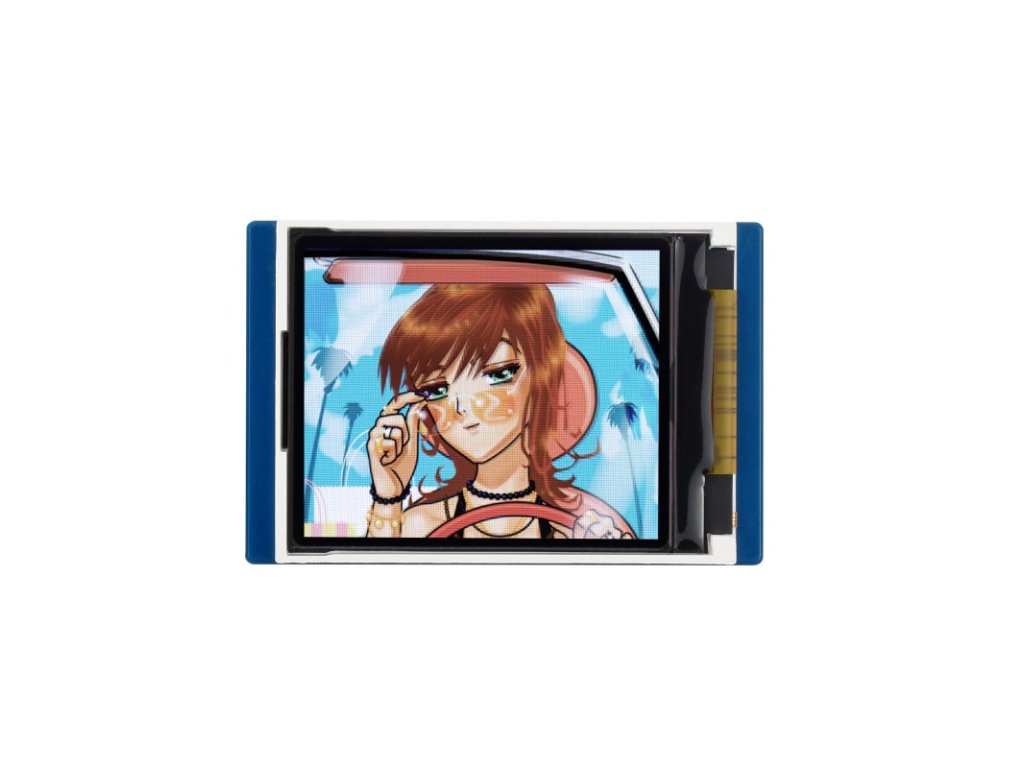

- 160×128 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| OPERATING VOLTAGE | 2.6 ~ 5.5V | RESOLUTION | 160×128 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 35.04 × 28.03 mm |
| DISPLAY PANEL | TFT | PIXEL SIZE | 0.219 × 0.219 mm |
| DRIVER | ST7735S | DIMENSIONS | 52.0 × 34.5 mm |

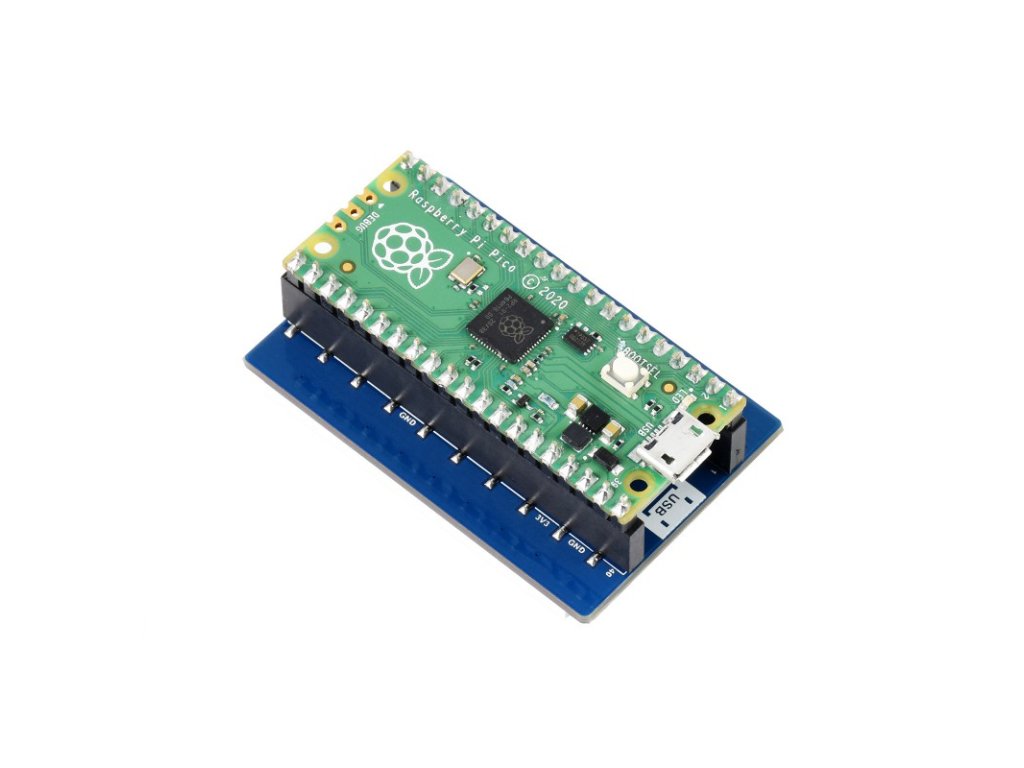

Raspberry Pi Pico Header Compatibility

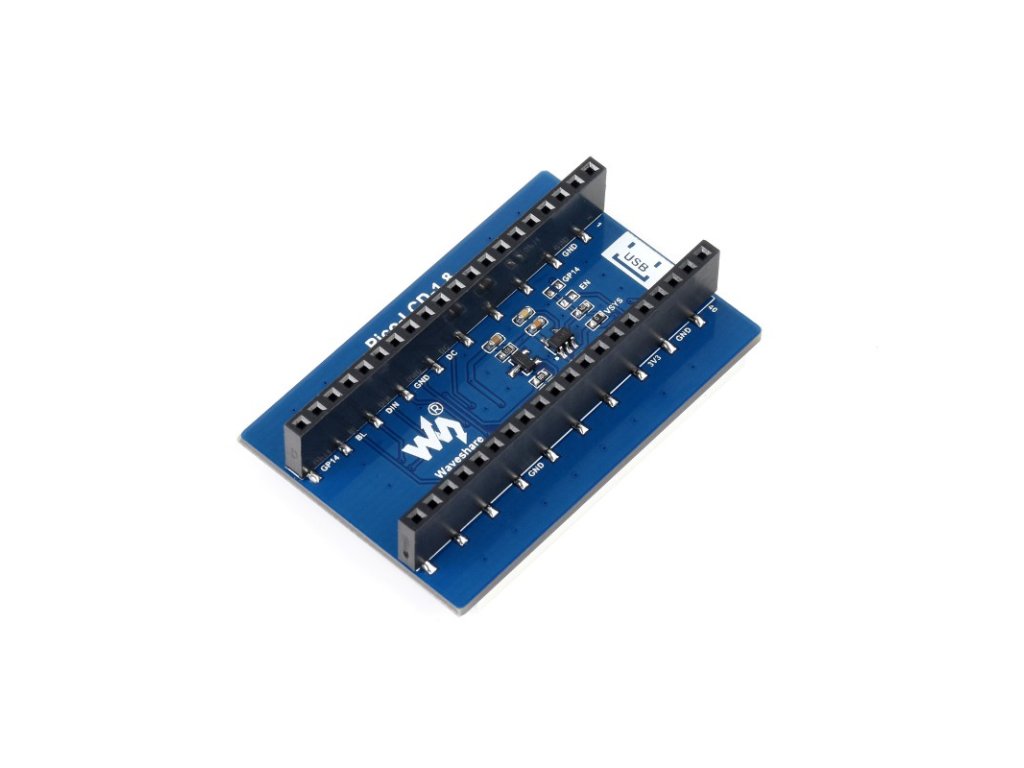

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

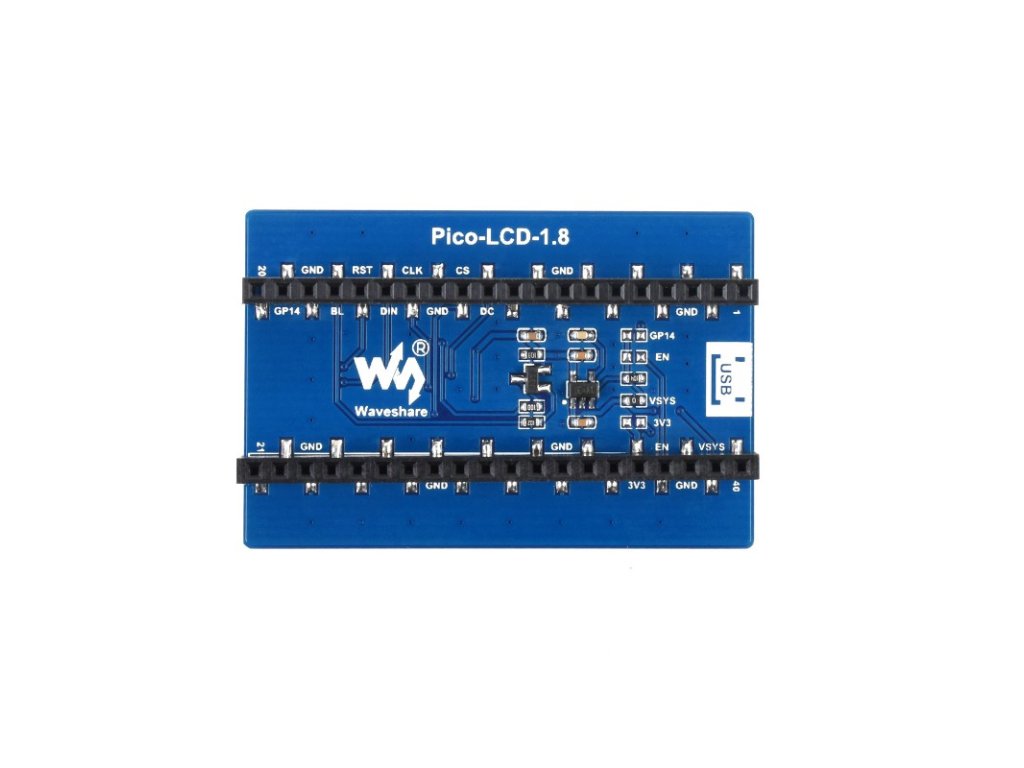

Pinout Definition
Outline Dimensions
PACKAGE CONTENT
Weight: 0.016 kg
- Pico-LCD-1.8 x1
