1.9inch Segment E-Paper Raw Display, 91 Segments, I2C Bus, Ideal for Temperature and humidity mete.

Neohodnotené

Značka: Waveshare

1.9inch Segment E-Paper Raw Display, 91 Segments, I2C Bus, Ideal for Temperature and humidity meter, Humidifier, Digital Meter

SKU: 22688

Dostupnosť	Zvyčajne do 3-7 dní
Môžeme doručiť do:	28.10.2024
Možnosti doručenia
Kód:	23752

8,40 € / ks 7 € bez DPH

1.9inch Segment E-Paper Raw Display, 91 Segments, I2C Bus, Ideal for Temperature and humidity mete.

Neohodnotené

Značka: Waveshare

1.9inch Segment E-Paper Raw Display, 91 Segments, I2C Bus, Ideal for Temperature and humidity mete.

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

1.9inch Segment E-Paper Raw Display, 91 Segments, I2C Bus, Ideal for Temperature and humidity meter, Humidifier, Digital Meter

1.9″ Segment e-Paper

Support Partial Refresh, Low Power, Wide Viewing Angle, Paper-Like Displaying
Without Electricity

Ideal for Temperature and Humidity Meter, Humidifier, Digital Meter...

Size1.9″
Segment91 segments
Viewing Angle>170°
Display ColorBlack/White
Grey Scale2
CommunicationI2C
Display PanelE-paper
ExperiencePaper-like
EnvironmentAmbient Light Required
Display TypePassively Reflective

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

operating voltage	3.3V	grey scale	2
interface	I2C	Partial Refresh Time	0.3s
outline dimensions	49.35 × 32.11 × 1.13 mm	full refresh time	2s
display size	41.35 × 28.11 mm	refresh power	<5mW (typ.)
Segments	91	standby current	<0.01uA (almost none)
display color	Black/White	viewing angle	>170°

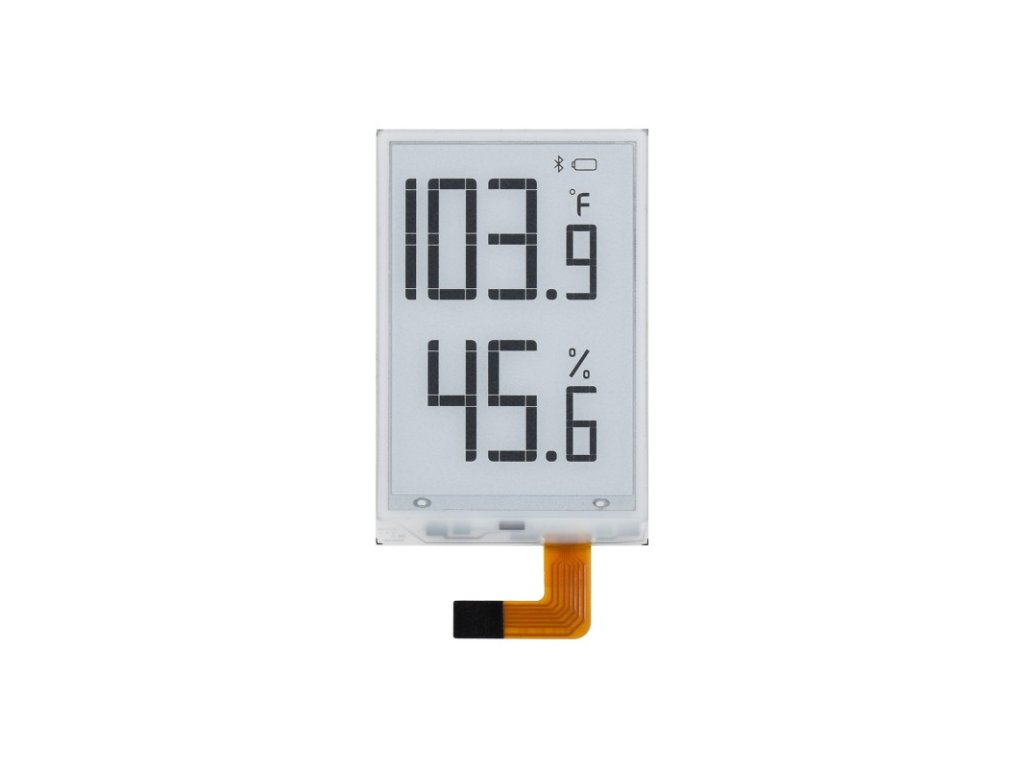

91 Segments Full Display

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
