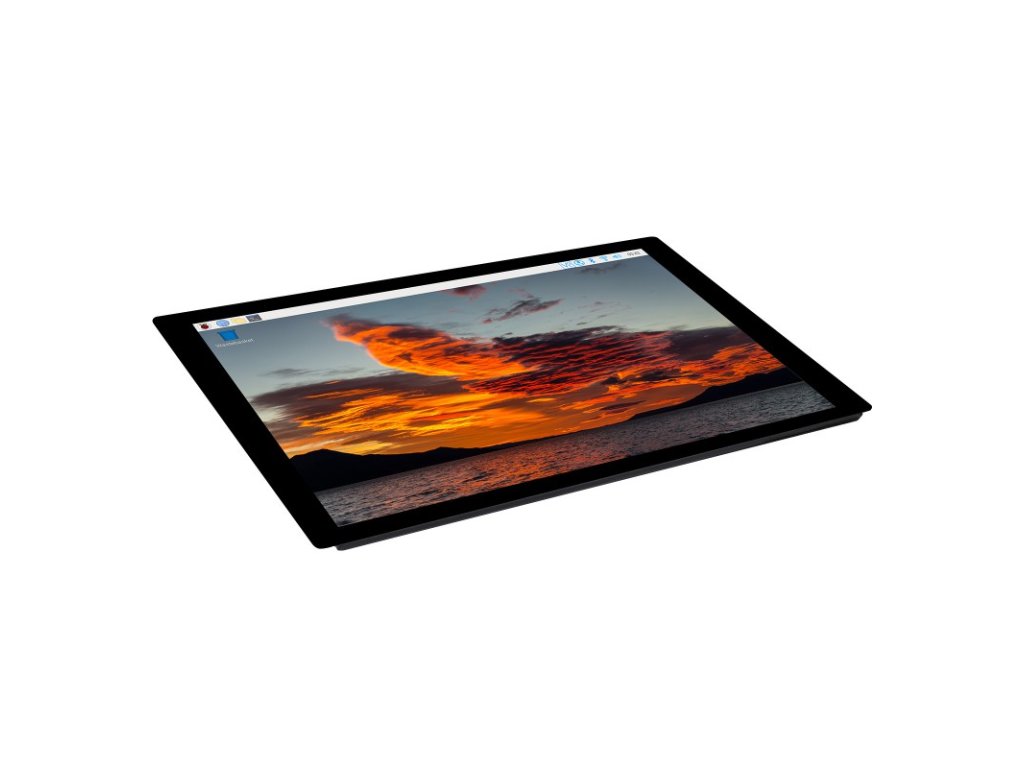

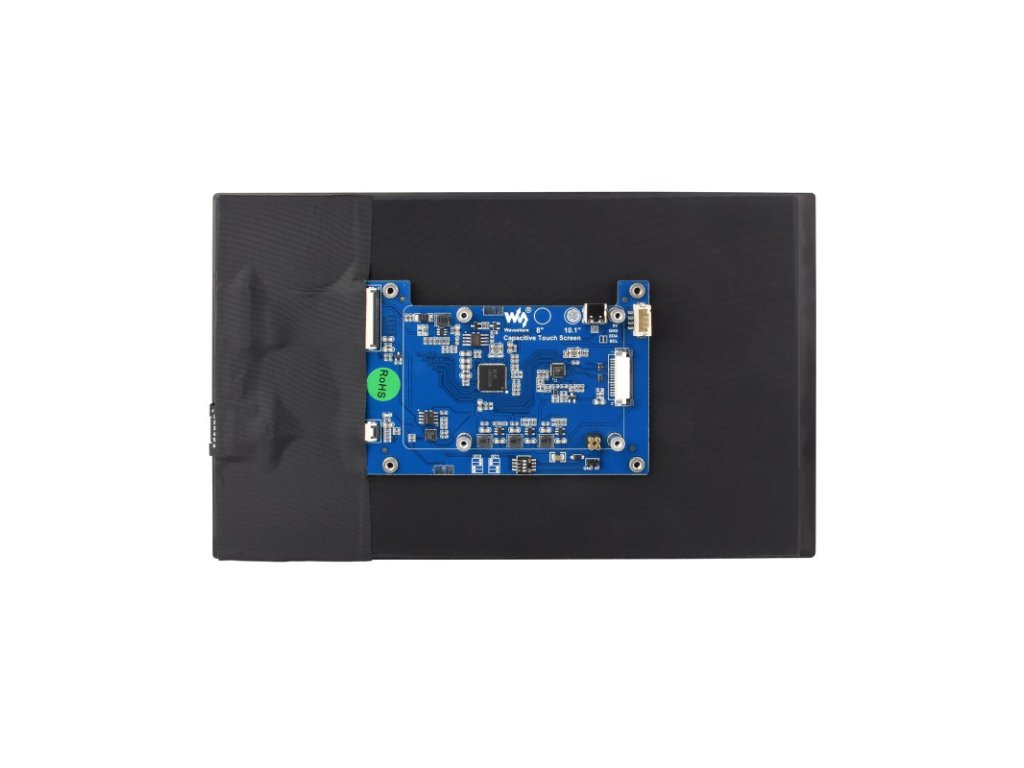

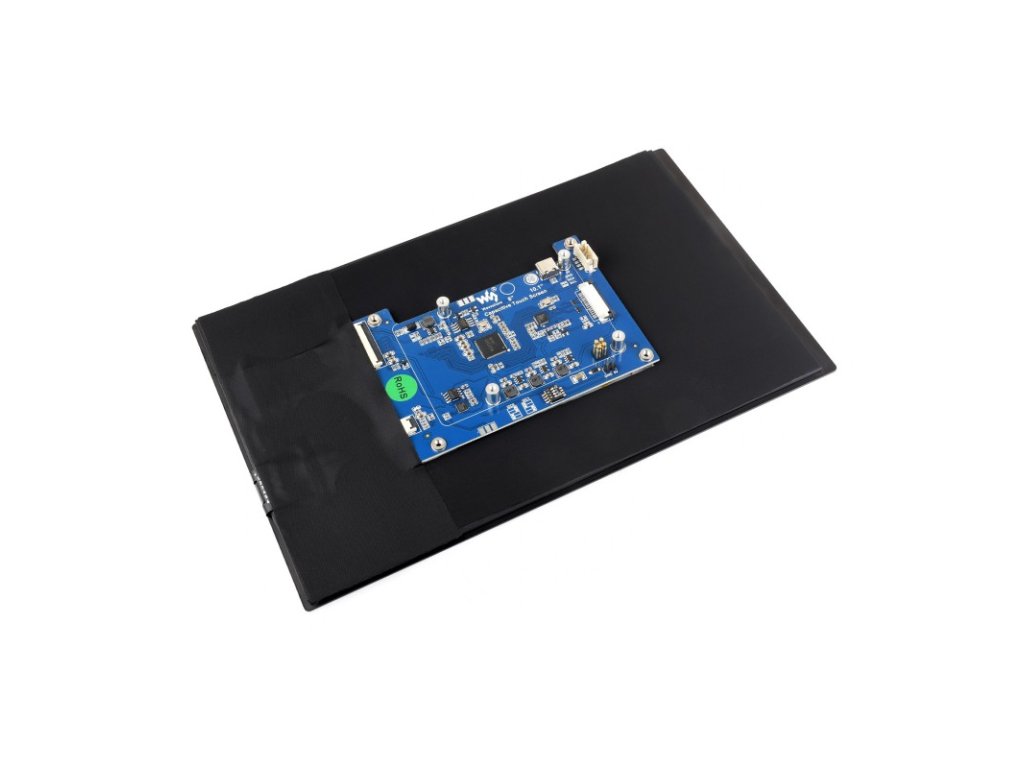

10.1inch Capacitive Touch Display for Raspberry Pi, 1280×800, IPS, DSI Interface

Neohodnotené
Značka: Waveshare

10.1inch Capacitive Touch Display for Raspberry Pi, 1280×800, IPS, DSI Interface

SKU: 23450

Dostupnosť Skladom (2 ks)
Môžeme doručiť do:
30.12.2024
Možnosti doručenia
Kód: 23769
95,88 € / ks 79,90 € bez DPH
10.1inch Capacitive Touch Display for Raspberry Pi, 1280×800, IPS, DSI Interface
Neohodnotené
Značka: Waveshare
10.1inch Capacitive Touch Display for Raspberry Pi, 1280×800, IPS, DSI Interface
10.1″ Touch Display

HD Resolution | Multi-Point Touch | Full Color




  • Size10.1″
  •
  • Resolution1280×800
  •
  • Display PortDSI
  •
  • Display PanelIPS
  •
  • Viewing Angle178°
  • Touch TypeCapacitive
  •
  • Touch Points10-Point
  •
  • Touch PortI2C
  •
  • Touch PanelToughened Glass
  •
  • Touch Panel TechOptical Bonding


Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 10-points touch, driver required

Supports Pi 5/4B/3B+/3A+, CM3/3+/4*

* CM3/3+/4 requires extra adapter board
Connection Examples

Working with Raspberry Pi 5

Working with Raspberry Pi 4B

Working with Raspberry Pi 3B+

for reference only, Raspberry Pi 5, 4B and 3B+ are NOT included.

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle


Capacitive 10-Point Touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

Adjustable brightness via software

Design Features
Dimensions
Resources & Services

Balenie obsahuje:

Weight: 0.527 kg

  1. 10.1inch DSI LCD (C) x1
  2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
  3. DSI-Cable-12cm x1
  4. FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
  5. PH2.0 4PIN cable 200mm x1
  6. Screws pack x1
