    10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel

    Neohodnotené
    Značka: Waveshare

    10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel

    SKU: 22520

    Dostupnosť Zvyčajne do 3-7 dní
    Môžeme doručiť do:
    2.1.2025
    Možnosti doručenia
    Kód: 23760
    84 € / ks 70 € bez DPH
    10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel
    Neohodnotené
    Značka: Waveshare
    10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel
    10.1inch Capacitive Touch LCD

    Toughened Glass, IPS Panel


    Specifications
    LCD Type IPS
    Interface RGB
    Touch Controller GT7385
    Touch Panel Type Capacitive (10-point touch)
    Backlight LED
    Display Size (mm) 223.00 × 125.28
    Dot Pitch (mm) 0.2175 × 0.2088
    Aspect Ratio 16:9
    Resolution 1024 × 600 (Pixel)
    Power Consumption TBD
    Backlight Current TBD
    Operating Temperature 0 ~ 70℃
    Wide Range of Applications

    Industrial Control, Charging Pile, Smart Home, Medical, Internet of Things, Robot,
    Vehicle-mounted instruments, vending instruments, intelligent CNC, cosmetic instruments

    Support 10-point Touch
    IPS Panel
    Toughened Glass

    Up to 6H Hardness, strong protection with better light transmittance

    RGB Interface Definition
    PIN NO. SYMBOL Description I/O FUNCTION
    40 BL_VDD Power supply Power Backlight power supply connect 5V
    39 BL_VDD
    38 GND Power ground GND
    37 VDD Power supply Power supply voltage connect 3.3V
    36 R0 Data Input Red data
    35 R1
    34 R2
    33 R3
    32 R4
    31 R5
    30 R6
    29 R7
    28 G0 Data Input Green data
    27 G1
    26 G2
    25 G3
    24 G4
    23 G5
    22 G6
    21 G7
    20 B0 Data Input Blue data
    19 B1
    18 B2
    17 B3
    16 B4
    15 B5
    14 B6
    13 B7
    12 GND Power ground Power GND
    11 PCLK LCD clock Input LCD clock signal
    10 LCD-BL-EN Backlight control enable Input LCD-BL-EN=0: backlight off
    LCD-BL-EN=1: backlight on
    9 HSYNC Horizontal sync Input Horizontal sync signal
    8 VSYNC Vertical sync Input Vertical sync signal
    7 DE Control mode selection Input DE=0: SYNC mode;
    DE=1: DE mode
    6 LCD-BL-ADJ LCD backlight adjustment Input PWM adjustment backlight signal
    5 GND Power ground Power GND
    4 CTP-SDA I2C data pin Input/Output I2C data pin, read and write data
    3 CTP-SCL I2C clock pin Input I2C clock pin, clock control
    2 CTP-RST Reset pin Input Reset input
    1 CTP-INT Interrupt pin Output External touch interrupt control pin

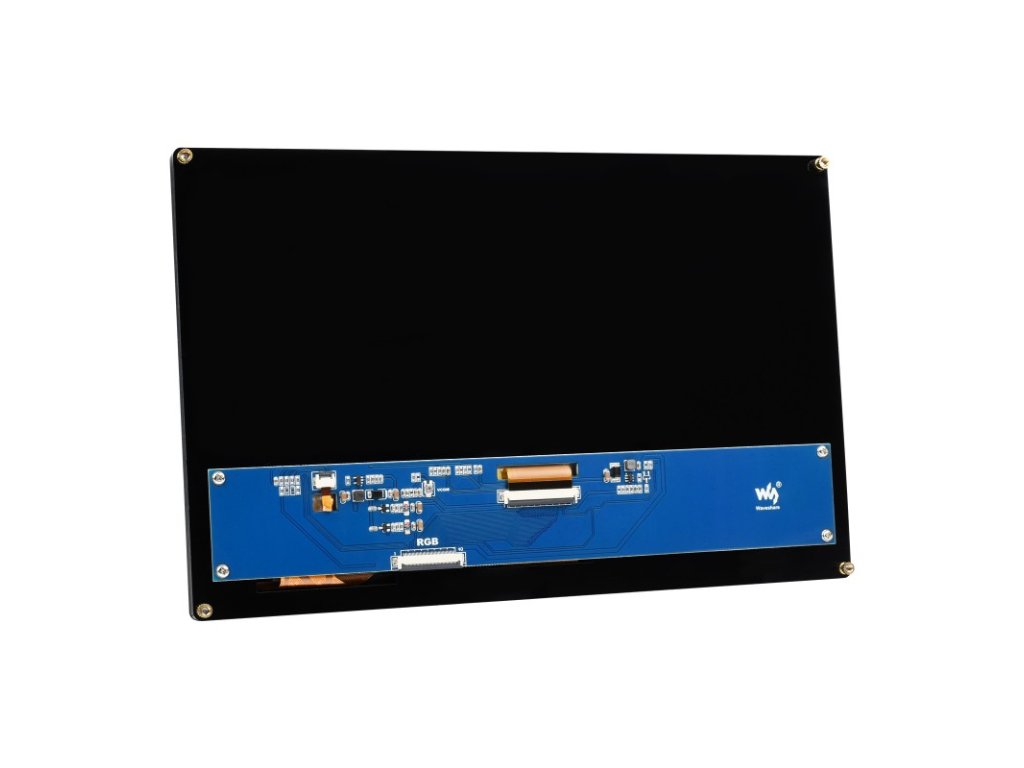

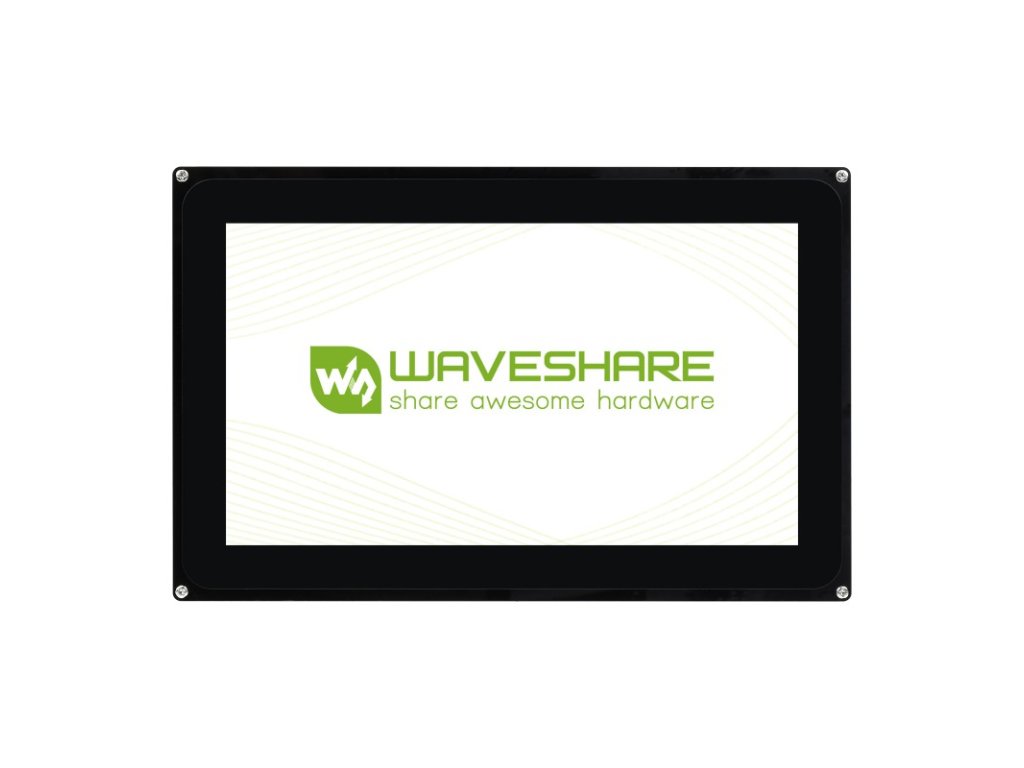

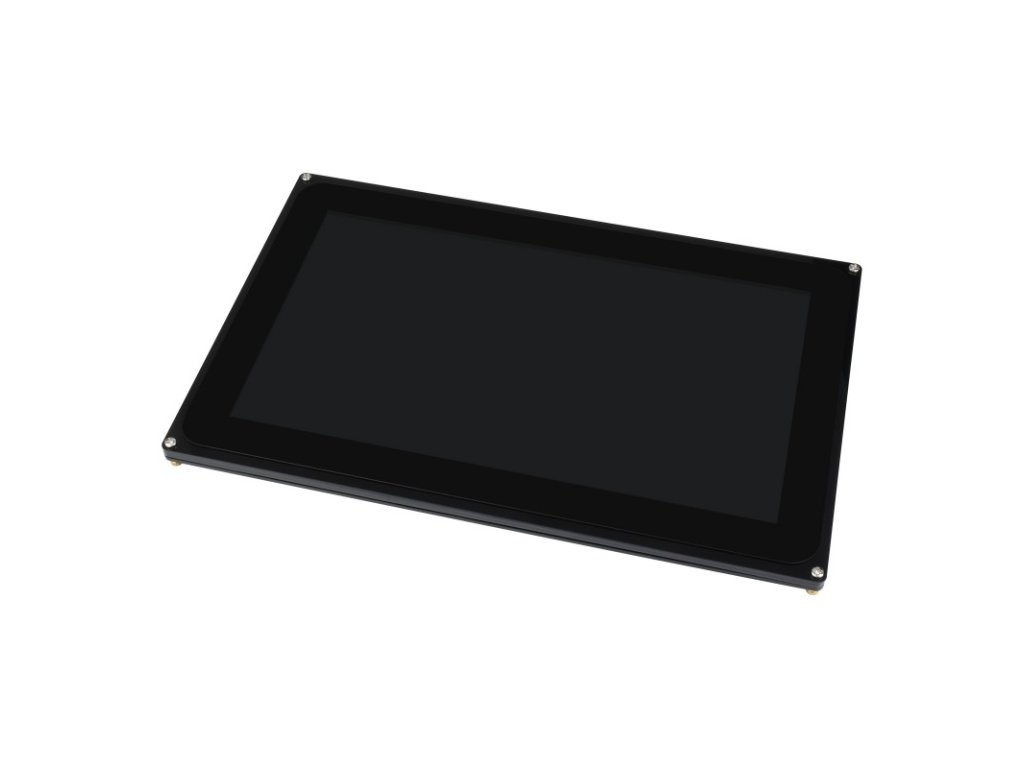

    Product Show

    Dimensions

    Balenie obsahuje:

    Weight: 0.001 kg

    1. 10.1inch Capacitive Touch LCD (F) × 1
    2. 40-pin FFC × 1
