10-DOF IMU Sensor Module for Raspberry Pi Pico, onboard MPU9250 and LPS22HB chip

10-DOF IMU Sensor Module For Raspberry Pi Pico, Onboard MPU9250 And LPS22HB Chip

10-DOF IMU Sensor Module For Pico

Incorporates 9-Axis Motion Sensor MPU9250 And Baroceptor LPS22HB

Features At A Glance

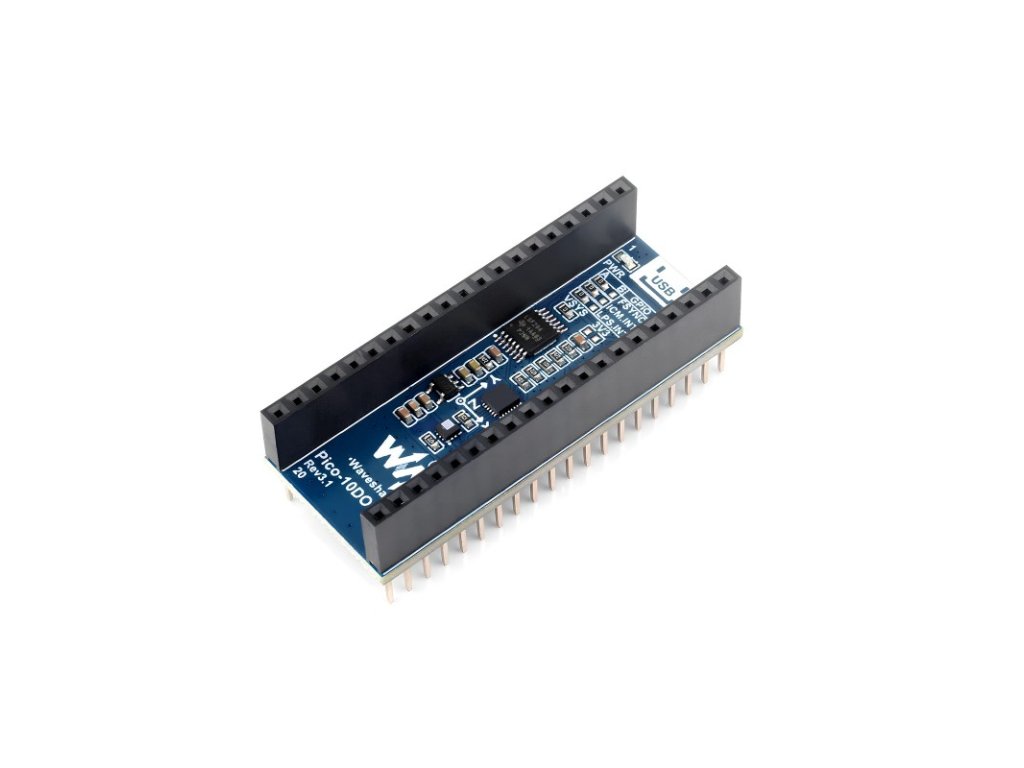

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I2C bus for communication.

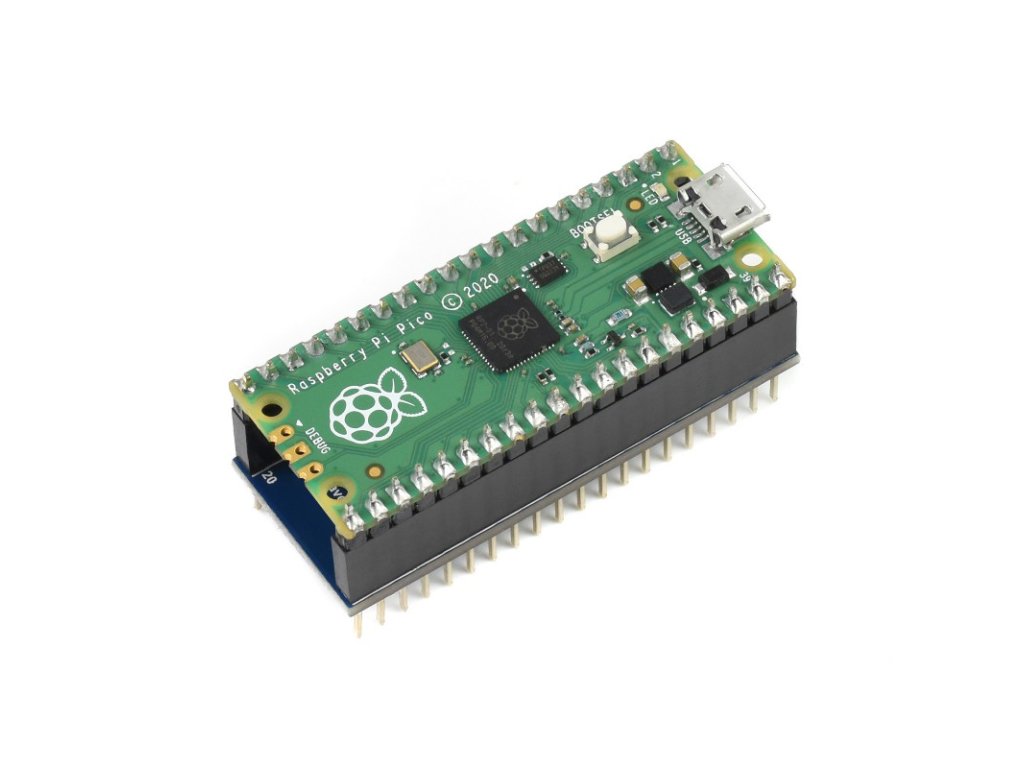

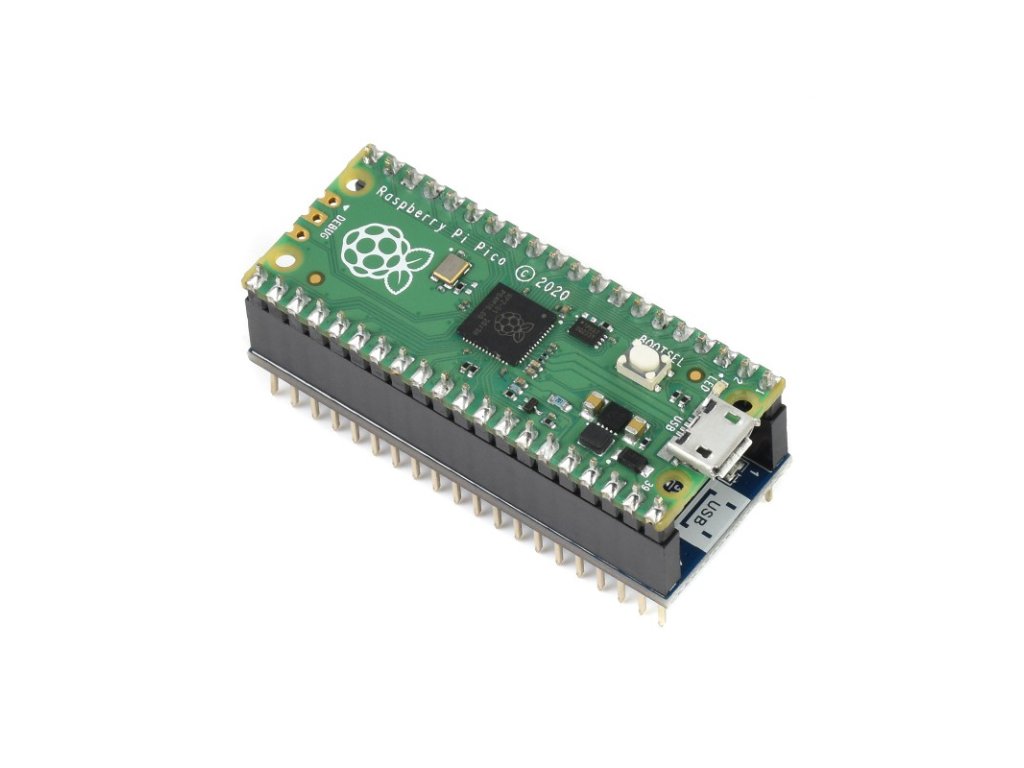

Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.

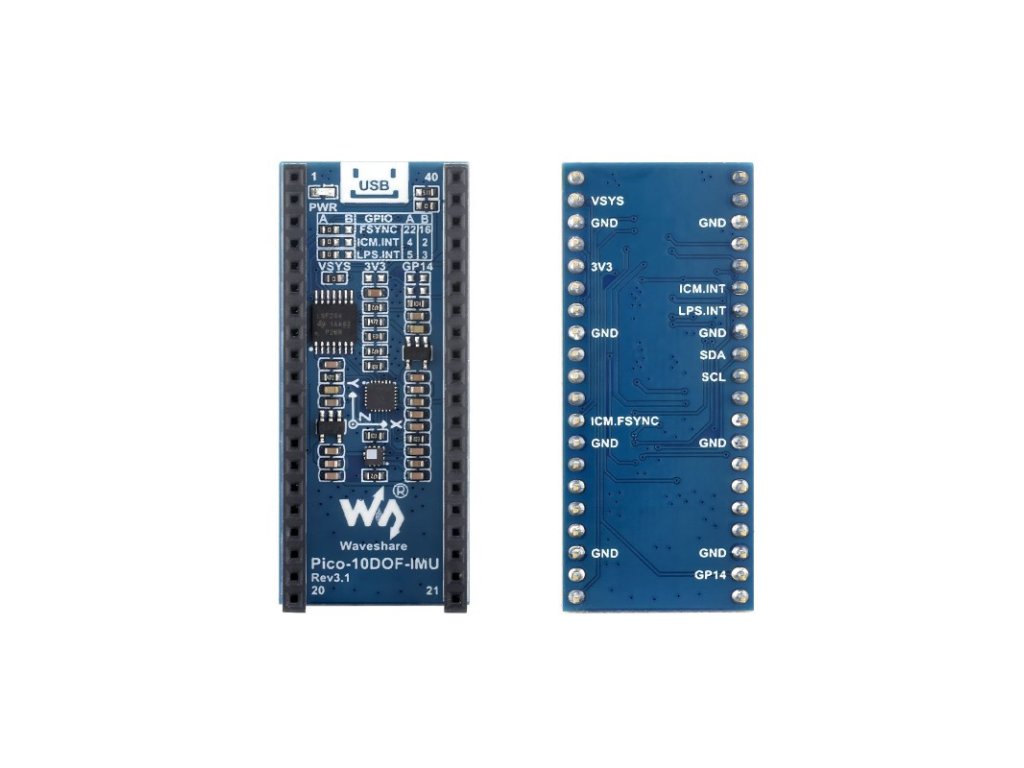

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
Onboard MPU9250 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE	5V
ACCELEROMETER	resolution: 16-bit measuring range (configurable): ±2, ±4, ±8, ±16g operating current: 450uA
GYROSCOPE	resolution: 16-bit measuring range (configurable): ±250, ±500, ±1000, ±2000°/sec operating current: 3.2mA
MAGNETOMETER	resolution: 14-bit measuring range: ±4800µT operating current: 280uA
BAROCEPTOR	measuring range: 260 ~ 1260hPa measuring accuracy (ordinary temperature): ±0.025hPa measuring speed: 1Hz - 75Hz
