100X Industrial Microscope Lens, C/CS-Mount, Compatible With Raspberry Pi HQ Camera
100X Industrial Microscope Lens, C/CS-Mount, Compatible With Raspberry Pi HQ Camera
SKU: 24229
100X Industrial Microscope Lens, C/CS-Mount, Compatible With Raspberry Pi HQ Camera
Specifications
| Optical magnification | 0.12X ~ 1.8X | Zoom ratio | 15:01 |
|---|---|---|---|
| Image format | 1/2" | Mount | C/CS (C-CS adapter included) |
| Distortion | < -0.1% | Operating temperature | -20 ~ +80°C |
| Operating distance | 55 ~ 285mm | Object Distance | 2.4 ~ 36mm |
| Outline dimensions | Φ39 × 112mm | lens structure | aluminum alloy + 4 groups 5 elements |
- for reference only, due to the structural limitation of the microscope lens, additional fill light is required for illumination during use
- please refer to the package content for the detailed part list

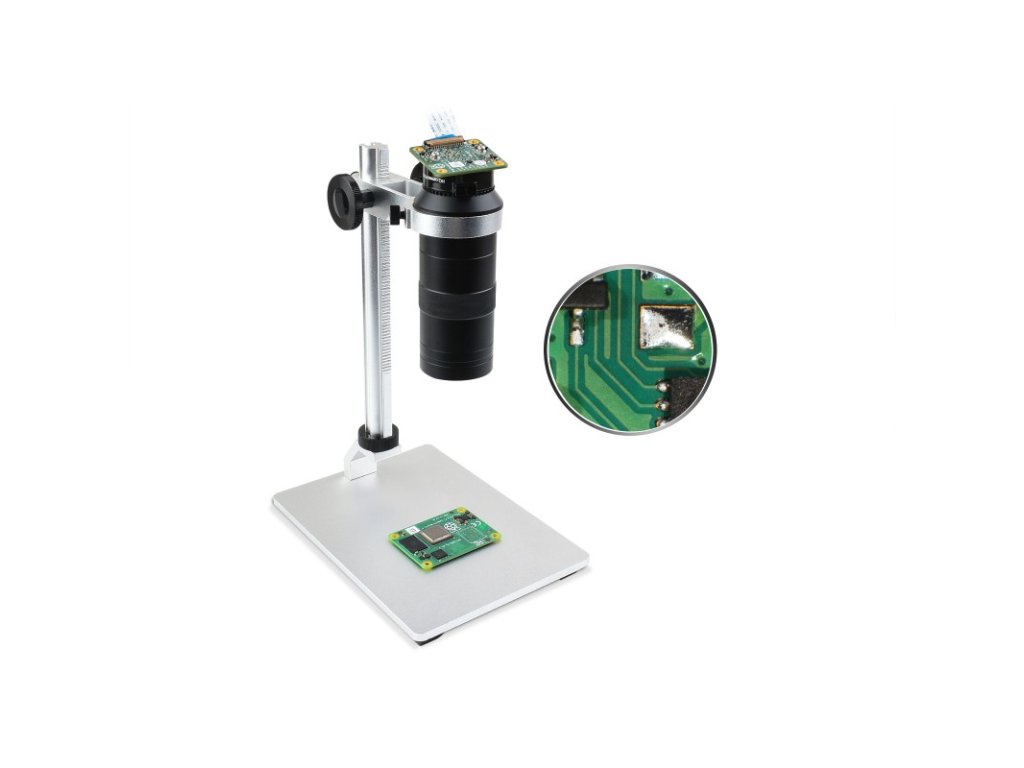

Working With Raspberry Pi
- Raspberry Pi boards and Raspberry Pi HQ Camera in the photos are NOT included
- To use with Raspberry Pi Zero or Zero 2W, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

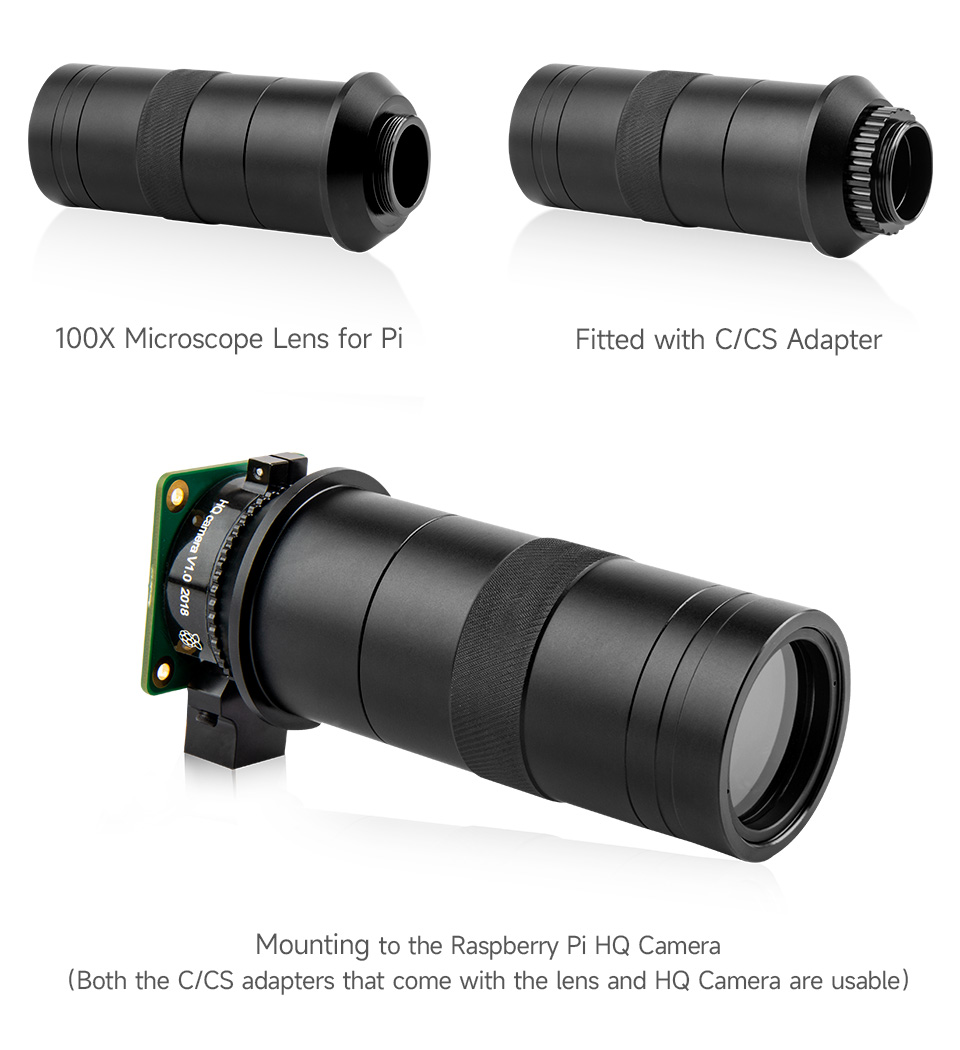

Product Show
Outline Dimensions

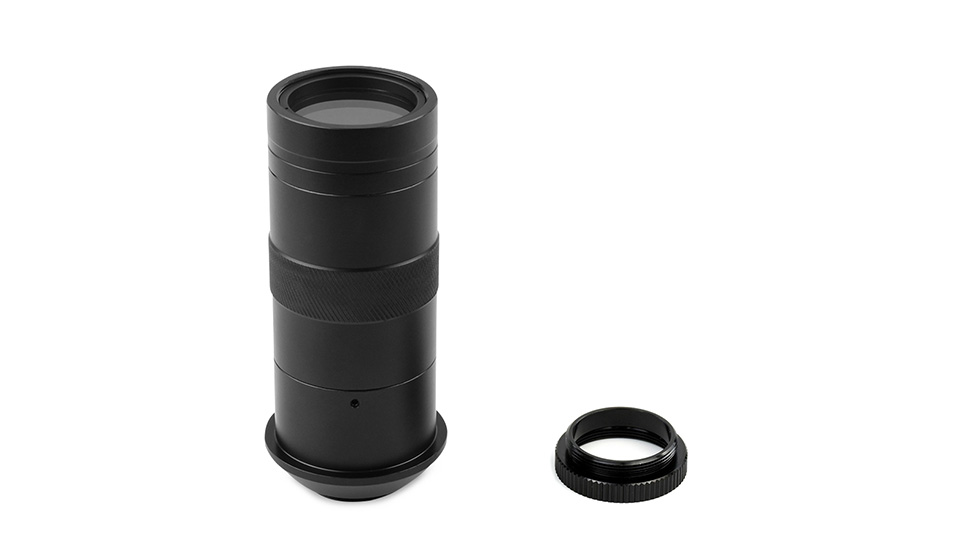

Balenie obsahuje:
Weight: 0.202 kg
100X Microscope Lens for Pi ×1
