12.3inch Capacitive Touch Display, In-Cell Technology, 1920x720, 178° Wide Viewing Angle, HDMI/Type

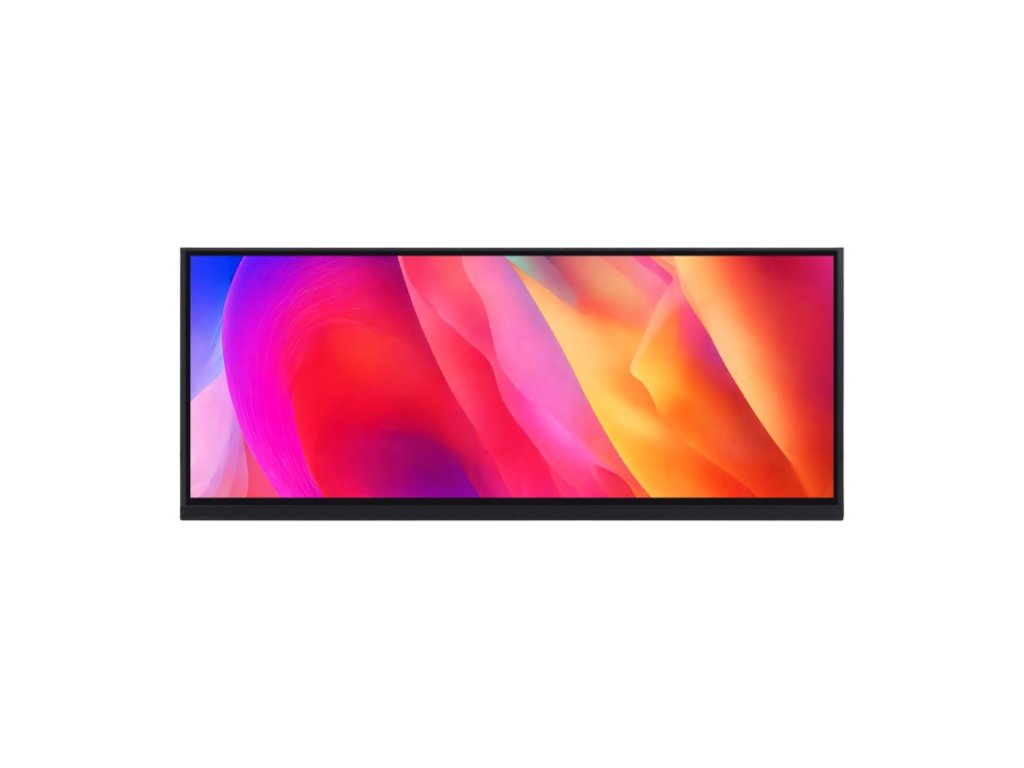

12.3inch Capacitive Touch Display, In-Cell Technology, 1920x720, 178° Wide Viewing Angle, HDMI/Type-C Display Interface, IPS Panel, 10-Point Touch
SKU: 28481
12.3inch Capacitive Touch Display, In-Cell Technology, 1920x720, 178° Wide Viewing Angle, HDMI/Type-C Display Interface, IPS Panel, 10-Point Touch
12.3inch Capacitive Touch Display, In-Cell Technology, 1920x720, 178° Wide Viewing Angle, HDMI/Type-C Display Interface, IPS Panel, 10-Point Touch
12.3″ Capacitive Touch Display
High Resolution | Multi-Point Touch | Full Color
- Size
12.3″ - Resolution
1920x720 - Display Interface
HDMI/Type-C - Display Panel
IPS - Viewing Angle
178° - Touch Type
Capacitive - Touch Points
10-Point - Touch Port
USB Type-C - Touch Panel
In-Cell - OSD Menu
Brightness/Contrast - Brightness
Supports DDC/CI control - Brightness
300cd/m² - Audio Output 1
3.5mm Jack - Audio Output 2
4PIN Header - Smartphone
Wired Projection
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
Huawei, Samsung, OPPO...(wired projection)
Connection Examples
Working with Raspberry Pi 5
Working with Jetson Series Board
Working with mini PC
Working with laptop
Working With Full-Featured Type-C Smartphone
- Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- In-Cell touch technology, built-in touch sensor for a lighter and thinner design
In-Cell Touch Panel Technology
Featuring a simplified structure with Ultra-narrow bezel and Slim thickness, while offering rapid response. Supports customization of glass cover shape and Logo
Normal Display
In-Cell Touch Display
Supports DDC/CI backlight adjustment
Full-featured Type-C interface
Support audio and video transmission, plug and play,
instantly zoom in the smartphone screen
(For supported mobile phone models, please contact customer service)
Interface Introduction
Dimensions
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Package Content
Weight: 0.766 kg
- 12.3inch 1920x720 LCD x1
- HDMI flat cable ~1m x1
- HDMI to Micro HDMI adapter x1
- USB-A to Type-C cable ~1m x1
- Type-C dual-plug cable x1
- Triangular stand x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen x1
- Cleaning cloth x1
