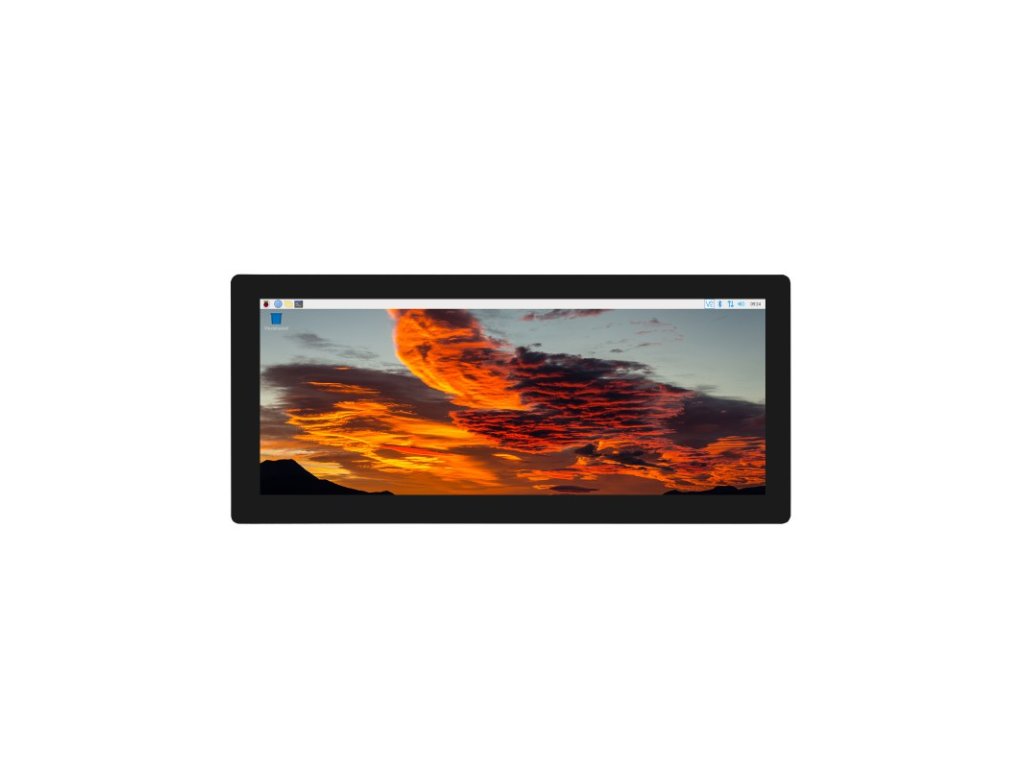

12.3inch Capacitive Touch Screen LCD, 1920×720, HDMI, IPS, Toughened Glass Panel

Neohodnotené

Značka: Waveshare

SKU: 22841

Dostupnosť	Zvyčajne do 3-7 dní
Môžeme doručiť do:	15.11.2024
Možnosti doručenia
Kód:	23806

138 € / ks 115 € bez DPH

12.3inch Capacitive Touch Screen LCD, 1920×720, HDMI, IPS, Toughened Glass Panel

Neohodnotené

Značka: Waveshare

12.3inch Capacitive Touch Screen LCD, 1920×720, HDMI, IPS, Toughened Glass Panel

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

12.3inch Capacitive Touch Screen LCD, 600 cd/m², 1920×720, HDMI, IPS, Toughened Glass Panel

12.3″ HDMI Touch Display

Size12.3″
Resolution1920×720
Display InterfaceHDMI
Display PanelIPS
Viewing Angle178°
Touch TypeCapacitive
Touch Points10-point
Touch PortUSB
Touch PanelToughened Glass
OSD MenuBrightness/Contrast
Audio Output13.5mm Jack
Audio Output24PIN Header
Brightness600 cd/m²
Touch Panel TechOptical Bonding
Temperature Range-20~70°C

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series

Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

Supports Ubuntu, single point touch, driver free

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

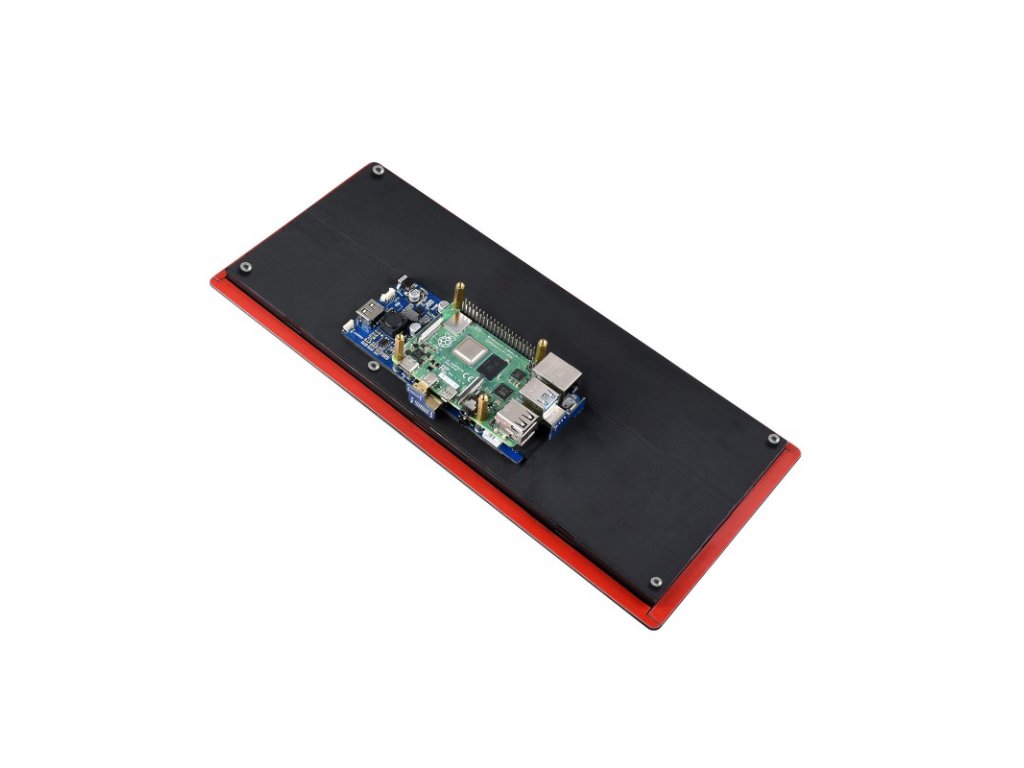

Working with Raspberry Pi 5

Working with Raspberry Pi 4

Working with Raspberry Pi Pi 3B+

Working with AI Computer Jetson Nano

Working with mini PC

Working with Tinker Board 2

Display

IPS Panel

Touch Control

1) up to 10-point touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) optical bonding, display well and dustproof

Application examples
