13.3inch e-Paper Display (B), E-Ink Display, 960×680 pixels, Red / Black / White, SPI Communication
13.3inch e-Paper Display (B), E-Ink Display, 960×680 pixels, Red / Black / White, SPI Communication, Partial Refresh Support, Optional for e-Paper Driver HAT
SKU: 27236
13.3inch e-Paper Display (B), E-Ink Display, 960×680 pixels, Red / Black / White, SPI Communication, Partial Refresh Support, Optional for e-Paper Driver HAT SKU: 27236
13.3inch E-Paper Display (B), E-Ink Display, 960×680 Pixels, Red / Black / White, SPI Communication, Partial Refresh Support, Optional For E-Paper Driver HAT

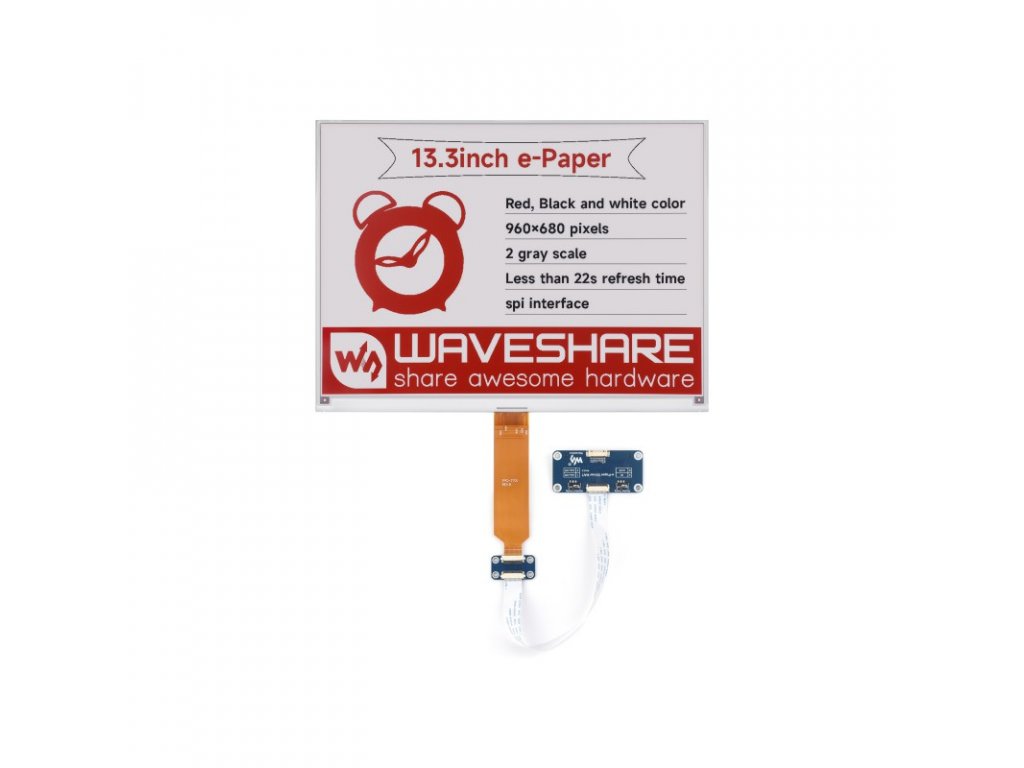

13.3″ E-Paper Display (B)
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
Note: the e-Paper Driver HAT and accessories are optional, please refer to the Package Content for detailed part list
- Size
13.3" - Resolution
960×680 - Viewing Angle
>170° - Display Color
Red / Black / White - Grey Scale
2 - Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective - Refreshing
Partial Refresh Support
Version Options
13.3inch e-Paper (B)

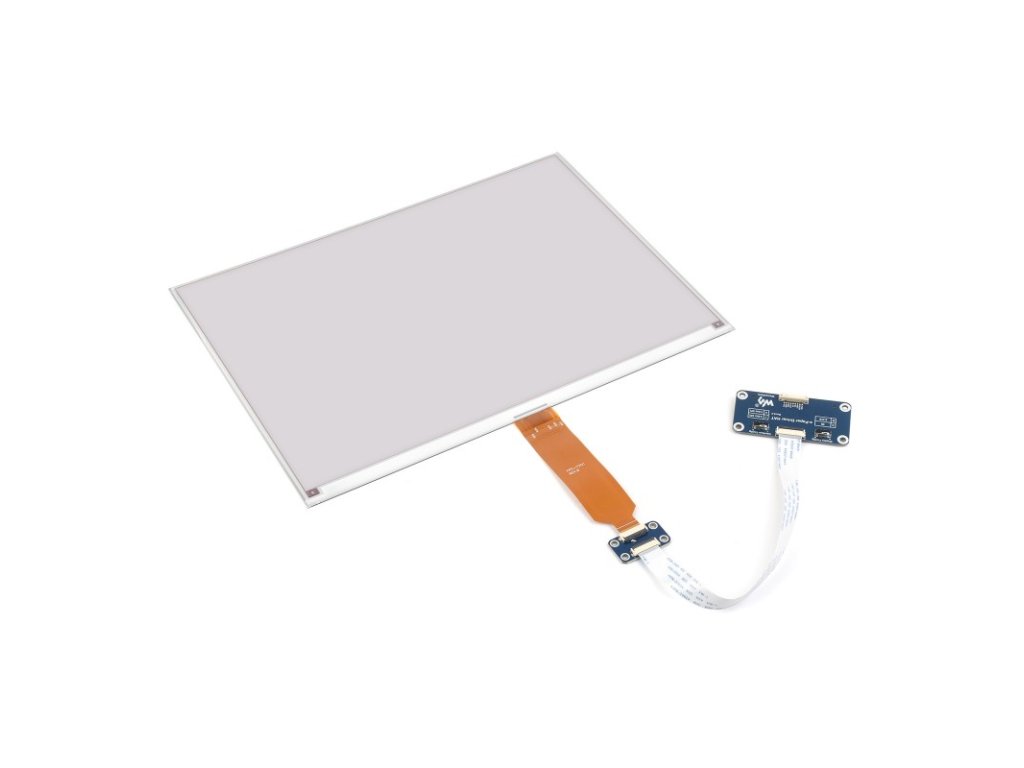

raw display, without driver board
13.3inch e-Paper HAT (B)

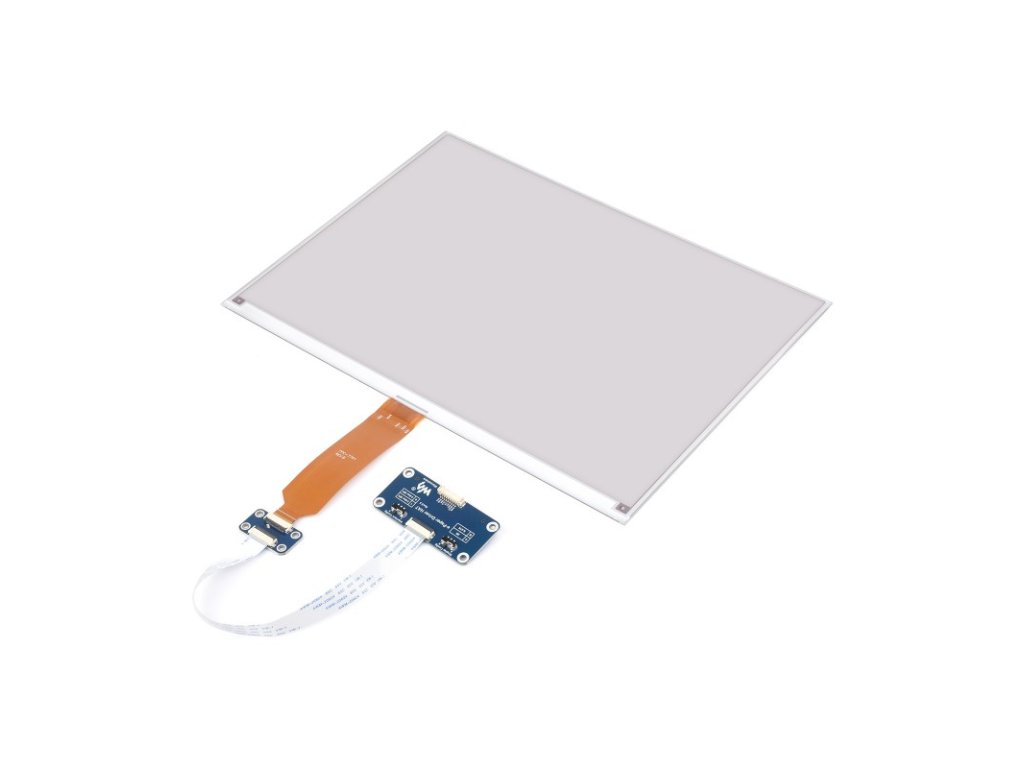

with e-Paper Driver HAT
Features At A Glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
- Optional for e-Paper Driver HAT:
- With standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| OPERATING VOLTAGE | Raw display: 3.3V | GREY SCALE | 2 |
|---|---|---|---|
| e-Paper Driver HAT: 3.3V/5V | |||
| INTERFACE | 3-wire SPI, 4-wire SPI | PARTIAL REFRESH TIME | 2.9s |
| DISPLAY DIMENSIONS | 286.32 × 212.26 × 1.20mm | FULL REFRESH TIME | 22s |
| DISPLAY AREA | 275.52 × 195.16mm | REFRESH POWER | 75mW |
| DOT PITCH | 0.287 × 0.287mm | STANDBY CURRENT | <0.01uA (almost none) |
| RESOLUTION | 960 × 680 pixels | VIEWING ANGLE | >170° |
| DISPLAY COLOR | red, black, white | ||
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Optional For E-Paper Driver HAT

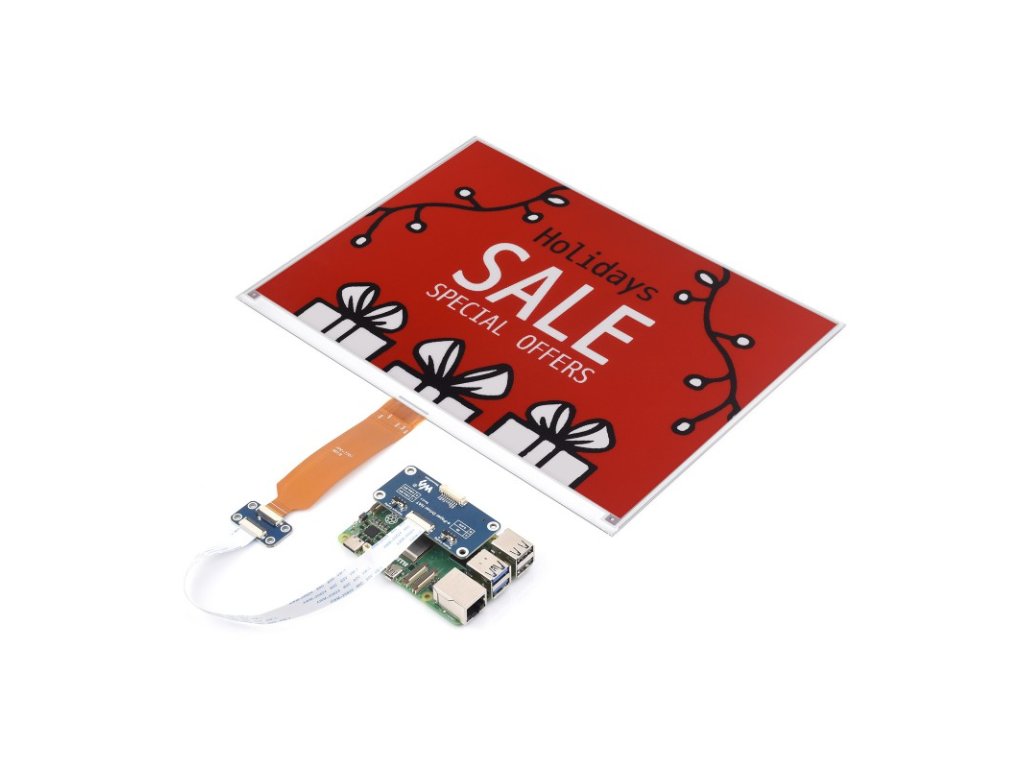

Standard Raspberry Pi 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards / Jetson Nano
Raspberry Pi 5 in the photo is NOT included.
Onboard SPI Control Interface
On E-Paper Driver HAT
On E-Paper Driver HAT
For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32
| VCC | 3.3V/5V |
|---|---|
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data / Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output |
| PWR | Power on/off control |
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Outline Dimensions
