2.8inch Touch LCD Shield for Arduino
SKU: 10684

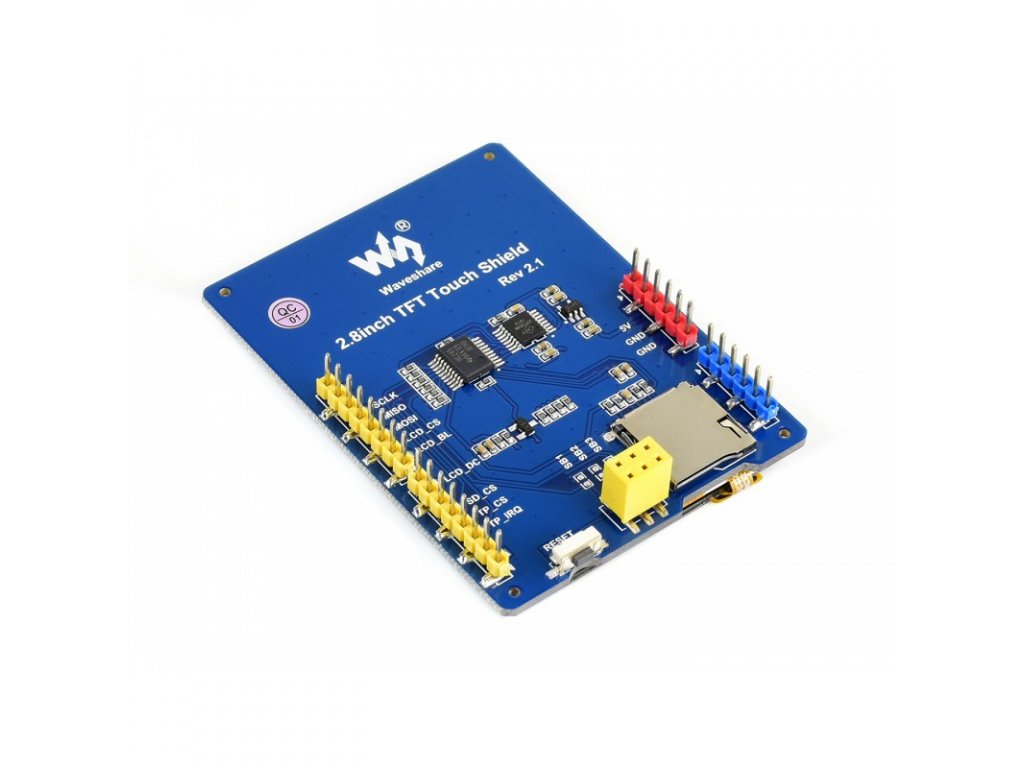

2.8inch Touch LCD Shield for Arduino

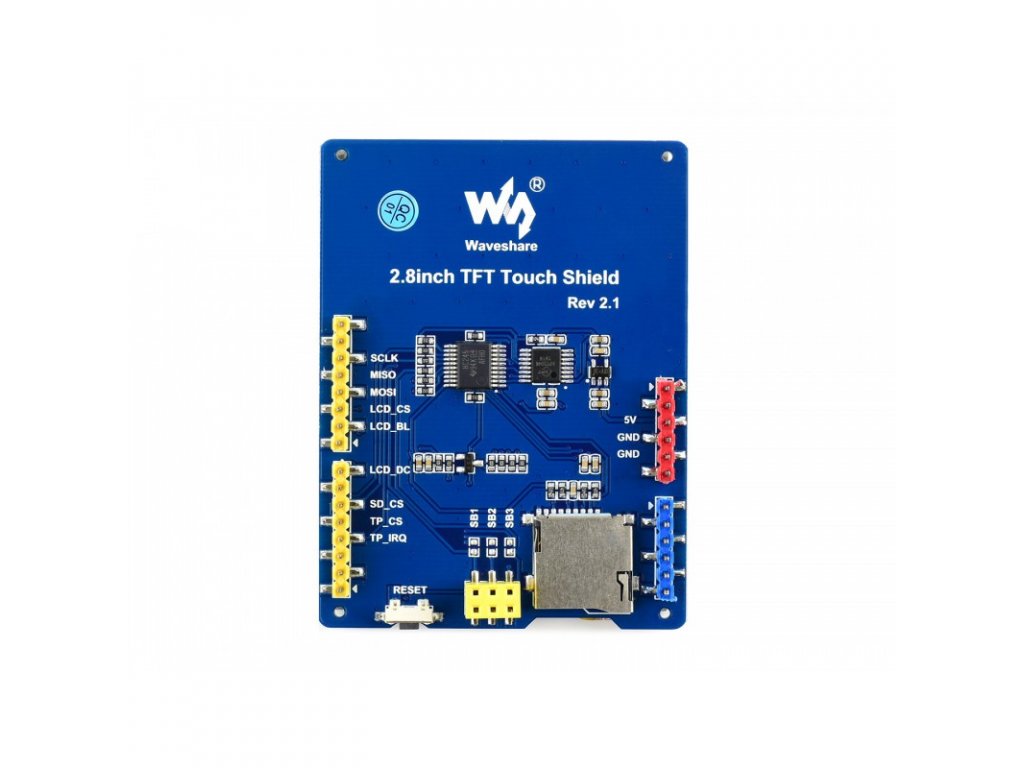

LCD TYPE | TFT |
---|---|
LCD INTERFACE | SPI |
LCD CONTROLLER | ST7789 |
TOUCH SCREEN TYPE | Resistive |
TOUCH SCREEN CONTROLLER | XPT2046 |
COLORS | RGB, 65K colors |
RESOLUTION | 320x240 (Pixel) |
I/O VOLTAGE | 3.3V/5V |
ARDUINO PIN | SYMBOL | DESCRIPTION |
---|---|---|
D3 | TP_IRQ | Touch panel interrupt |
D4 | TP_CS | Touch panel chip select |
D5 | SD_CS | Micro SD card chip select |
D7 | LCD_DC | LCD data/command selection |
D9 | LCD_BL | LCD backlight control |
D10 | LCD_CS | LCD chip select |
D11 | MOSI | SPI data input |
D12 | MISO | SPI data output |
D13 | SCLK | SPI clock |
Wiki : www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield
PART NUMBER | DRIVER | CONTROLLER | RESOLUTION | DISPLAY SIZE (MM) | OUTLINE DIMENSION (MM) |
---|---|---|---|---|---|
2.8inch TFT Touch Shield | ST7789 | XPT2046 | 320x240 | 57.6 x 43.2 | 73.3 x 55.3 |
3.5inch TFT Touch Shield | ILI9486 | XPT2046 | 480x320 | 74.2 x 49.8 | 86.0 x 57.2 |
4inch TFT Touch Shield | ILI9486 | XPT2046 | 480x320 | 84.3 x 56.5 | 95.0 x 62.0 |

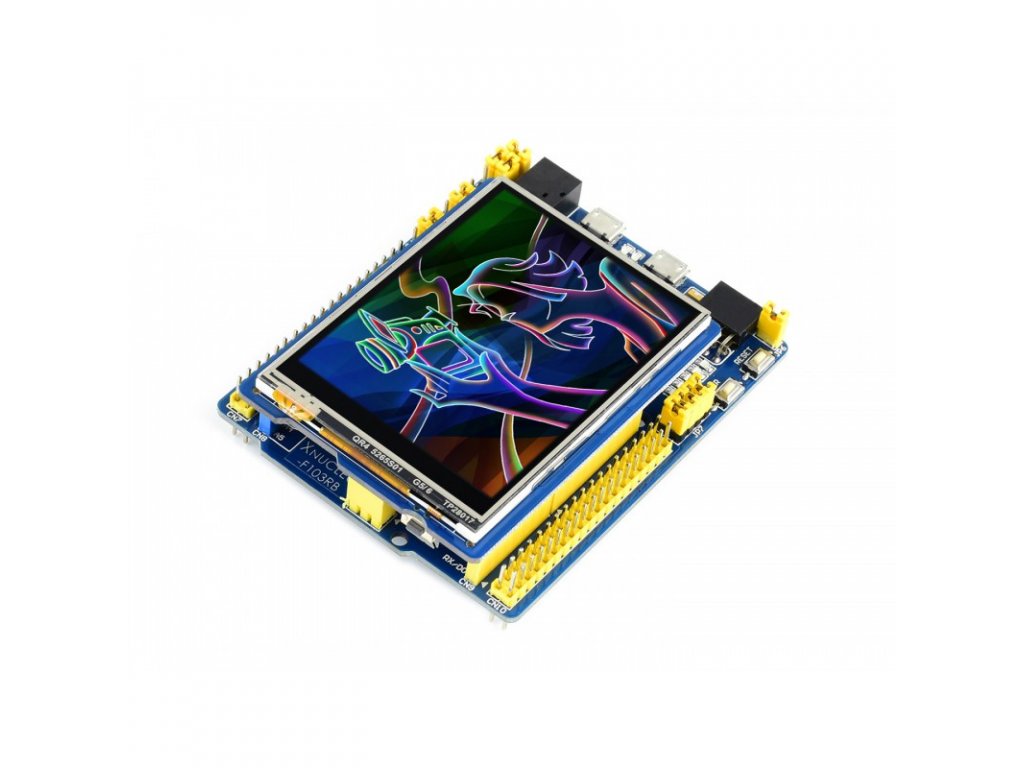

Have a look (when plugged into an XNUCLEO control board):
