    Domov / IoT - moduly / Zvukové moduly , Audio zosilňovače a Reproduktory / 2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector

    2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector

    Neohodnotené
    Značka: Waveshare

    2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector

    SKU: 27745

    Dostupnosť Skladom (8 ks)
    Môžeme doručiť do:
    27.11.2024
    Možnosti doručenia
    Kód: 23570
    3,60 € / ks 3 € bez DPH
    2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector
    Neohodnotené
    Značka: Waveshare
    2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector

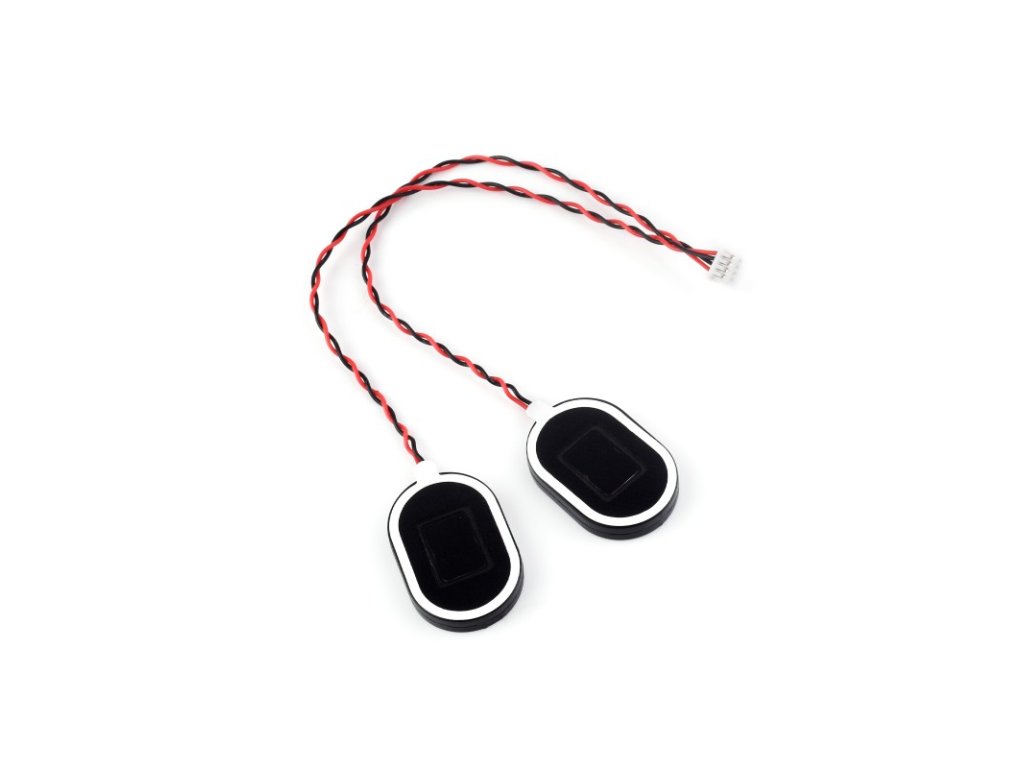

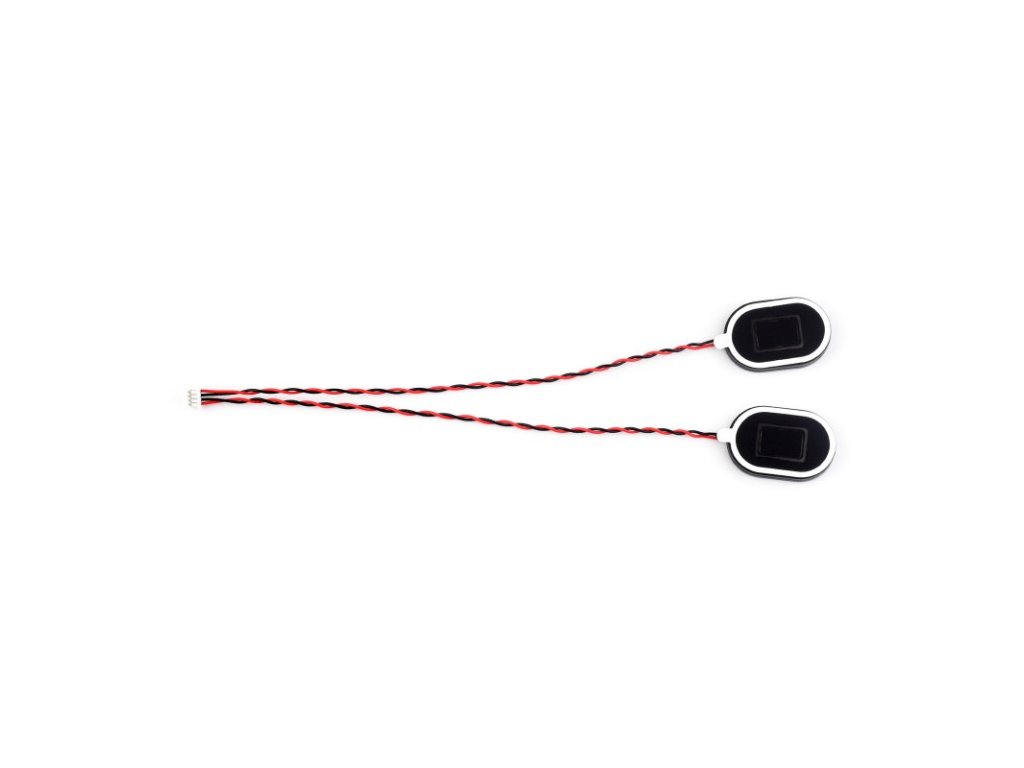

    2030 8Ω 2W cavity speaker

    compact size | high-quality sound | built-in Sound Cavity

     8Ω 2W Speaker, front view

    Specifications
    Frequency band 0 ~ 20KHz
    impedance 8 ± 15%Ω
    power 2W
    operating temperature -20 ~ 55℃
    Wire Spec 4PIN PH1.25 connector, approx. 150mm cable length
    size 20 × 30 × 5.5mm
    Waveshare products support Including but not limited to:
    8DP-CAPLCD
    8inch 768x1024 LCD
    9.3inch 1600x600 LCD
    9.7inch 768x1024 LCD
    10.1DP-CAPLCD
    10.4HP-CAPQLED

    compact size, high-quality sound

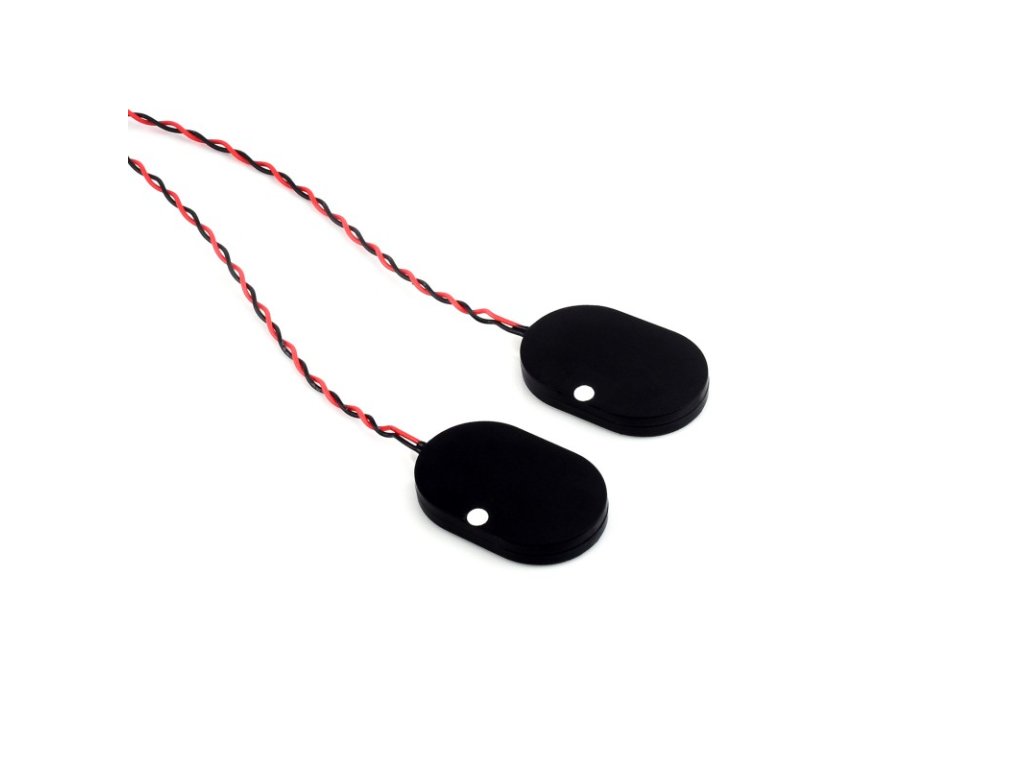

    Similar in size to a coin, thin design for easy integration

    8Ω 2W Speaker, thin design

    Frequency Response Curve
    8Ω 2W Speaker, frequency response curve

    Connecting to an HDMI Display
    8Ω 2W Speaker, example of connecting to an HDMI display

    Product Details

    8Ω 2W Speaker, product details

    Outline Dimensions

    8Ω 2W Speaker, outline dimensions

    Balenie obsahuje :

    Package Contains

    8Ω 2W Speaker x1

    8Ω 2W Speaker
