    2030 Cavity Speaker Type B, 8Ω 2W, High-Quality Sound, Compact Size, 2PIN PH1.25 Connector
    2030 8Ω 2W Cavity Speaker

    Compact Size | High-Quality Sound | Built-In Sound Cavity

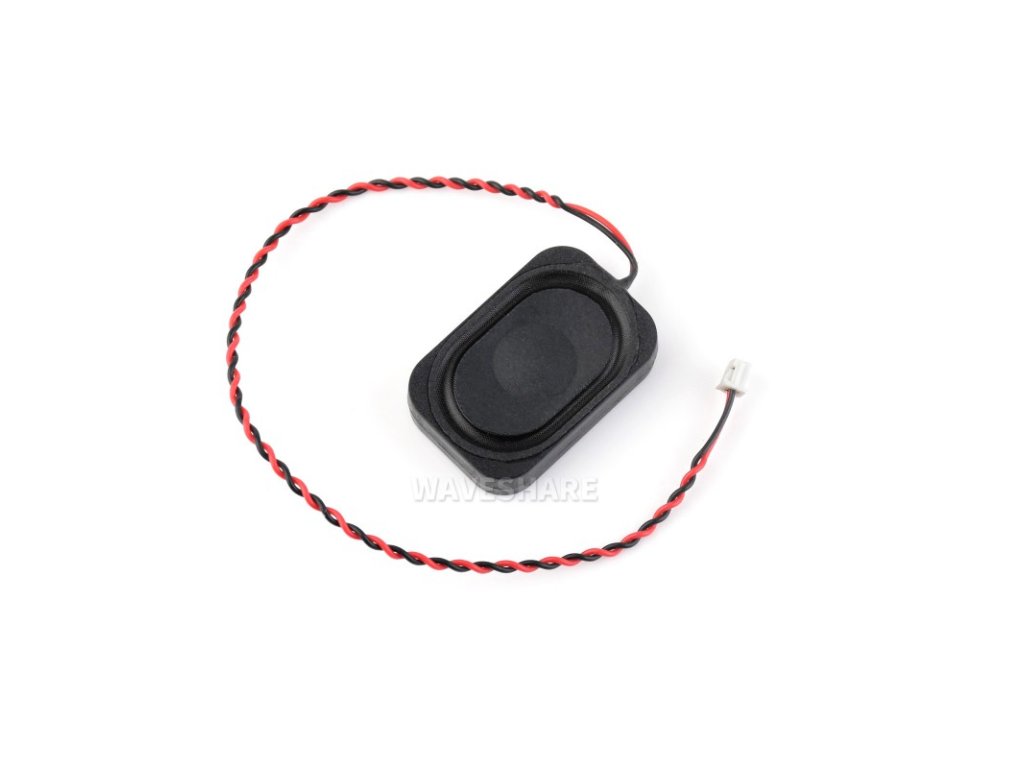

     8Ω 2W Speaker (B), front view

    Specifications
    FREQUENCY BAND 0 ~ 20KHz
    IMPEDANCE 8 ± 20%Ω
    POWER 2W
    OPERATING TEMPERATURE -20 ~ 55℃
    WIRE SPEC 2PIN PH1.25 connector, approx. 120mm cable length
    SIZE 20 × 30 × 6.8 mm
    WAVESHARE PRODUCTS SUPPORT Including but not limited to:
    6.25inch 720x1560 LCD
    Luckfox Pico Ultra series

    Compact Size, High-Quality Sound

    Similar In Size To A Coin, Thin Design For Easy Integration

    8Ω 2W Speaker (B), thin design

    Frequency Response Curve
    8Ω 2W Speaker (B), frequency response curve

    Impedance Curve
    8Ω 2W Speaker (B), impedance response curve

    Connecting To Luckfox Pico Ultra Development Board
    8Ω 2W Speaker (B), connection example of Luckfox Pico Ultra development board

    * the Luckfox Pico Ultra is NOT included, please purchase separately if needed.


    Product Details

    8Ω 2W Speaker (B), product details

    Outline Dimensions

    8Ω 2W Speaker (B), outline dimensions

    PACKAGE CONTENT

    Weight: 0.005 kg

    8Ω 2W Speaker (B) x1

    8Ω 2W Speaker (B)
