2D Codes Scanner Module (C), Supports High Accuracy Barcode Scanning, Barcode/QR code Reader

Neohodnotené

Značka: Waveshare

SKU: 24468

Dostupnosť	Skladom (2 ks)
Môžeme doručiť do:	30.12.2024
Možnosti doručenia
Kód:	20791

48,20 € / ks 40,17 € bez DPH

2D Codes Scanner Module (C), Supports High Accuracy Barcode Scanning, Barcode/QR code Reader

Neohodnotené

Značka: Waveshare

2D Codes Scanner Module (C), Supports High Accuracy Barcode Scanning, Barcode/QR code Reader

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

2D Codes Scanner Module (C), Supports High Accuracy Barcode Scanning, Barcode/QR code Reader

2D Codes Scanner Module (C), Supports High Accuracy Barcode Scanning, Barcode/QR Code Reader

2D Codes Scanner Module

1D/2D Codes Recognition | High Accuracy | Screen Scanning

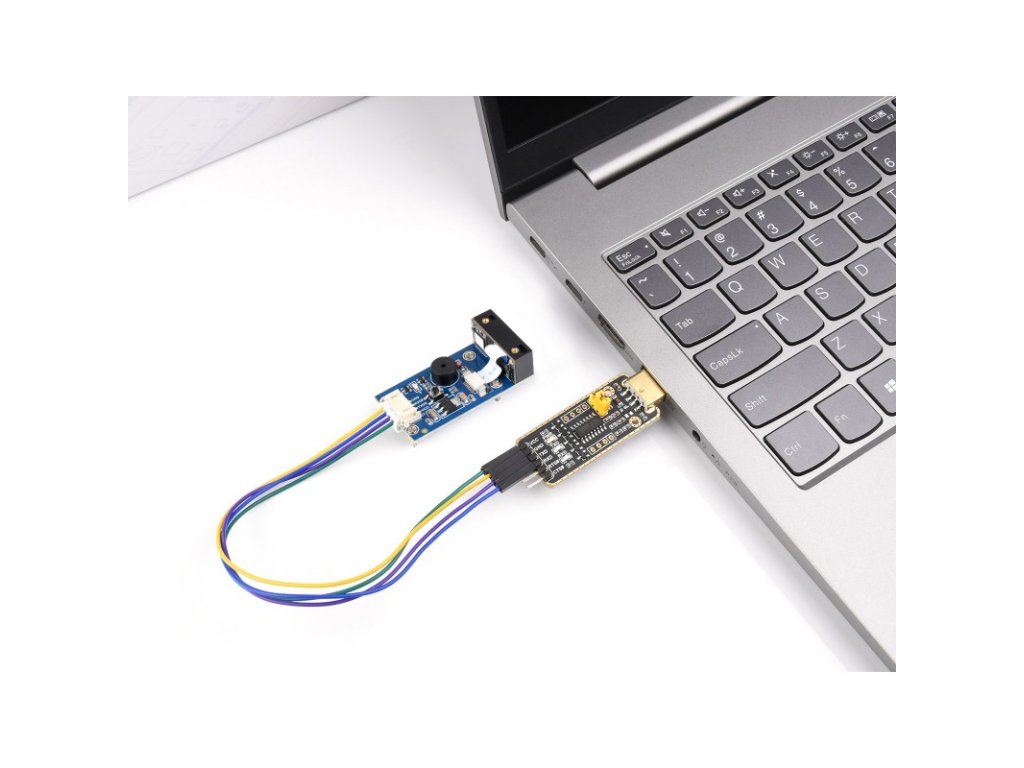

The Barcode Scanner Module (C) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

Comparison

MODEL		Barcode Scanner Module (C)	Barcode Scanner Module
RESOLUTION		640 × 480	648 × 488
SCAN ANGELS		pitch ±60°, skew ±60°, roll 360°	pitch ±60°, skew ±65°, roll 360°
SCAN MODE		Sensing, Continuous, Manual (default)
ACCURACY		1D Codes 3mil 2D Codes 5mil	-
COMMUNICATION INTERFACE		USB keyboard mode (default), USB virtual port, UART port
LIGHT SOURCE		White (Lighting) + Green (Aiming), both are visible light	White (Lighting) + Red (Aiming), both are visible light
POWER SUPPLY		5V / 3.3V	5V
CURRENT	OPERATING	250mA	135mA
	STANDBY	20mA	58mA
	BOOT	258mA	-
TEMPERATURE	OPERATING	-20 ~ +60°C
TEMPERATURE	STORAGE	-40 ~ +70°C	-30 ~ +70°C

Decoding Capability

CODE TYPE	BARCODE	BARCODE SCANNER MODULE (C)		BARCODE SCANNER MODULE
CODE TYPE	BARCODE	READABLE	DEFAULT READABLE	READABLE	DEFAULT READABLE
2D	QR Code	√	√	√	√
	Micro QR	√
	DataMatrix	√	√
	PDF417	√	√	√
	Micro PDF417	√
	Aztec	√
1D	EAN-13	√	√	√
	EAN-8	√	√	√
	UPC-A	√	√	√
	UPC-E	√	√	√
	ISSN	√
	ISBN	√
	Codabar	√	√
	Code 128	√	√		√
	Code 93	√	√
	Code 39	√	√	√
	Code 11	√		√
	ITF-14	√
	ITF-6	√
	Interleaved 2 of 5	√		√
	Industrial 2 of 5	√
	Matrix 2 of 5	√		√
	CS Databar(RSS)	√		√
	MSI-Plessey	√		√
