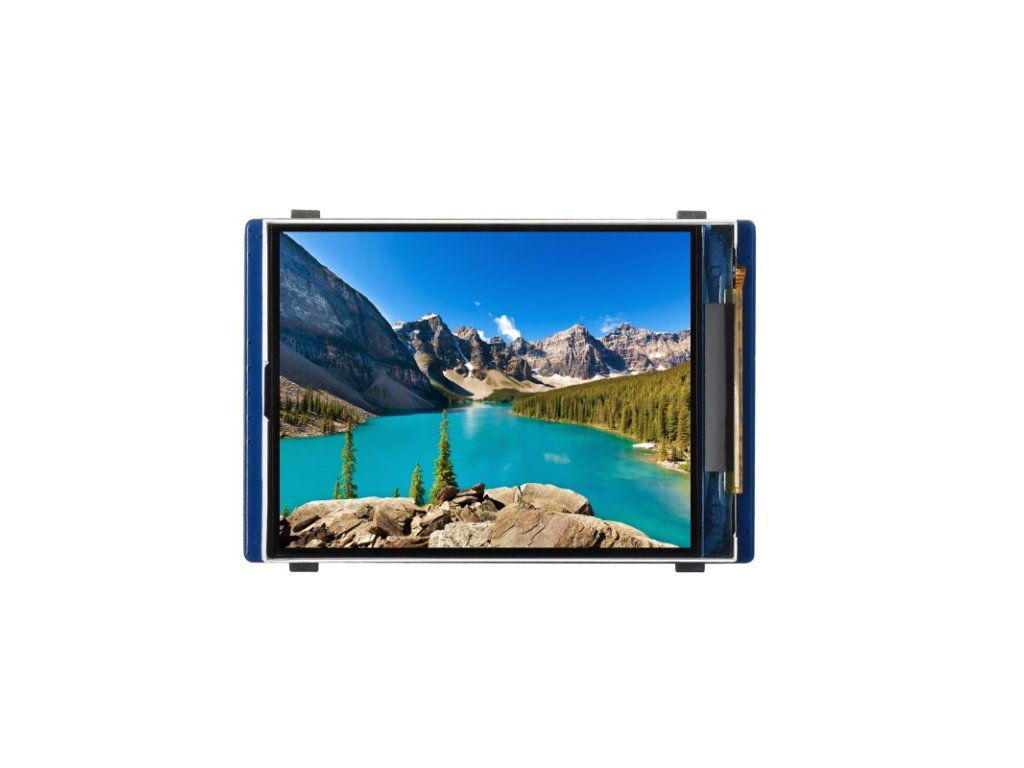

2inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 320×240, SPI
2inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 320×240, SPI
SKU: 19888
2inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 320×240, SPI
2inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 320×240 Pixels, SPI Interface
2" LCD Display Module For Pico
Embedded ST7789VW Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
- Size
2" - Resolution
320×240 - Display Color
65K RGB - Interface
SPI - Display Panel
IPS - Driver
ST7789VW
Features At A Glance
- 320×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| OPERATING VOLTAGE | 2.6 ~ 5.5V | RESOLUTION | 320×240 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 40.80 × 30.60mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.1275 × 0.1275mm |
| DRIVER | ST7789VW | DIMENSIONS | 52.00 × 35.00mm |

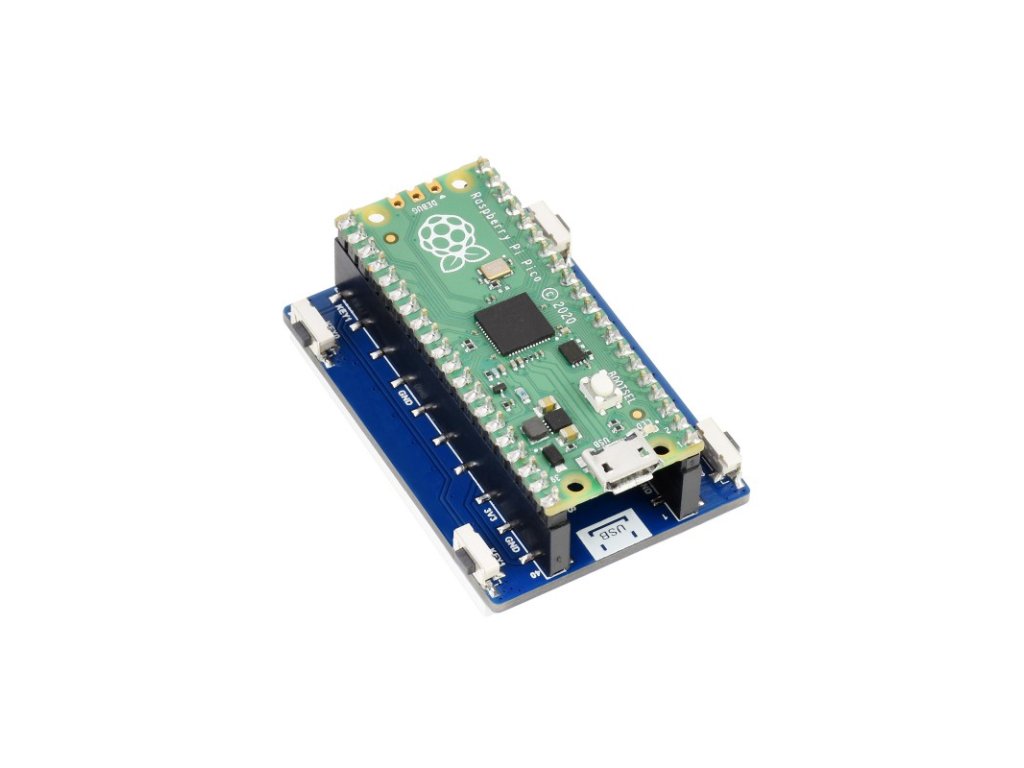

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
4x User Buttons For Easy Interacting
Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
PACKAGE CONTENT
Weight: 0.017 kg
- Pico-LCD-2 x1
