3.4inch DSI Round Touch Display, 800 × 800, IPS, 10-Point Touch
3.4inch DSI Round Touch Display, 800 × 800, IPS, 10-Point Touch
SKU: 24321
3.4inch DSI Round Touch Display, 800 × 800, IPS, 10-Point Touch
3.4inch DSI Round Touch Display, 800 × 800, IPS, 10-Point Touch
- Size
3.4″ - Resolution
800×800 - Display Interface
DSI - Display Panel
IPS - Viewing Angle
170° - Touch Type
Capacitive - Touch Points
10-Point - Touch Interface
I2C - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver required
Supports Pi 5/4B/3B+/3A+, CM3/3+/4*
* some CM3/3+/4 base boards require extra adapter cable
Connection Examples
Working with Raspberry Pi 5
Working with Raspberry Pi 4B
Working with Raspberry Pi 3B+
for reference only, the Raspberry Pi boards are not included.
IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Adjustable Brightness Via Software
Interface Introduction
Application Examples
Smart Home
In-vehicle Devices
Consumer Electronics
Industrial Equipments

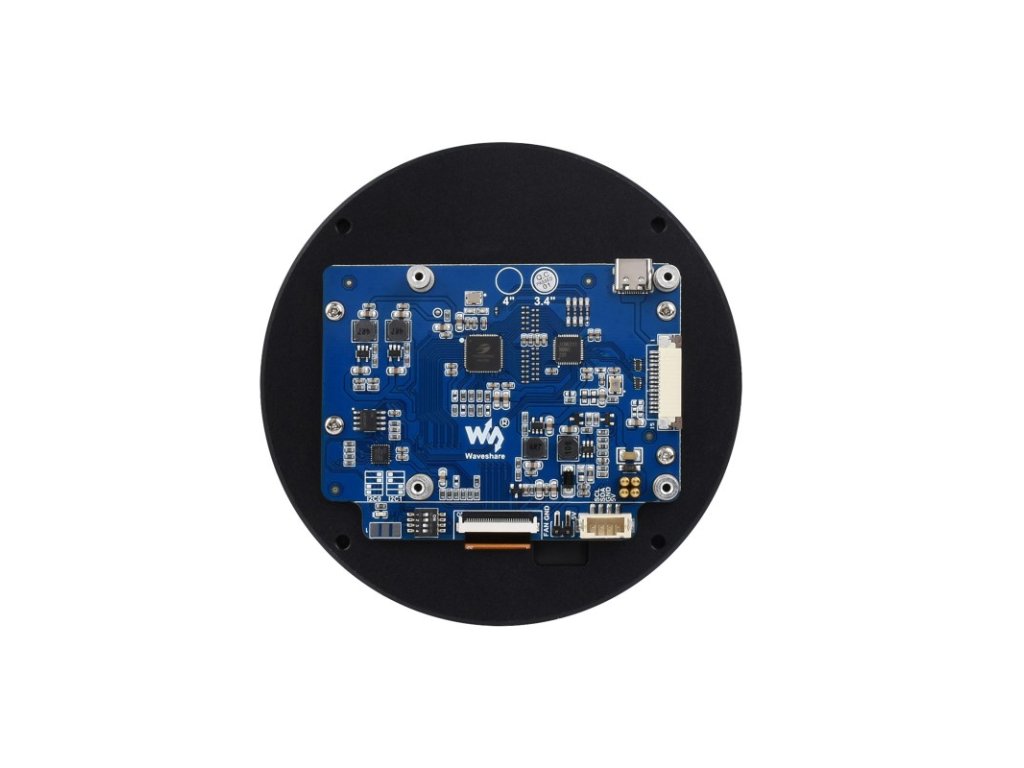

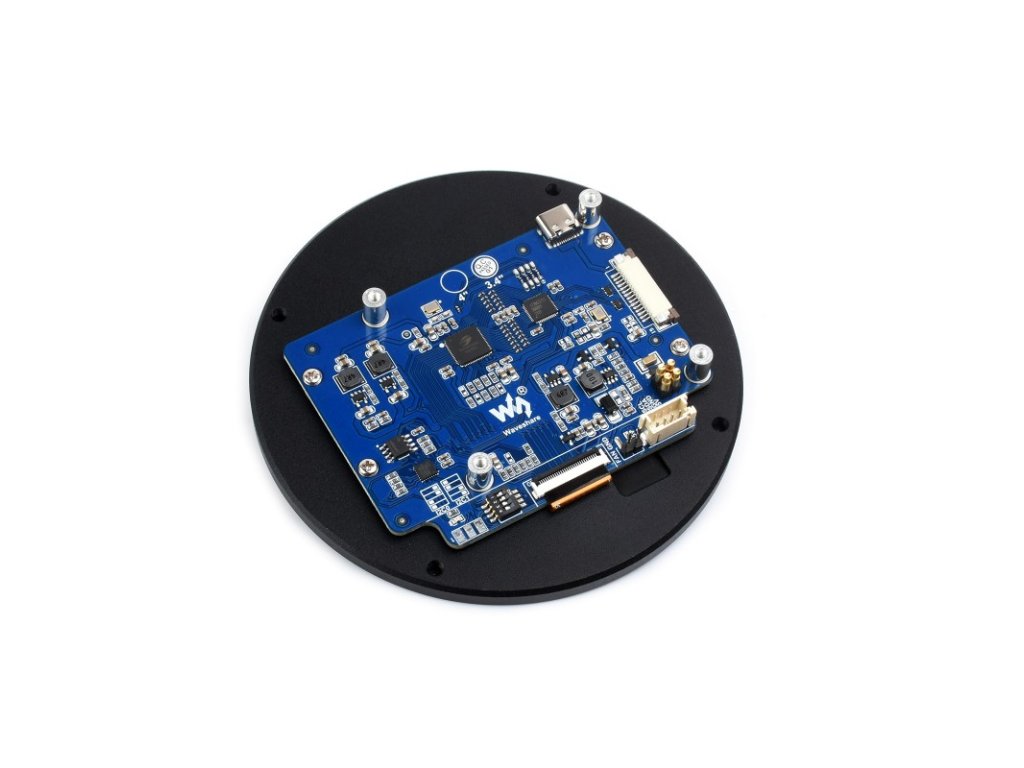

Product show
Dimensions
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Package Content
Weight: 0.164 kg
- 3.4inch DSI LCD (C) x1
- FPC 15 PIN cable (~ 50mm) x1
- DSI-Cable-12cm x1
- FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
- PH2.0 4PIN cable (~ 200mm) x1
- Screws pack x1
