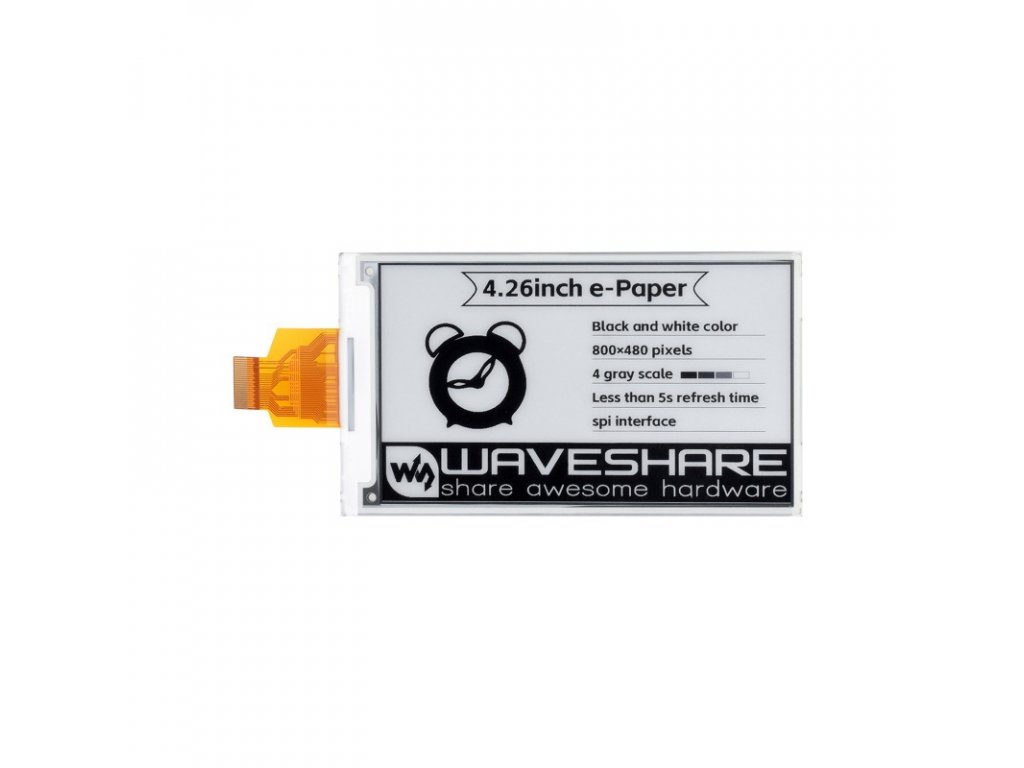

4.26inch E-Paper raw display, 800x480, Black/White, SPI Communication

Neohodnotené

Značka: Waveshare

SKU: 26175

Dostupnosť	Zvyčajne do 3-7 dní
Môžeme doručiť do:	29.11.2024
Možnosti doručenia
Kód:	22432

33,40 € / ks 27,83 € bez DPH

4.26inch E-Paper raw display, 800x480, Black/White, SPI Communication

Neohodnotené

Značka: Waveshare

4.26inch E-Paper raw display, 800x480, Black/White, SPI Communication

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

4.26inch E-Paper raw display, 800x480, Black/White, SPI Communication

4.26inch E-Paper Raw Display, 800x480, Black/White, SPI Communication

4.26″ E-Paper

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

Size4.26″
Resolution800×480
Viewing Angle>170°
Display ColorBlack/White
Grey Scale4
CommunicationSPI
Display PanelE-paper
ExperiencePaper-like
EnvironmentAmbient Light Required
Display TypePassively Reflective
RefreshingPartial Refresh Support

Features At A Glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

OPERATING VOLTAGE	3.3V	DISPLAY COLOR	Black/White
INTERFACE	3-wire SPI, 4-wire SPI	GREY SCALE	4
OUTLINE DIMENSIONS	129.33 × 62.37 × 0.93mm	FULL REFRESH TIME	4s
DISPLAY SIZE	92.80 × 55.68mm	PARTIAL REFRESH TIME	0.7s
DOT PITCH	0.116 × 0.116mm	REFRESH POWER	<35mW
VIEWING ANGLE	>170°	STANDBY CURRENT	<0.01uA (almost none)
RESOLUTION	800 × 480 pixels

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

This Is Raw Display Without Driver Board

To Test And Compare This Raw Display Easily, It Is Recommended To Purchase The Following Solutions:

	4.26inch e-apper with driver board 4.26inch e-Paper HAT	Click here to purchase
	Universal e-Paper Raw Panel Driver HAT e-Paper Driver HAT	Click here to purchase
	Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wireless e-Paper ESP32 Driver Board	Click here to purchase
	Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi Wireless e-Paper ESP8266 Driver Board	Click here to purchase
	Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEO e-Paper Shield	Click here to purchase
