4inch DSI Round Touch Display, 720 × 720, IPS, 10-Point Touch

Neohodnotené
Značka: Waveshare

4inch DSI Round Touch Display, 720 × 720, IPS, 10-Point Touch

SKU: 24603

Dostupnosť Zvyčajne do 3-7 dní
Môžeme doručiť do:
8.1.2025
Možnosti doručenia
Kód: 24124
108 € / ks 90 € bez DPH
4inch DSI Round Touch Display, 720 × 720, IPS, 10-Point Touch
Neohodnotené
Značka: Waveshare

4inch DSI Round Touch Display, 720 × 720, IPS, 10-Point Touch

4inch DSI Round Touch Display, 720 × 720, IPS, 10-Point Touch
4″ Round Touch Display

High Resolution | Multi-touch | Full Color




  • Size4″
  • Resolution720×720
  • Display InterfaceDSI
  • Display PanelIPS
  • Viewing Angle170°
  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch InterfaceI2C
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding

Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver required

Supports Pi 5/4B/3B+/3A+, CM3/3+/4*

* some CM3/3+/4 base boards require extra adapter cable

Connection Examples

Working with Raspberry Pi 5



Working with Raspberry Pi 4B



Working with Raspberry Pi 3B+


for reference only, the Raspberry Pi boards are NOT included.

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

10-Point Capacitive Touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

Adjustable Brightness Via Software

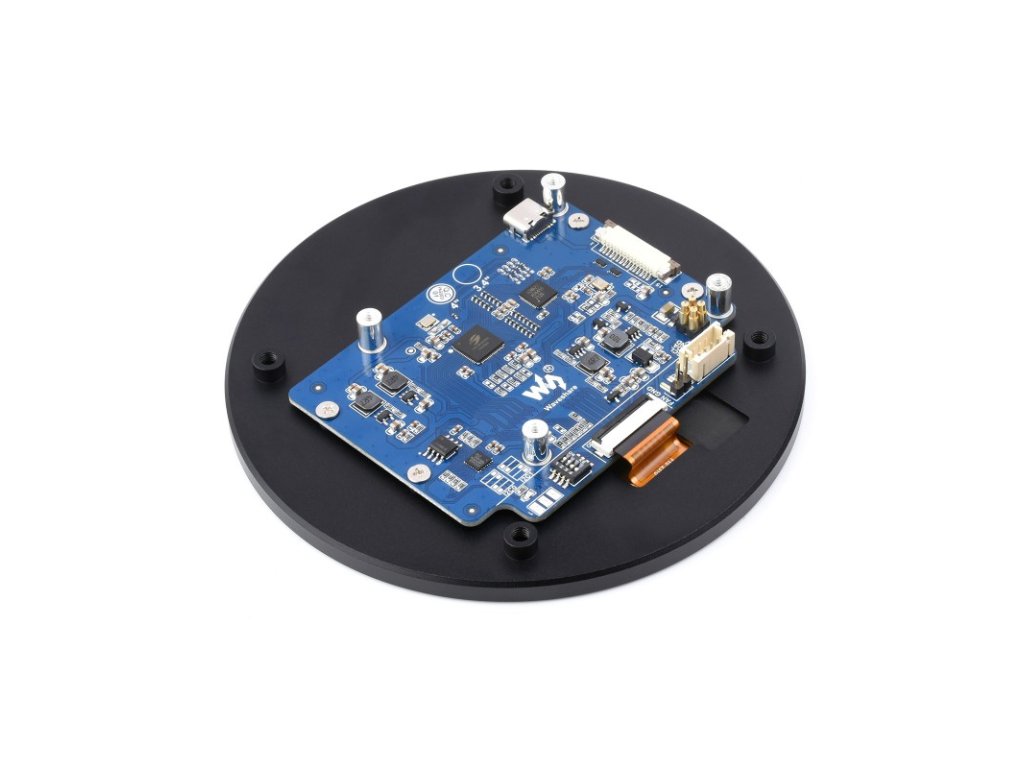

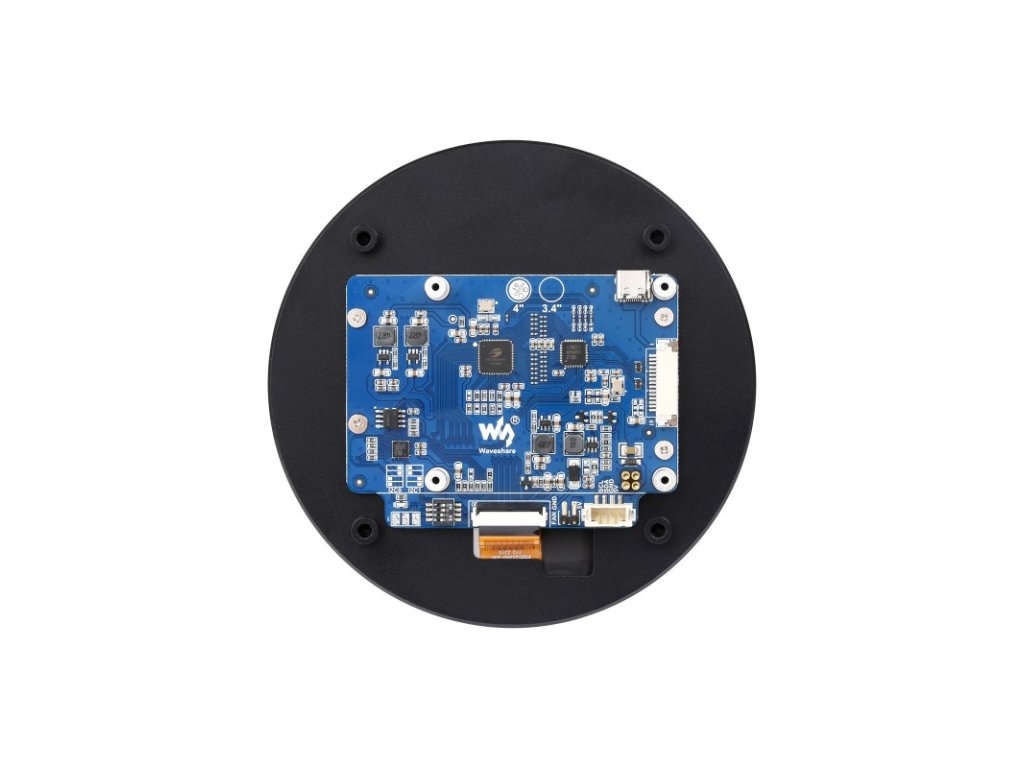

Interface Introduction

Application Examples

Smart Home



In-vehicle Devices



Consumer Electronics



Industrial Equipments



Product show

Dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Package Content

Weight: 0.188 kg

  1. 4inch DSI LCD (C) x1
  2. FPC 15 PIN cable (~ 50mm) x1
  3. DSI-Cable-12cm x1
  4. FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
  5. PH2.0 4PIN cable (~ 200mm) x1
  6. Screwspack x1
