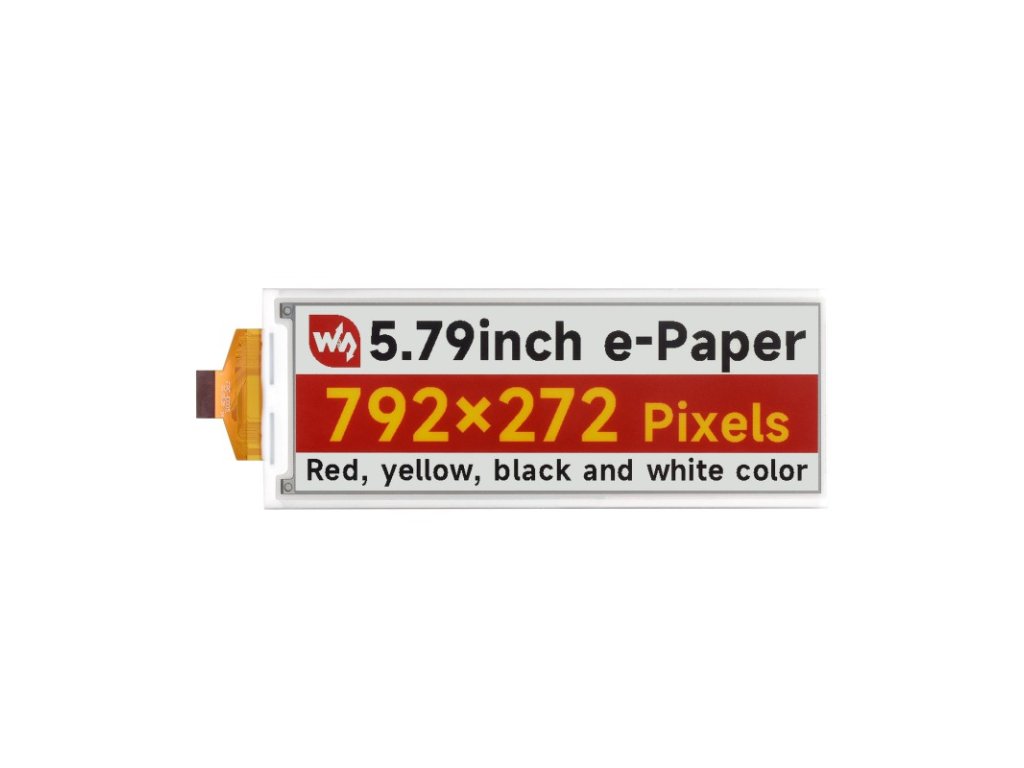

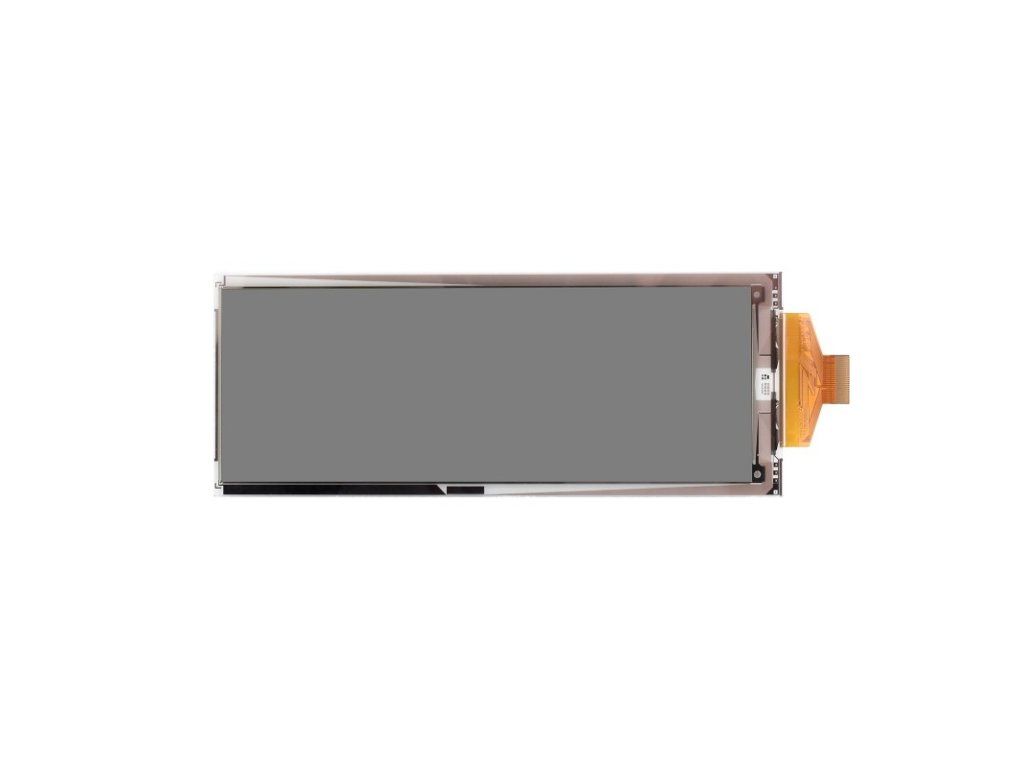

5.79inch e-Paper display (G), e-ink display, 792x272, Red/Yellow/Black/White, Without driver board
5.79inch e-Paper display (G), e-ink display, 792x272, Red/Yellow/Black/White, SPI Interface
SKU: 27845
5.79inch E-Paper Display (G), E-Ink Display, 792x272, Red/Yellow/Black/White, SPI Interface
5.79″ E-Paper (G)
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
Note: the driver board is optional, please refer to the Package Content for detailed part list
- Size
5.79″ - Resolution
792×272 - Viewing Angle
>170° - Display Color
Red/Yellow/Black/White - Grey Scale
2 - Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective
Version Options
5.79inch e-Paper (G)
raw display, without driver board
5.79inch e-Paper Module (G)
with driver board
Features At A Glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Series/Arduino/STM32)
- Optional for e-Paper driver board:
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Series/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| OPERATING VOLTAGE | Raw display: 3.3V | DISPLAY COLOR | Red/Yellow/Black/White |
|---|---|---|---|
| with driver board: 3.3V/5V | |||
| INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 2 |
| OUTLINE DIMENSIONS | Raw display: 150.92 × 56.94 × 1.00mm | FULL REFRESH TIME | 21s |
| with driver board: 152.50 × 58.50mm | |||
| DISPLAY SIZE | 139.00 × 47.74mm | REFRESH POWER | <30mW |
| DOT PITCH | 0.1755 × 0.1755mm | STANDBY CURRENT | <0.01uA (almost none) |
| RESOLUTION | 792 × 272 pixels | VIEWING ANGLE | >170° |
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Optional For E-Paper Driver Board
Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi/Jetson Series/Arduino/STM32
| PWR | Power on/off control |
|---|---|
| BUSY | Busy status output pin |
| RST | External reset, low active |
| DC | Data/Command selection (high for data, low for command) |
| CS | SPI chip selection, low active |
| CLK | SPI SCK pin |
| DIN | SPI MOSI pin |
| GND | Ground |
| VCC | Power (3.3V / 5V input) |
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Usage Example
Connecting With Raspberry Pi 5
* for reference only, the Raspberry Pi 5 is NOT included.
Supported Driver Boards For Raw Display
 |
Universal e-Paper Raw Panel Driver HAT e-Paper Driver HAT |
Click here to purchase |
 |
Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wireless e-Paper ESP32 Driver Board |
Click here to purchase |
 |
Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi Wireless e-Paper ESP8266 Driver Board |
Click here to purchase |
 |
Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEO e-Paper Shield |
Click here to purchase |
Application Examples

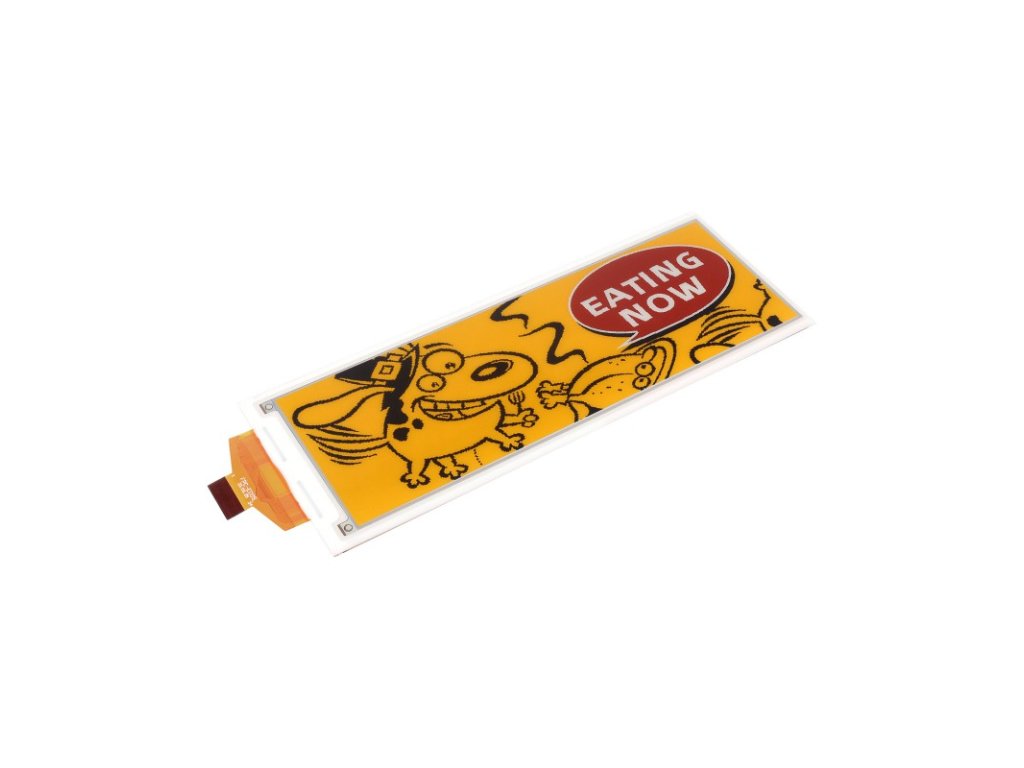

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Outline Dimensions
PACKAGE CONTENT
Weight: 0.017 kg

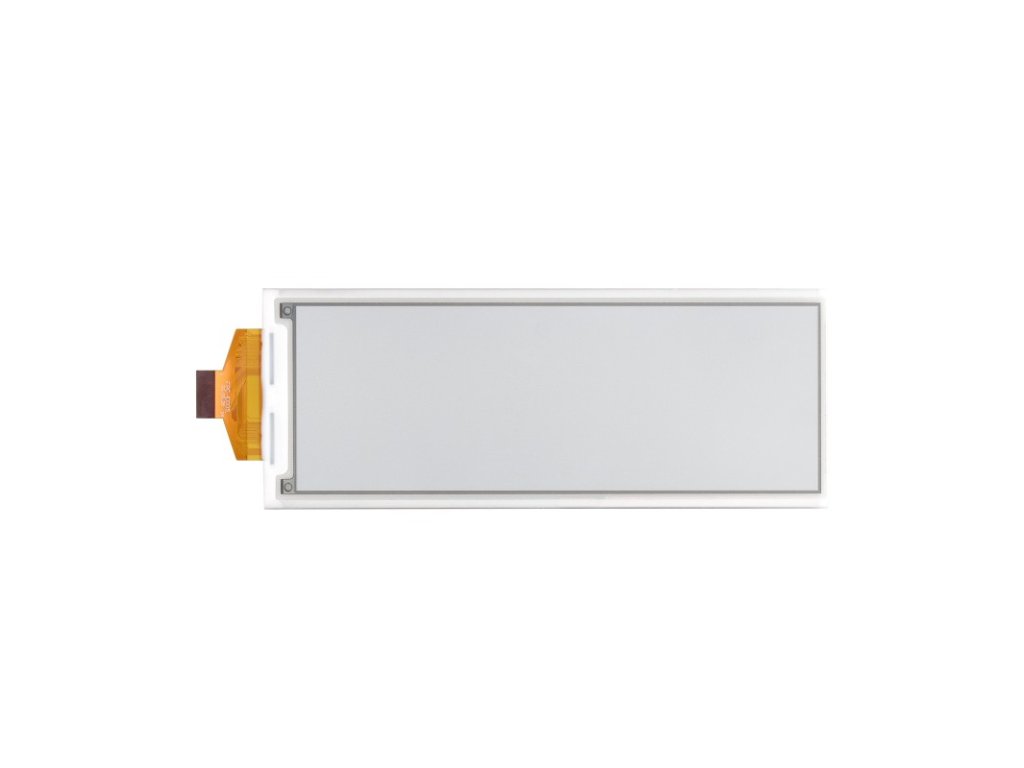

5.79inch e-Paper (G)
5.79inch e-Paper (G) x1
