5G/4G/3G modul navrhnutý pre Jetson Nano, multirežimový viacpásmový, možnosti pre 5G modul modul SIM8202G-M2

SKU: 20267

Dostupnosť	Zvyčajne do 3-7 dní
Môžeme doručiť do:	29.11.2024
Možnosti doručenia
Kód:	24151

366 € / ks 305 € bez DPH

5G/4G/3G modul navrhnutý pre Jetson Nano, multirežimový viacpásmový, možnosti pre 5G modul

Neohodnotené

Značka: Waveshare

5G/4G/3G modul navrhnutý pre Jetson Nano, multirežimový viacpásmový, možnosti pre 5G modul

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

5G/4G/3G module designed for Jetson Nano, multi mode multi band, Options for 5G Module

5G/4G/3G module for Jetson Nano

Options for SIM8202G-M2 / RM520N-GL 5G Module

supports 5G/4G/3G, supports 5G SA and NSA,
multi mode multi band, applicable for regions with 5G Sub-6G signal coverage

This 5G/4G/3G Jetson Nano communication module provides options for SIMCom 5G module SIM8202G-M2 and Quectel 5G module RM520N-GL, supports 5G NSA and SA networking.

The base board features standard M2 connector, allows connecting with different 4G or 5G communication module in M2 package. There are also onboard interfaces like USB3.1 port, audio jack, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Jetson Nano or computer. This 5G module is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required.

Features at a glance

Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
Options for SIM8202G-M2 / RM520N-GL core module, with multi mode multi band support
5G/4G/3G communication, supports functions like phone call, SMS, cloud communication, etc.
USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
SIM card slot, supports 1.8V / 3V SIM card
2x LED indicators, easy to monitor the working status
AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
Onboard audio jack and audio decoder, allows audio operation like making phone call
Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
Operating system support: Windows/Linux/Android

Specifications

	SIM8200EA-M2	SIM8202G-M2	RM520N-GL
Frequency band
Sub-6G	SA: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (n79 is only available for SIM8202G-M2)		n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Sub-6G	NSA: n41, n77, n78, n79 (n79 is only available for SIM8202G-M2)
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48
WCDMA	B1, B2, B3, B4, B5, B8		B1, B2, B4, B5, B8, B19
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G	2.4 Gbps (DL) / 500 Mbps (UL)		SA: 2.4 Gbps (DL) / 900 Mbps (UL) NSA: 3.4 Gbps (DL) / 550 Mbps (UL)
LTE	1 Gbps (DL) / 200 Mbps (UL)		1.6 Gbps (DL) / 200 Mbps (UL)
HSPA	42 Mbps (DL) / 5.76 Mbps (UL)
Hardware info
SIM card	1.8V/3.0V
Power supply	5V 3A
Antenna connector	6x IPEX-4 connector	4x IPEX-4 connector
Module dimensions	52.0×30.0×2.3mm	42.0×30.0×2.3mm	52.0×30.0×2.3mm
Applications
Applicable regions	Regions with 5G Sub-6G signal coverage except the Americas		Global
Application examples	CPE, Smart gateway, Drone, Live streaming, Remote medical treatment, Intelligent security

5G Module Comparison

Compatible Hardware Interface

SIM8200EA-M2
6x antennas version

SIM8202G-M2
4x antennas version

RM520N-GL
4x antennas version

Multi mode multi band, applicable for most of the countries and regions

supports 5G/4G/3G, supports 5G SA and NSA, multi mode multi band
Applicable for regions with 5G Sub-6G signal coverage

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi system support

supports Windows/Android/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use

Multi host support

enabling 5G high speed connection for Jetson Nano and Windows computer

Sub-6G: up to 2.4 Gbps (downlink) / up to 500 Mbps (uplink)*
LET: up to 1 Gbps (downlink) / up to 200 Mbps (uplink)*
HSPA+: up to 42 Mbps (downlink) / up to 5.76 Mbps (uplink)*

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

Cloud Communication

supported communication protocols:
TCP / IP / IPV4 / IPV6 / Multi-PDP / FTP / FTPS / HTTP / HTTPS / MQTTS / DNS / SSL3.0

High-Precision GNSS Support

supports GPS, Beidou, Glonass, Galileo, QZSS, LBS

Phone Call & SMS support

allows using AT commands to make phone call or send SMS

Application examples

Appearance & introduction

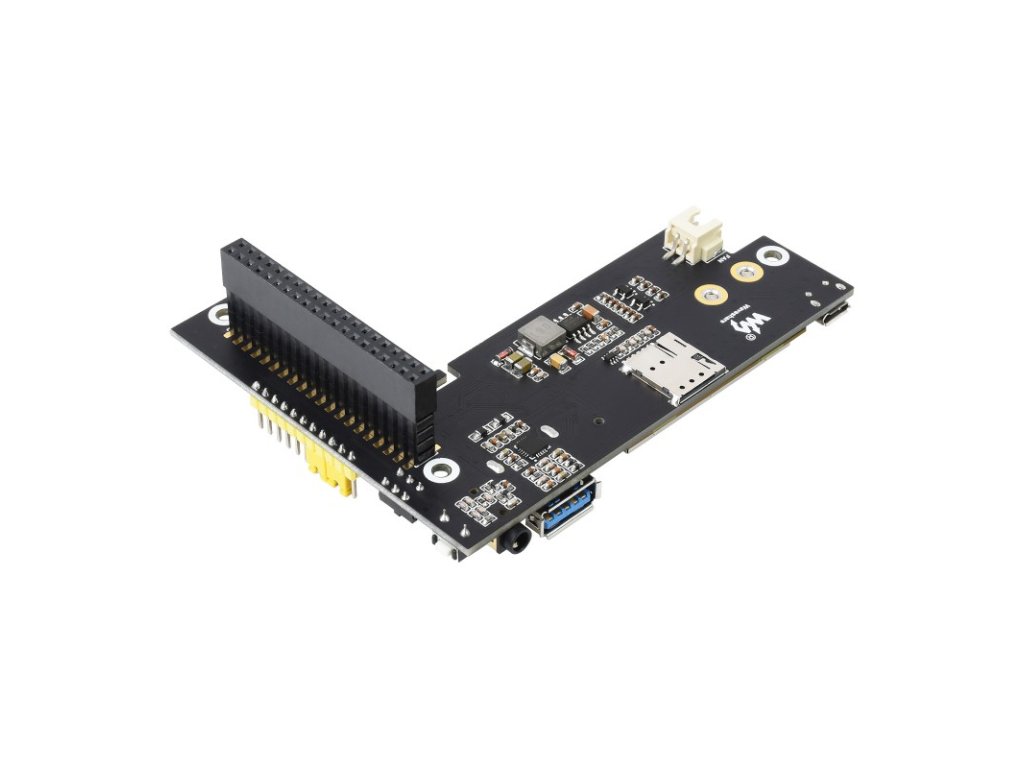

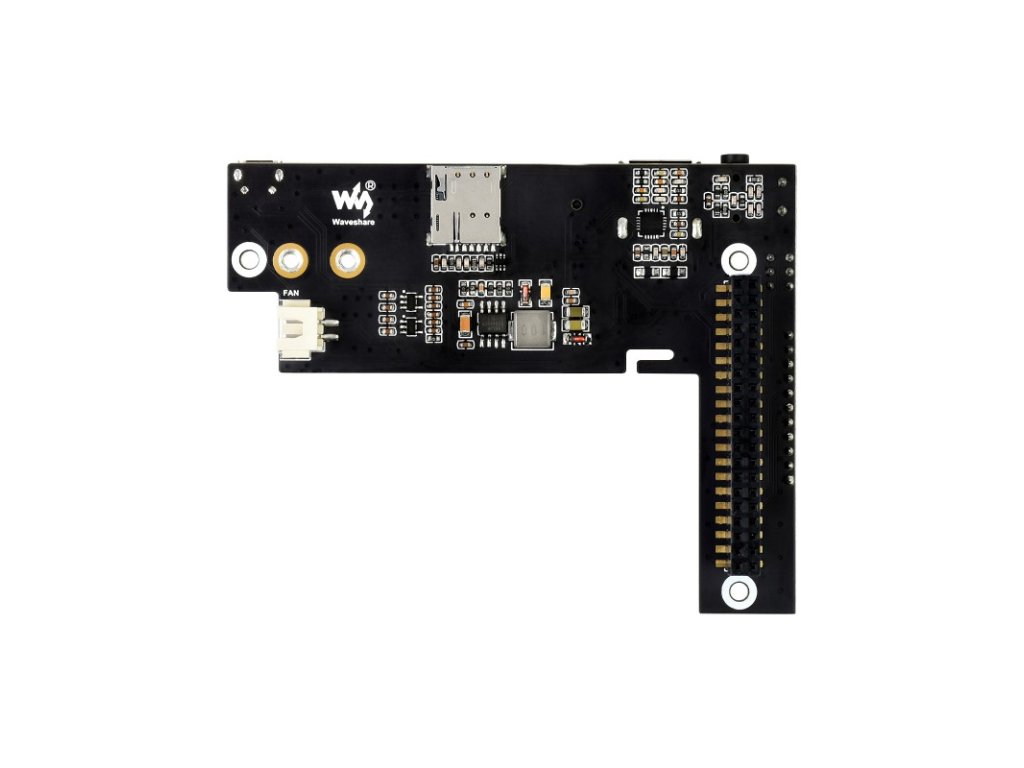

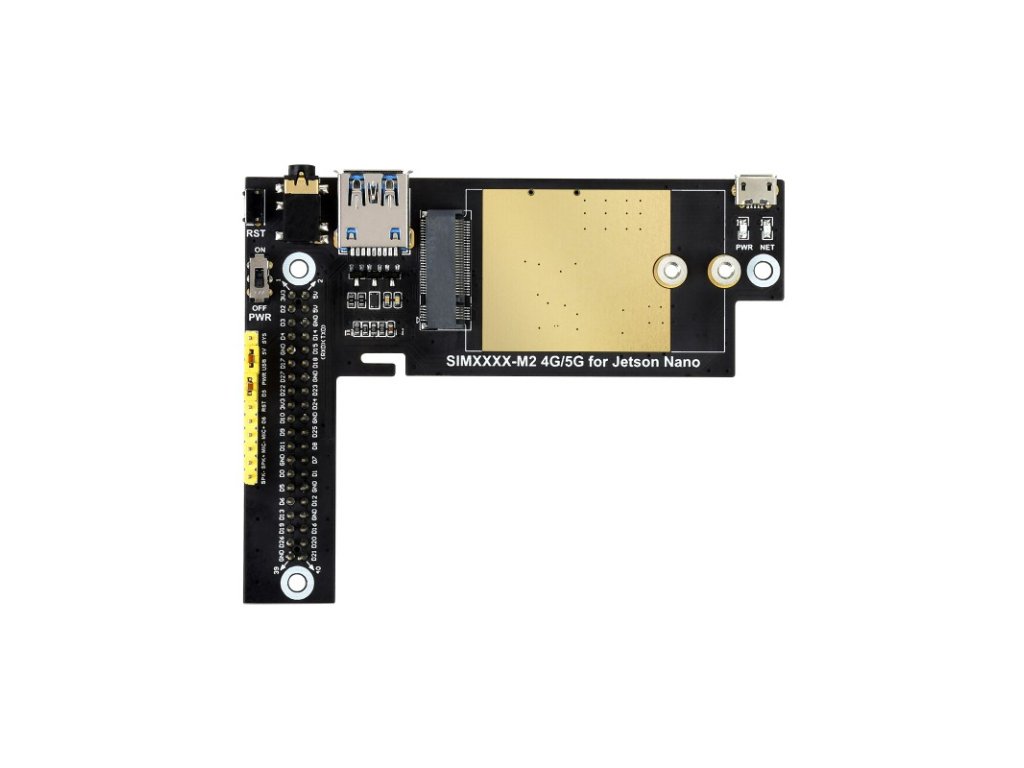

What's on board

M.2 connector
compatible with SIM8200EA-M2, SIM8202G-M2 and RM520N-GL modules
USB3.1 port
for connecting with computer or Jetson Nano
3.5mm headphone/microphone jack
40PIN GPIO header
for connecting with Jetson Nano
Fan header
for 5V cooling fan
nano SIM card slot
supports 1.8V / 3V SIM card
5V 3A power input
Network indicator
Power indicator
Reset
Power switch

Power supply circuit
Audio drive circuit
Power supply selection jumper
5V - SYS: powered by Jetson Nano 40PIN GPIO
5V - USB: powered by external 5V 3A power adapter
Module on/off control pin enable jumper
PWR - D5: enabled by default, Jetson Nano D5 pin can be used to turn on/off the module
Module reset pin enable jumper
RST - D6: enabled by default, Jetson Nano D6 pin can be used to reset the module
Audio input/output
MIC+/MIC-: for external microphone
SPK+/SPK-: for external speaker
