5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface
5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface
SKU: 23252
5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface
5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface
Description :

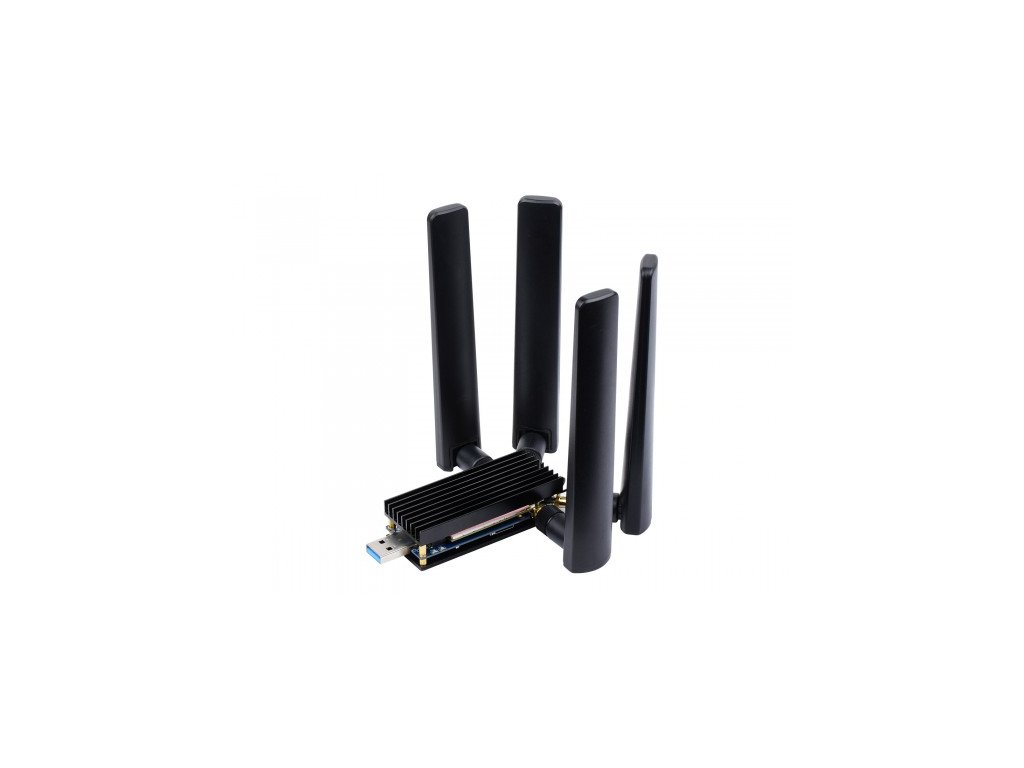

5G DONGLE Module, Quad Antennas, USB3.1 Port, Aluminum Alloy Heatsink, M.2 Key B Interface
Features At A Glance
- Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom and Quectel 5G modules
- Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
- USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network
- 4x SMA antenna connectors, easy to install the antenna
- Onboard SIM card slot for NANO SIM card
- Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
- PCB ENIG process, reserved multi slots and positioning holes for integration
- Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable
Compatible With SIMCom / Quectel 5G Modules
| SIM8202G-M2 | SIM8262E-M2 | SIM8262A-M2 | RM500Q-GL | RM502Q-AE | RM520N-GL | |
|---|---|---|---|---|---|---|
 |  |  |  |  |  | |
| 5G Standard | 3GPP R15 | 3GPP R16 | 3GPP R15 | 3GPP R16 | ||
| Region / Provider | except Americas | Americas | Global (except US) | Global (except China) | Global | |
| CHIP | Qualcomm Snapdragon X55 | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X55 | Qualcomm Snapdragon X62 | ||
| FREQUENCY BAND | ||||||
| Sub-6G | n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79 | n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78,n79 | n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79 | 5G NR NSA: n41, n77, n78, n79 | 5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | 5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 | 5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | |||||
| LTE-FDD | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32 | B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 | ||
| LTE-TDD | B34, B38, B39, B40, B41, B42, B43, B48 | B38, B39, B40, B41, B42, B43 | B41, B46, B48 | B34, B38, B39, B40, B41, B42, B43, B48 | ||
| LAA | - | B46 | ||||
| WCDMA | B1, B2, B3, B4, B5, B8 | B1, B5, B8 | B2, B4, B5 | B1, B2, B3, B4, B5, B6, B8, B19 | B1, B2, B4, B5, B8, B19 | |
| GNSS | GPS / GLONASS / BeiDou(Compass) / Galileo/ QZSS (RM500Q-GL and RM502Q-AE do not support this function) | |||||
| DATA RATE | ||||||
| Sub-6G | 2.4 Gbps (DL) / 500 Mbps (UL) | 5G NR NSA: 2.1 Gbps (DL) / 900 Mbps (UL) | 5G NR NSA: 4.2 Gbps (DL) / 450 Mbps (UL) | 5G NR NSA: 4.2 Gbps (DL) / 900 Mbps (UL) | ||
| 5G NR SA: 2.5 Gbps (DL) / 600/650 Mbps (UL) | 5G NR SA: 5.0 Gbps (DL) / 650 Mbps (UL) | 5G NR SA: 3.4 Gbps (DL) / 550 Mbps (UL) | ||||
| LTE | 1 Gbps (DL) / 200 Mbps (UL) | 2.0 Gbps (DL) / 200 Mbps (UL) | 1.6 Gbps (DL) / 200 Mbps (UL) | |||
| UMTS | 42 Mbps (DL) / 5.76 Mbps (UL) | |||||
| SOFTWARE FUNCTIONS | ||||||
| Operating systems | Windows/Linux/Android | |||||
| Communication protocols | TCP / UDP / FTP / HTTP / HTTPS / PING / SMS | |||||
| Dial Up | RNDIS, NDIS, PPP, MBIM | |||||
| Firmware upgrade | Supports firmware upgrade via USB port | |||||
| HARDWARE SPECIFICATIONS | ||||||
| SIM Card | 1.8V/2.95V | |||||
| Antenna | For 3G/4G/5G/GNSS | |||||
| 4 × IPEX-4 connectors | ||||||
| Power Supply | 3.135~4.4V | 3.135 to 4.4 V, 3.7 V typical | ||||
| Form Factor | M.2 | |||||
| Dimensions | 42.0 × 30.0 × 2.3mm | 52.0 × 30.0 × 2.3mm | ||||
| Note: For reference only, 5G module is not included. If used with other modules, actual testing is required to confirm pin compatibility | ||||||
Multiple Size Compatibility
Compatible With 3042 / 3052 Form Factor
Connection Examples
Supports Directly Connect Or Access Via The USB Cable To Windows PC, Raspberry Pi 4B/3B+,
CM4-IO-BASE-A/B And Jetson Nano Series
connecting with Raspberry Pi 4B
Connect to PC with USB cable
Connect to Jetson Nano
for reference only, the modules in the pictures are not included.
Outline Dimensions
