5inch Capacitive Touch Display For Raspberry Pi, DSI Interface, IPS Panel, 1024x600 Pixels

Neohodnotené
Značka: Waveshare

5inch Capacitive Touch Display For Raspberry Pi, DSI Interface, IPS Panel, 1024x600 Pixels, Toughened Glass Panel, Driver-Free

SKU: 28146

Dostupnosť Skladom (2 ks)
Môžeme doručiť do:
31.12.2024
Možnosti doručenia
Kód: 24040
52,68 € / ks 43,90 € bez DPH
5inch Capacitive Touch Display For Raspberry Pi, DSI Interface, IPS Panel, 1024x600 Pixels
Neohodnotené
Značka: Waveshare

5inch Capacitive Touch Display For Raspberry Pi, DSI Interface, IPS Panel, 1024x600 Pixels, Toughened Glass Panel, Driver-Free

5inch Capacitive Touch Display For Raspberry Pi, DSI Interface, IPS Panel, 1024x600 Pixels, Toughened Glass Panel, Driver-Free
5″ DSI Touch Display

High Resolution image quality | Multi-touch | 1024×600 Pixels

 5inch DSI Touch Display, front view



  • Size5″
  • Resolution1024×600
  • Display InterfaceDSI
  • Display PanelIPS
  • Viewing Angle178°
  • Touch TypeCapacitive
  • Touch Points5-Point
  • Touch PortI2C
  • Touch PanelToughened Glass
  • ConsumptionLow Power


Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free

Connection Examples

Working with Raspberry Pi 5

5inch DSI Touch Display, working with Raspberry Pi 5

Working with Raspberry Pi 4B

5inch DSI Touch Display, working with Raspberry Pi 4B

Working with Raspberry Pi 3B+

5inch DSI Touch Display, working with Raspberry Pi 3B+
* for reference only, the above controller boards are NOT included.

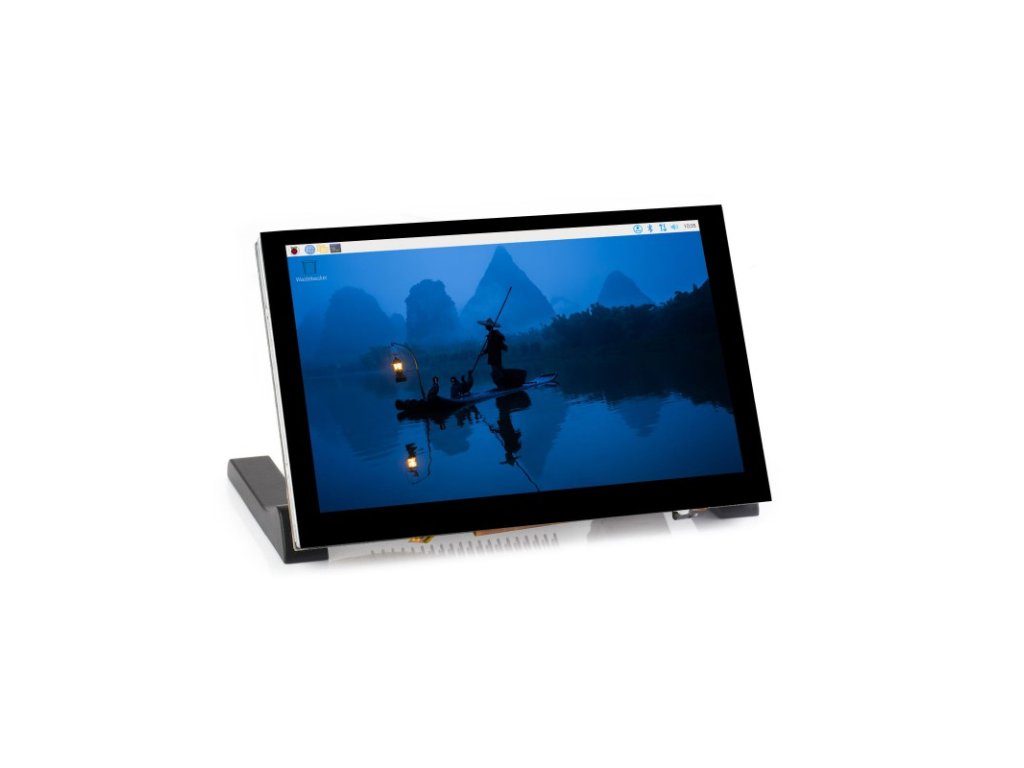

Full Color IPS display panel

1024 × 600 High Resolution, DSI One cable connection and Driver-Free

5inch DSI Touch Display with 178° wide viewing angle

178° Wide Viewing Angle IPS Panel
Compared to other TN panels, this IPS touch display features 178° wide viewing angle, providing excellent image and video display performance even when not viewed directly from the front.


5inch DSI Touch Display with high resolution

High Resolution Display
1024 × 600 resolution, provides clear image and vivid color displaying effect

Wide viewing angle IPS display panel

Excellent Display Performance, Wide viewing angle up to 178°

5inch DSI Touch Display, wide viewing angle IPS display panel
5-Point Capacitive Touch
5inch DSI Touch Display with 5-Point capacitive touch
  1. up to 5-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel

Adjustable brightness via software

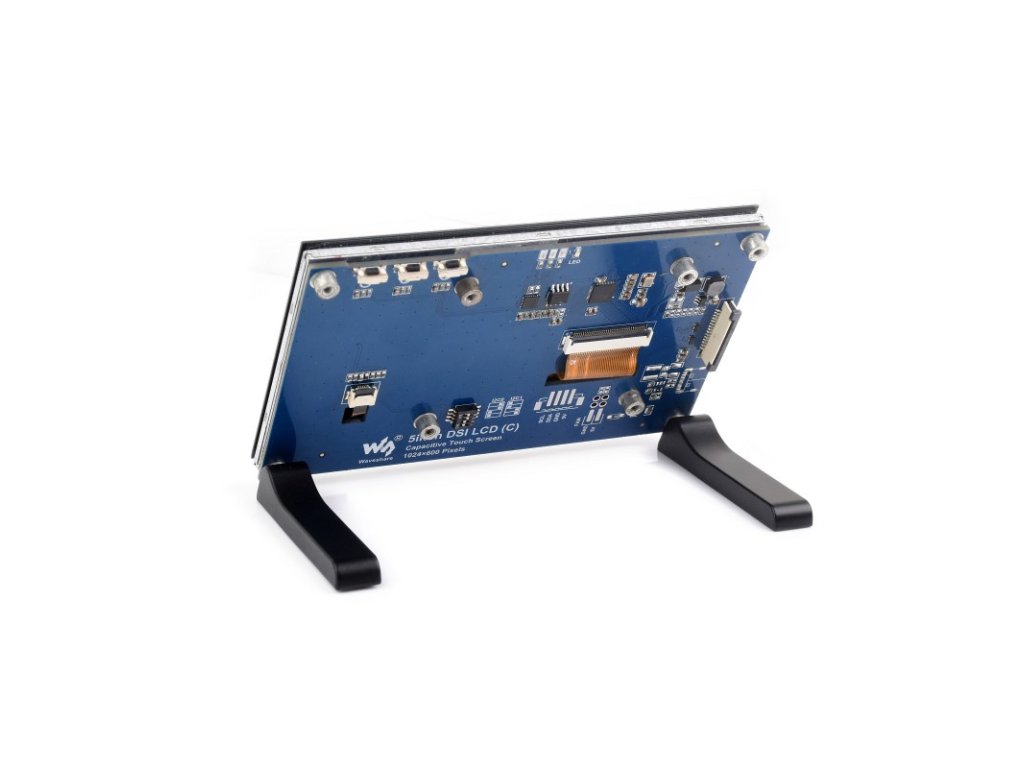

Comes with metal stand
5inch DSI Touch Display, comes with metal stand

* for reference only, the Raspberry Pi 5 is NOT included

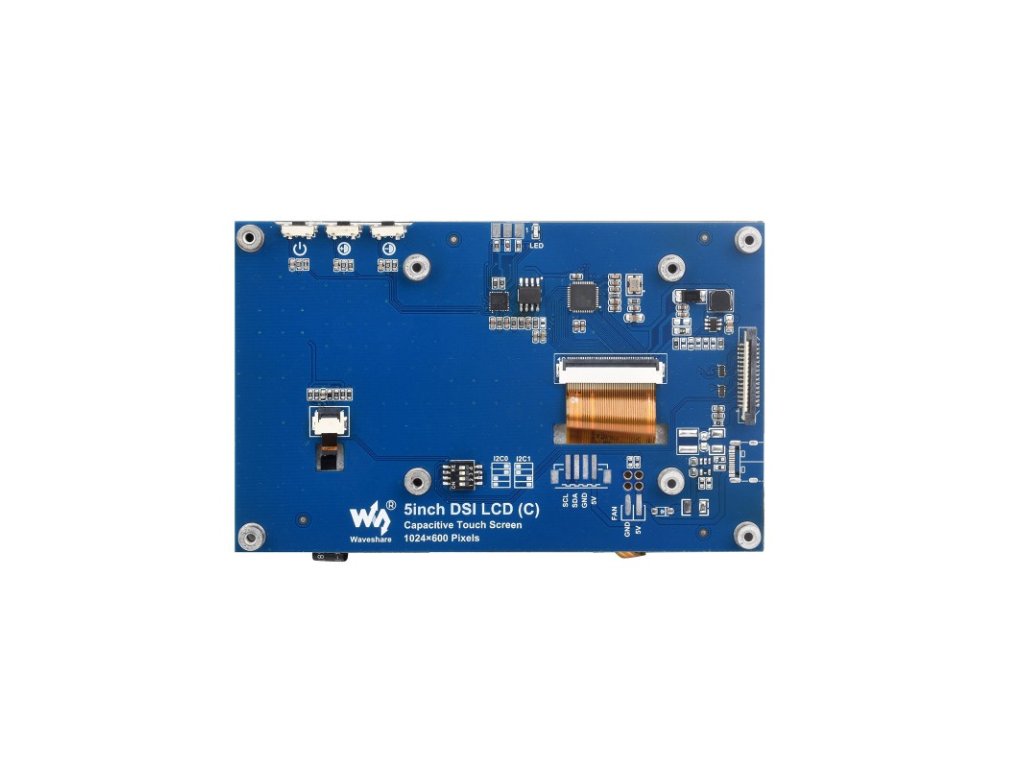

Interface Introduction

5inch DSI Touch Display, interface introduction

Dimensions
5inch DSI Touch Display, dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services

Package Content

Weight: 0.158 kg

  1. 5inch DSI LCD (C) x1
  2. 15PIN DSI cable ~50mm x1
  3. 15PIN DSI cable ~160mm x1
  4. DSI-Cable-12cm x1
  5. Metal stand x1
  6. Screws pack x1
15inch DSI LCD (C)
2
3
4
5
6
