ATMEGA328P Microcontroller Development Board, Arduino-Compatible

Neohodnotené

Značka: Waveshare

SKU: 19287

17,90 € / ks 14,92 € bez DPH

ATMEGA328P Microcontroller Development Board, Arduino-Compatible

Neohodnotené

Značka: Waveshare

ATMEGA328P Microcontroller Development Board, Arduino-Compatible

R3 PLUS MCU Development Board

Based On ATMEGA328P-AU

Compatible with the Arduino official R3 board

What's The Differences

	R3 PLUS	OFFICIAL R3	REMARKS
Operating voltage	5V/3.3V	5V	Dual voltage level to support more shields
Reset	Lateral	Vertical	Lateral button is easier to use when connecting with shield
Bootloader switch	Yes	None	The board can be configured to run program immediately when power-up by the switch
USB connector	Micro USB	USB Type B	Micro connector is more commonly used, and shields won't be blocked anymore while connecting
DC jack	Low profile	Normal height	Shields won't be blocked anymore while connecting
Power output header	Yes	None	Providing 5V/3.3V power output OR common-grounding with other boards
3.3V power output	800mA Max	150mA Max	R3 PLUS features higher driving capability
Oscillator	Crystal oscillator	Ceramic resonator	Crystal oscillator is suit for applications where accurate clock reference is required
ADC channel	8	6	CFG used as ADC6 by configuration, and ADC7 from the Reserved PIN
Connecting with prototype breadboard	Supported	Not supported	Solder pads is provided for DIY interfaces to connecting with prototype breadboard
USB driver	Compatible with all main systems	Doesn't compatible with WIN7/WIN8 Express Edition	Driver will never failed to install thanks to the onboard FT232
Firmware fixing	Supported	Not supported	Firmware can be fixed by using the onboard FT232, no extra programmer is needed

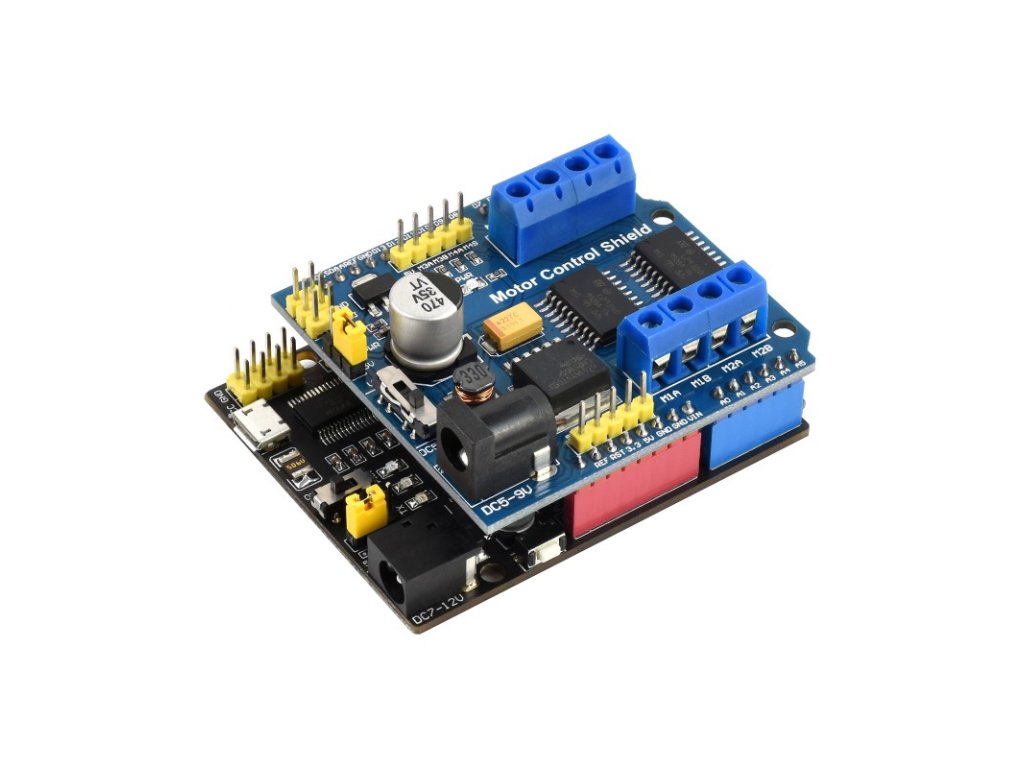

Connecting With Waveshare Shields

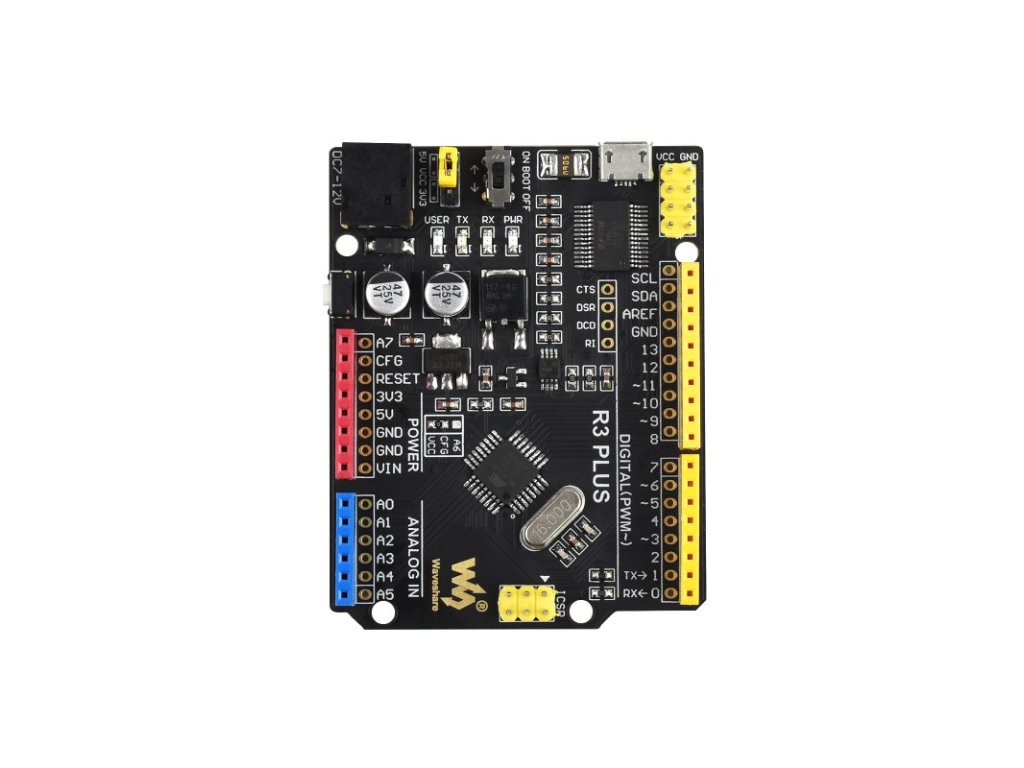

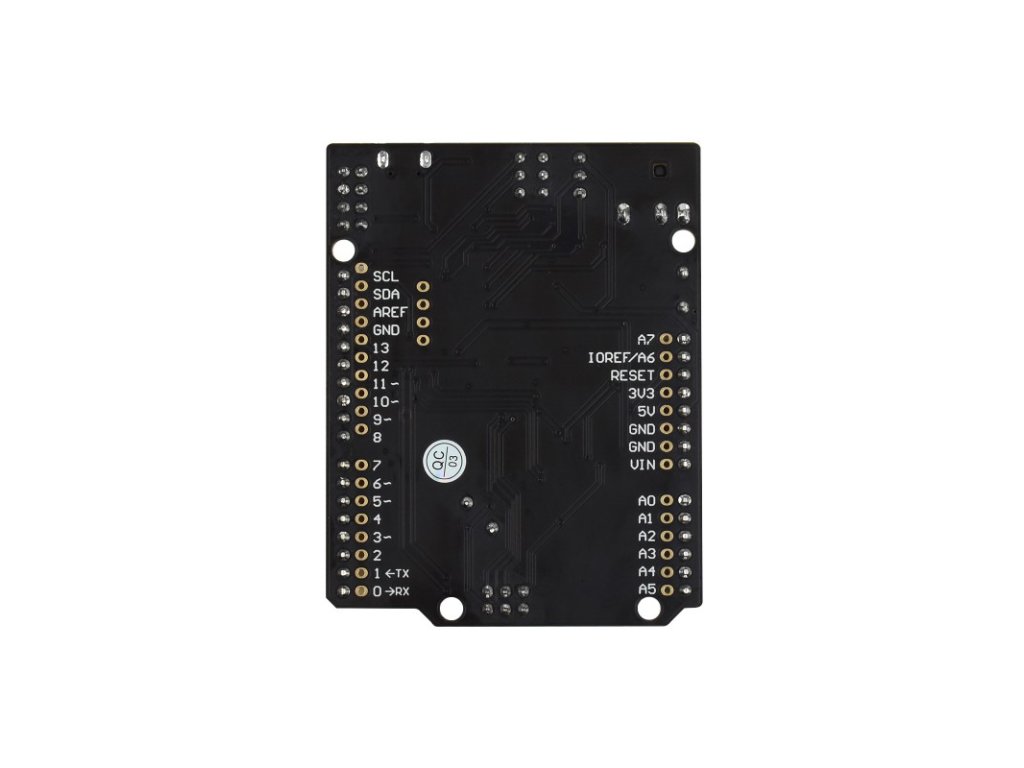

What's On Board

ATMEGA328P-AU
AMS1117-3.3
3.3V voltage regulator
NCP1117ST50T3G
5V voltage regulator
FT232RL
USB to UART convertor
Arduino interface
- compatible with standard Arduino interface with two additional analog inputs A6 (config the CFG), A7
- solder pads provided, supports prototype breadboard
ICSP interface
MICRO USB connector
for uploading program OR serial port debugging
Power output header
3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output OR common-grounding with other boards

FT232 pins
for burning Bootloader into the microcontroller
DC input
7V ~ 12V
Reset button
Power indicator
Serial port Rx/Tx indicator
User LED
500mA fast auto-recovery fuse
Power configuration
for configuring the operating voltage
Bootloader selection switch
- turn ON: the board will reset when power-up OR other USB devices were detected connecting to the PC
- turn OFF: the onboard program runs immediately when power-up, and the board will not reset when other USB devices were detected connecting to the PC
