BMM150 3-axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement

BMM150 3-Axis Magnetometer Sensor, Digital Compass Sensor, Magnetic Field Measurement

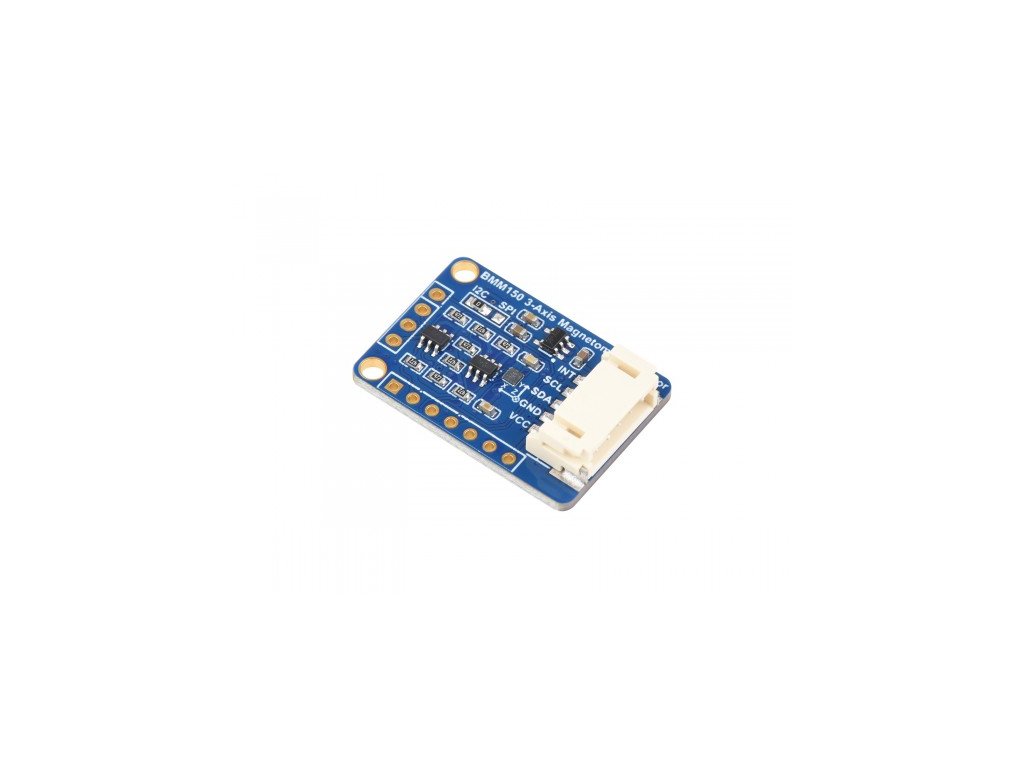

BMM150 3-Axis Magnetometer Sensor

Suitable for compass, electronic compass applications

Supports Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32 ...

This is a digital compass sensor based on BMM150, supports magnetic field measuring in three perpendicular axes, I2C / SPI interfaces, can be used in robot navigation and positioning, electronic compass, magnetic heading devices, etc.

Features At A Glance

Onboard BMM150 for measuring magnetic field in three perpendicular axes
Supports I2C/SPI interface communication, I2C interface by default, SPI switchable via onboard resistor
Onboard voltage translator, compatible with 3.3V/5V level
Comes with online development resources and manual (examples for Raspberry Pi / Raspberry Pi Pico / Arduino / ESP32)

Specifications

COMMUNICATION INTERFACE	I2C / SPI (I2C bus by default)
POWER SUPPLY	3.3V~5V
MAGNETIC MEASURING RANGE	1300μt (X, Y axis), 2500μt (Z axis)
RESOLUTION	0.3μT
OPERATING TEMPERATURE	-40℃ ~ +85 ℃
DIMENSIONS	29 × 20mm

Supports I2C And SPI Interfaces Control

For Use With Controller Boards Like Raspberry Pi/Raspberry Pi Pico/ESP32/Arduino

PIN	I2C	PIN	SPI
VCC	3.3V/5V power supply	VCC	3.3V/5V power supply
GND	Ground	GND	Ground
SDA	I2C data	SDO	SPI data, can be connected to host MISO
SCL	I2C clock	SDI	SPI data, can be connected to host MOSI
INT	interrupt output, can be connected to I/O	SCK	SPI clock input
		CS	Chip selection, can be connected to I/O
		DRY	Data sending/receiving ready state, can be connected to I/O
