    DC-DC Buck Mini Module, Compact Size And Easy To Integrate with headers

    Neohodnotené
    Značka: Waveshare

    DC-DC Buck Mini Module, Compact Size And Easy To Integrate , Configurable 3.3V or 5V buck voltage regulation output . Immersion Gold Process .

    Version with headers .

    SKU: 29036

    Dostupnosť Skladom (10 ks)
    Môžeme doručiť do:
    25.11.2024
    Možnosti doručenia
    Kód: 24547
    5,99 € / ks 4,99 € bez DPH
    DC-DC Buck Mini Module, Compact Size And Easy To Integrate with headers
    Neohodnotené
    Značka: Waveshare
    DC-DC Buck Mini Module, Compact Size And Easy To Integrate with headers
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    DC-DC Buck Mini Module, Compact Size And Easy To Integrate, Configurable 3.3V Or 5V buck voltage regulation output, Immersion Gold Process
    DC-DC Buck Mini Module

    5~36V wide voltage input, configurable 5V or 3.3V output, up to 4A output current

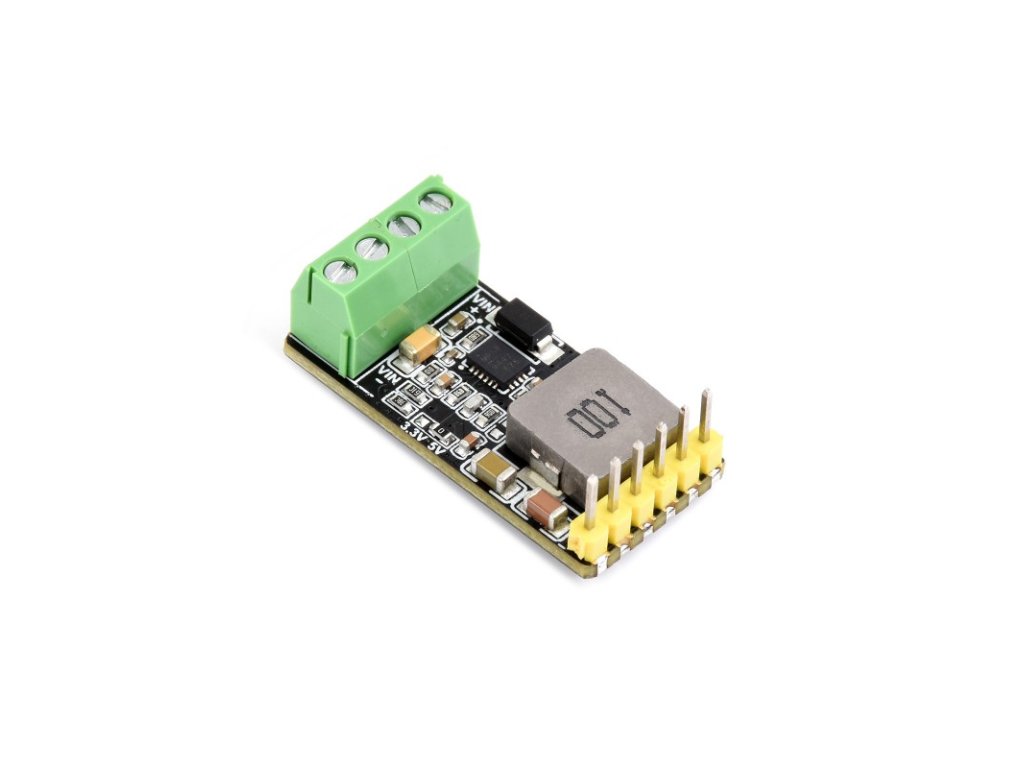

     DC-DC Buck Mini Module, front view
    Features At A Glance
    • Supports 5~36V wide voltage input, configurable for 5V or 3.3V output, up to 4A output current
      • 5V output by default, and the input voltage range is 6~36V
      • Can be switched to 3.3V output by resoldering a onboard resistor, and the input voltage range is: 5~36V
    • Adopts black immersion gold process, small in size and easy to integrate

    Version options
    DC5-36-TO-DC3V3-5

    DC5-36-TO-DC3V3-5
    SMD version


    DC5-36-TO-DC3V3-5-M

    DC5-36-TO-DC3V3-5-M
    with pre-soldered header and terminal



    Specifications
    Mode 5V mode
    (by default)    		 3.3V mode
    (switching via resoldering 0R resistor to 3.3V side)
    Input voltage DC 6~36V DC 5~36V
    Output voltage DC 5V DC 3.3V
    Operating current 0A~4A (can reach up to 5A output under extreme conditions, but adequate heat dissipation is required)
    Switching frequency 500KHz
    Conversion efficiency 90%
    dimensions 33 × 16 × 5.7 (mm)

    Interface introduction
    DC-DC Buck Mini Module, Interface introduction
    Interface on the left side Interface on the right side
    VIN+ Power input positive VOUT(+) Power output positive
    VIN- Power input negative GND(-) Power output negative

    Compact in Size, Easy to Integrate

    Castellated holes with immersion gold design, highly integrated packaging.
    easy to embed into various product applications via multiple methods

    DC-DC Buck Mini Module, small in size

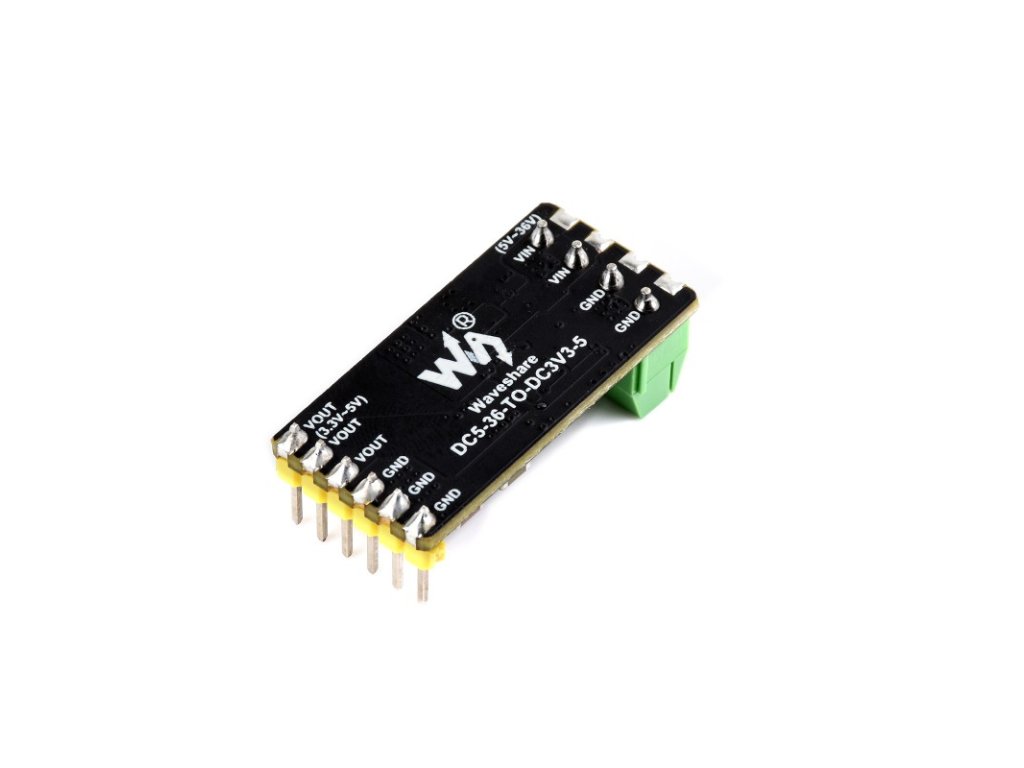

    DC-DC Buck Mini Module, back view


    Outline dimensions
    DC-DC Buck Mini Module, outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/DC5-36-TO-DC3V3-5

    Balenie obsahuje :

    DC5-36-TO-DC3V3-5-M

    DC5-36-TO-DC3V3-5-M x1

    DC5-36-TO-DC3V3-5-M
