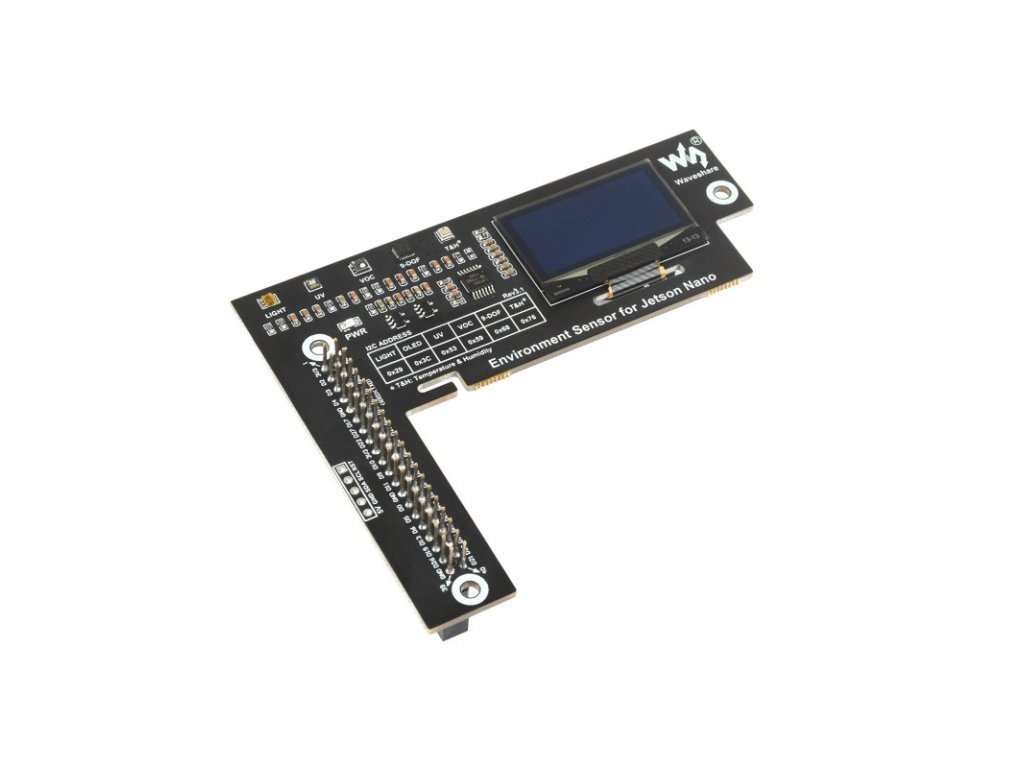

Environment Sensors Module for Jetson Nano, I2C Bus, with 1.3inch OLED Display
Environment Sensors Module for Jetson Nano, I2C Bus, with 1.3inch OLED Display
SKU: 19486
Environment Sensors Module for Jetson Nano, I2C Bus, with 1.3inch OLED Display
Environment Sensors Module Designed For Jetson Nano, I2C Bus, With 1.3inch OLED Display
Features At A Glance
- Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
- Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
- Onboard MPU9250 motion sensor, accelerometer, gyroscope, and magnetometer
- Onboard LTR390-UV-1 sensor, for measuring IR/UV rays
- Onboard SGP40 sensor, for detecting ambient VOC
- Onboard 1.3inch OLED display, for displaying environment data in real time
- I2C bus, allows reading and displaying data by just using two wires
- Comes with development resources and user manual (python examples)
Specifications
| TSL25911FN DIGITAL AMBIENT LIGHT SENSOR | |
|---|---|
| I2C address | 0x29 |
| Effective range | 0~88000Lux |
| BME280 TEMPERATURE, HUMIDITY, AND AIR PRESSURE SENSOR | |
| I2C address | 0x76 |
| Temperature detection | -40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy) |
| Humidity detection | 0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay) |
| Air pressure detection | 300~1100hPa (0.18Pa resolution, ±1hPa accuracy) |
| MPU9250 MOTION SENSOR (9-DOF: 3-AXIS ACCELEROMETER, 3-AXIS GYROSCROPE, 3-AXIS MAGNETOMETER) | |
| I2C address | 0x68 |
| Accelerometer resolution | 16-bit |
| Accelerometer range (configurable) | ±2, ±4, ±8, ±16g |
| Gyroscope resolution | 16-bit |
| Gyroscope range (configurable) | ±250, ±500, ±1000, ±2000°/sec |
| Magnetometer resolution | 14-bit |
| Magnetometer range | ±4800µT |
| LTR390-UV-1 IR/UV SENSOR | |
| I2C address | 0x53 |
| Response wavelength | 300nm ~ 350nm |
| SGP40 VOC SENSOR | |
| I2C address | 0x59 |
| Measuring range | 0 ~ 1,000 ppm ethanol equivalent |
| Limit condition | < 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail) |
| Response time | < 10 s (tau 63 %) |
| Start time | < 60 s |
| On-chip humidity compensation support | |
| OLED DISPLAY | |
| I2C address | 0x3C |
| Driver IC | SH1106 |
| Resolution | 128x64 |
| Display color | blue |
Onboard 1.3inch OLED
Displaying Collected Environment Data In Real Time

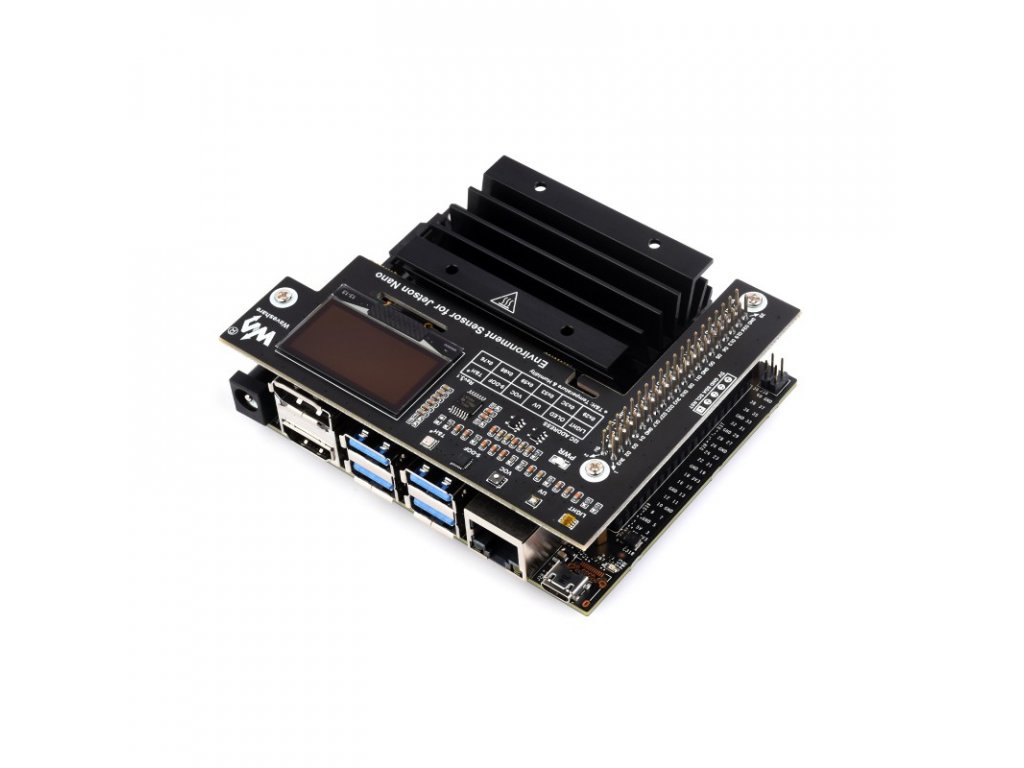

for reference only, Jetson Nano boards are NOT included.

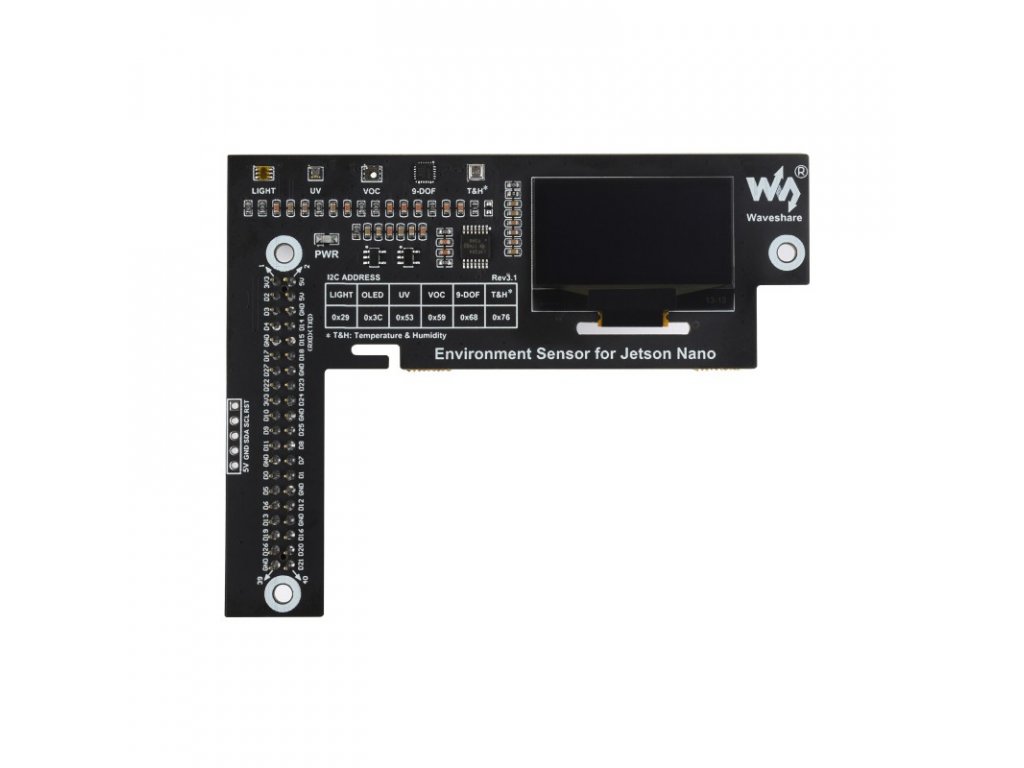

What's On Board
- TSL25911FN
digital ambient light sensor, for measuring IR and visible light - LTR390-UV-1
IR/UV sensor - SGP40
VOC sensor - MPU9250
3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer
- BME280
temperature, humidity, and air pressure sensor - Voltage level translator
5V to 3.3V - 1.3inch OLED
128x64 resolution
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.137 kg
- Environment Sensor for Jetson Nano x1
- Screws pack x1
