ESP32-S3 1.69inch Display Development Board, 240MHz Dual-Core Processor, 240×280 Pixels,

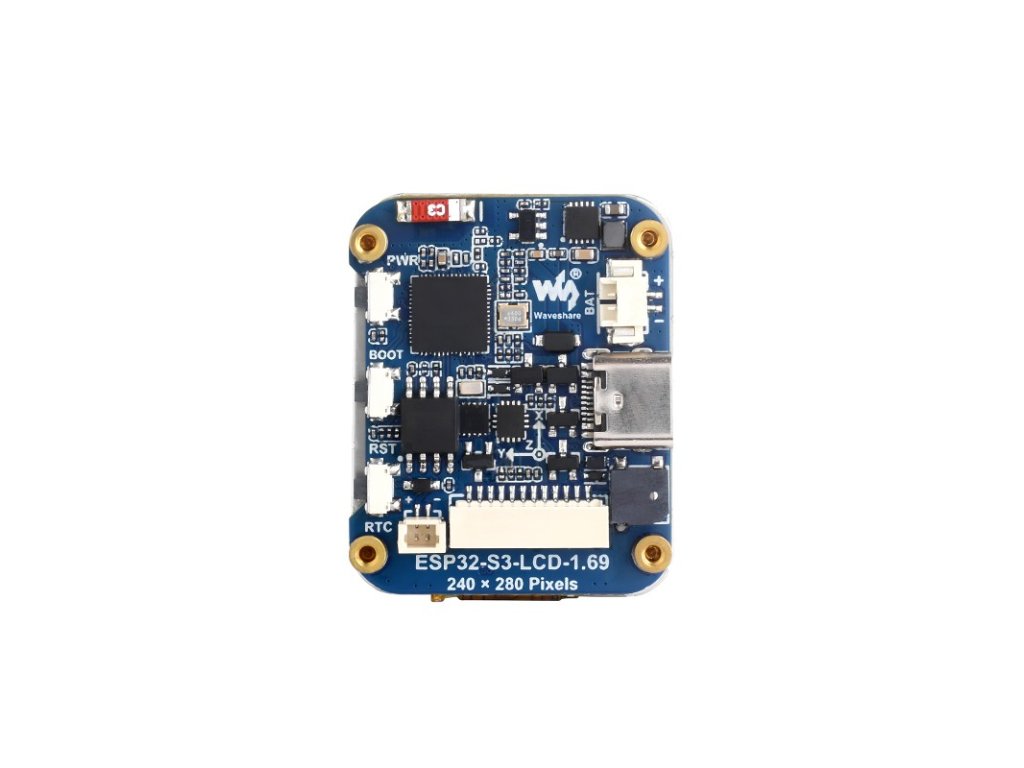

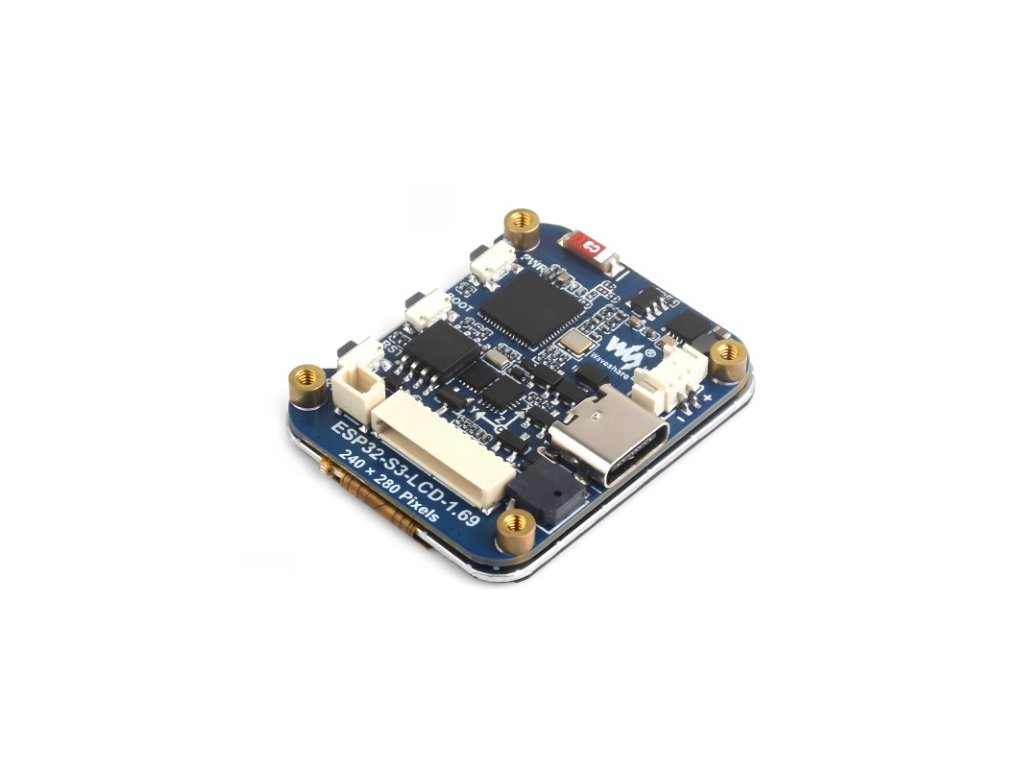

ESP32-S3-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, embedded with 240MHz dual-core processor, tiny size, with onboard 1.69inch 262K LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), WiFi/Bluetooth antenna, RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.

Key features include:

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Type-C connector, keeps it up to date, easier to use

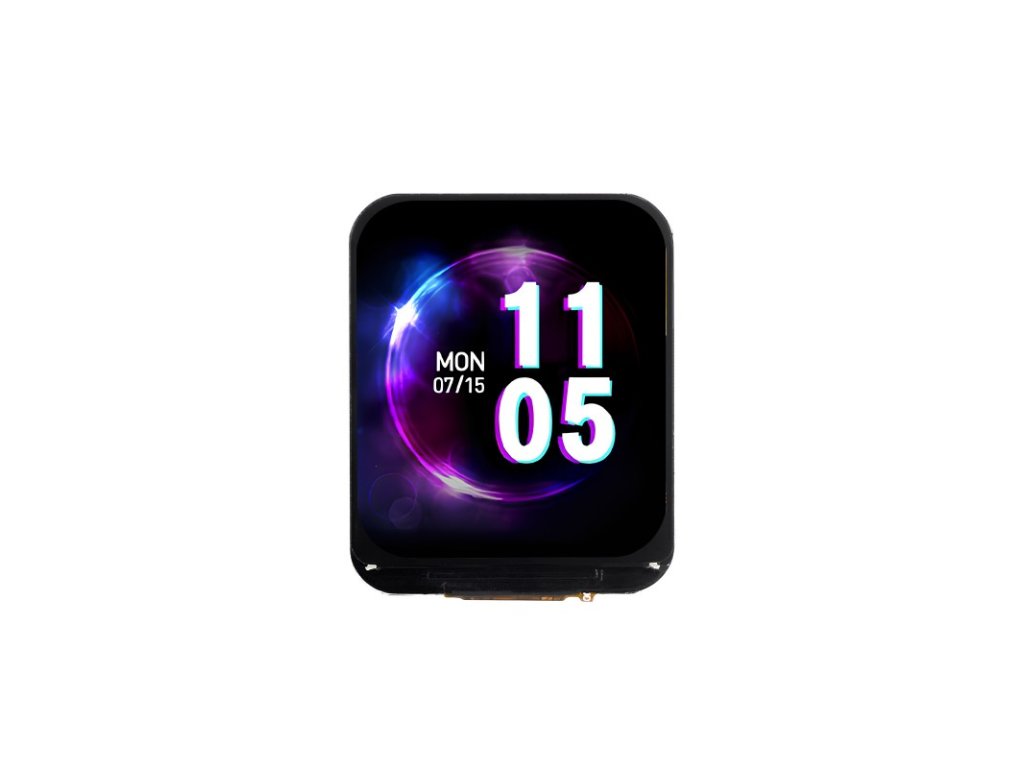

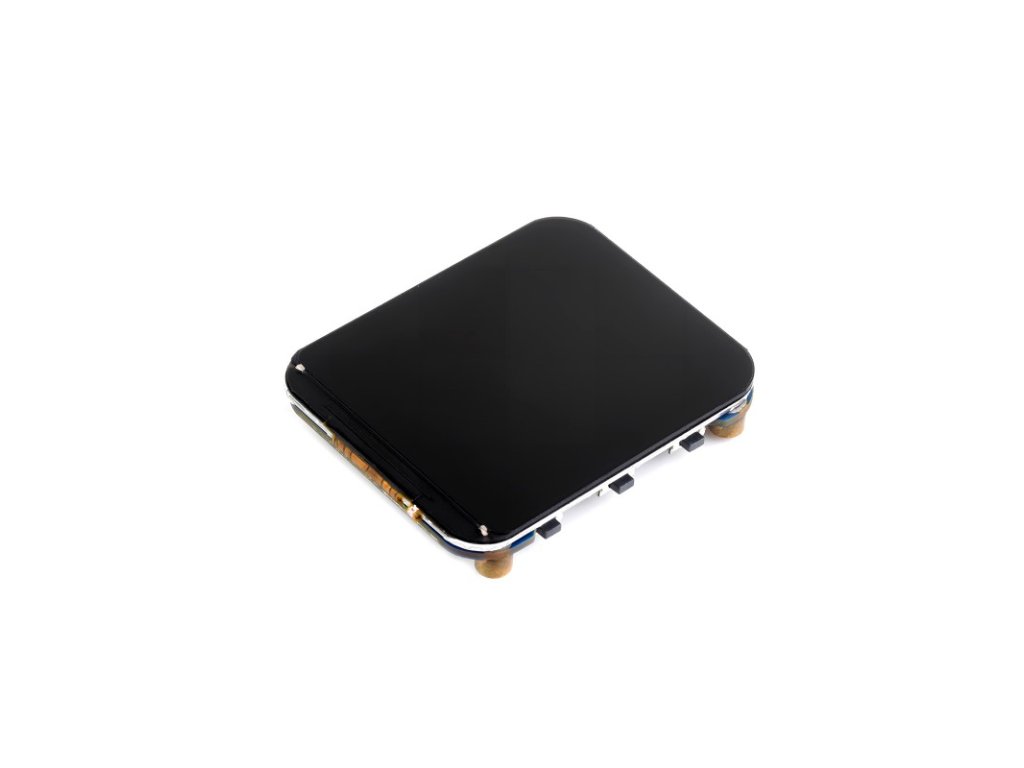

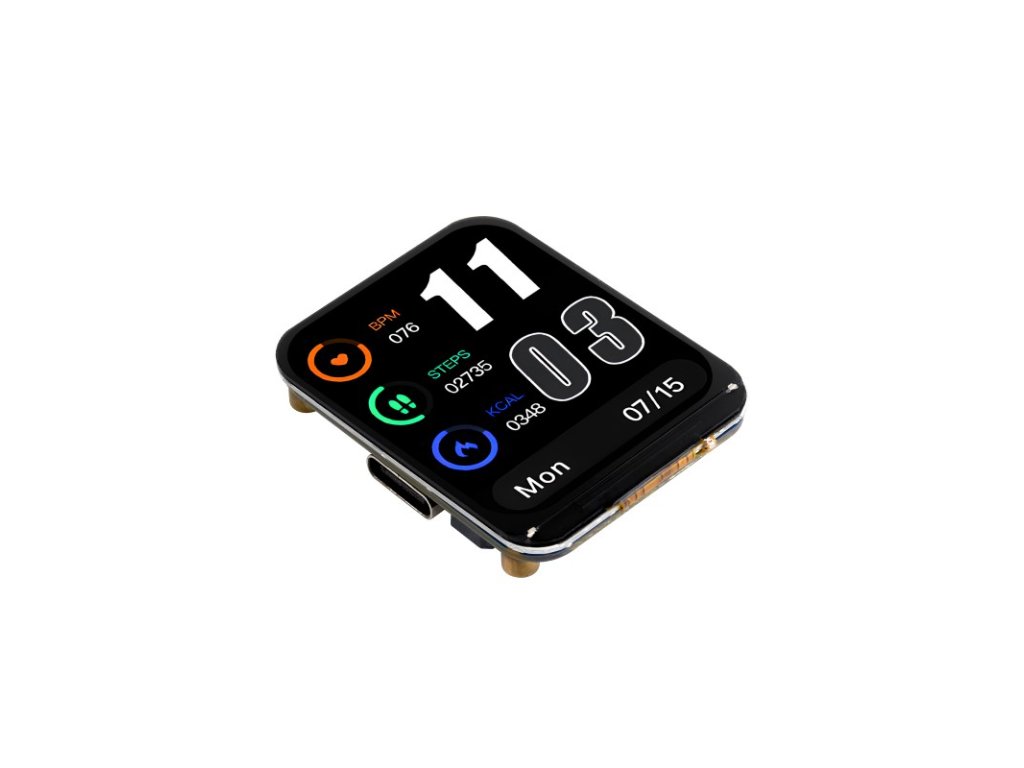

• Onboard 1.69inch 240×280 pixels 262K display for clear color pictures
• Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
• Onboard RST, BOOT and a programmable PWM button for easy custom function development
• Onboard 3.7V MX1.25 lithium battery recharge/discharge header
• Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
