    ESP32-S3 1.85inch Round Display Development Board, 360×360, 32-bit LX7 Dual-core with touch screen

    Neohodnotené
    Značka: Waveshare

    ESP32-S3 1.85inch Round Display Development Board, 360×360, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, ESP32 With Display, Optional for Touch Function With touch screen

    SKU: 28514

    Dostupnosť Skladom (2 ks)
    Môžeme doručiť do:
    30.12.2024
    Možnosti doručenia
    Kód: 23976
    39,48 € / ks 32,90 € bez DPH
    ESP32-S3 1.85inch Round Display Development Board, 360×360, 32-bit LX7 Dual-core with touch screen
    Neohodnotené
    Značka: Waveshare
    ESP32-S3 1.85inch Round Display Development Board, 360×360, 32-bit LX7 Dual-core with touch screen
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    ESP32-S3 1.85inch Round Display Development Board, 360×360, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, ESP32 With Display, Optional for Touch Function With touch screen

    ESP32-S3 1.85inch Round Display Development Board, 360×360, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, Accelerometer And Gyroscope Sensor, ESP32 With Display, Optional for Touch Function
    ESP32-S3 1.85″ LCD Development Board

    Integrates QSPI interface display, multiple peripheral interfaces

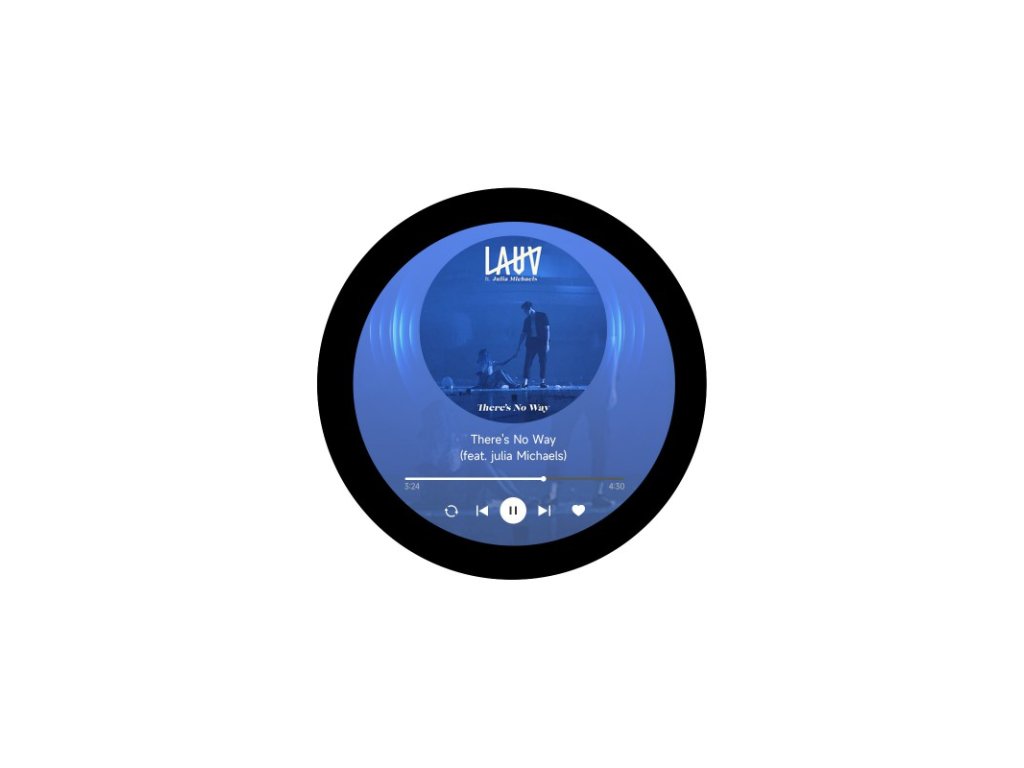

     ESP32-S3 Touch LCD 1.85, front view and features
    Features

    ESP32-S3-LCD-1.85 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL, optional for capacitive touch function. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

    • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
    • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
    • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
    • Onboard 1.85inch LCD display, 360×360 resolution, 262K color
    • Optional for capacitive touch function controled via I2C interface, with interrupt support
    • Adapting UART, I2C and some IO interfaces
    • Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
    • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

    Version Options
    ESP32-S3-LCD-1.85

    ESP32-S3-LCD-1.85
    without touch control


    ESP32-S3-Touch-LCD-1.85

    ESP32-S3-Touch-LCD-1.85
    with touch control


    Application Scenarios
    ESP32-S3 Touch LCD 1.85, application scenarios
    IPS Display Panel

    262K color, 360×360 resolution, wide viewing angle

    ESP32-S3 Touch LCD 1.85, IPS display panel
    Capacitive touch

    Optional for capacitive touch function controled via I2C interface for flexible operation and smooth UI interaction, with interrupt support

    ESP32-S3 Touch LCD 1.85, capacitive touch

    Note: this function is only available on ESP32-S3-Touch-LCD-1.85 version.


    Supports multiple peripherals

    Supports the expansion of multiple peripherals via GPIO and I2C interfaces, etc.

    ESP32-S3 Touch LCD 1.85, supports multiple peripherals

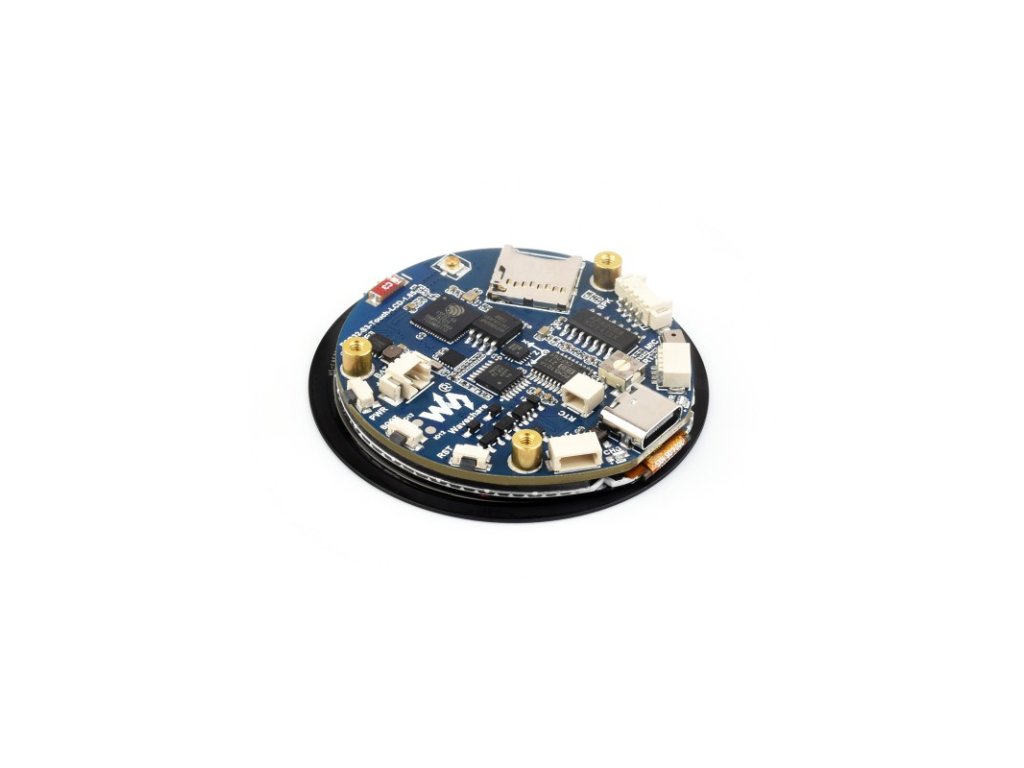

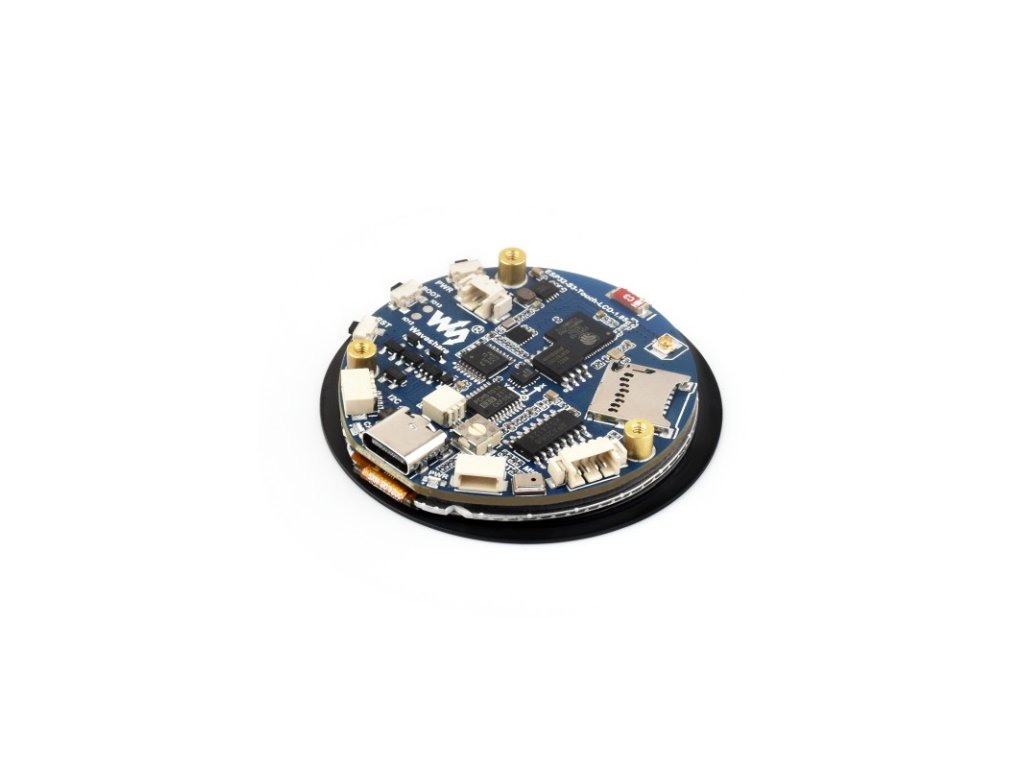

    What's On Board

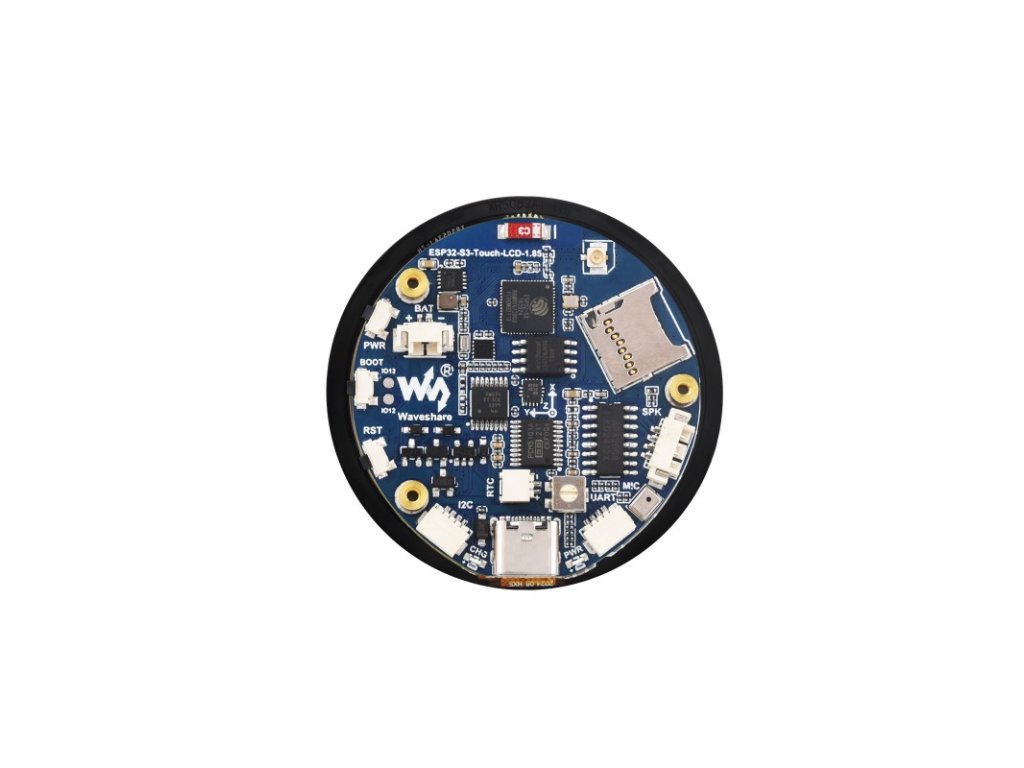

    ESP32-S3 Touch LCD 1.85, onboard components
    1. ESP32-S3R8
      dual-core processor, up to 240MHz operating frequency
    2. 16MB Flash
    3. QST attitude sensor
      QMI8658C (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
    4. TCA9554PWR
      GPIO expander chip
    5. PCM5101 audio decoder
    6. Amplifier chip
    7. Battery recharge manager
    8. ME6217C33M5G
      Low dropout regulator, 800mA output (Max.)
    9. RTC chip
      PCF85063 RTC chip
    10. Onboard ceramic antenna
    11. IPEX1 connector
      Switching to use external antenna via resoldering a onboard resistor
    12. TF card slot
    13. Speaker header
      Comes with 8Ω 2W 2030 speaker

    1. Volume adjustment knob
    2. Microphone
    3. UART header
      only available when UART Type-C port is not connected
    4. Power indicator
    5. USB Type-C port
    6. RTC battery header
      for connecting rechargeable RTC battery
    7. Charge indicator
      Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
    8. I2C header
      connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
    9. RESET button
    10. BOOT button
    11. MX1.25 battery header
      MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
    12. Battery power supply control button

    outline dimensions

    ESP32-S3-LCD-1.85

     ESP32-S3 LCD 1.85, outline dimensions


    ESP32-S3-Touch-LCD-1.85

     ESP32-S3 Touch LCD 1.85, outline dimensions

    Package Content

    Weight: 0.031 kg



    ESP32-S3-Touch-LCD-1.85

    1. ESP32-S3-Touch-LCD-1.85 x1
    2. 2030 8Ω 2W speaker ×1
    3. SH1.0 4PIN cable ~100mm ×2
    1ESP32-S3-Touch-LCD-1.85
