    ESP32-S3 2.1inch Capacitive Touch Round Display Development Board, 480×480, IPS, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, 262K Color, ESP32 With Display
    ESP32-S3-Touch-LCD-2.1

    Integrates RGB interface display and I2C touch panel, multiple peripheral interfaces

     ESP32-S3 2.1inch Touch LCD, front view and features
    Features

    ESP32-S3-Touch-LCD-2.1 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.1inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

    • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
    • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
    • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
    • Onboard 2.1inch capacitive touch display, 480×480 resolution, 262K color
    • Supports touch control via I2C interface, with interrupt support
    • Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
    • Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
    • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios


    Application Scenarios
    ESP32-S3 2.1inch Touch LCD, application scenarios

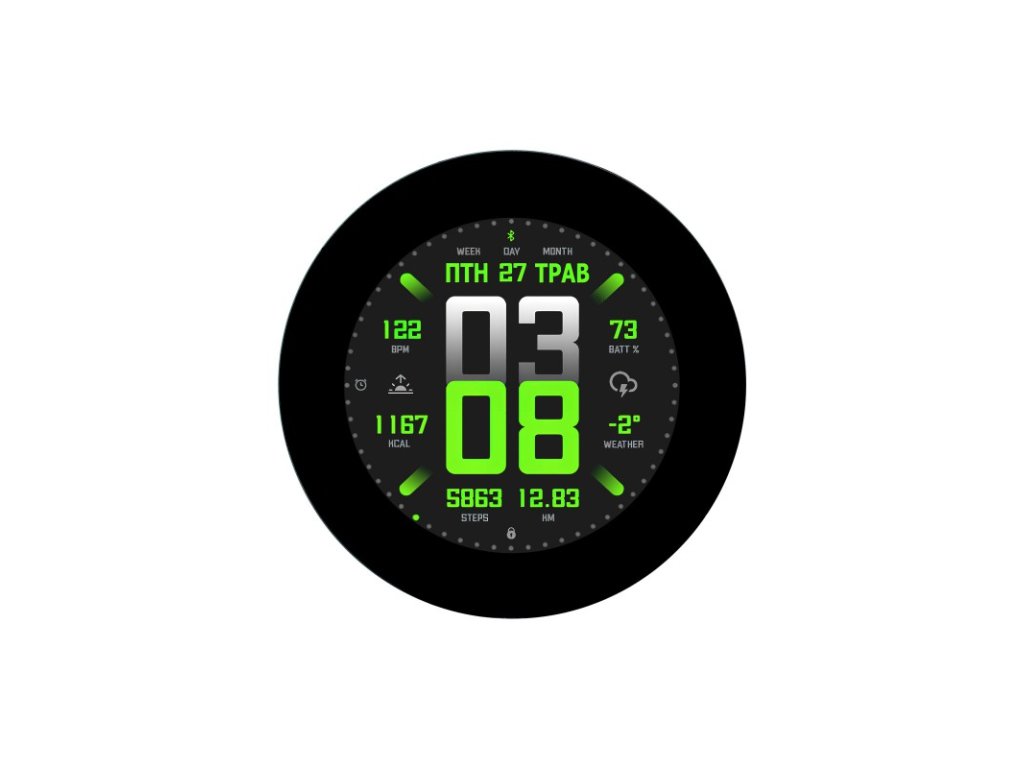

    IPS Display Panel

    Excellent display performance, 262K color, wide viewing angle

    ESP32-S3 2.1inch Touch LCD, adopts IPS display panel

    Supports ESP-IDF, Arduino

    Comprehensive SDK, dev resources, and tutorials to help you easily get started

    ESP32-S3 2.1inch Touch LCD, supports ESP-IDF, Arduino

    Supports multiple peripherals

    Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc.

    ESP32-S3 2.1inch Touch LCD, supports multiple peripherals

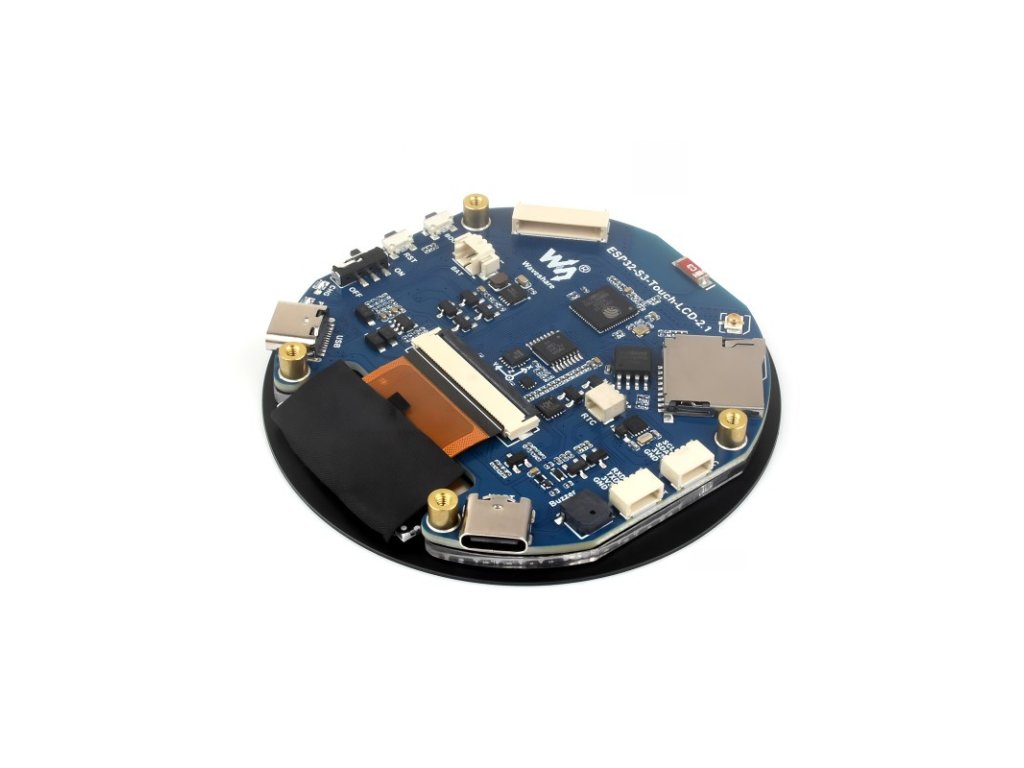

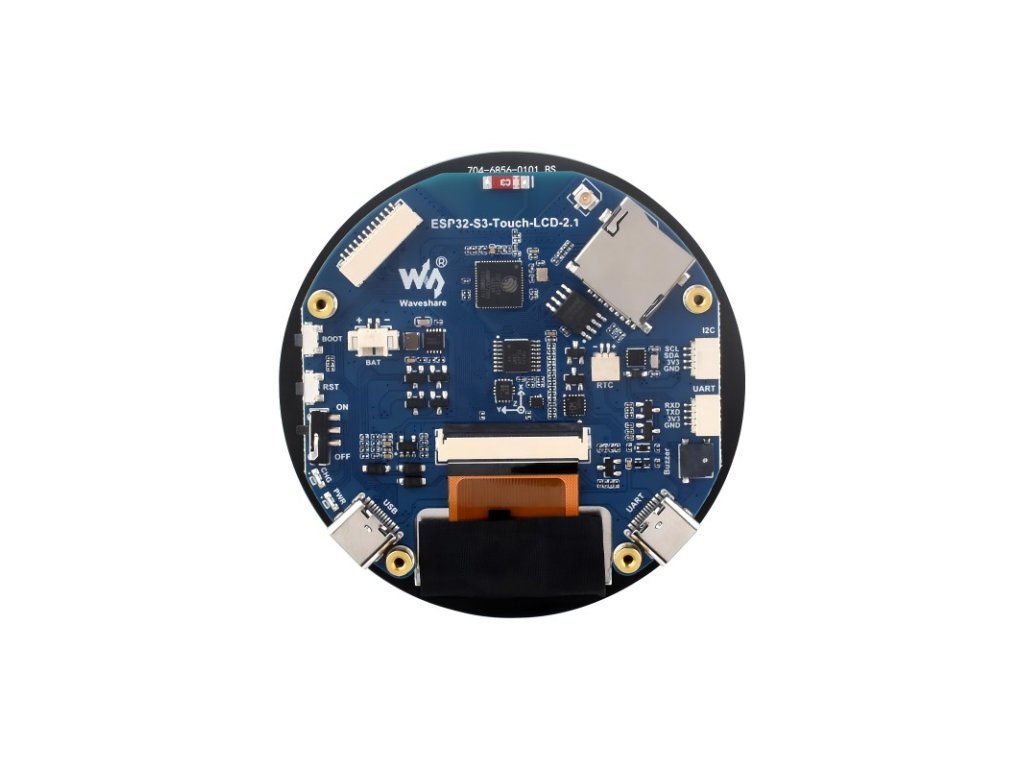

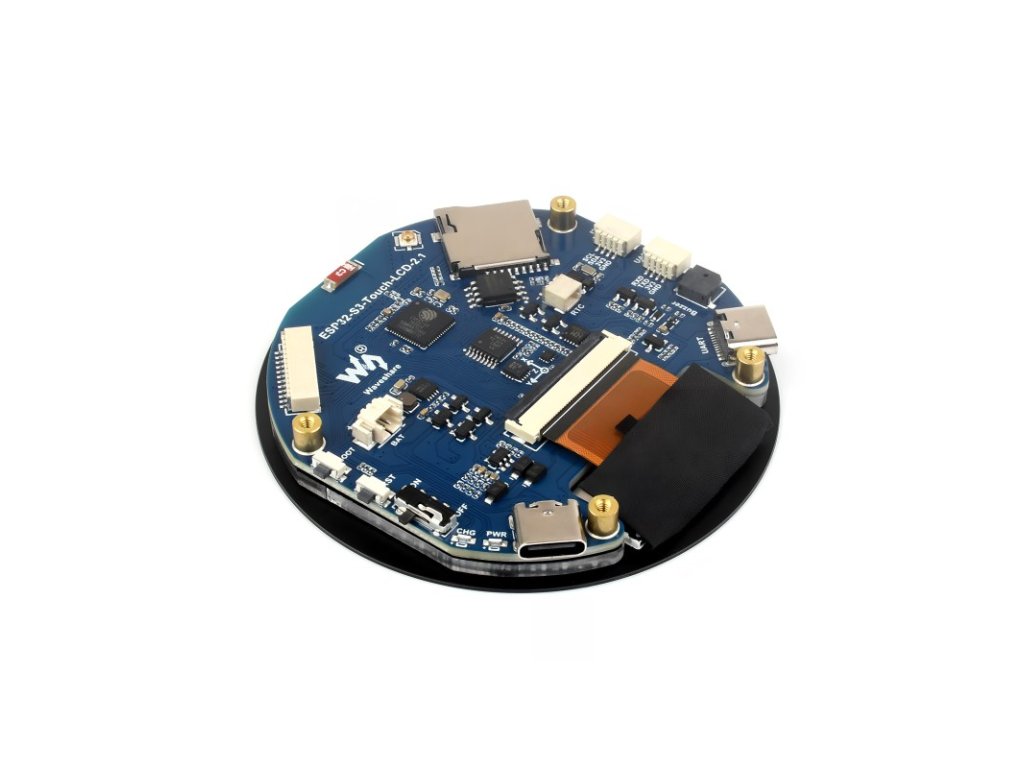

    What's On Board
    ESP32-S3 2.1inch Touch LCD, onboard components
    1. ESP32-S3R8
      Dual-core processor, up to 240MHz operating frequency
    2. QST attitude sensor
      QMI8658C (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
    3. TCA9554PWR
      GPIO expander chip
    4. FSUSB42UMX
      UART selection chip, the 4-pin UART header is disabled when connected to the UART Type-C port
    5. CH343P
      USB to UART with onboard automatic download circuit, enabling program burning without additional operations
    6. 16MB Flash
    7. RTC chip
      PCF85063 RTC chip
    8. Battery recharge manager
    9. ME6217C33M5G
      Low dropout regulator, 800mA output (Max.)
    10. USB Type-C port
    11. MX1.25 battery header
      MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging

    1. 12PIN multi-functional pin header
    2. IPEX1 connector
      Switching to use external antenna via resoldering the resistor
    3. TF card slot
    4. RTC battery header
      for connecting rechargeable RTC battery
    5. I2C header
      connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
    6. UART header
      only available when the USB to UART Type-C port is not connected
    7. USB TO UART Type-C port
    8. Buzzer
    9. Power indicator
    10. Charge indicator
      Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
    11. Battery power supply control button
    12. RESET button
    13. BOOT button

    outline dimensions
    ESP32-S3 2.1inch Touch LCD, outline dimensions
    Resources & Services
    resources and services
    Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-LCD-2.1

    Balenie obsahuje :

    Weight: 0.047 kg

    1. ESP32-S3-Touch-LCD-2.1 x1
    2. SH1.0 12PIN cable ~100mm ×1
    3. SH1.0 4PIN cable ~100mm (2pcs) ×1
    1ESP32-S3-Touch-LCD-2.1
