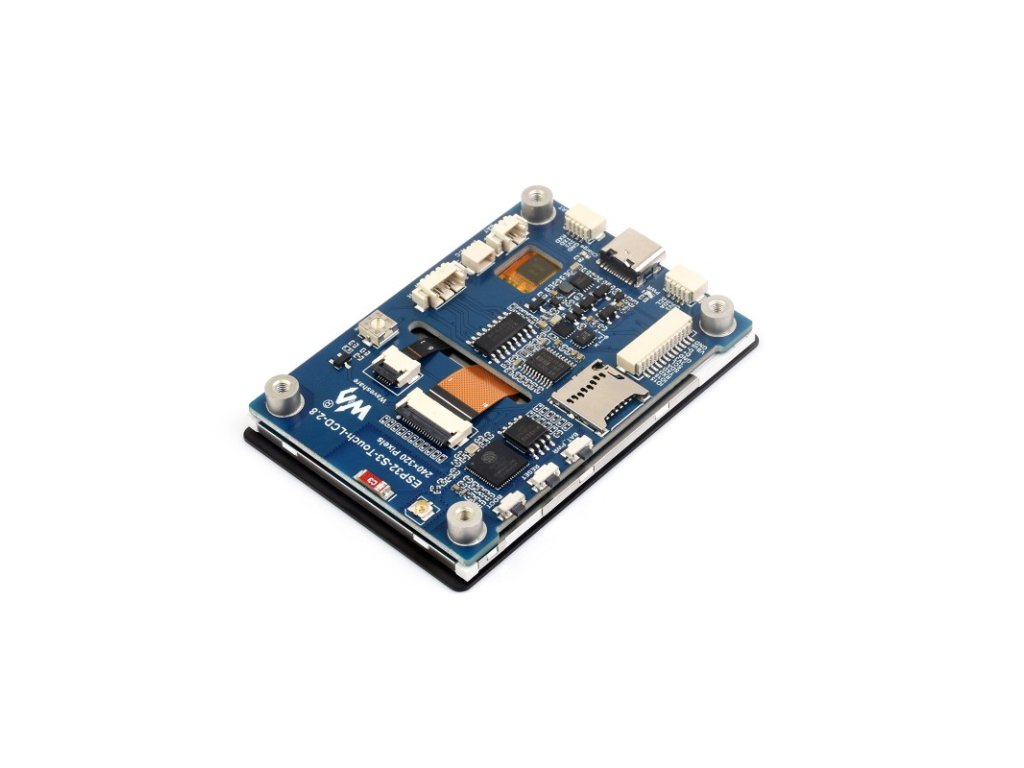

    ESP32-S3 2.8inch Capacitive Touch Display Development Board, 240×320, IPS, 5-point Touch, 32-bit LX7

    Neohodnotené
    Značka: Waveshare

    ESP32-S3 2.8inch Capacitive Touch Display Development Board, 240×320, IPS, 5-point Touch, 32-bit LX7 Dual-core Processor, Supports WiFi and Bluetooth , ESP32 With Display

    SKU: 27690

    Dostupnosť Skladom (2 ks)
    Môžeme doručiť do:
    31.12.2024
    Možnosti doručenia
    Kód: 23565
    31 € / ks 25,83 € bez DPH
    ESP32-S3 2.8inch Capacitive Touch Display Development Board, 240×320, IPS, 5-point Touch, 32-bit LX7
    Neohodnotené
    Značka: Waveshare
    ESP32-S3 2.8inch Capacitive Touch Display Development Board, 240×320, IPS, 5-point Touch, 32-bit LX7
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    ESP32-S3 2.8inch Capacitive Touch Display Development Board, 240×320, IPS, 5-point Touch, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display
    ESP32-S3-Touch-LCD-2.8

    Integrates SPI interface display and 5-point capacitive touch, multiple peripheral interfaces

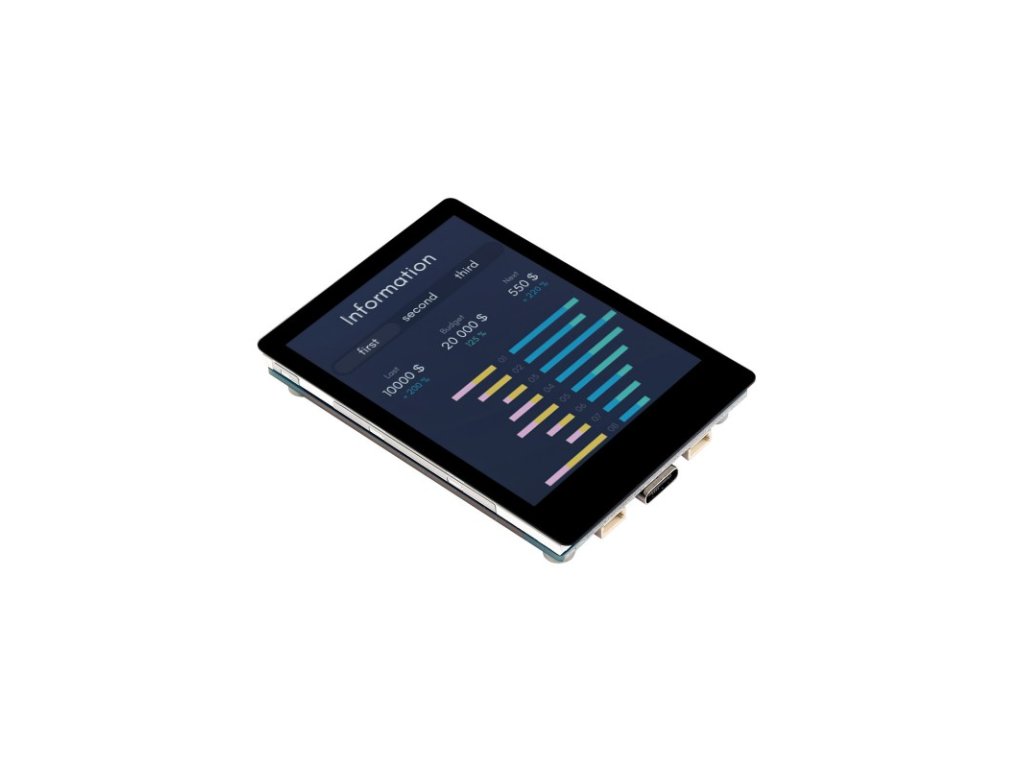

     ESP32-S3 Touch LCD 2.8, front view and features
    Features

    ESP32-S3-Touch-LCD-2.8 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

    • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
    • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
    • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
    • Onboard 2.8inch capacitive touch display, 240×320 resolution, 262K color
    • Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
    • Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
    • Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
    • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios


    Application Scenarios
    ESP32-S3 Touch LCD 2.8, application scenarios

    IPS Display Panel

    Excellent display performance, 262K color, wide viewing angle

    ESP32-S3 Touch LCD 2.8, IPS display panel

    Capacitive 5-point touch

    supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction

    ESP32-S3 Touch LCD 2.8, capacitive 5-point touch

    Supports multiple peripherals

    Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc.

    ESP32-S3 Touch LCD 2.8, supports multiple peripherals

    Application Example

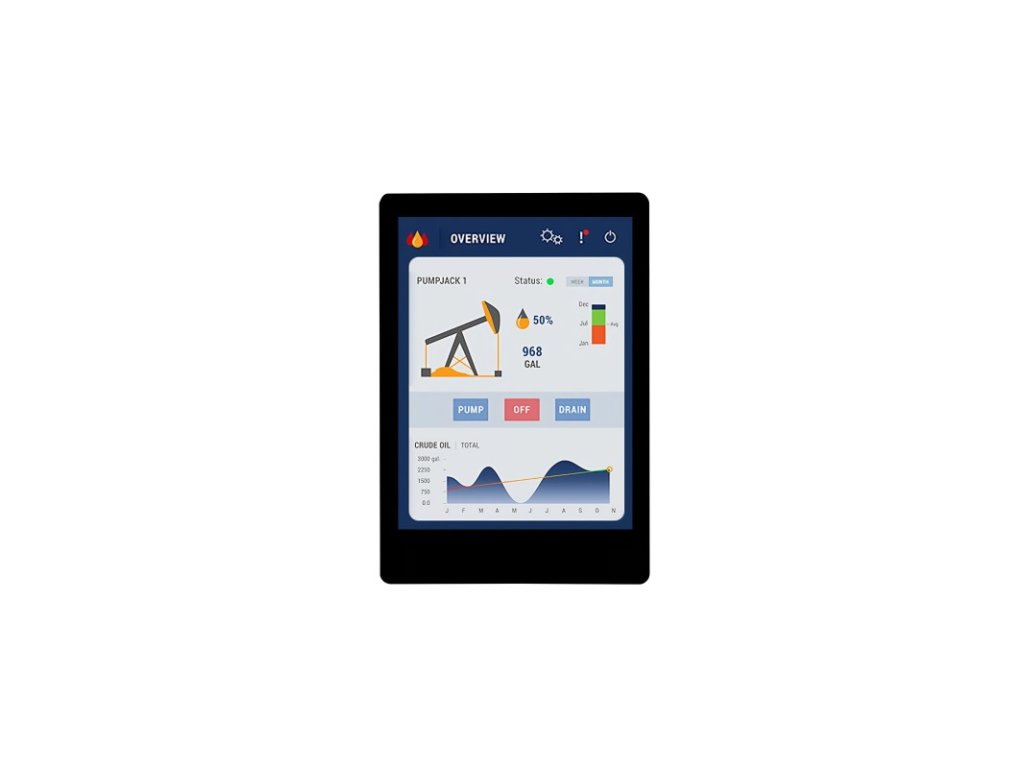

    ESP32-S3 Touch LCD 2.8, application example

    * the Lithium battery is NOT Included, please refer to the Package Content for the detailed part list

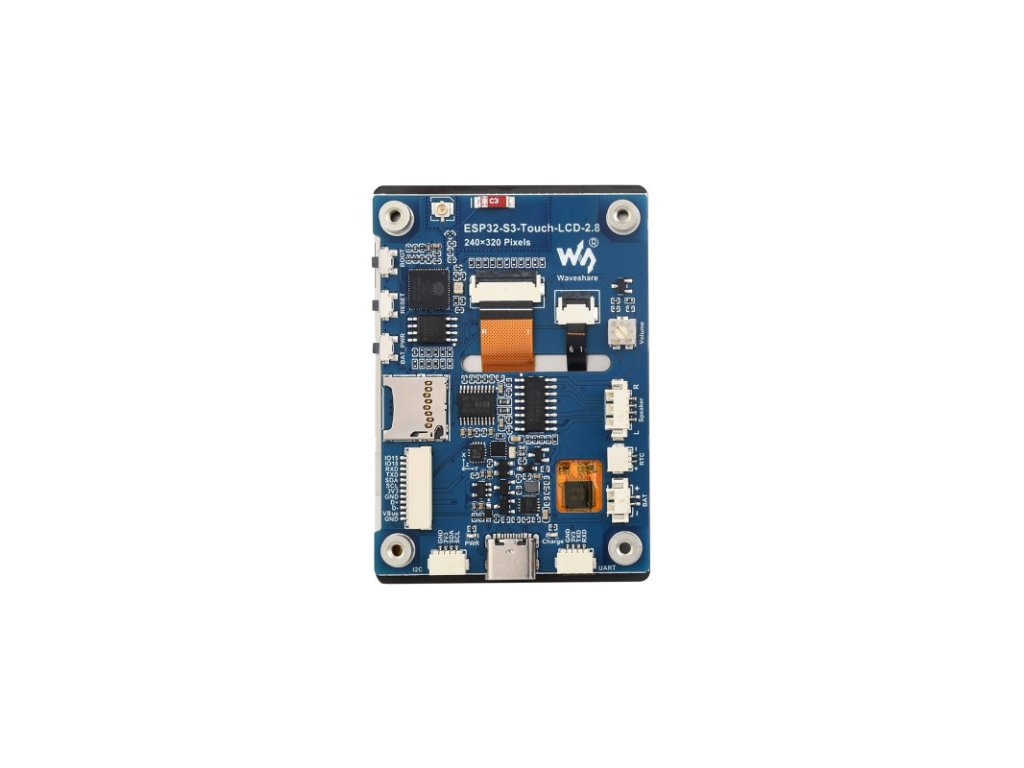

    What's On Board
    ESP32-S3 Touch LCD 2.8, what's on board
    1. ESP32-S3R8
      dual-core processor, up to 240MHz operating frequency
    2. 16MB Flash
    3. QST attitude sensor
      QMI8658C (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
    4. RTC chip
      PCF85063 RTC chip
    5. PCM5101 audio decoder
    6. Amplifier chip
    7. Volume adjustment knob
    8. Battery recharge manager
    9. ME6217C33M5G
      Low dropout regulator, 800mA output (Max.)
    10. Onboard ceramic antenna
    11. IPEX1 connector and switching resistor
      Switching to use external antenna via resoldering the resistor
    12. TF card slot
      Supports TF card up to 16GB
    13. Battery power supply control button
      Relevant driver program is required

    1. RESET button
    2. BOOT button
    3. USB Type-C port
    4. 13PIN multi-functional pin header
    5. I2C header
      connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
    6. UART header
    7. MX1.25 battery header
      MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
    8. RTC battery header
      for connecting rechargeable RTC battery
    9. Speaker header
      Comes with 8Ω 2W 2030 speaker
    10. Power indicator
    11. Charge indicator
      Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)

    outline dimensions
    ESP32-S3 Touch LCD 2.8, outline dimensions
    Resources & Services
    resources and services
    Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-LCD-2.8

    Balenie obsahuje :

    Weight: 0.05 kg

    1. ESP32-S3-Touch-LCD-2.8 x1
    2. SH1.0 12PIN cable ~100mm ×1
    3. SH1.0 4PIN cable ~100mm (2pcs) ×1
    4. 2030 speaker ×1
