    ESP32-S3 2.8inch Round Display Development Board, 480×480, 32-bit LX7 Dual-core Processor, Supports

    Neohodnotené
    Značka: Waveshare

    ESP32-S3 2.8inch Round Display Development Board, 480×480, 32-bit LX7 Dual-core Processor, Supports WiFi and Bluetooth , Options For Touch Function, ESP32 With Display

    SKU: 29086

    Version : With Touch Function

    Dostupnosť Skladom (1 ks)
    Môžeme doručiť do:
    26.2.2025
    Možnosti doručenia
    Kód: 25245
    47,97 € / ks 39 € bez DPH
    ESP32-S3 2.8inch Round Display Development Board, 480×480, 32-bit LX7 Dual-core Processor, Supports
    Neohodnotené
    Značka: Waveshare
    ESP32-S3 2.8inch Round Display Development Board, 480×480, 32-bit LX7 Dual-core Processor, Supports
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    ESP32-S3 2.8inch Round Display Development Board, 480×480, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, Options For Touch Function, ESP32 With Display
    ESP32-S3 2.8″ LCD Development Board

    480×480 resolution, multiple peripheral interfaces

     ESP32-S3 2.8inch Touch LCD, front view and features
    Version Options
    ESP32-S3-LCD-2.8C

    ESP32-S3-LCD-2.8C
    without touch control


    ESP32-S3-Touch-LCD-2.8C

    ESP32-S3-Touch-LCD-2.8C
    with touch control


    Features

    This product is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

    • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
    • Supports 2.4GHz Wi-Fi (802.81 b/g/n) and Bluetooth 5 (LE), with onboard antenna
    • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
    • Onboard 2.8inch LCD display, 480×480 resolution
    • Supports touch control via I2C interface, with interrupt support (for touch version only)
    • Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
    • Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
    • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios


    Display parameters
    Display Panel IPS Display Size 2.8 inch
    Resolution 480 × 480 Contrast Ratio 1200:1
    Communication Interface RGB Driver IC ST7701
    Touch Interface
    (Touch Version Only)    		 I2C Touch IC
    (Touch Version Only)    		 GT911

    Application Scenarios
    ESP32-S3 2.8inch Touch LCD, application scenarios

    IPS Display Panel

    Excellent display performance, 160° viewing angle

    ESP32-S3 2.8inch Touch LCD, 160° viewing angle

    Supports ESP-IDF, Arduino IDE

    Comprehensive SDK, dev resources, and tutorials to help you easily get started

    ESP32-S3 2.8inch Touch LCD, supports ESP-IDF, Arduino

    Supports multiple peripherals

    Supports the expansion of multiple peripherals via GPIO, UART and I2C interfaces, etc.

    ESP32-S3 2.8inch Touch LCD, supports multiple peripherals

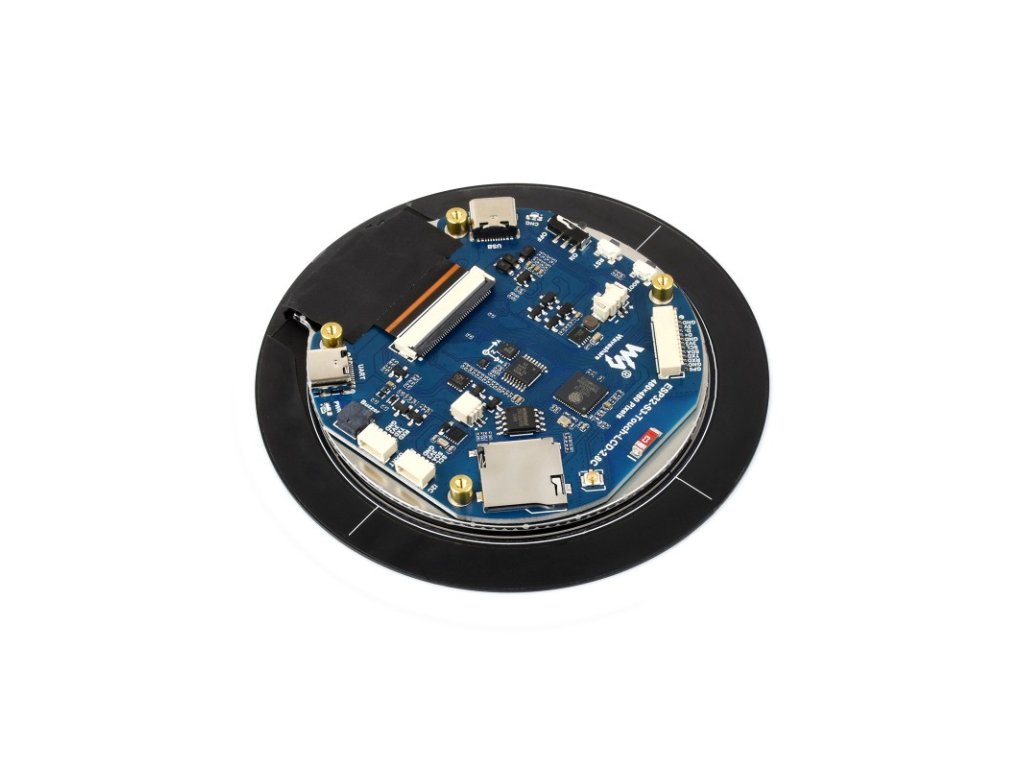

    What's On Board
    ESP32-S3 2.8inch Touch LCD, onboard components
    1. ESP32-S3R8
      Dual-core processor, up to 240MHz operating frequency
    2. QST attitude sensor
      QMI8658 (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
    3. TCA9554PWR
      GPIO expander chip
    4. FSUSB42UMX
      UART selection chip, the 4-pin UART header is disabled when connected to the UART Type-C port
    5. CH343P
      USB to UART with onboard automatic download circuit, enabling program burning without additional operations
    6. 16MB Flash
    7. RTC chip
      PCF85063 RTC chip
    8. Battery recharge manager
    9. ME6217C33M5G
      Low dropout regulator, 800mA output (Max.)
    10. USB Type-C port
    11. MX1.25 battery header
      MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging

    1. 12PIN multi-functional pin header
    2. IPEX1 connector
      Switching to use external antenna via resoldering the resistor
    3. TF card slot
    4. RTC battery header
      for connecting rechargeable RTC battery
    5. I2C header
      connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
    6. UART header
      only available when the USB to UART Type-C port is not connected
    7. USB TO UART Type-C port
      for power supply, program burning and debugging
    8. Buzzer
    9. Charge indicator
      Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
    10. Power indicator
    11. Battery power supply control button
    12. RESET button
    13. BOOT button

    outline dimensions

    ESP32-S3-LCD-2.8C

     ESP32-S3 2.8inch Touch LCD, outline dimensions


    ESP32-S3-Touch-LCD-2.8C

     ESP32-S3 2.8inch Touch LCD, outline dimensions

    Balenie obsahuje :

    ESP32-S3-Touch-LCD-2.8C

    1. ESP32-S3-Touch-LCD-2.8C x1
    2. SH1.0 12PIN cable ~100mm ×1
    3. SH1.0 4PIN cable ~100mm (2pcs) ×1
    1ESP32-S3-Touch-LCD-2.8C
