ESP32-S3 4.3inch Display Development Board, 800×480, Without Touch Function

Neohodnotené

Značka: Waveshare

ESP32-S3 4.3inch Display Development Board, 800×480, 32-bit LX7 Dual-core Processor , Up To 240MHZ Frequency , Supports WiFi and Bluetooth

SKU: 30493

Version : Without Touch Function

Dostupnosť	Skladom (1 ks)
Môžeme doručiť do:	6.5.2025
Možnosti doručenia
Kód:	25459

34,32 € / ks 27,90 € bez DPH

ESP32-S3 4.3inch Display Development Board, 800×480, Without Touch Function

Neohodnotené

Značka: Waveshare

ESP32-S3 4.3inch Display Development Board, 800×480, Without Touch Function

14 dní

na vrátenie tovaru

Do 12:30 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis

ESP32-S3 4.3inch Display Development Board, 800×480, Options For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

ESP32-S3 4.3″ LCD Development Board

Integrates RGB interface LCD and 5-point capacitive touch (optional)

Version Options

ESP32-S3-LCD-4.3
without touch control

ESP32-S3-Touch-LCD-4.3
with touch control

Features

This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash
Onboard 4.3inch LCD display, 800×480 resolution, 65K color
Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Application Scenarios

IPS Display Panel

Excellent display performance, 160° viewing angle

ESP32-S3 4.3inch Touch LCD, 160° viewing angle

Supports multiple peripherals

Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces

Application Example

for reference only, please refer to the Package Content for the detailed part list

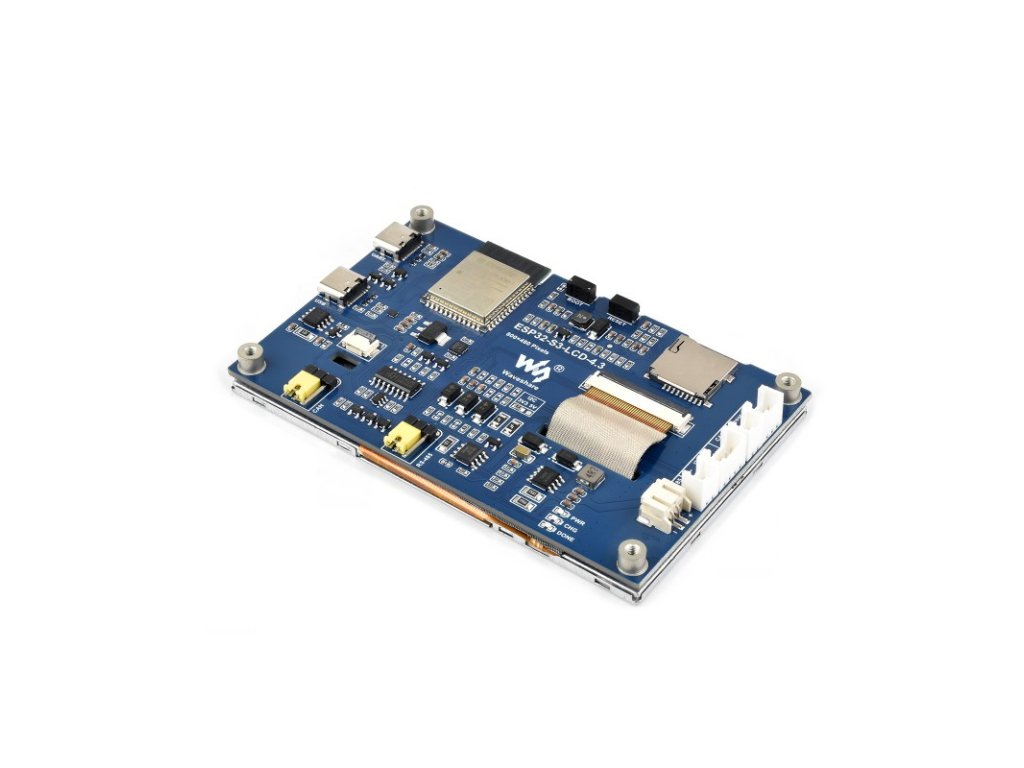

What's On Board

ESP32-S3N8R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash
SGM2212-3.3
800mA low-noise LDO
FSUSB42UMX
for USB pins multiplexing
Touch panel connector
USB TO UART Type-C port
USB Type-C port
TJA1051T/3/1J
CAN interface chip
CH422G
IO expansion chip
BOOT button
Press and hold while powering on for program burning
RESET button
MP3302DJ-LF-Z
Screen backlight boost chip

4.3inch display panel connector
TF card slot
Sensor header
CAN header
I2C header
RS485 header
3.7V single lithium battery PH2.0 header
CAN terminal resistor selection
RS485 terminal resistor selection
CH343P
USB to UART chip
SP3485
RS485 transceiver chip
CS8501
Lithium battery recharge manager
Status Indicators
PWR: Power supply indicator
CHG: Lithium battery charging indicator
DONE: Lithium battery charging completed indicator
