ESP32-S3 4inch Capacitive Touch Display Development Board, 480×480, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

ESP32-S3-Touch-LCD-4

Integrates RGB interface LCD with 5-point capacitive touch, multiple peripheral interfaces

Features

ESP32-S3-Touch-LCD-4 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces to quickly develop the HMI of ESP32-S3, suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 4inch capacitive touch display, 480×480 resolution, 65K color
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
Onboard CAN, RS485, I2C interface and TF card slot, and integrates full-speed USB port
Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

Application Scenarios

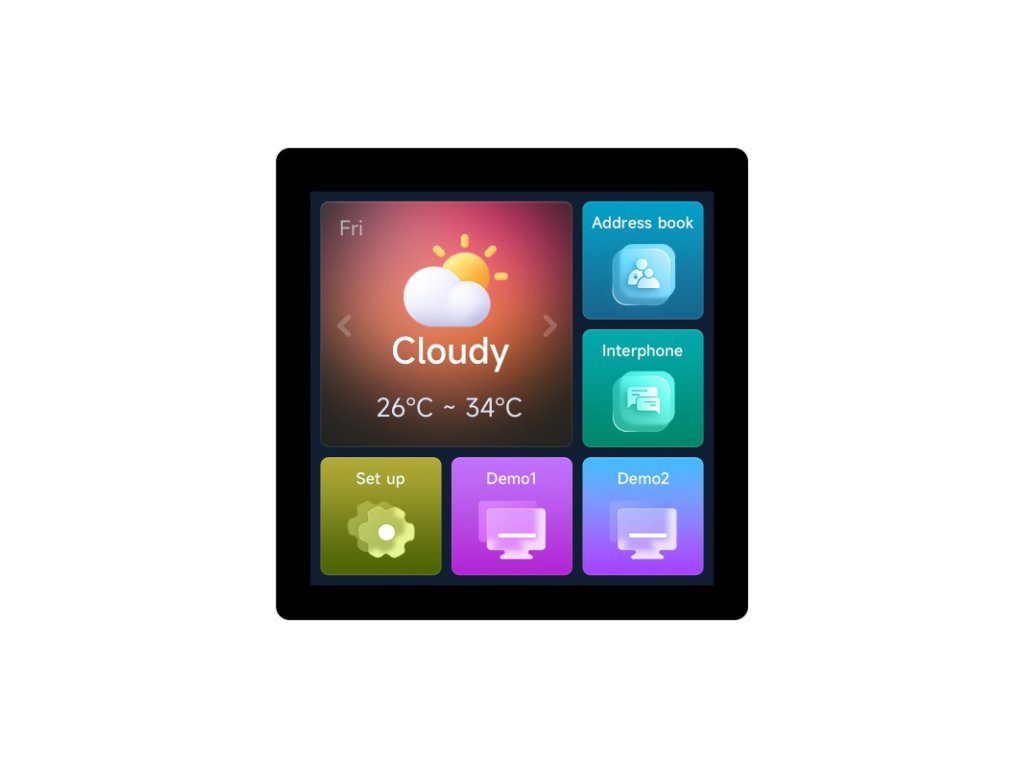

IPS Display Panel

Excellent display performance, 160° wide viewing angle

Capacitive 5-point touch

supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction

WIFI And Bluetooth Support

supports 2.4 GHz Wi-Fi (802.11 B/G/N) and Bluetooth 5 (LE), Onboard Antenna

Supports multiple peripherals

Supports the expansion of multiple peripherals via CAN, RS485, and I2C interfaces

Supports Two wiring methods

Comes with two types of screw terminals, allowing for bottom or back wiring, which is more convenient to integrate into various application scenarios such as DIN rail or embedded devices

Bottom Wiring

Back Wiring

What's On Board

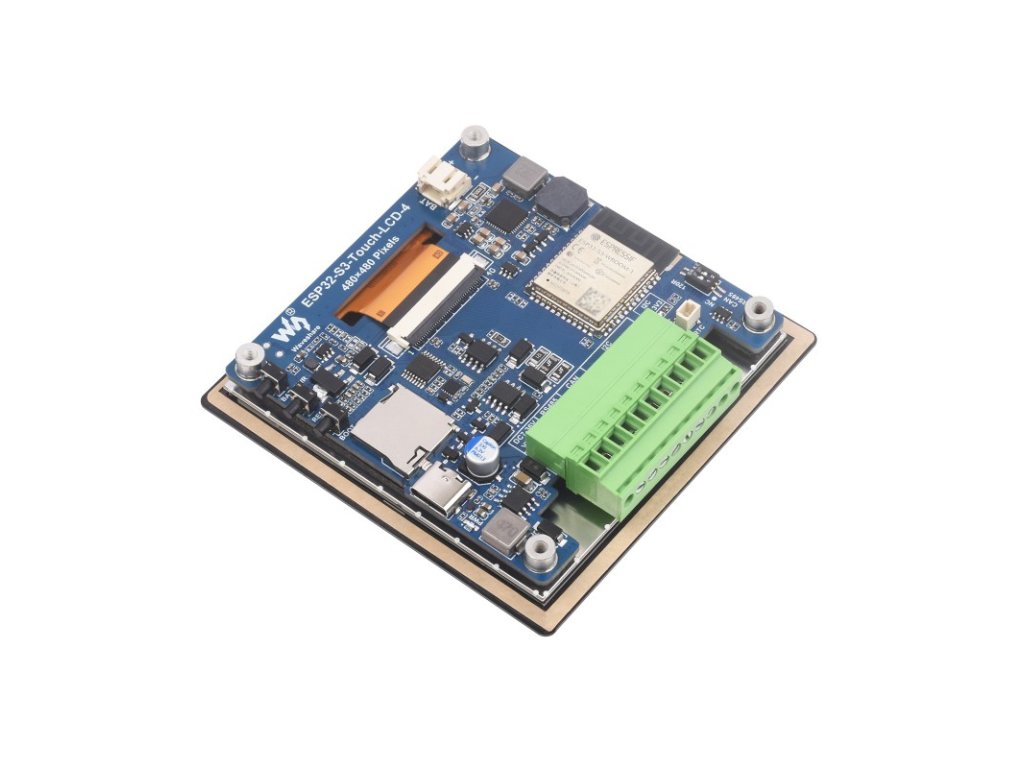

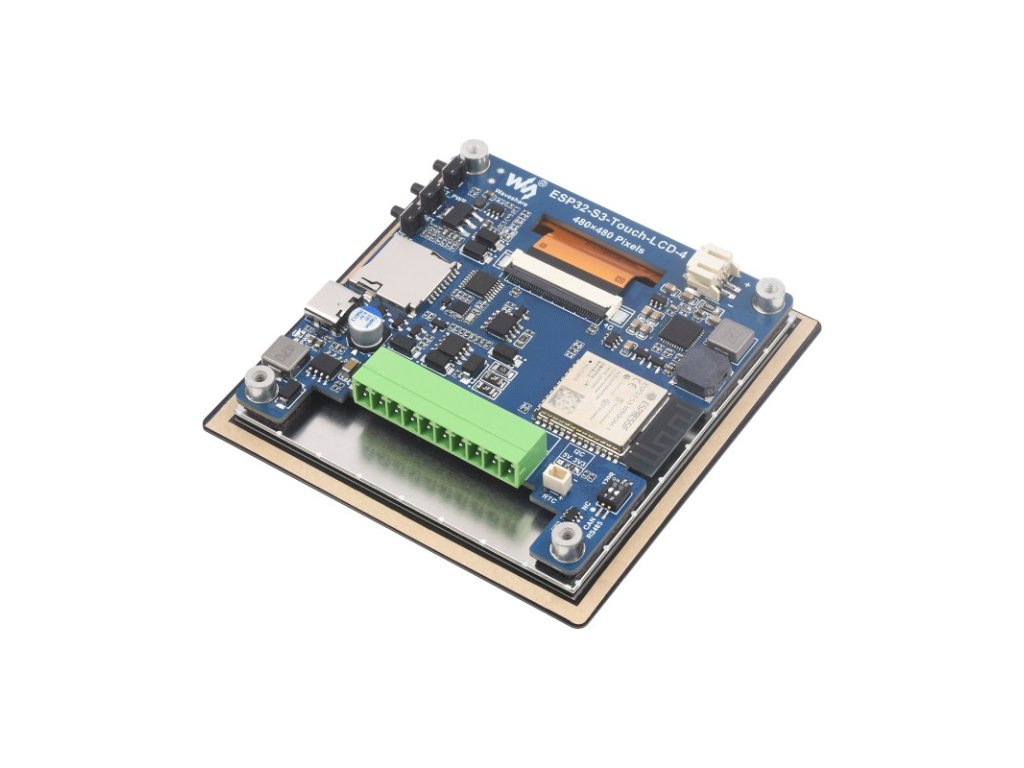

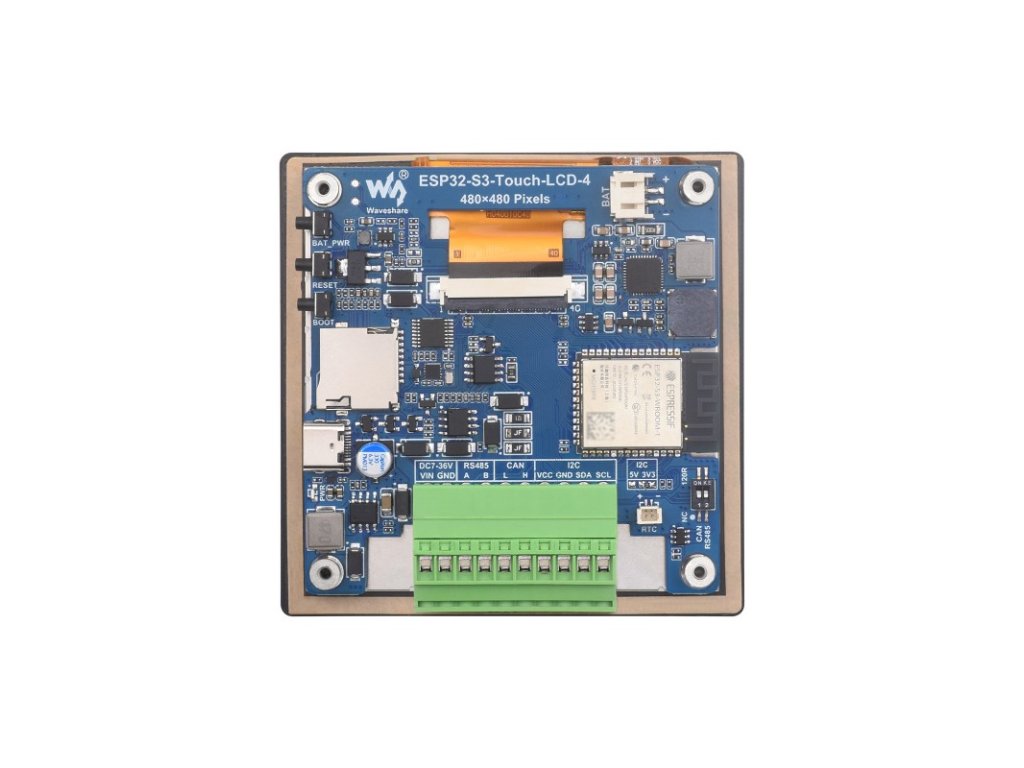

ESP32-S3 4inch Capacitive Touch Display Development Board, onboard components

ESP32-S3N16R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
SW6106
Battery charging/discharging management chip
TJA1051T/3/1J
CAN transceiver
SP3485
RS485 transceiver
PCF85063
RTC chip
TCA9554PWR
IO expansion chip
XL1509-ADJE1 power chip
Supports 7~36V DC power input
3.5mm 10pin screw terminal slot
for installing 3.5mm 10pin screw terminal block
RTC battery header
for connecting rechargeable RTC battery (only supports rechargeable RTC battery)

USB Type-C port
ESP32-S3 USB interface, for power supply, burning program and printing logs
TF card slot
PH2.0 Lithium battery header
PH2.0 2P connector, for 3.7V Lithium battery, supports charging and discharging
Buzzer
sound-producing peripheral
RS485 and CAN terminal resistor selection
close by defaul
Power supply indicator
BOOT button
RESET button
BAT_PWR button
Power ON/OFF button when using battery for power supply
