ESP32-S3 5inch Capacitive Touch Display Development Board, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, Options For 800×480/1024x600 Display Resolution

ESP32-S3-Touch-LCD-5

Integrates RGB interface LCD with 5-point capacitive touch, multiple peripheral interfaces

ESP32-S3 5inch Capacitive Touch Display Development Board, front view and features

Version Options

ESP32-S3-Touch-LCD-5

Standard version
800×480 pixels, 160° viewing angle

ESP32-S3-Touch-LCD-5B

Upgraded version
1024×600 pixels, 178° viewing angle

Features

This product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 5inch capacitive touch display, options for 800×480/1024x600 resolution, 65K color
Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard RTC chip and rechargeable battery to ensure time data is not lost when power loss
Onboard CAN, RS485, I2C interface and TF card slot, GH1.25 2P battery header and digital isolated IO interfaces, etc.
Supports passive and active digital input, with bi-directional optocoupler isolation
Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current
Onboard LED indicators for indicating the power and battery recharging status
Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios

Application Scenarios

IPS Display Panel

Excellent display performance, 178° wide viewing angle *

* 178° viewing angle for the Upgraded Version, and 160° for the Standard Version

Capacitive 5-point touch

supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction

Supports multiple peripherals

Supports the expansion of multiple peripherals via CAN, RS485, I2C and isolated IO interfaces

What's On Board

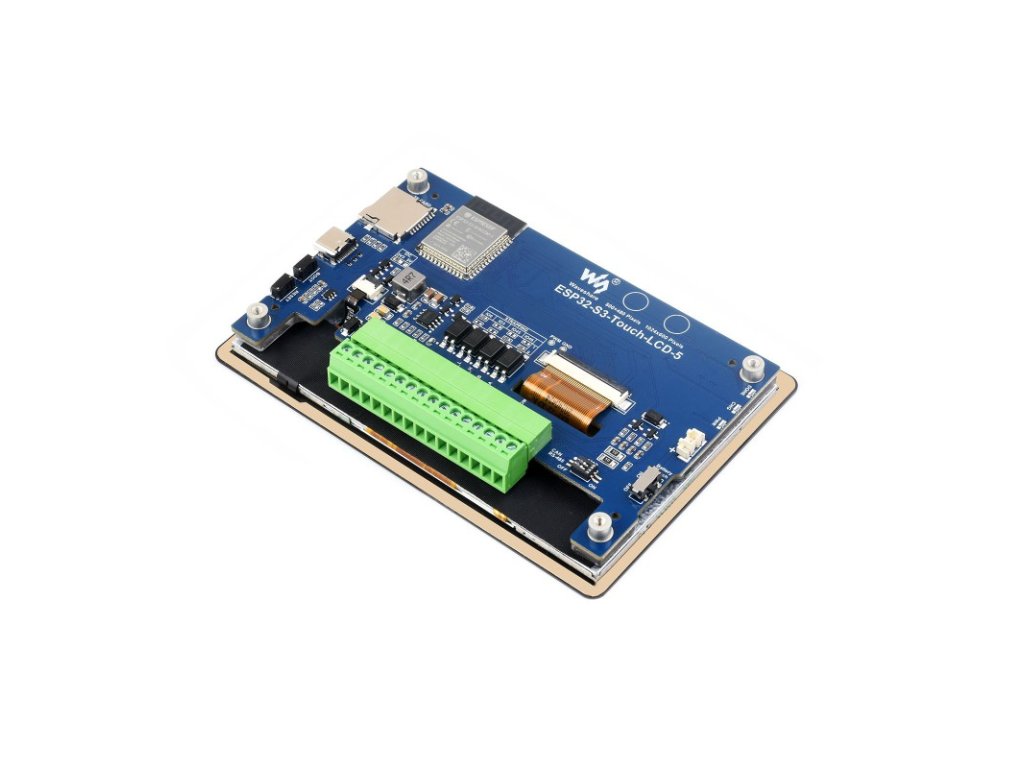

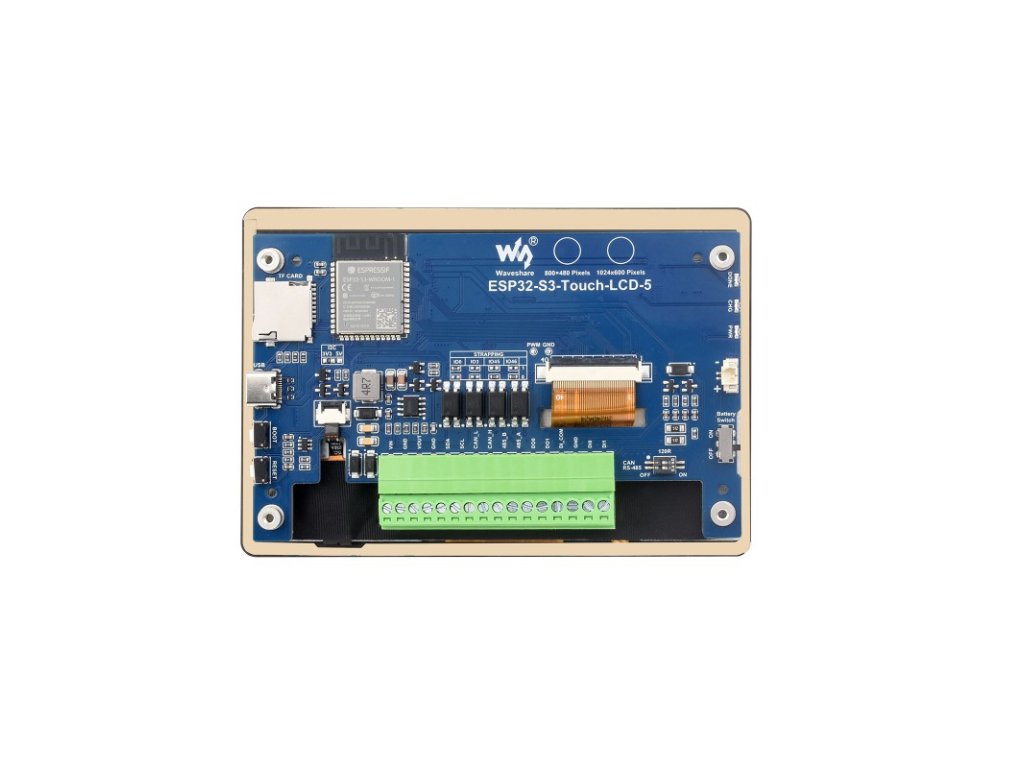

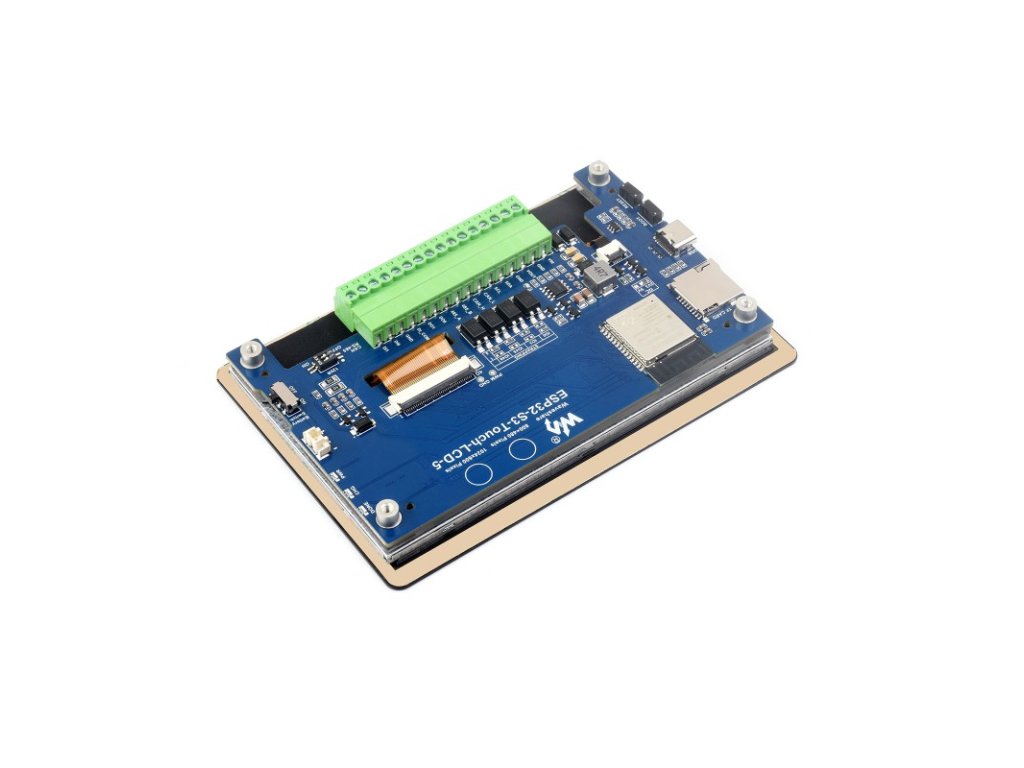

ESP32-S3 5inch Capacitive Touch Display Development Board, onboard components

ESP32-S3-WROOM-1-N16R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
TF card slot
USB Type-C port
BOOT button
Press and hold while powering on for program burning
RESET button
Optocoupler isolation
Touch panel connector
5inch display panel connector
RS485 and CAN terminal resistors selection
close by default
Battery power supply ON/OFF
3.7V single lithium battery GH1.25 header
Status Indicators
DONE: Lithium battery charging completed indicator
CHG: Lithium battery charging indicator
PWR: Power supply indicator
(the CHG will blink and DONE will light on when connecting with DC power supply and without lithium battery connected or battery switch is OFF)

7-36V DC power supply terminal
I2C interface terminal
VOUT pin output 5V/3.3V (switching by onboard resistor)
CAN interface terminal
RS485 interface terminal
Digital output
5~36V, open-drain output, output load: 450mA per channel (MAX)
Input signal common terminal
NC: dry contact passive input
Connect to power supply positive: digital input low active, for NPN wet contact active input, 5V-36V DC
Connect to power supply negative: digital input high active, for PNP dry contact active input, 5V-36V DC
Digital input
5~36V, supports passive / active input (NPN or PNP)
I2C VOUT output selection
for switching output valtage and I/O level of I2C VOUT, 3.3V by default
