    ESP32-S3 Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor, Supports Wi-Fi

    Neohodnotené
    Značka: Waveshare

    ESP32-S3 Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor, Supports Wi-Fi and Bluetooth LE, ESP32 Development Board

    SKU: 27119

    Dostupnosť Skladom (4 ks)
    Môžeme doručiť do:
    30.12.2024
    Možnosti doručenia
    Kód: 23496
    10,80 € / ks 9 € bez DPH
    ESP32-S3 Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor, Supports Wi-Fi
    Neohodnotené
    Značka: Waveshare
    ESP32-S3 Development Board, Onboard 8×8 RGB LED Matrix and QMI8658C Attitude Sensor, Supports Wi-Fi
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    ESP32-S3-Matrix Development Board, Onboard 8×8 RGB LED Matrix And QMI8658C Attitude Sensor, Supports Wi-Fi And Bluetooth LE, ESP32 Development Board
    ESP32-S3 RGB LED Matrix Board

    Based on ESP32-S3, 17 × multi-function GPIO pins

    240 MHz Xtensa 32-Bit LX7 Dual-Core Processor

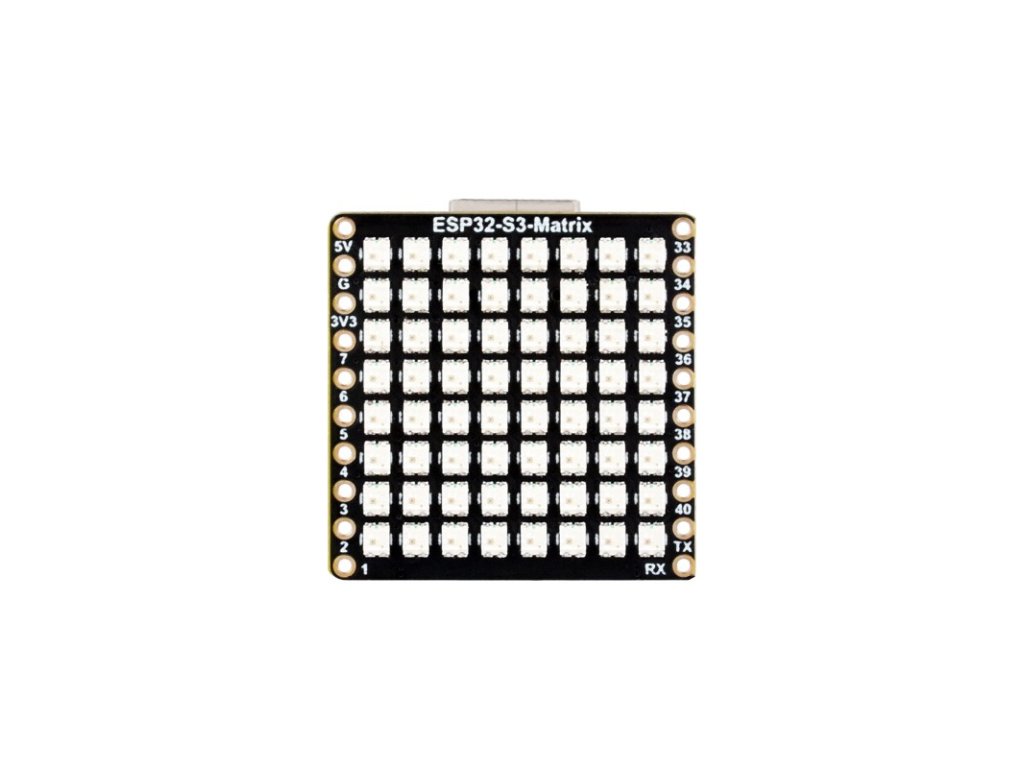

    ESP32-S3-Matrix Development Board, front view
    Board Specifications
    • Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
    • Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 4MB Flash memory
    • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
    • Type-C connector, easier to use
    • Onboard QMI8658C attitude sensor

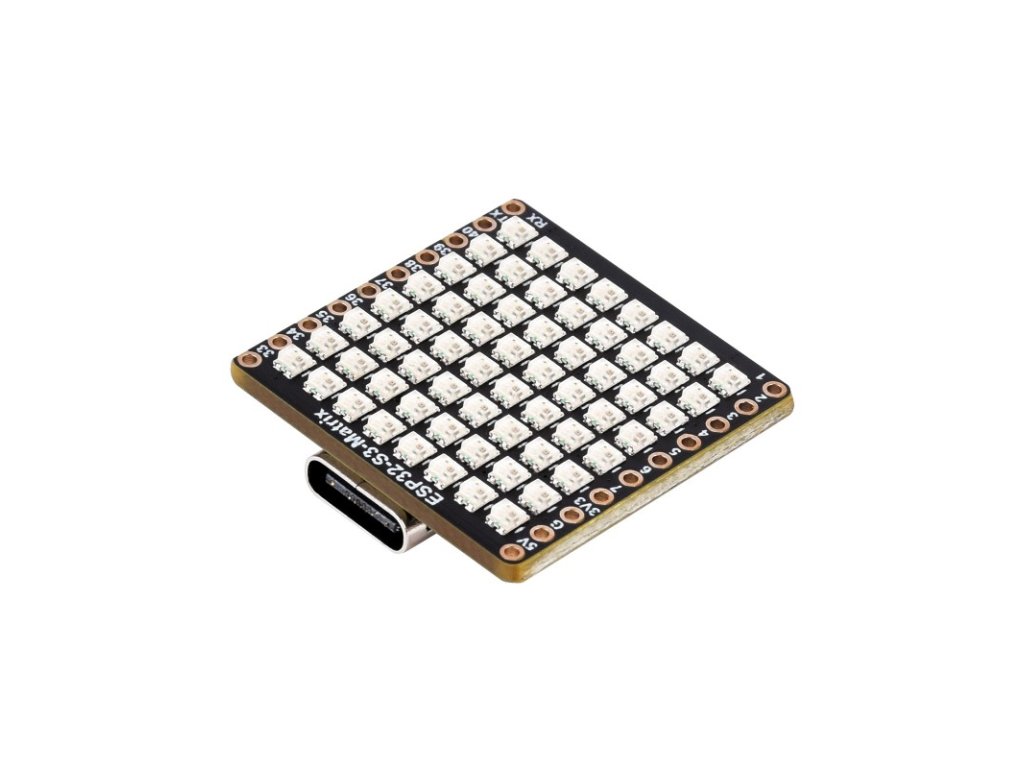

    • Onboard 8 × 8 RGB LED matrix for colorful lighting display
    • Adapting Dout pin for extending RGB matrix
    • 17 × multi-function GPIO pins
    • Rich peripheral interfaces for achieving various functions flexibly
    • Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios

    QMI8658C Gyroscope Sensor

    Onboard QST Attitude Sensor To Realize Accurate Attitude Tracking And Motion Control

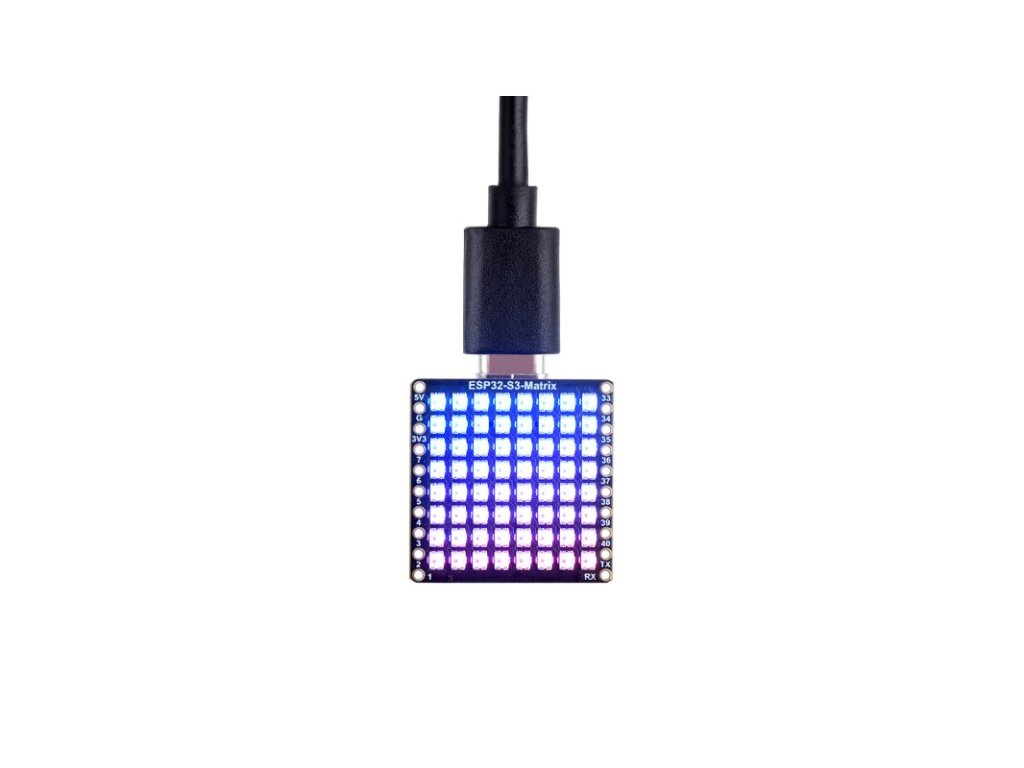

    Onboard 8×8 RGB LED Matrix

    For Colorful Lighting Display


    Designed For AIoT Applications

    Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz
    Powerful AI Computing Capability & Reliable Security Features

    ESP32-S3-Matrix Development Board, built-in Xtensa 32-bit LX7 dual-core processor
    WIFI And BLE 5 Support

    ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support
    Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

    ESP32-S3-Matrix Development Board, with WIFI and BLE 5 support

    Supports ESP-IDF, Arduino, MicroPython

    Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

    ESP32-S3-Matrix Development Board supports ESP-IDF, Arduino, MicroPython

    17 × Multi-Function GPIO Pins

    Configurable Pin Function, Allows Flexible Development And Integration

    ESP32-S3-Matrix Development Board 17 × multi-function GPIO pins

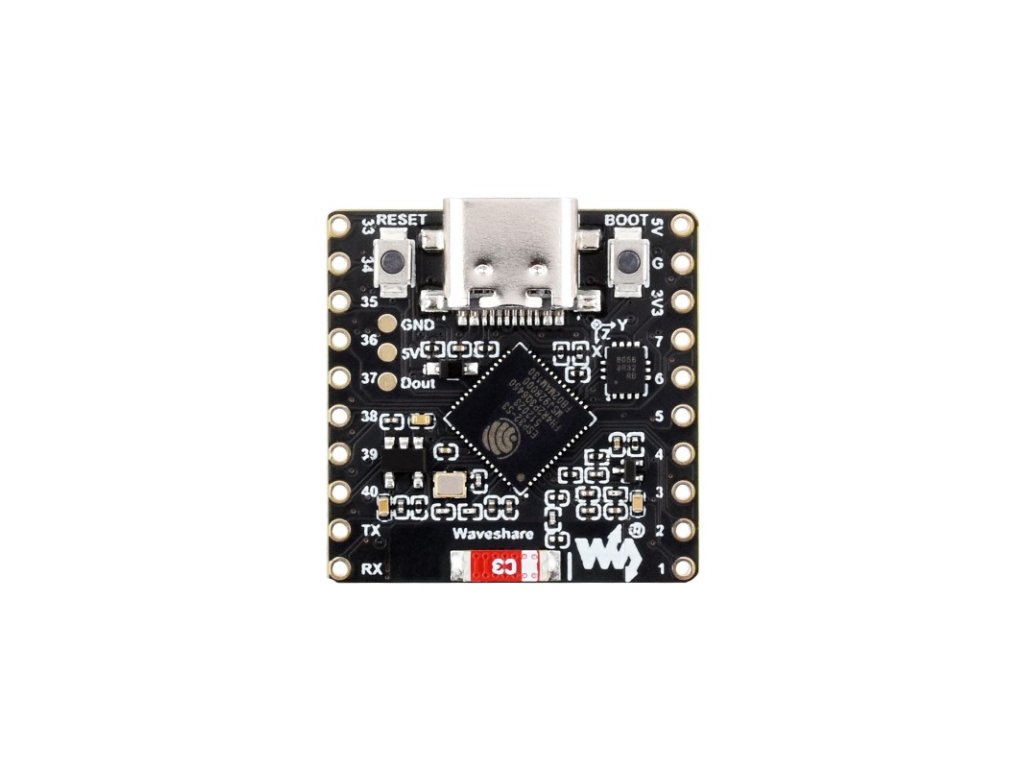

    What's On Board
    ESP32-S3-Matrix Development Board onboard components
    1. USB Type-C connector
    2. 8×8 RGB LED Matrix
    3. BOOT button
      press it when resetting to enter download mode
    4. RESET button

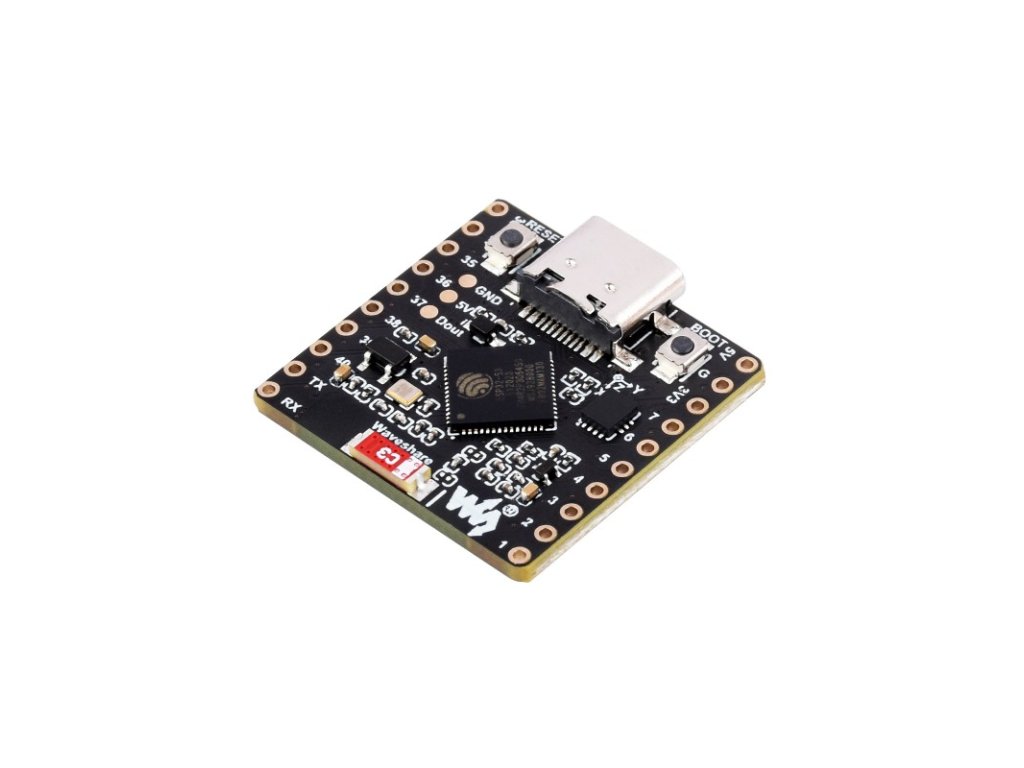

    1. ME6217C33M5G
      Low dropout LDO, 800mA (Max)
    2. QMI8658C
      QST attitude sensor (3-axis accelerometer, 3-axis gyroscope)
    3. ESP32-S3
      dual-core processor, up to 240MHz operating frequency
    4. Dout pin
      for extending RGB matrix

    Outline Dimensions
    ESP32-S3-Matrix Development Board outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/ESP32-S3-Matrix

    PACKAGE CONTENT

    Weight: 0.003 kg

    ESP32-S3-Matrix x1

    ESP32-S3-Matrix
