    ESP32-S3 IR Thermal Imaging Camera Module, Type-C Port, 80×62 Pixels, Options for 45° / 90° FOV
    ESP32-S3 IR Thermal Imaging Camera

    80×62 Pixels IR Array, Options for 45° / 90° FOV

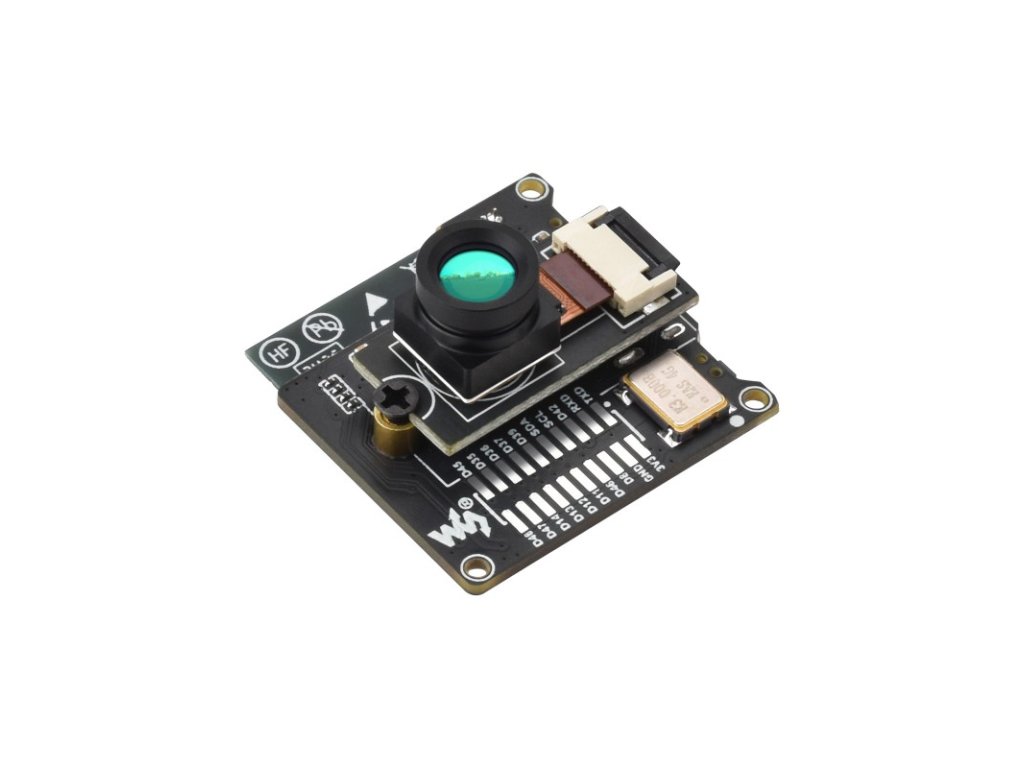

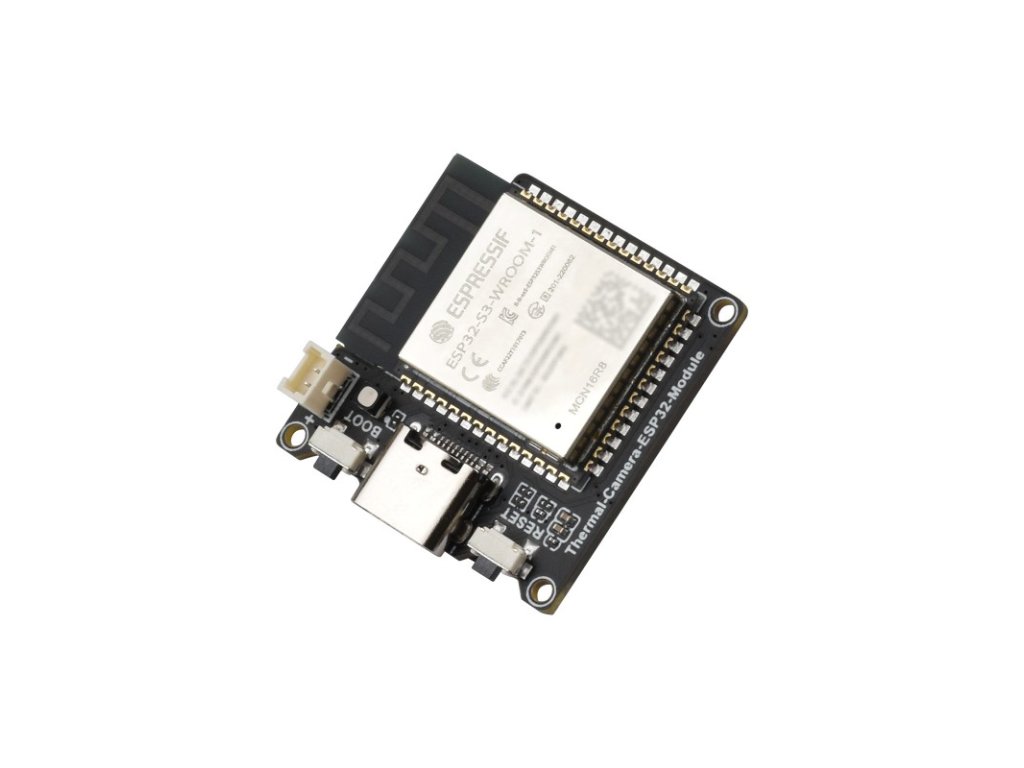

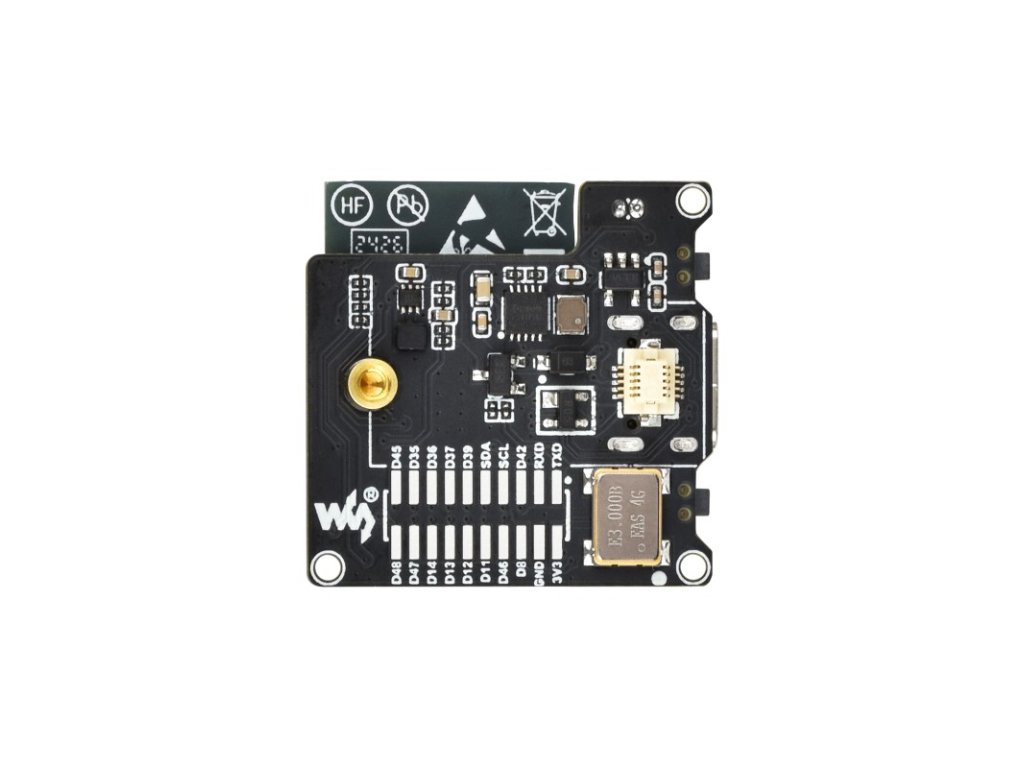

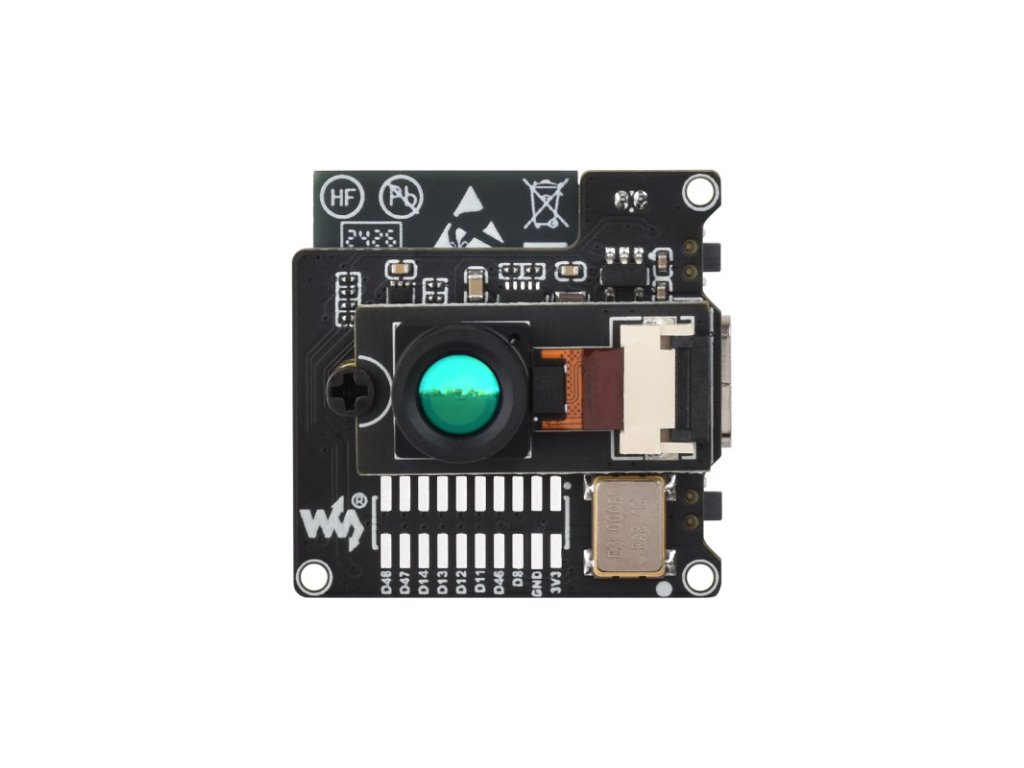

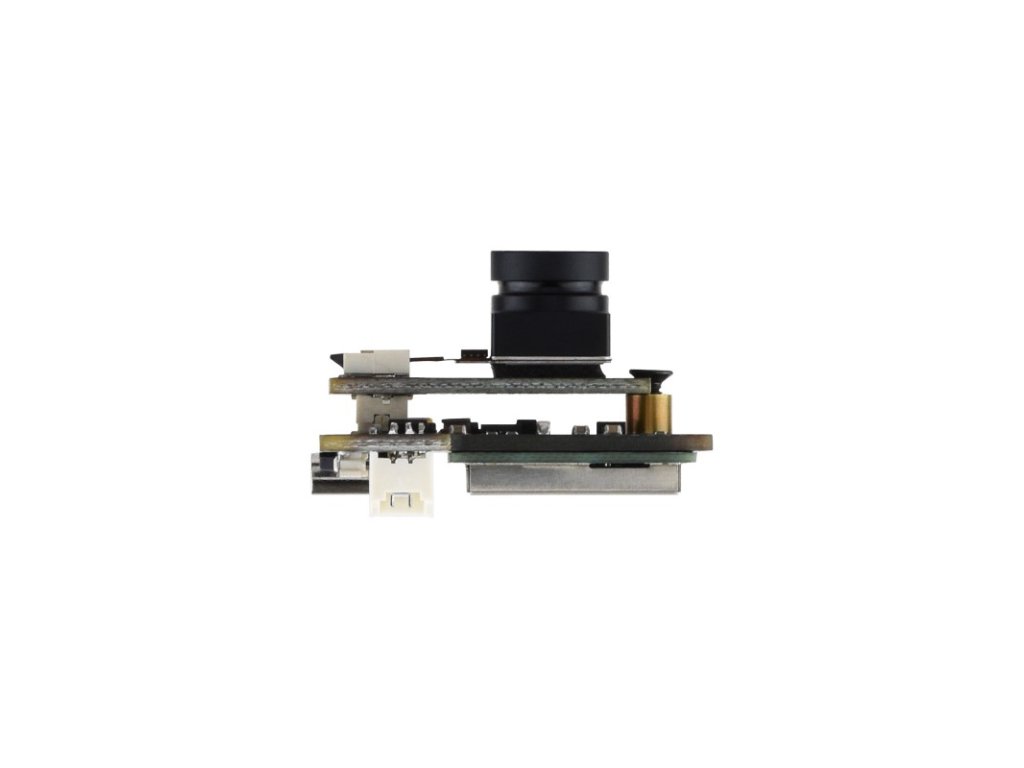

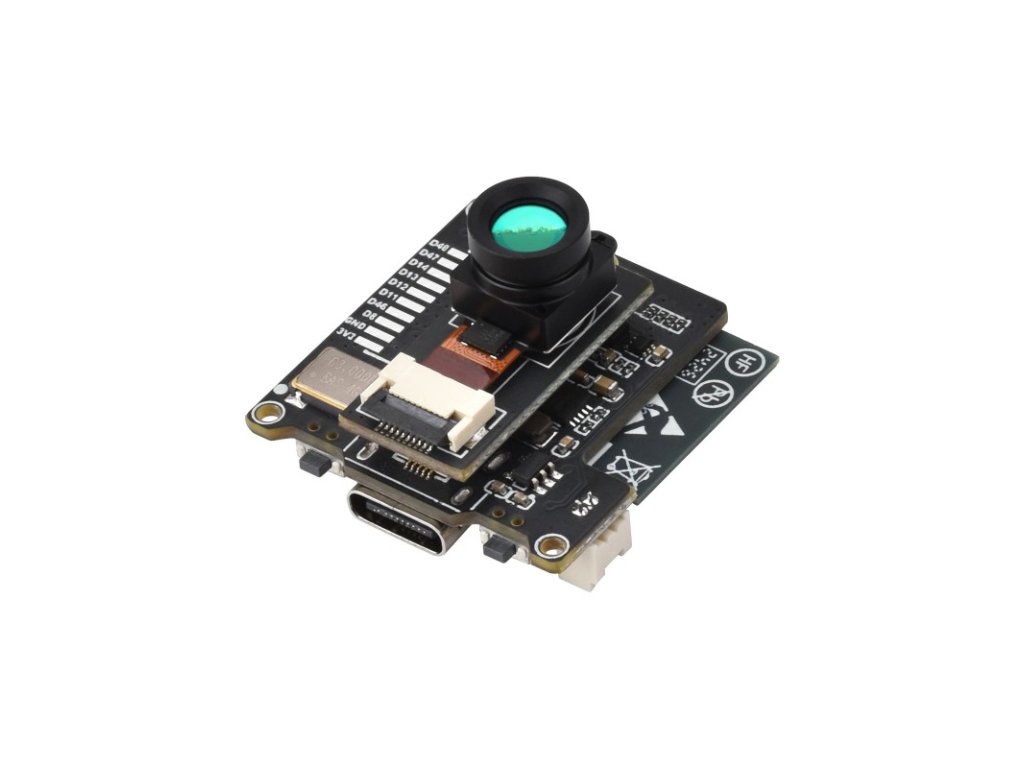

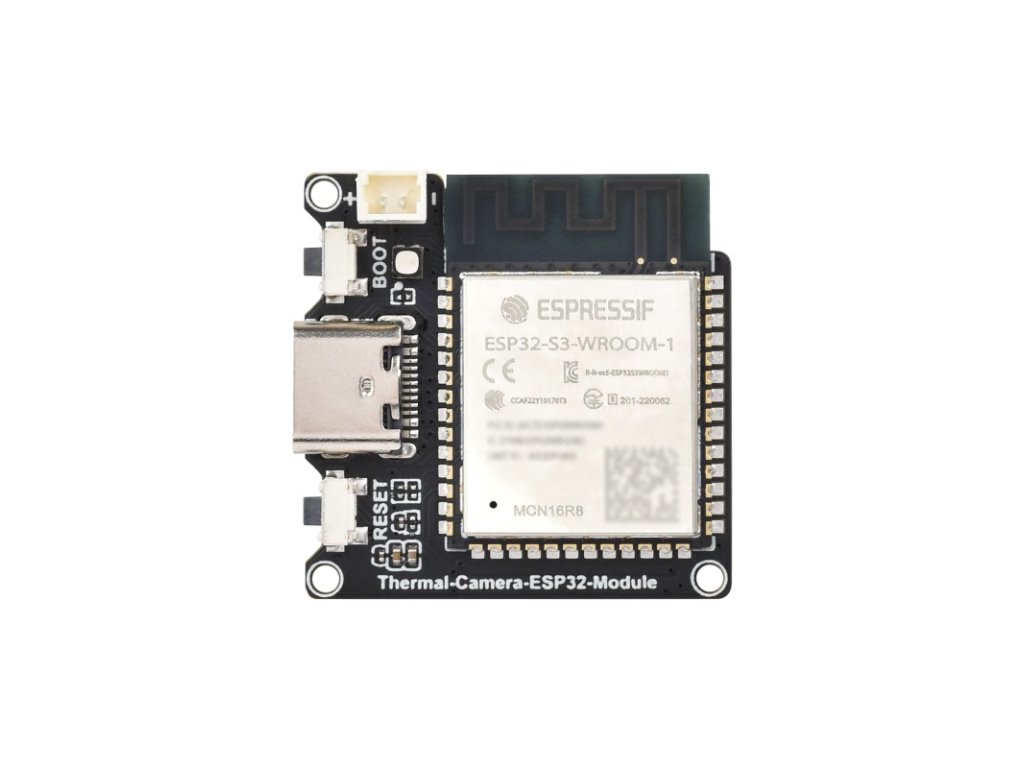

    ESP32-S3 IR Thermal Imaging Camera Module, front and back view ESP32-S3 IR Thermal Imaging Camera Module, features
    Version Options
    Thermal-45 Camera ESP32 Module

    Thermal-45 Camera ESP32 Module
    Basic version: 45° FOV


    Thermal-90 Camera ESP32 Module

    Thermal-90 Camera ESP32 Module
    Wide angle version: 90° FOV


    Features

    This product is a wireless IR thermal imaging camera based on the ESP32-S3-WROOM-1 chip, adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. It integrates a recharge and discharge circuit, with onboard Lithium battery header for flexible power supply.

    Key features include:

    • Equipped with ESP32-S3-WROOM-1 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency, offering powerful data processing capabilities
    • Supports 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
    • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
    • Type-C connector, enhancing device compatibility and user convenience
    • Onboard RGB LED indicator for real-time monitoring the operating status of the module
    • Onboard 3.7V MX1.25 Lithium battery recharge / discharge header for flexible power supply solution, extending device operation time
    • Onboard 2 × 10 solder pads, including 14 × GPIO, 1 × I2C, and 1 × UART, for external device expansion
    • Compact size design, more space-saving, making it ideal for embedded applications

    Provides options for 45°/90° FOV

    Meet the needs of different scenarios

    ESP32-S3 IR Thermal Imaging Camera Module provides options for 45°/90° FOV
    image preview via PC software

    Supports TCP communication and WiFi AP /STA preview modes, compatible with Windows systems

    ESP32-S3 IR Thermal Imaging Camera Module, supports image preview via PC software

    Parameters Configuration via Bluetooth APP

    Provides an Android APP for easy configuration of module parameters

    ESP32-S3 IR Thermal Imaging Camera Module, supports parameters configuration via Bluetooth APP

    * The Bluetooth APP is only used for configuring parameters such as the module's IP and device name. It does not support viewing thermal images.


    Supports battery power supply

    Onboard 3.7V MX1.25 lithium battery recharge / discharge header for flexible power supply

    ESP32-S3 IR Thermal Imaging Camera Module with lithium battery recharge / discharge header

    * Note: the Lithium battery is NOT included.


    Compact Size & Lightweight

    Modular design, compact in size yet fully functional

    ESP32-S3 IR Thermal Imaging Camera Module with compact size design

    Supports ESP-IDF

    Comprehensive SDK, dev resources, and tutorials to help you easily get started

    ESP32-S3 IR Thermal Imaging Camera Module, supports ESP-IDF

    Application Scenarios
    ESP32-S3 IR Thermal Imaging Camera Module, application scenarios

    Pin Definition
    ESP32-S3 IR Thermal Imaging Camera Module, pin definition
    What's On Board
    ESP32-S3 IR Thermal Imaging Camera Module, onboard components

    Outline dimensions
    ESP32-S3 IR Thermal Imaging Camera Module, outline dimensions

    Balenie obsahuje :

    Thermal-90 Camera ESP32 Module

    1. Thermal-90 Camera ESP32 Module x1
    2. USB Type-A to Type-C cable ~1m x1
    3. Screws pack x1
    1Thermal-90 Camera ESP32 Module
    2
    3
