    ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running

    Neohodnotené
    Značka: Waveshare

    ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz WiFi and Bluetooth 5

    SKU: 25081

    Dostupnosť Skladom (10 ks)
    Môžeme doručiť do:
    26.2.2025
    Možnosti doručenia
    Kód: 25110
    7,36 € / ks 5,98 € bez DPH
    ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running
    Neohodnotené
    Značka: Waveshare
    ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5
    ESP32-S3-Zero Development Board

    Based on ESP32-S3FH4R2, onboard multi-function GPIO pins

    Castellated Module, Suitable For SMD Applications

    Board specifications
    • Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
    • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
    • Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
    • Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
    • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
    • Integrated with USB serial port full-speed controller, 24 × GPIO pins allows flexibly configuring pin functions
    • 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
    Version Options

    ESP32-S3-Zero
    without pinheader



    ESP32-S3-Zero-M
    with pre-soldered header


    Support C/C++, MicroPython

    Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

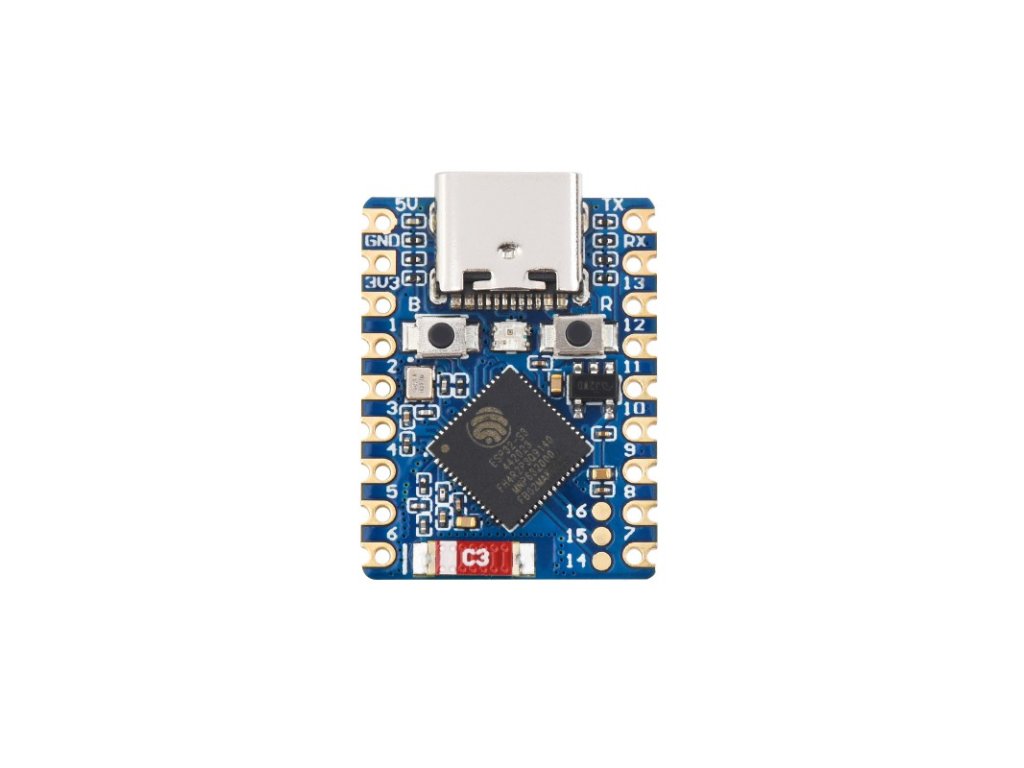

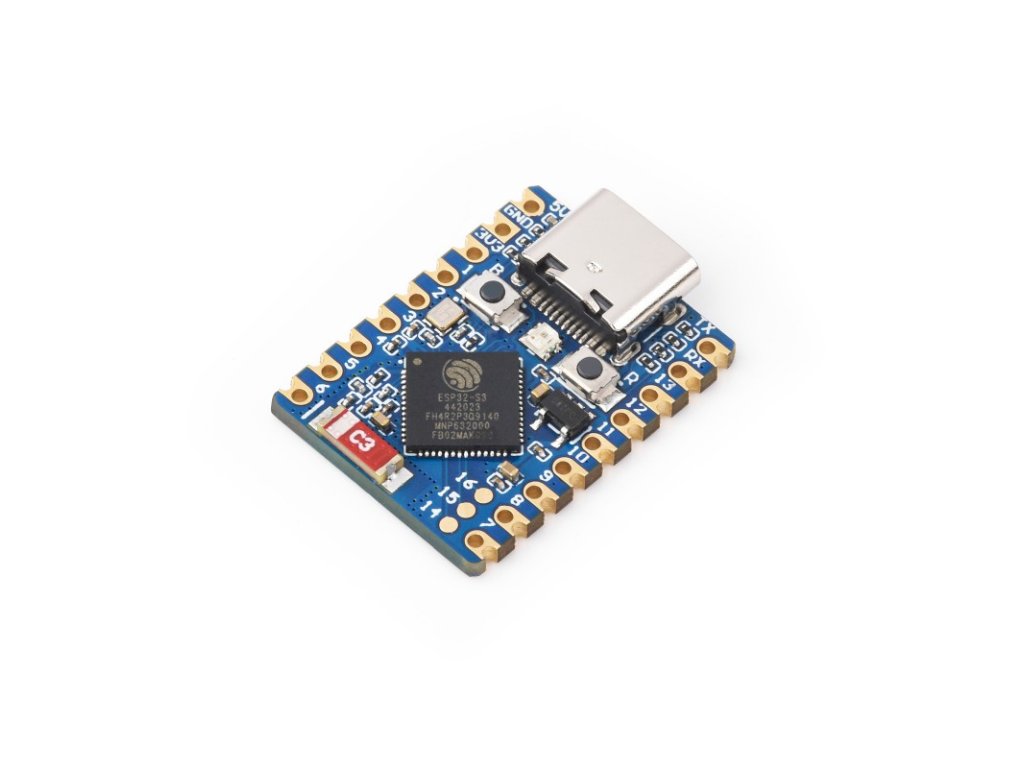

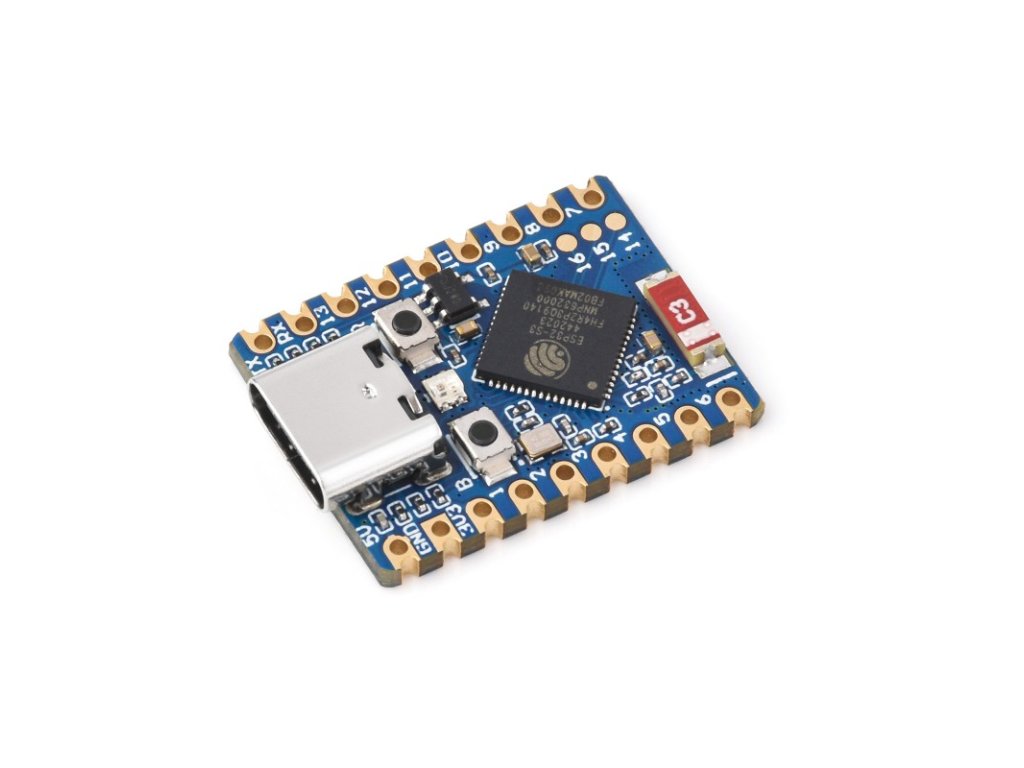

    What's On Board
    1. ESP32-S3FH4R2 dual-core processor
      up to 240MHz operating frequency
    2. USB Type-C Port
    3. ME6217C33M5G
      low dropout LDO, 800mA (Max)
    4. WS2812 RGB LED

    1. 2.4G ceramic antenna
    2. BOOT button
      Press it and then press the RESET button to enter download mode
    3. RESET button
    4. ESP32-S3FH4R2 pins

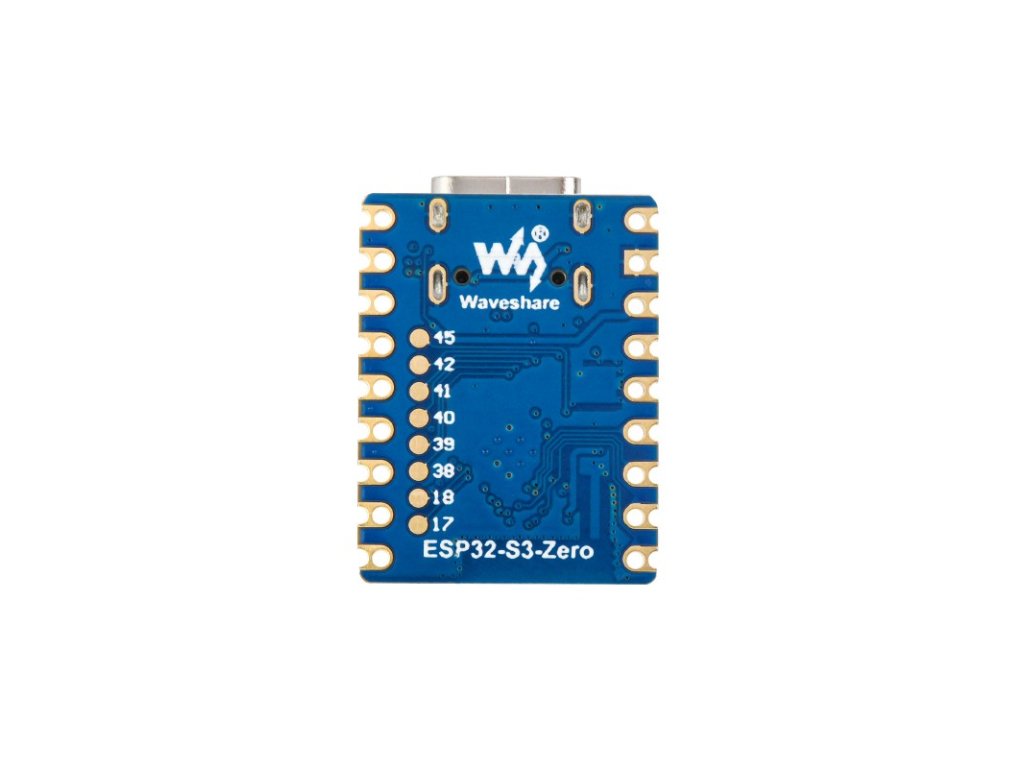

    Pin definition
    Product Show


    outline dimensions
    Resources & Services
    Wiki: www.waveshare.com/wiki/ESP32-S3-Zero

    Balenie obsahuje :

    Weight: 0.002 kg

    ESP32-S3-Zero

    1. ESP32-S3-Zero x1
    ESP32-S3-Zero
