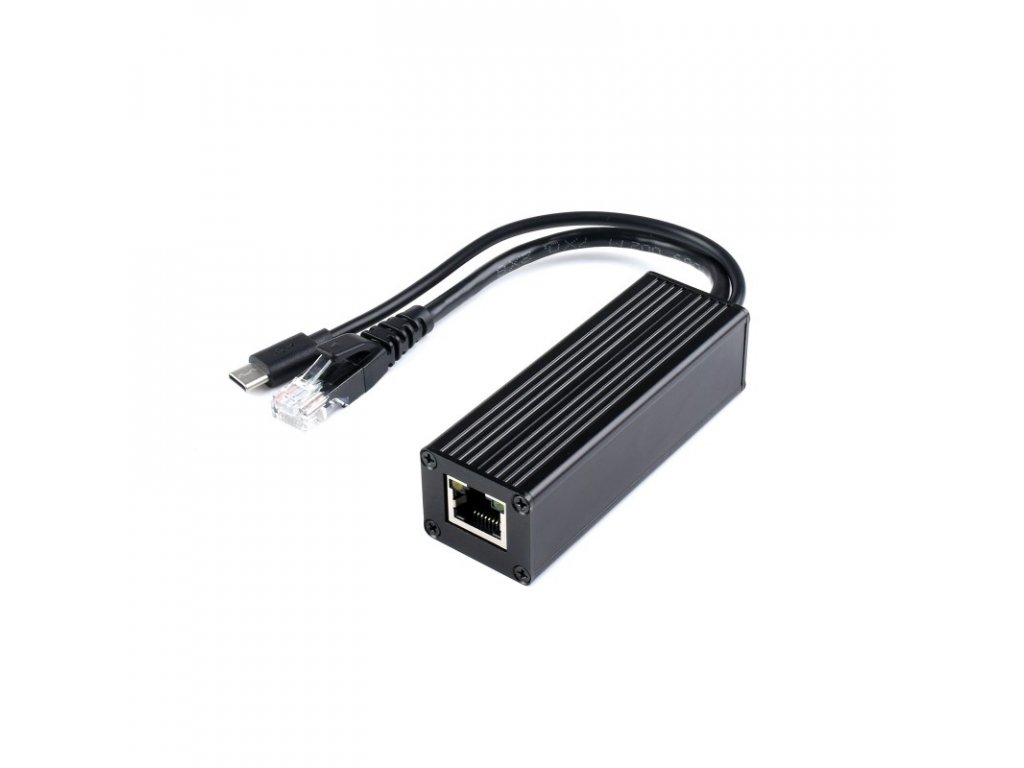

Industrial Gigabit PoE Splitter, Metal Case protection, 5V 2.5A Type-C Out
Industrial Gigabit PoE Splitter, Metal Case protection, 5V 2.5A Type-C Out
SKU: 20987
Industrial Gigabit PoE Splitter, Metal Case protection, 5V 2.5A Type-C Out
Industrial Gigabit PoE Splitter, Metal Case Protection, 5V 2.5A Type-C Power Output
Features At A Glance
- Incorporates SD4950 chip, high-efficiency, high-safety, stable-performance
- 10/100/1000Mbps auto-negotiation Ethernet port
- 802.3af/at-compliant PoE (Power over Ethernet) standard
- Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
- 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
- Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation
Specifications
| POWER SUPPLY | supports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering |
|---|---|
| POE INPUT VOLTAGE | 37V ~ 57V |
| TYPE-C OUTPUT | 5V 2.5A (MAX) |
| CABLE | Cat-5 UTP |
| STANDARD | IEEE 802.3 af/at PoE Ethernet |
| DATA RATE | 10/100/1000Mbps |
| LED INDICATOR | PoE power input indicator |
| DIMENSIONS | 86 × 30 × 25mm (l × w × h) |
| OPERATING TEMPERATURE | -40℃ ~ 85℃ |
Industrial Grade Protection Case
Aluminum Alloy Case, Sturdy And Rugged, Higher Protection Level, Better Heat Dissipation
Interface Introduction
Application Examples
Powering The Raspberry Pi Or Other 5V-Powered Network Devices By PoE Switch
for reference ONLY, Raspberry Pi and switch are NOT included.
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.087 kg
- POE-SPLITTER-TYPE-C x1
