Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus

Neohodnotené

Značka: Waveshare

Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card

SKU: 25029

Dostupnosť	Skladom (1 ks)
Môžeme doručiť do:	29.11.2024
Možnosti doručenia
Kód:	20815

83,90 € / ks 69,92 € bez DPH

Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus

Neohodnotené

Značka: Waveshare

Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card

Industrial Grade CAN/CAN FD Bus Data Analyzer, USB To CAN FD Adapter, CAN/CAN FD Bus Communication Interface Card, CAN/CAN FD Protocol Data Analyzer

Industrial Grade CAN FD Bus Adapter

Supports high-speed CAN FD and CAN2.0A/B data communication

Features At A Glance

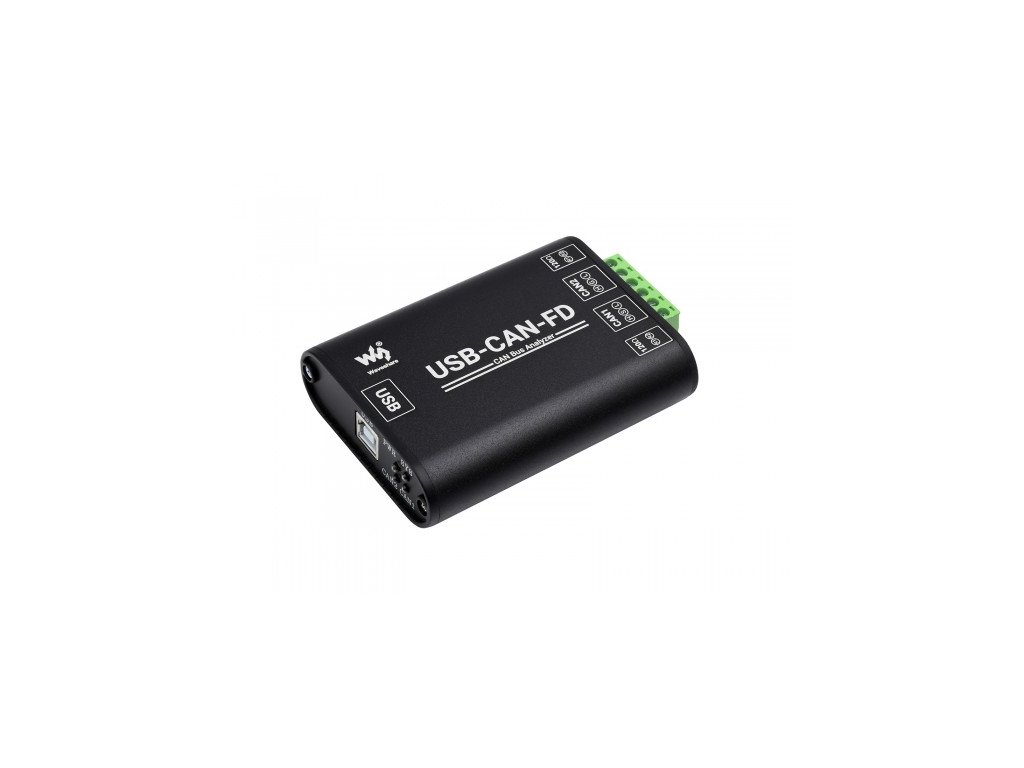

The USB-CAN-FD is an industrial-grade high-performance USB to CAN FD adapter, CAN/CAN-FD bus communication interface card, and CAN/CAN-FD protocol data analyzer. Onboard dual independent CAN FD interfaces with electrical isolation and multiple protection circuits. Supports Windows XP/7/8/10/11 system, comes with drivers, CAN FD Tools related software, secondary development examples, and tutorials.

It can be connected to the PC or industrial control host via a USB port to realize transceiver control, data analysis, collection and monitoring of CAN/CAN FD bus network. It is compact in size and easy to use, which can be used for learning and debugging of CAN/CAN FD bus, as well as for secondary development and integration into various industrial, power communication, and intelligent control applications that require CAN/CAN FD bus communication.

Specifications

PRODUCT TYPE	Industrial grade: USB to CAN FD interface converter, CAN/CAN FD bus communication interface card, CAN/CAN FD protocol data analyzer
USB	Operating voltage	5V (directly powered by USB port without external power supply)
USB	Connector	USB-B
CAN/CAN FD INTERFACE	CAN/CAN FD channel	Dual-channel: CAN1 and CAN2 (independent and full-isolated, isolated voltage: 3000V DC)
	Connector	CAN bus screw terminal (OPEN6 5.08mm pitch)
	Terminal resistor	Each CAN/CAN FD channel has two built-in 120Ω terminal resistors, which can be enabled by switch
	Baud Rate	100Kbps~5Mbps (Configurable via software)
	Protocol Support	CAN2.0A, CAN2.0B, and ISO 11898-1 CAN FD protocol V.1.0
	Transfer speed	The receiving and sending speed of each CAN/CAN FD channel can reach 20000 frames/s and 5000 frames/s
	Transmit buffer	1500 frames receiving buffer and 64 frames sending buffer per channel (automatically retransmit when the transmission fails)
INDICATORS	PWR	Power indicator
	SYS	System status indicator, normally off; keeps on when there is a bus error
	CAN1	CAN1 channel indicator (blinking when sending and receiving data)
	CAN2	CAN2 channel indicator (blinking when sending and receiving data)
SYSTEM SUPPORT	Windows	Windows XP/7/8/10/11 (32/64 bits); Does Not support the Linux system now, and the related drivers are under development.
OPERATING TEMPERATURE	-40~85℃
CASE MATERIAL	Aluminum alloy case + 3D flame-retardant insulating sheets on both sides (This design can provide better protection against metal tip discharge, also improves product safety, and extends service life)
DIMENSIONS	104 × 70 × 25 mm

Supports Protocol Conversion
Between USB And CAN/CAN FD Bus

Onboard High-Speed USB2.0 Interface And 2-Ch CAN/CAN FD Bus Interfaces, Support Bi-Directional Transmission, Can Work Independently Without Interfering With Each Other

Programmable Baud Rate, Automatic Detection

CAN Baud Rate Is Configurable In The Range Of 100Kbps~5Mbps
Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool

Supports Decoding And Analyzing For
Multiple CAN Protocols

Supports CAN 2.0A, CAN 2.0B, ISO11898-1, And CAN FD Protocol Specification V.1.0, Supports Standard And Extended Frames

Supports Multi Development Environments

Provides Examples For Secondary Development Projects On Various Mainstream Development Platforms: C#, VC, Delphi, Qt, LabVIEW, Python/Python-Can

High-Performance Hardware Solution

Adopts Microchip Original Controller And 32-Bit MIPS M4K® Core, Up To 80MHz Frequency. High Performance, Stable And Reliable

With Electrical Isolation And Multiple
Protection Circuits

Adopts High-Speed Signal Isolators, DC-DC Dual Power Isolation, USB, CAN1 And CAN2 Three-Terminal Full Isolation, Higher Communication Security And Stability

One PC With Multiple Devices

Supports one PC to run multiple CAN FD analyzers at the same time without interfering with each other, up to 128 devices after testing. It is suitable for monitoring multiple CAN networks at the same time with one monitoring device, or for data comparison and verification and so on.
