Industrial grade USB HUB, Extending 4x USB 3.2 Ports, Switchable dual hosts, Multi Protections

Neohodnotené
Značka: Waveshare

Industrial grade USB HUB, Extending 4x USB 3.2 Ports, Switchable dual hosts, Multi Protections

SKU: 23929

Dostupnosť Skladom (3 ks)
Môžeme doručiť do:
30.12.2024
Možnosti doručenia
Kód: 19859
24,50 € / ks 20,42 € bez DPH
Industrial grade USB HUB, Extending 4x USB 3.2 Ports, Switchable dual hosts, Multi Protections
Neohodnotené
Značka: Waveshare

Industrial grade USB HUB, Extending 4x USB 3.2 Ports, Switchable dual hosts, Multi Protections

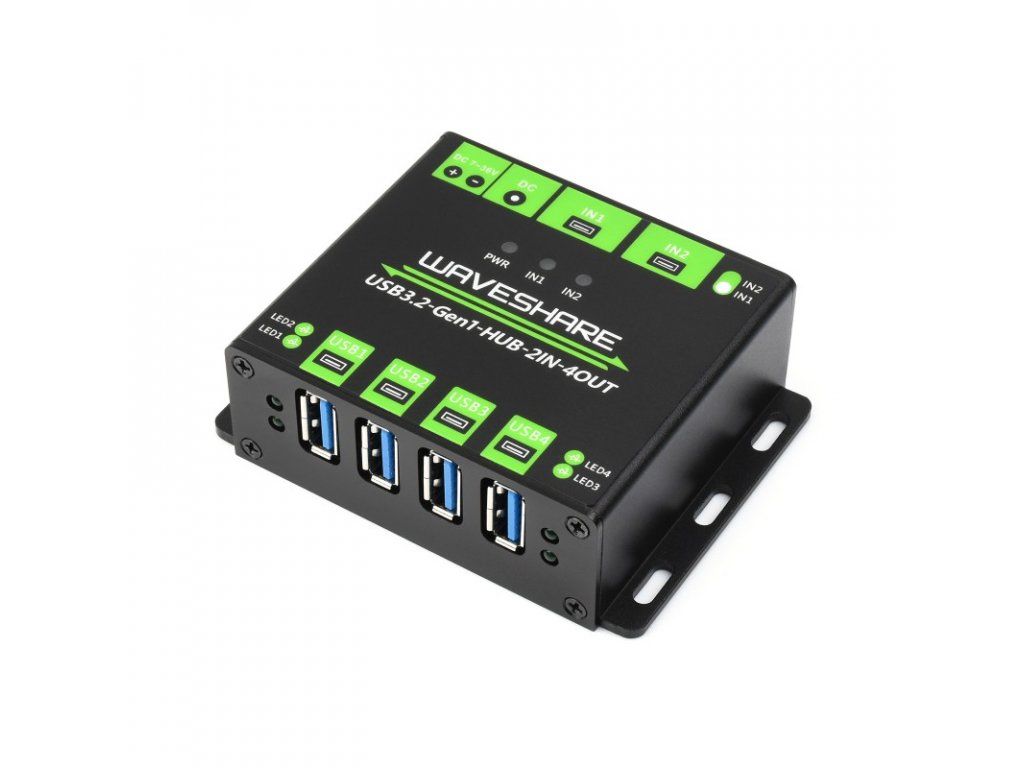

Industrial Grade USB HUB, Extending 4x USB 3.2 Ports, Switchable Dual Hosts, Multi Protections
Industrial USB 3.2 HUB, Switchable
Dual Hosts

Sharing USB devices for two hosts, free up the crowded desktop


Features At A Glance
  • 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
  • Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
  • ESD protection for each USB port, preventing electric surge damage and data loss
  • Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
  • Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
  • Industrial grade metal case, rugged & durable, with mounting holes for easy installation
Specifications
STANDARDhigh speed USB 3.2 Gen 1
DATA RATEup to 5Gbps
USB OUTPUT5V@Imax:1.2A, USB-A connector
USB HUB INPUT5V, switchable dual USB-A connectors (standalone power supply, no crossed power)
EXTERNAL POWERDC power supply terminal 7~36V
(Additional power supply is required for this HUB when connecting to high power devices)
OPERATING ENVIRONMENT-40℃ ~ 85℃
OS SUPPORTMac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

Sharing USB Devices For Two Hosts

Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and
mouse, no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.


Multiple Protections, More Safe

Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...

Multiple OS Support, Plug & Play

Compatible With OS Including: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP...

Application Environments

Suitable For Industrial/Office Environments With Higher Level Device Requirements


2 in 4 out


small size, easy installation


mounting support


Interface Introduction
Product Show



Outline Dimensions
Resources & Services

Weight: 0.08 kg

  1. USB3.2-Gen1-HUB-2IN-4OUT x1
  2. Dual plug USB3.0 cable x2
