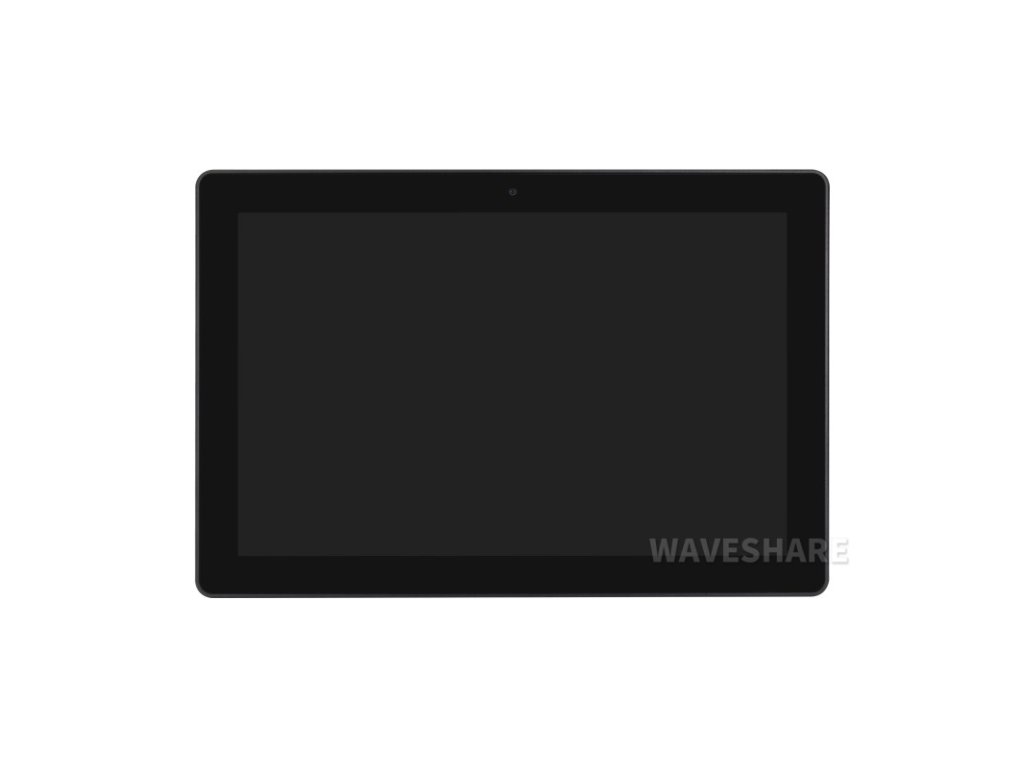

Industrial HMI All-in-one Touch Display For Raspberry Pi, Options For 10,1 inch
Industrial HMI All-in-one Touch Display For Raspberry Pi, Options For 10,1 inch , Supports Dual 4K HDMI Output , 10-point touch , Optical Bonding , Aluminum Alloy Case
SKU: 29991
Version : 10,1 inch , Without Raspberry Pi , EU power Plug
Industrial HMI All-in-one Touch Display For Raspberry Pi, Options For 8inch / 10.1inch, Supports Dual 4K HDMI Output, 10-point Touch, Optical Bonding, Aluminum Alloy Case, High-efficiency Heat Dissipation
Industrial HMI All-in-one touch Display
for Raspberry pi
for Raspberry pi
High Resolution | 10-point Touch | Aluminum alloy case
- Size
Options For 8″/10.1″ - Resolution
1280×800 - Display Panel
IPS - Viewing Angle
178° - Touch Type
Capacitive - Touch Points
10-Point - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding - Front Camera
5MP - Display Interface
Dual Standard HDMI
4K Output - Power Port
Type-C/Screw Terminal - Enclosure
Aluminum Alloy
Size Options
8″
10.1″
Version Options
Pi5 All-in-one Display
(Raspberry Pi 5-4GB is included, assembled before shippment)
Pi4 All-in-one Display
(Raspberry Pi 4-2GB is included, assembled before shippment)
Touch Display + Accessories Only
(the Raspberry Pi is NOT included)
Toughened Glass Panel
Sensitive touch control with High Resolution display, durable design
Built-in Raspberry Pi (Optional)
Pi5 All-in-one Display: quad-core Arm Cortex-A76 64-bit 2.4GHz CPU
Pi4 All-in-one Display: quad-core Arm Cortex-A76 64-bit 1.5GHz CPU
* the Raspberry Pi is optional.
5MP front camera
For Accurate face recognition, ensuring safety every moment
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Adjustable brightness via software

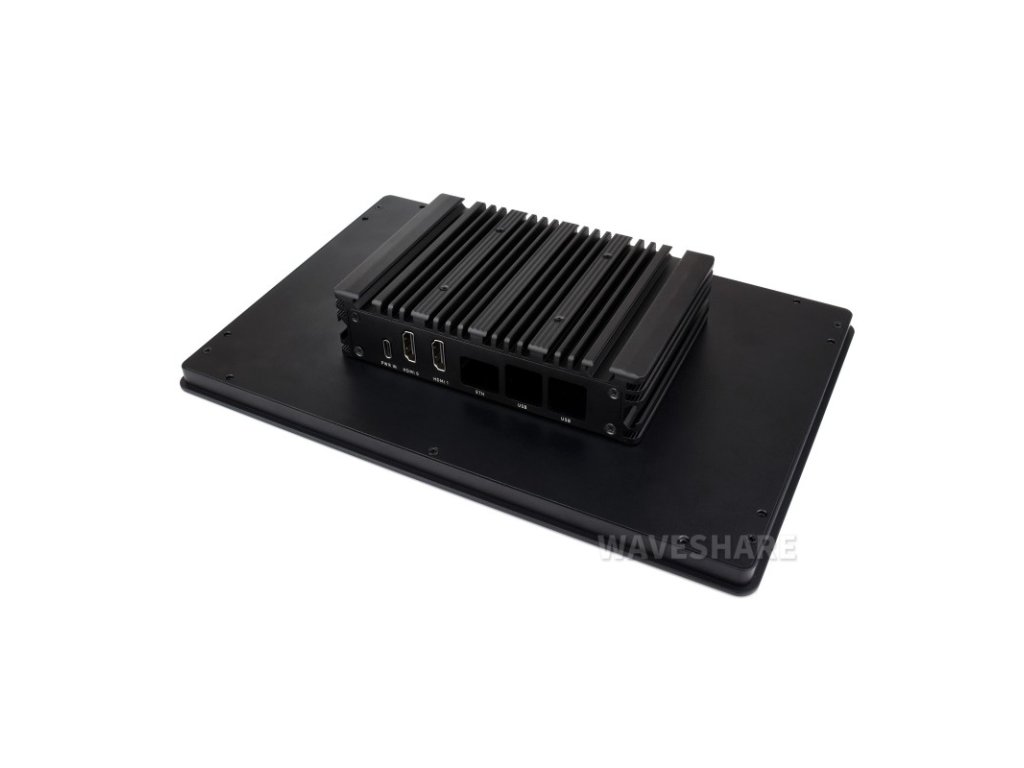

Excellent heat dissipation
Full Metal Enclosure with efficient heat dissipation, Pure passive cooling, no fan noise worries
Two power supply methods
Supports power supply via screw terminal or USB Type-C Port
VESA Mounting Support
Easily adaptable to various monitor arms, enjoy a flexible installation experience
* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.

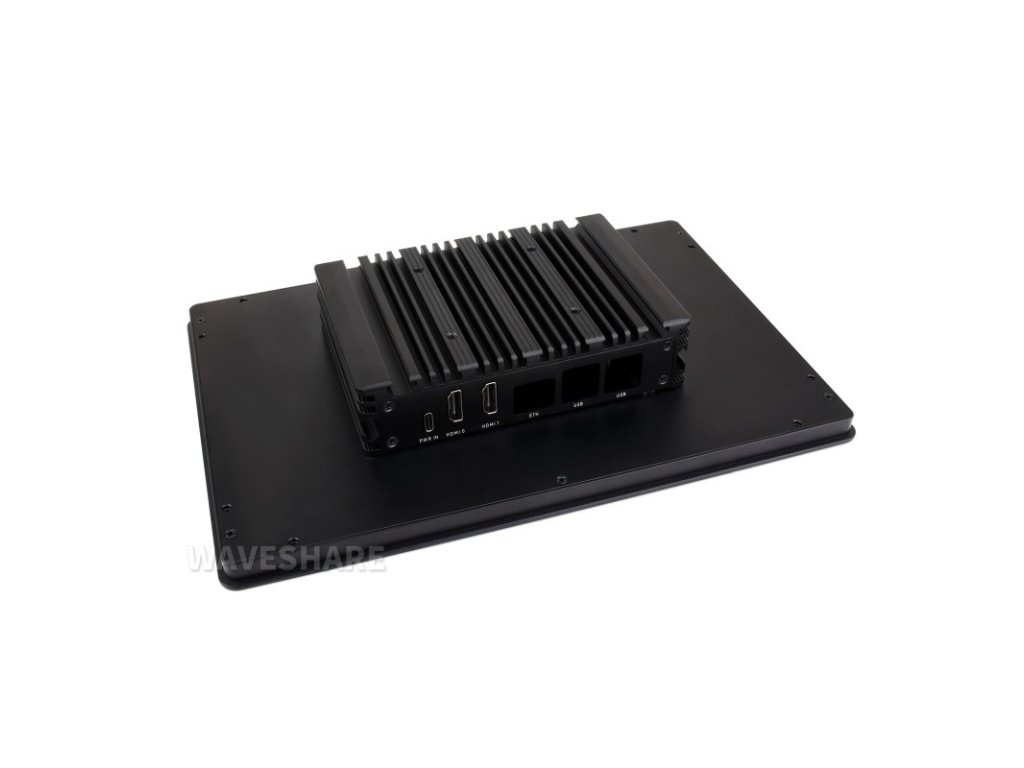

Interface Introduction
- 5V Type-C power port
- Standard HDMI Interface x 2
- USB3.0 port x 2
- USB2.0 port x 2
- Gigabit Ethernet connector
- TF card slot
- Power button
- Power indicator
- 5V Power supply screw terminal (3.81mm pitch)
- Debugging serial port

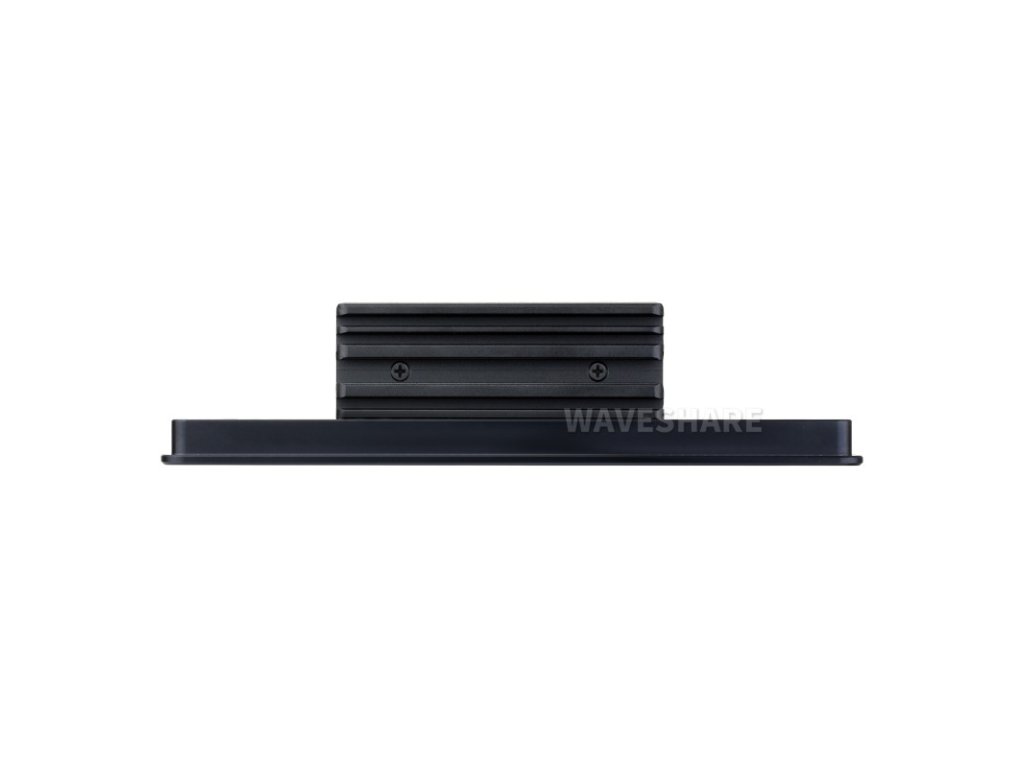

Dimensions
8inch version
10.1inch version
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Balenie obsahuje :
RPI-HMI-101D-ACCE
- 10.1inch touch display x1
- Mounting buckle (4PCS) x1
- Screws pack x1
- TF card 64GB x1
- OPTIONS 27W power supply x1
- 5W thermal pad 16*16*1mm x1
- Pi5-HMI Accessories Pack:
- PI5 side panel x1
- Aluminum alloy heatsink x1
- DSI-Cable-12cm x1
- Silicon button x1
- Camera cable -15cm x1
- Pi4-HMI Accessories Pack:
- PI4 side panel x1
- Copper heatsink x1
- DSI-Cable-12cm x1
- FFC 15PIN 1.0 pitch ~160mm x2
