    Industrial IoT 5G/4G Wireless Expansion Module Designed for Raspberry Pi Compute Module 4, With UPS

    Industrial IoT 5G/4G Wireless Expansion Module Designed For Raspberry Pi Compute Module 4, With UPS Module, Onboard M.2 Slot
    Industrial IoT Module Based On CM4 With UPS Module

    Suitable For IoT Applications Like IoT Getaway, Wireless Router, Intelligent Data Acquisition...

    4G/5G Support, Multi Interfaces, Onboard UPS Module



    This is an industrial expansion module based on Raspberry Pi CM4 with UPS module, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G wireless communication modules to be connected via the M.2 B KEY socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.

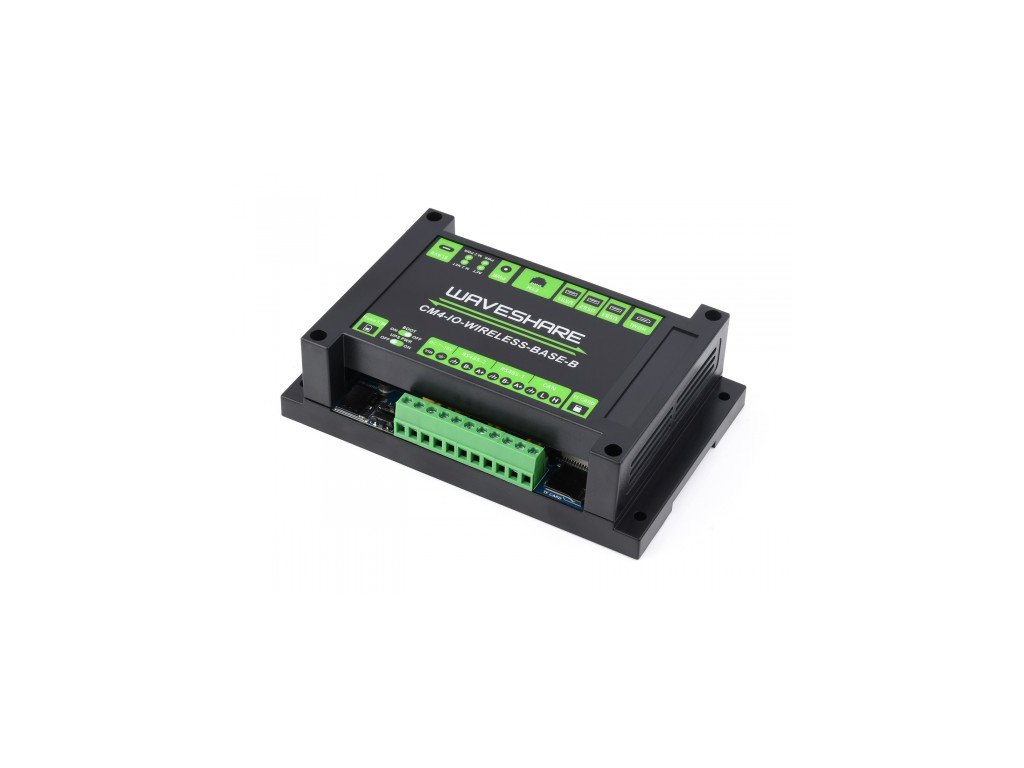

    Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.

    Version Upgrade


    New version
    CM4-IO-WIRELESS-BASE-B
    Onboard UPS Module

    Part List Comparison
     BASIC KITBASIC KIT + 4G MODULE
    CM4 wireless base board + UPS Module√√
    Black ABS case√√
    SIM7600G-H-M.2 4G module √
    PCB antenna √

    * please refer to Package Content for exact part list info.

    Specifications
    CM4 SOCKETsuitable for all variants of Compute Module 4
    UPS POWERUPS Module, 5V/2.5A (Max) output, supports 3 × 10440 lithium batteries (NOT included)
    NETWORKINGGigabit Ethernet RJ45
    M.2 B KEY, for connecting 5G / 4G wireless module
    Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
    USBUSB 2.0 × 3
    PIN HEADERNon-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins
    CAMERAMIPI CSI-2 × 1 (15pin 1.0mm FPC connector)
    VIDEOHDMI × 1, supports 4K 30fps output
    RTCReal-time clock with battery socket and ability to wake Compute Module 4
    STORAGETF card socket for Compute Module 4 Lite (without eMMC) variants
    FAN HEADER5V/12V, allows speed adjustment and measurement
    POWER INPUT5V or 7~36V
    DIMENSIONS145 × 90 × 40mm
    Comparing The Expansion Boards

    Buďte prvý, kto napíše príspevok k tejto položke.

    Len registrovaní používatelia môžu pridávať príspevky. Prosím prihláste sa alebo sa zaregistrujte.

    Nevypĺňajte toto pole:
    CM4 BASE BOARDINTERFACE COUNT AND SPECIFICATIONS
    POEGIGABIT
    ETH    		40PIN
    GPIO    		PCIEUSB①DSIHDMICSIRTCFAN
    HEADER    		POWER
    INPUT    		FEATURES

    NANO A    		 √ 2.0×1  ×1 5VCM4 sized

    NANO B    		×1√ 2.0×1×1×1×1 5VCM4 sized

    NANO C    		√ 2.0×1×1×1×1 5VOnboard Camera

    MINI BASE A    		×1√M.2 M2.0×4×1×2×25V5Vmini size

    MINI BASE B    		×1√M.2 M2.0×4×1×2×2√5V5Vmini size

    MINI BASE C    		×1√M.2 M2.0×2×1×2√5V5VDedicated 40PIN LCD Connector

    TOUCH SCREEN    		×1 M.2 M2.0×4 ×1×1  5VIPS screen

    MINI DUAL GIGABIT    		×2√ 2.0×1    5V SH1.05Vdual ETH

    BINOCULAR CAMERA    		×1√M.2 M2.0×4 ×2   5Vdual 8MP
    cameras

    4CH RS485    		×1  2.0×2 ×1×2×15V7-36Vdual ETH

    WIFI6 DUAL ETH    		×1√M.2 E2.0×3×1×2×2×15/12V7-36VWIFI6 dual ETH

    DUAL GIGABIT ETH    		×2√3.0×3×1×2×2√5/12V7-36V

    IOT DUAL GIGABIT ETH    		×2√3.0×2×1×2×2√5/12V5V5G/4G support

    IOT BASE    		√×1Gen2×12.0×2×2×2×2√5/12V7-36V5G/4G support
    RS232
    RS485
    ADC

    POE BASE (B)    		√×1√Gen2×12.0×4×2×2×2√5/12V5VRS232
    RS485

    POE UPS BASE    		√×1√M.2 M2.0×4×1×2×2√5/12V7-36VUPS

    POE BASE    		√×1√3.0×4×2×2×2√5/12V7-36V

    RASPBERRY PI OFFICIAL    		②×1√Gen2×12.0×4×2×2×2√12V12V

    WIRELESS BASE    		 ×1 M.2 B /
    Mini-PCIe    		2.0×3 ×1×1√5/12V5V or
    7-36V    		5G/4G support
    RS485
    CAN
    rail-mount
