    Domov / IoT - moduly / Novinky / LCD1602 I2C Module, Green , 32 Characters LCD, 3.3V/5V, Backlight Adjustable

    LCD1602 I2C Module, Green , 32 Characters LCD, 3.3V/5V, Backlight Adjustable

    Neohodnotené
    Značka: Waveshare

    LCD1602 I2C Module, Options For Three Colors , 32 Characters LCD, 3.3V/5V, Backlight Adjustable

    SKU: 30496

    Version : LCD1602 I2C Module Green

    Dostupnosť Zvyčajne do 3-7 dní
    Môžeme doručiť do:
    10.3.2025
    Možnosti doručenia
    Kód: 25462
    12,18 € / ks 9,90 € bez DPH
    LCD1602 I2C Module, Green , 32 Characters LCD, 3.3V/5V, Backlight Adjustable
    Neohodnotené
    Značka: Waveshare
    LCD1602 I2C Module, Green , 32 Characters LCD, 3.3V/5V, Backlight Adjustable
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    LCD1602 I2C Module, Options For Three Colors, 32 Characters LCD, 3.3V/5V, Backlight Adjustable
    LCD1602 I2C Module

    I2C communication, compatible with 3.3V / 5V, backlight adjustable

    Supports Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32 and Arduino...

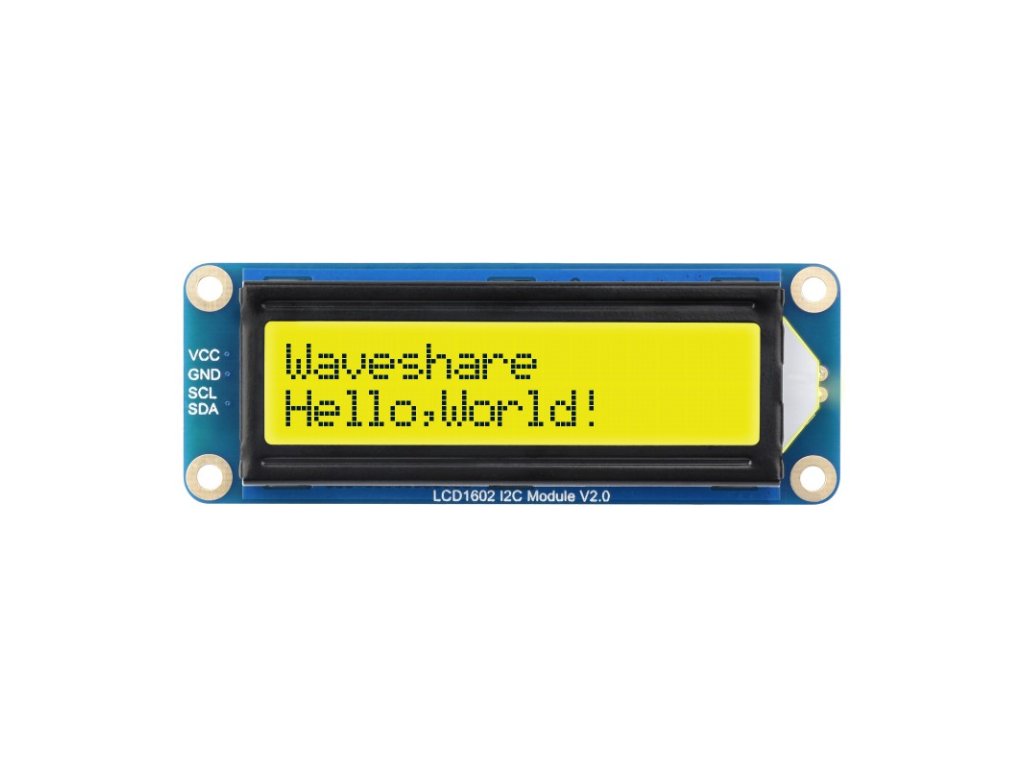

     LCD1602 I2C Module, options for three colors, front view

    • Characters16 × 2
    •
    • InterfaceI2C
    •
    • Display PanelChar LCD

    • Display effectThree Colors Options
    •
    • LCD ControllerAiP31068
    •
    • LCD ControllerSN3193

    Version Options
    LCD1602 I2C Module (Blue)

    LCD1602 I2C Module (Blue)
    White color with blue background


    LCD1602 I2C Module (Gray)

    LCD1602 I2C Module (Gray)
    Black color with gray background


    LCD1602 I2C Module (Green)

    LCD1602 I2C Module (Green)
    Black color with green background


    Features at a glance
    • Incorporates character LCD panel LCD1602
    • I2C control interface, only two signal pins are required, saving the IO resource
    • Compatible with 3.3V/5V operating voltage
    • Onboard AiP31068 LCD driver and SN3193 backlight driver
    • Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

    Specifications
    Communication Interface I2C LCD controller AiP31068
    Operating voltage 3.3 ~ 5V LCD controller SN3193
    Display Panel character LCD Operating Temperature -20 ~ +70℃
    Characters 16 × 2 Display size 64.5 × 16.0mm
    backlight Adjustable Dimensions 87.0 × 32.0 × 13.0mm

    Compatible With Multiple Platforms

    Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
    And User Manuals, Easier To Develop And Integrate, And Better Expansibility

    LCD1602 I2C Module, compatible with multiple platforms
    I2C control interface

    only two signal pins are required, saving the IO resource

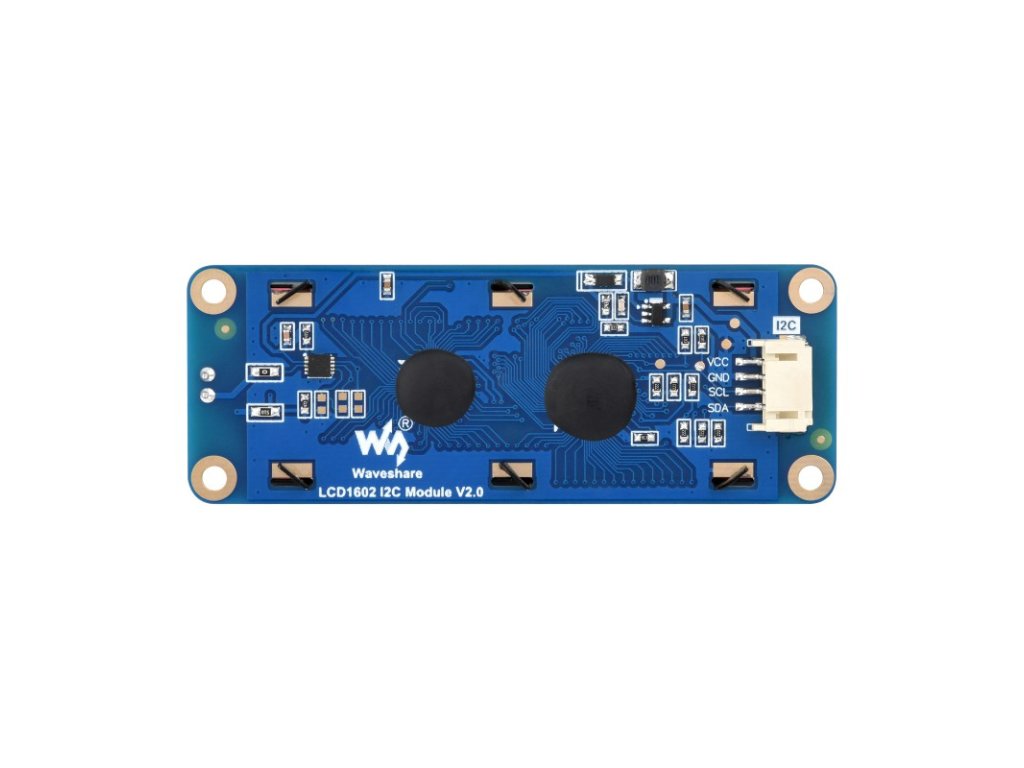

    LCD1602 I2C Module, adopts I2C control interface
    VCC 3.3V ~ 5V power input
    GND GND
    SCL I2C clock pin
    SDA I2C data pin

    usage example
    LCD1602 I2C Module, usage example

    for reference only, the Raspberry Pi 5 is NOT included.

    Product Show

    LCD1602 I2C Module (Blue)

    LCD1602 I2C Module (Gray)

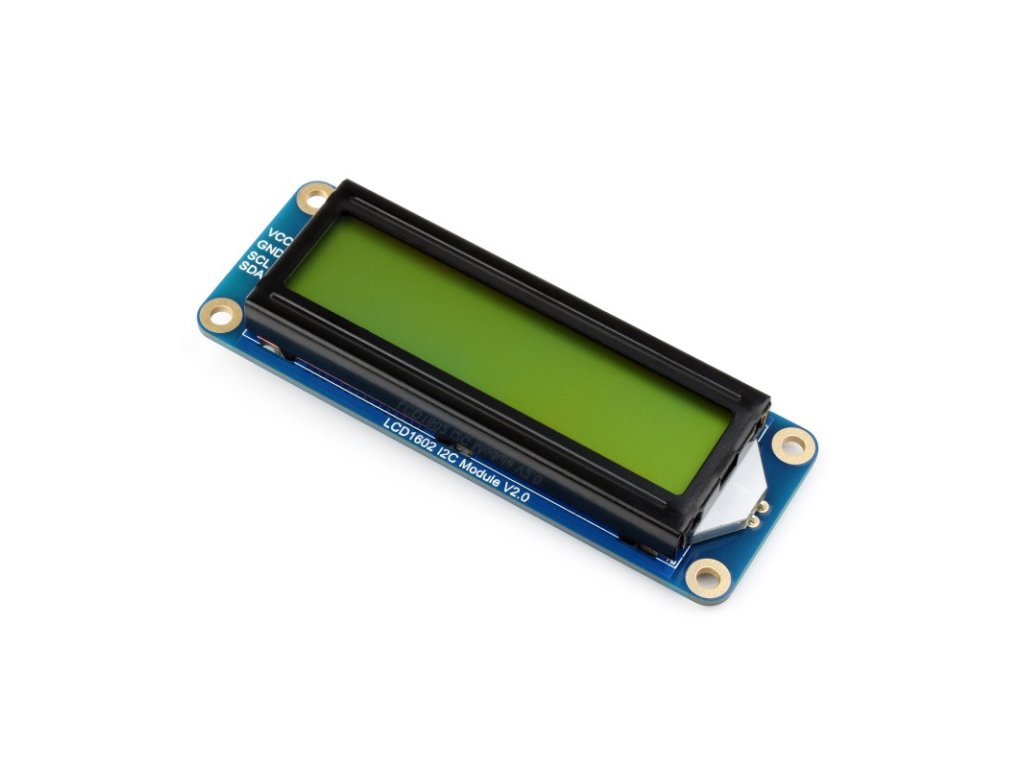

    LCD1602 I2C Module (Green)

    Outline dimensions
    LCD1602 I2C Module, outline dimensions

    Balenie obsahuje :

    LCD1602 I2C Module (Green)

    1. LCD1602 I2C Module (Green) x1
    2. PH2.0 4PIN wire x1
    1LCD1602 I2C Module (Green)
    2
