LCD1602 RGB Module, 16x2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus
LCD1602 RGB Module, 16x2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus
SKU: 19537
LCD1602 RGB Module, 16x2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus
LCD1602 RGB Module, 16x2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus
LCD1602 RGB Module
Adjustable RGB Backlight Color, I2C Communication, 3.3V/5V Compatible
Supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino...
- Characters
16 × 2 - RGB Backlight
16M Colors - Interface
I2C - Display Panel
Char LCD - LCD Controller
AiP31068 - RGB DriverPCA9633
Features At A Glance
- Incorporates character LCD panel LCD1602
- Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory
- I2C control interface, only two signal pins are required, saving the IO resource
- Compatible with 3.3V/5V operating voltage
- Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)
Specifications
| OPERATING VOLTAGE | 3.3 ~ 5V | LCD CONTROLLER | AiP31068 |
|---|---|---|---|
| COMMUNICATION INTERFACE | I2C | RGB DRIVER | PCA9633 |
| DISPLAY PANEL | character LCD | DISPLAY SIZE | 64.5 × 16.0mm |
| CHARACTERS | 16 × 2 | DIMENSIONS | 87.0 × 32.0 × 13.0mm |
| BACKLIGHT COLORS | 16M | OPERATING VOLTAGE | -20 ~ +70℃ |
Adjustable RGB Backlight Color
Up To 16M Colors Available
I2C Control Interface
For Connecting With Host Boards Like Raspberry Pi / Arduino...
| VCC | 3.3V ~ 5V power input |
| GND | GND |
| SCL | I2C clock pin |
| SDA | I2C data pin |
Hardware Connection
Connecting With Raspberry Pi Pico

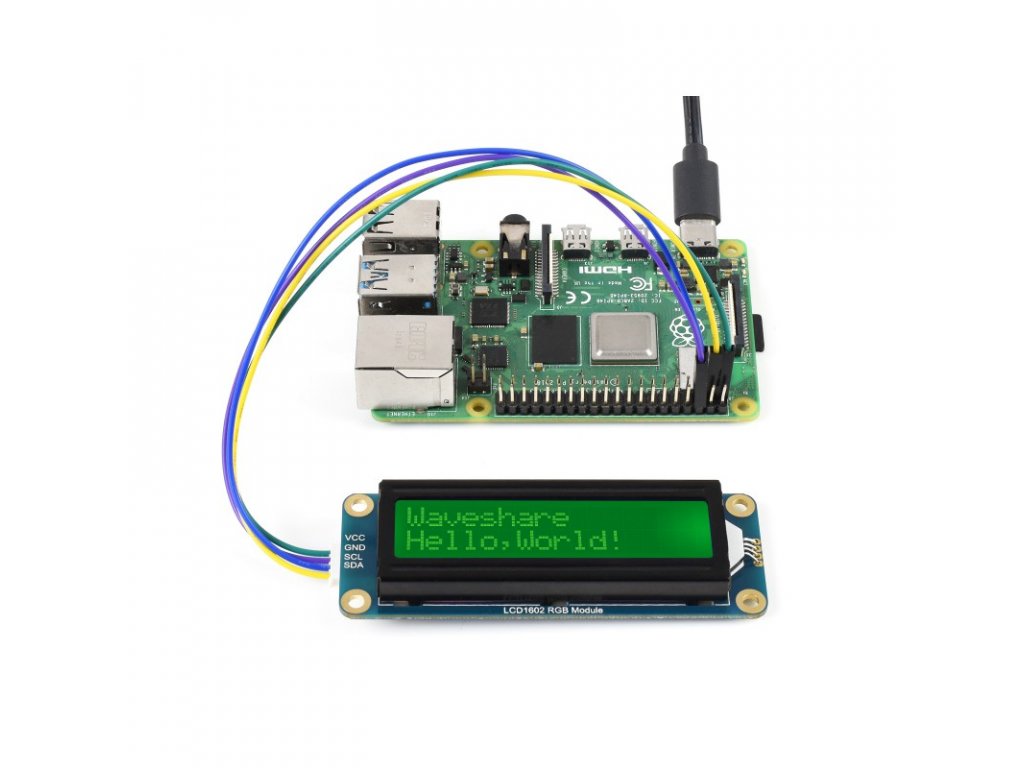

Connecting With Raspberry Pi
Connecting With Arduino Board
Connecting With Jetson Nano Developer Kit
Demonstration
Outline Dimensions
PACKAGE CONTENT
Weight: 0.038 kg
- LCD1602 RGB Module x1
- PH2.0 4PIN wire x1
