LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7 without header

Neohodnotené

Značka: Waveshare

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port without header

SKU: 25189

12 € / ks 10 € bez DPH

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7 without header

Neohodnotené

Značka: Waveshare

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port without header

LuckFox Pico Plus RV1103 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, With Ethernet Port

Specifications

Processor	Cortex A7@1.2GHz + RISC-V
NPU	0.5TOPS, supports int4, int8 and int16
ISP	Input 4M @30fps (Max)
Memory	64MB DDR2
USB	USB 2.0 Host/Device
Camera	MIPI CSI 2-lane
GPIO	25 × GPIO pins
Ethernet port	10/100M Ethernet controller and embedded PHY
Default Storage	SPI NAND FLASH (128MB)

Pinheader options

Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition "in one second"
Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
Integrated with built-in POR, audio codec and MAC PHY

Easier to develop

Integrates TF card slot, camera interface and Ethernet port

SLC NAND FLASH

For a better user experience

Application Example

Suitable for more application examples

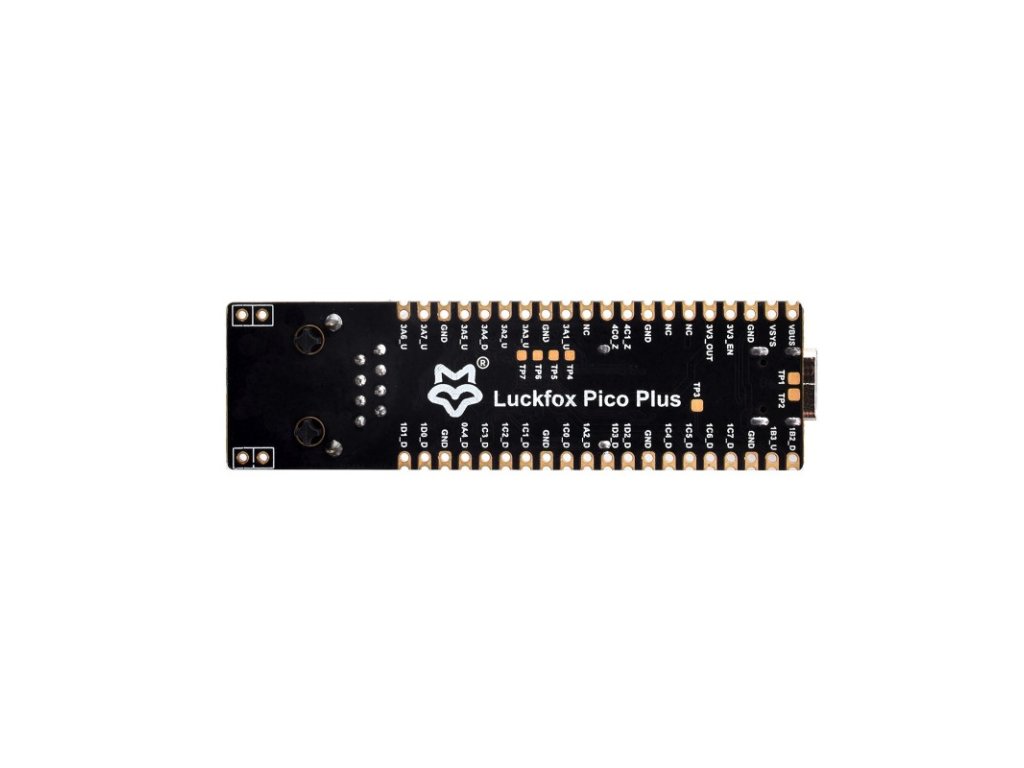

Pin definition

What's On Board

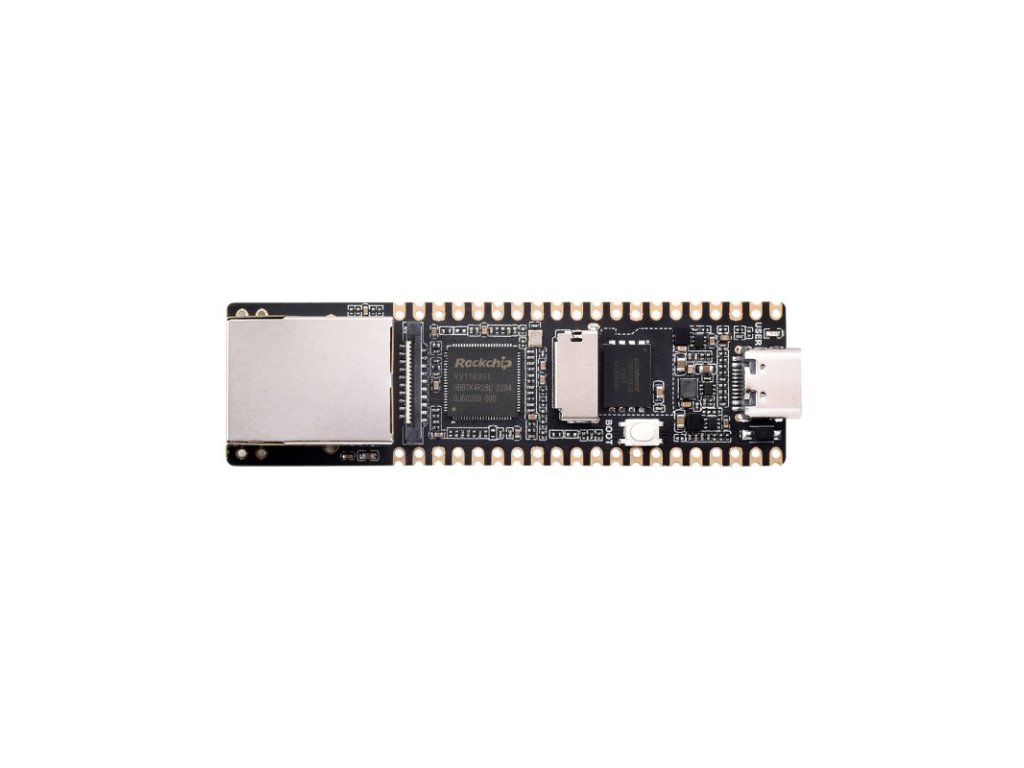

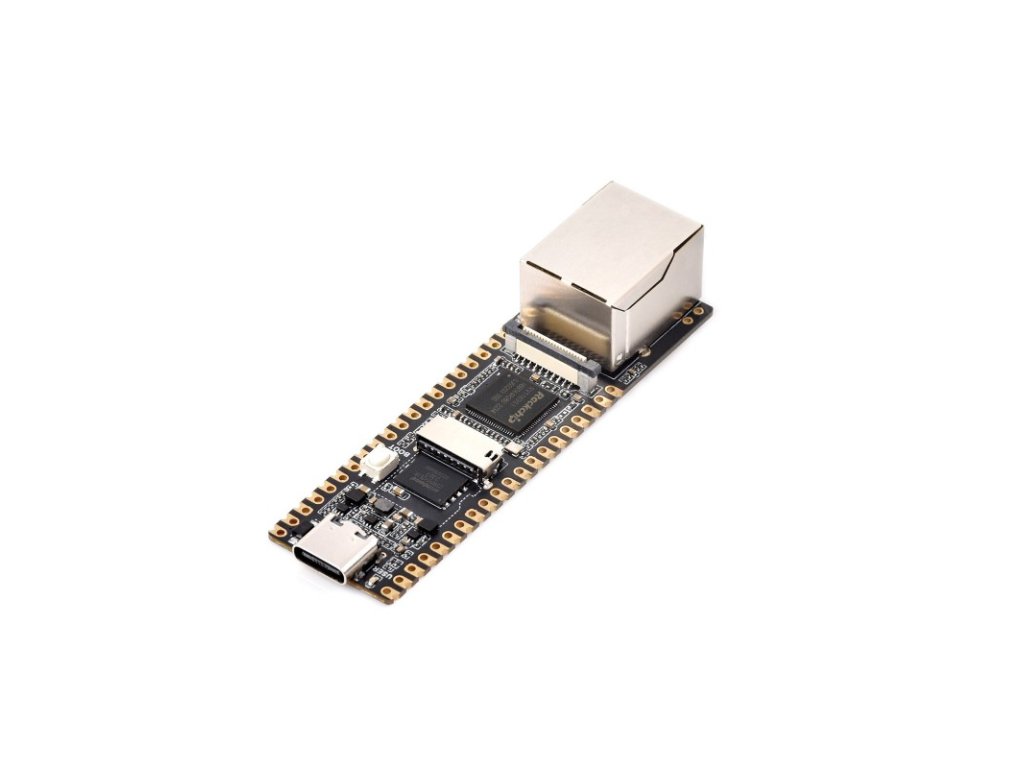

Product Show

outline dimensions

Luckfox Pico Product Selection

PRODUCT	Main chip	Memory	NPU	ISP	Default Storage	FEATURES
Luckfox Pico Mini A	RV1103G1	64MB	0.5TOPS, supports int4, int8 and int16	Input 4M @30fps (Max)	TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Mini B					SPI NAND FLASH (128MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico					TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Plus					SPI NAND FLASH (128MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.
Luckfox Pico Pro	RV1106G2	128MB		Input 5M @30fps (Max)	SPI NAND FLASH (256MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
Luckfox Pico Max	RV1106G3	256MB	1TOPS, supports int4, int8 and int16		SPI NAND FLASH (256MB)
Luckfox Pico Ultra					EMMC(8GB)	Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Luckfox Pico Ultra W					EMMC(8GB)	Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
