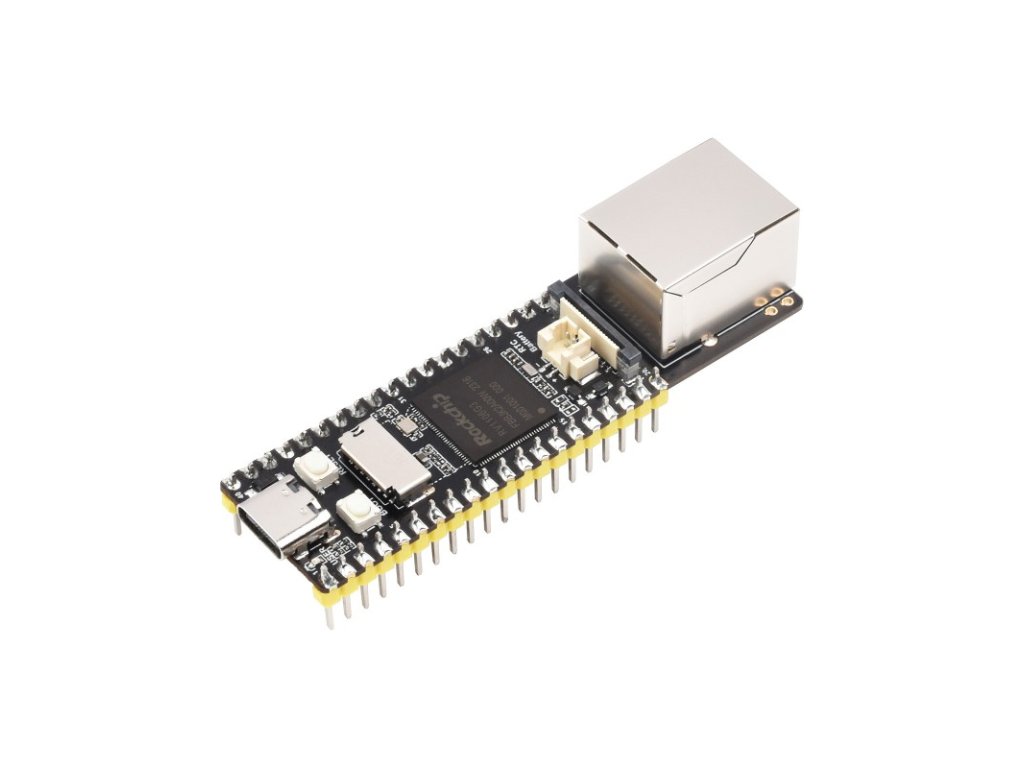

    Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, 256MB memory with pre-soldered header

    Neohodnotené
    Značka: Waveshare

    Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors 256MB memory with pre-soldered header

    SKU: 25720

    Dostupnosť Zvyčajne do 3-7 dní
    Môžeme doručiť do:
    29.11.2024
    Možnosti doručenia
    Kód: 24065
    19,20 € / ks 16 € bez DPH
    Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, 256MB memory with pre-soldered header
    Neohodnotené
    Značka: Waveshare
    Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, 256MB memory with pre-soldered header
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov

    Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors 256MB memory with pre-soldered header

    Luckfox Pico Pro/Max RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

    Specifications
    Processor Cortex A7@1.2GHz
    NPU Pro: 0.5TOPS, supports int4, int8 and int16
    Max: 1TOPS, supports int4, int8 and int16
    ISP Input 5M @30fps (Max)
    Memory Pro: 128MB DDR3L
    Max: 256MB DDR3L
    USB USB 2.0 Host/Device
    Camera MIPI CSI 2-lane
    GPIO 26 × GPIO pins
    Ethernet port 10/100M Ethernet controller and embedded PHY
    Default Storage SPI NAND FLASH (256MB)
    Version and Pinheader options
    Highly integrated and powerful performance

    Integrates CPU, NPU, ISP and other processors

    • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
    • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G2 is 0.5 TOPS, and RV1106G3 is 1.0 TOPS
    • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
    • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
    • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
    • Integrated with built-in POR, audio codec and MAC PHY
    Easier to develop

    Integrates TF card slot, camera interface and Ethernet port

    SLC NAND FLASH

    For a better user experience

    Application Example
    Suitable for more application examples
    Pin definition

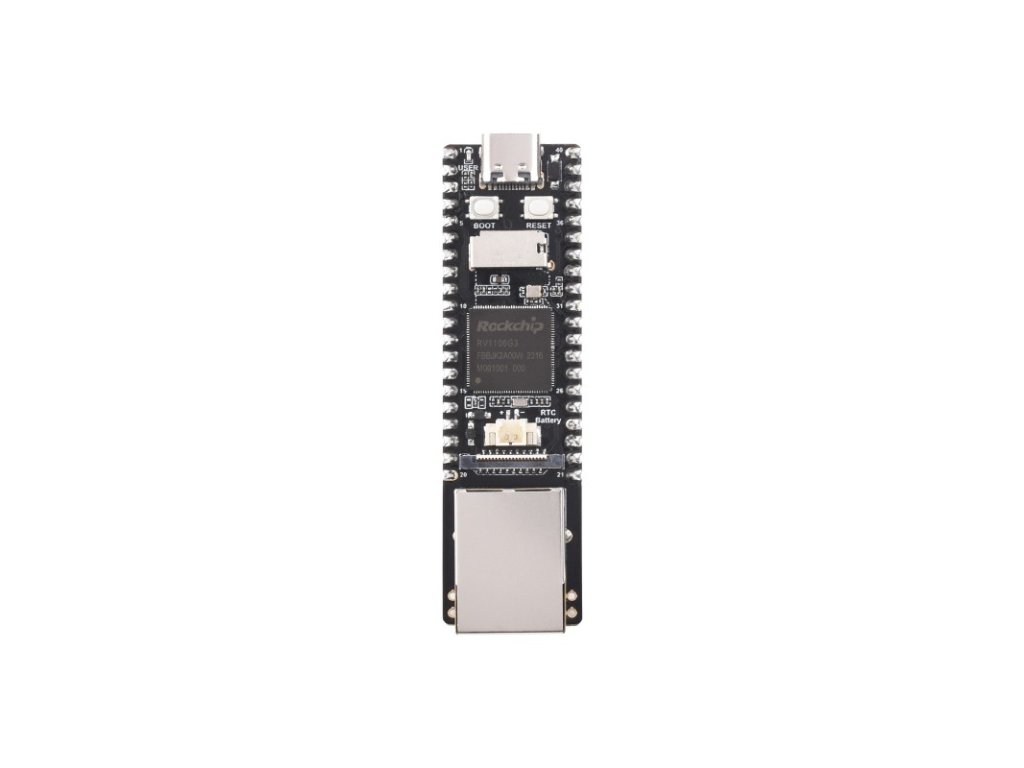

    What's On Board
    1. USB Type-C connector
      for power supply and program burning
    2. ACT-LED
    3. BOOT button
      Press it when powering on to enter download mode
    4. RESET button
    5. TF card slot
    6. RV1106
      Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G2 for Pro version, RV1106G3 for Max version)
    7. RTC battery header
      MX1.25 connector, for connecting RTC battery

    1. CSI camera interface
      MIPI CSI 2-lane
    2. RJ45 Ethernet port
    3. USB test pads
      TP1: USB_N
      TP2: USB_P
    4. USB detection test pad
    5. W25N02KV
      256MB SLC NAND FLASH
    6. GPIO header
    Product Show
    outline dimensions

    Luckfox Pico Product Selection
    PRODUCT Main chip Memory NPU ISP Default Storage FEATURES

    Luckfox Pico Mini A    		 RV1103G1 64MB 0.5TOPS, supports int4, int8 and int16 Input 4M @30fps (Max) TF card (Not included) Onboard Type-C port, MIPI CSI Interface, GPIO, etc.

    Luckfox Pico Mini B    		 SPI NAND FLASH (128MB)

    Luckfox Pico    		 TF card (Not included) Onboard Type-C port, MIPI CSI Interface, GPIO, etc.

    Luckfox Pico Plus    		 SPI NAND FLASH (128MB) Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.

    Luckfox Pico Pro    		 RV1106G2 128MB Input 5M @30fps (Max) SPI NAND FLASH (256MB) Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.

    Luckfox Pico Max    		 RV1106G3 256MB 1TOPS, supports int4, int8 and int16

    Luckfox Pico Ultra    		 EMMC(8GB) Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.

    Luckfox Pico Ultra W    		 Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.

    Certificate of Authorization

    Package Content

    Weight: 0.014 kg

    Luckfox Pico Max M

    Luckfox Pico Max with pre-soldered header x1
