    Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP

    Neohodnotené
    Značka: LUCKFOX

    Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors

    Version : With Wireless , PoE Module Included , IPS LCD 480x480 4inch Touch Display

    SKU: 27868

    Dostupnosť Skladom (1 ks)
    Môžeme doručiť do:
    26.11.2024
    Možnosti doručenia
    Kód: 23849
    62,28 € / ks 51,90 € bez DPH
    Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP
    Neohodnotené
    Značka: LUCKFOX
    Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP
    14 dní na vrátenie
    14 dní
    na vrátenie tovaru
    Objednávka do 14:00
    Do 14:00 objednané
    ešte dnes odoslané
    Vernostné zľavy 5%
    Vernostné zľavy 5%
    pre registrovaných zákazníkov
    Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional for Wireless / PoE Module / IPS LCD

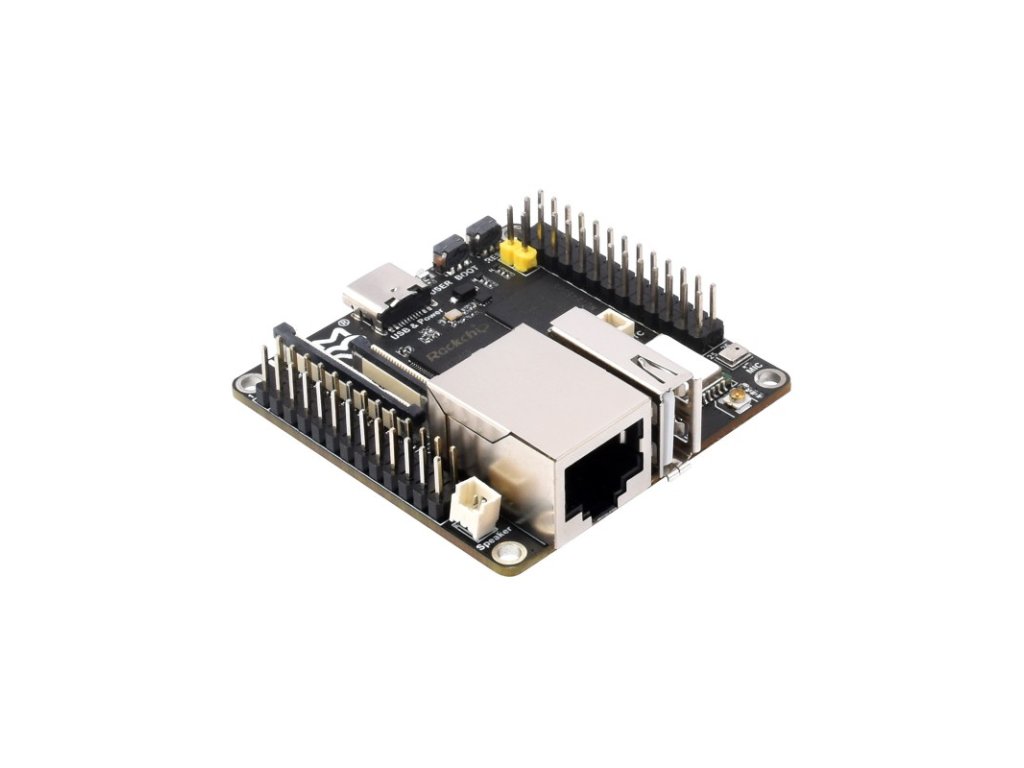

    Luckfox Pico Ultra series, front view Luckfox Pico Ultra series, features
    Development Board Versions
    Luckfox Pico Ultra series, version options
    Optional for IPS LCD
    Luckfox Pico Ultra series, optional for IPS LCD
    LCD Kit connection example
    Luckfox Pico Ultra series, LCD Kit connection example
    4″ IPS Touch Display Introduction



    Capacitive Touch

    Supports flexible and responsive touch operation to make development more convenient

    LF40 480480 ARK, capacitive touch
    LCD Specifications
    Model 4inch IPS Touch Display
    480x480    		 4inch IPS Touch Display
    720x720
    Resolution 480×480 720×720
    Communication Interface RGB666
    SIZE 4"
    Display Panel IPS
    Touch Type Capacitive
    Touch Chip GT911
    Brightness 400cd/m²
    Operation temperature -20~70°C
    Contrast ratio 380:1 1000:1
    Viewing Angle 160° 170°
    Outline Dimension 84.2×84.2mm (H×V) 84.0×84.0mm (H×V)
    Display area 71.86×70.18mm (H×V) 71.93×71.93mm (H×V)
    Pixel pitch 0.1497×0.1462mm (H×V) 0.0999×0.0999mm (H×V)
    DISPLAY COLOUR GAMUT - 68% NTSC
    Development Board Introduction


    Highly integrated and powerful performance

    Integrates CPU, NPU, ISP and other processors

    Luckfox Pico Ultra series, integrates RV1106
    • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
    • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS
    • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
    • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
    • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
    WiFi 6 and Bluetooth module

    Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection and Efficient Transmission

    Luckfox Pico Ultra series, onboard WiFi 6 and Bluetooth module

    * the WiFi 6 / Bluetooth module is only available in Luckfox Pico Ultra W series

    Reserved PoE Module Header

    More Flexible for Power Supply

    Luckfox Pico Ultra series, onboard reserved PoE module header
    optional for PoE Module, Supports PoE Power Supply

    Provides Both Network Connection And Power Supply for Luckfox Pico Ultra board In Only One Ethernet Cable

    Luckfox Pico Ultra series, optional for PoE Module Luckfox Pico Ultra series, supports PoE power supply

    * the PoE module is optional, and the switch in the picture above is NOT included.

    What's On Board
    Luckfox Pico Ultra series, onboard components
    1. USB Type-C connector
      for power supply and program burning
    2. USER-LED
      for indicating system operation status in the default image, programmable indicator
    3. BOOT button
      Press it when powering on or resetting to enter download mode
    4. RESET button
    5. GPIO header
    6. Onboard microphone
    7. Antenna connector
    8. WIFI/Bluetooth module
      2.4G WiFi 6; BT5.2/BLE Bluetooth module
    9. USB-A Interface
      Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected

    1. RJ45 100M Ethernet port
    2. Speaker header
      MX1.25 2P connector, supports 8Ω 1W speaker
    3. RGB LCD Interface
    4. CSI camera interface
      MIPI CSI 2-lane
    5. RV1106G3
      Vision processor SoC with built-in ARM Cortex-A7 core
    6. KLM8G1GETF-B041
      8GB EMMC
    7. RTC battery connector
    8. PoE module header
    9. PoE module / external power supply header
      for connecting external 5V power supply or PoE module power supply
    Pin definition

    Luckfox Pico Ultra series, pin definition
    outline dimensions
    Luckfox Pico Ultra series, outline dimensions

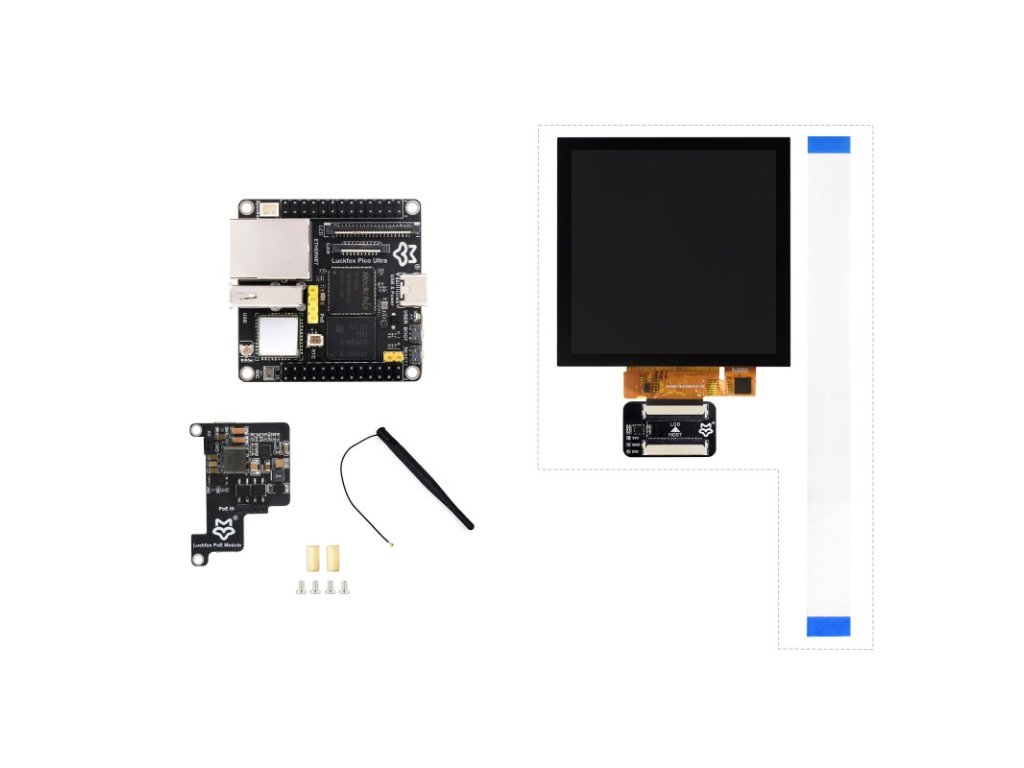

    Balenie obsahuje :

    Luckfox Pico Ultra LCD Kit C

    1. Luckfox Pico Ultra x1
    2. Luckfox PoE module x1
    3. Screws pack x1
    4. 4inch IPS Touch Display 480x480 pixels x1
    5. FFC cable x1
    1Luckfox Pico Ultra PoE Kit
    2
    3
    4
    5
