Luckfox Pico Ultra RV1106 Linux Micro Development Board, PoE module with LCD display

Neohodnotené

Značka: Waveshare

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, PoE module with LCD display

SKU: 27873

Dostupnosť	Zvyčajne do 3-7 dní
Môžeme doručiť do:	29.11.2024
Možnosti doručenia
Kód:	24056

63,60 € / ks 53 € bez DPH

Luckfox Pico Ultra RV1106 Linux Micro Development Board, PoE module with LCD display

Neohodnotené

Značka: Waveshare

Luckfox Pico Ultra RV1106 Linux Micro Development Board, PoE module with LCD display

14 dní

na vrátenie tovaru

Do 14:00 objednané

ešte dnes odoslané

Vernostné zľavy 5%

pre registrovaných zákazníkov

Popis
Diskusia

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, PoE module with LCD display

Luckfox Pico Ultra RV1106 Linux Micro Development Board, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, Optional for Wireless / PoE Module / IPS LCD

Development Board Versions

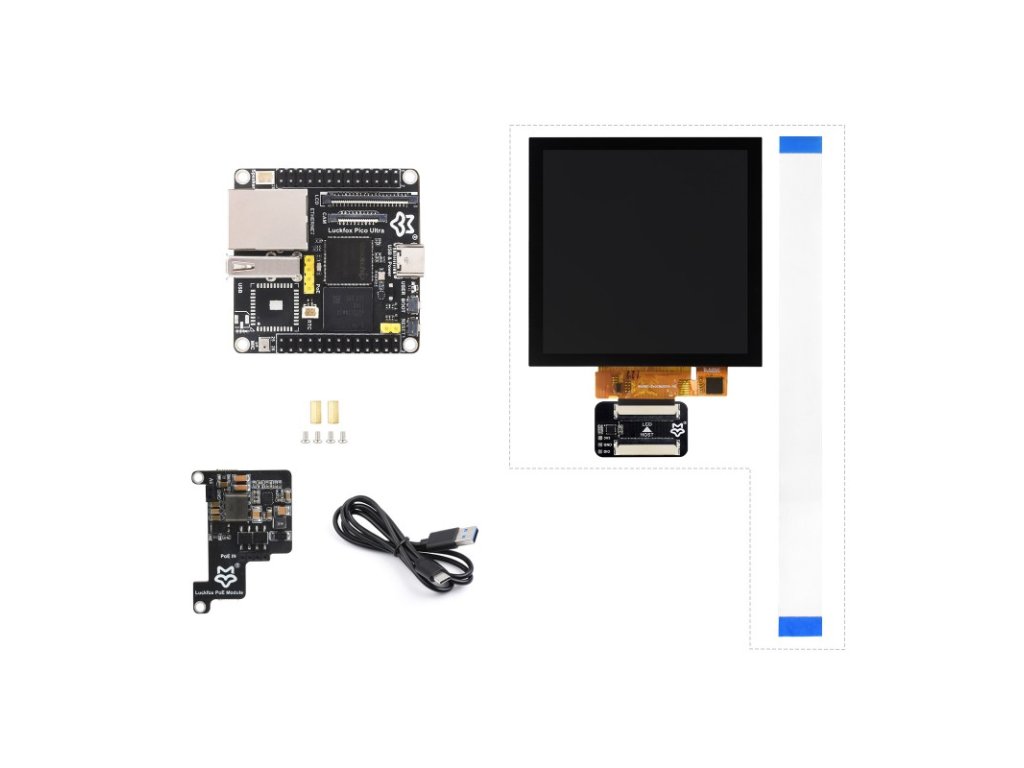

Luckfox Pico Ultra series, version options

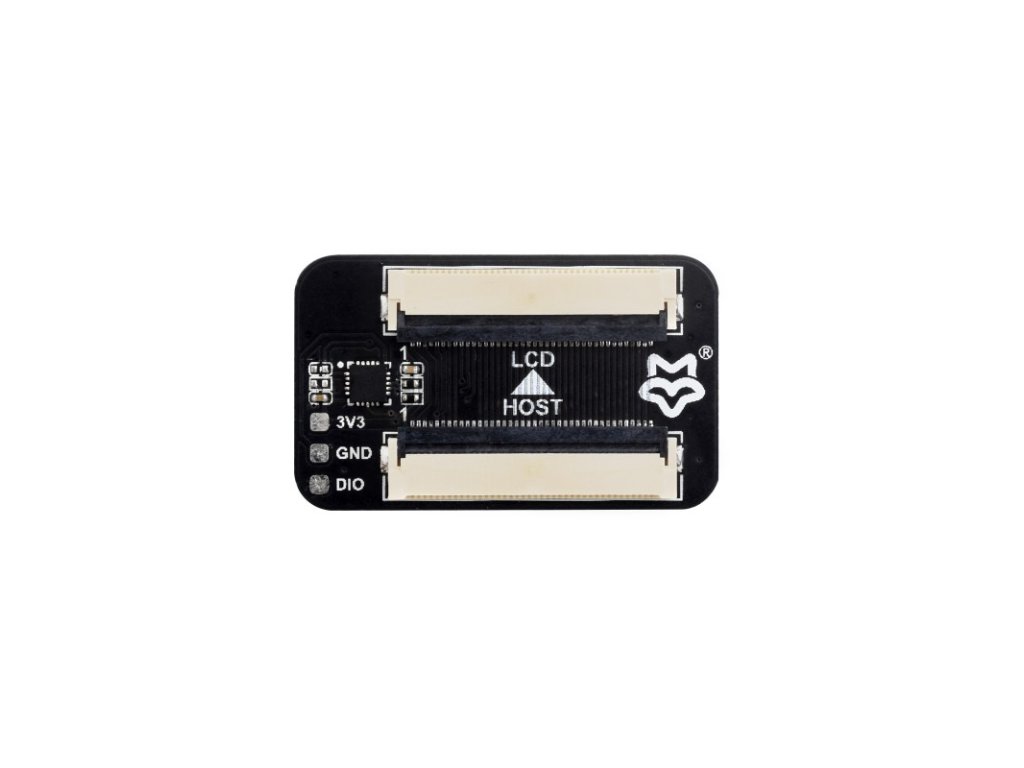

Optional for IPS LCD

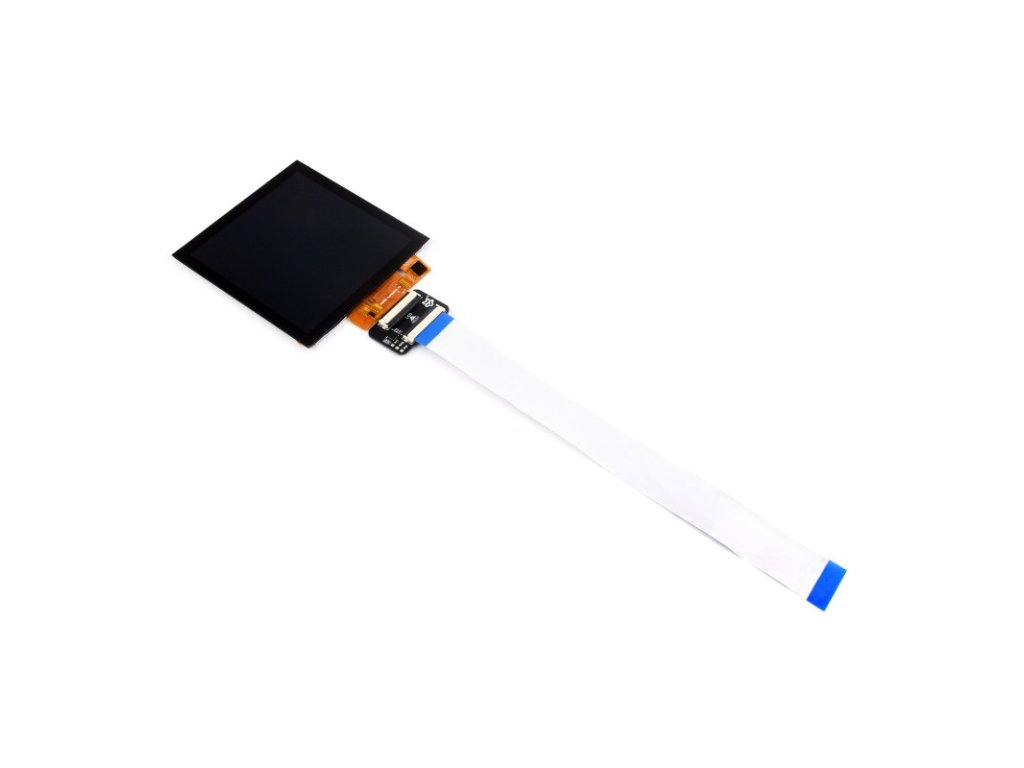

LCD Kit connection example

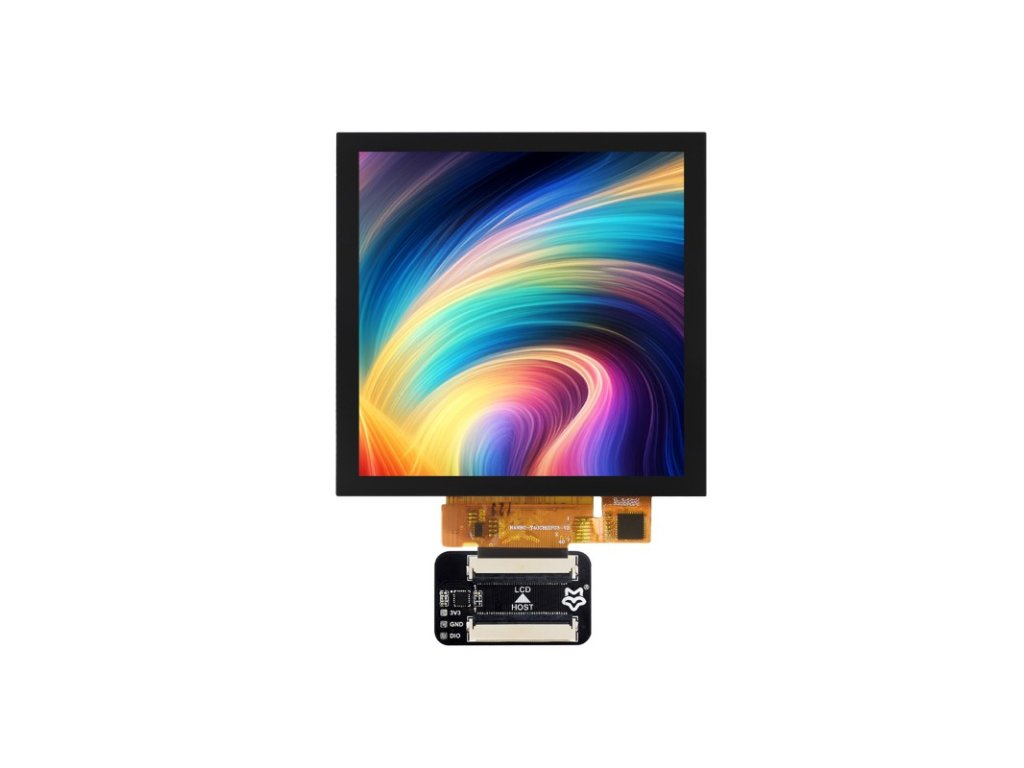

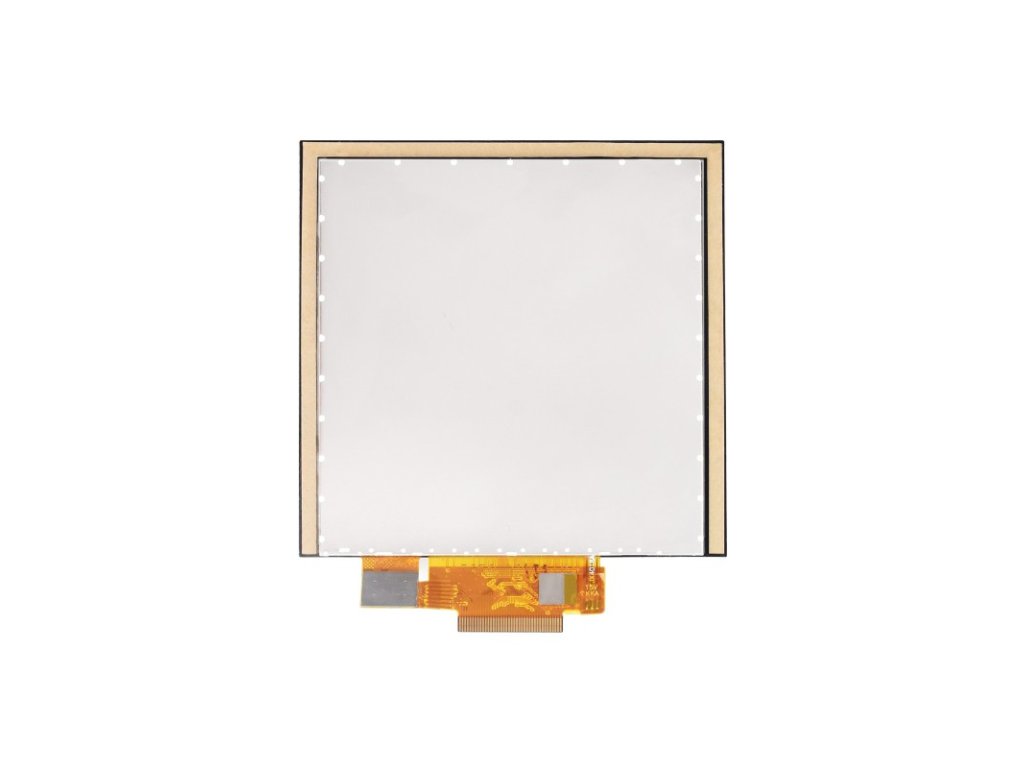

4″ IPS Touch Display Introduction

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LCD Specifications

Model	4inch IPS Touch Display 480x480	4inch IPS Touch Display 720x720
Resolution	480×480	720×720
Communication Interface	RGB666
SIZE	4"
Display Panel	IPS
Touch Type	Capacitive
Touch Chip	GT911
Brightness	400cd/m²
Operation temperature	-20~70°C
Contrast ratio	380:1	1000:1
Viewing Angle	160°	170°
Outline Dimension	84.2×84.2mm (H×V)	84.0×84.0mm (H×V)
Display area	71.86×70.18mm (H×V)	71.93×71.93mm (H×V)
Pixel pitch	0.1497×0.1462mm (H×V)	0.0999×0.0999mm (H×V)
DISPLAY COLOUR GAMUT	-	68% NTSC

Development Board Introduction

Highly integrated and powerful performance

Integrates CPU, NPU, ISP and other processors

Luckfox Pico Ultra series, integrates RV1106

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS
Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths

WiFi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection and Efficient Transmission

* the WiFi 6 / Bluetooth module is only available in Luckfox Pico Ultra W series

Reserved PoE Module Header

More Flexible for Power Supply

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply for Luckfox Pico Ultra board In Only One Ethernet Cable

Luckfox Pico Ultra series, optional for PoE Module

Luckfox Pico Ultra series, supports PoE power supply

* the PoE module is optional, and the switch in the picture above is NOT included.

What's On Board

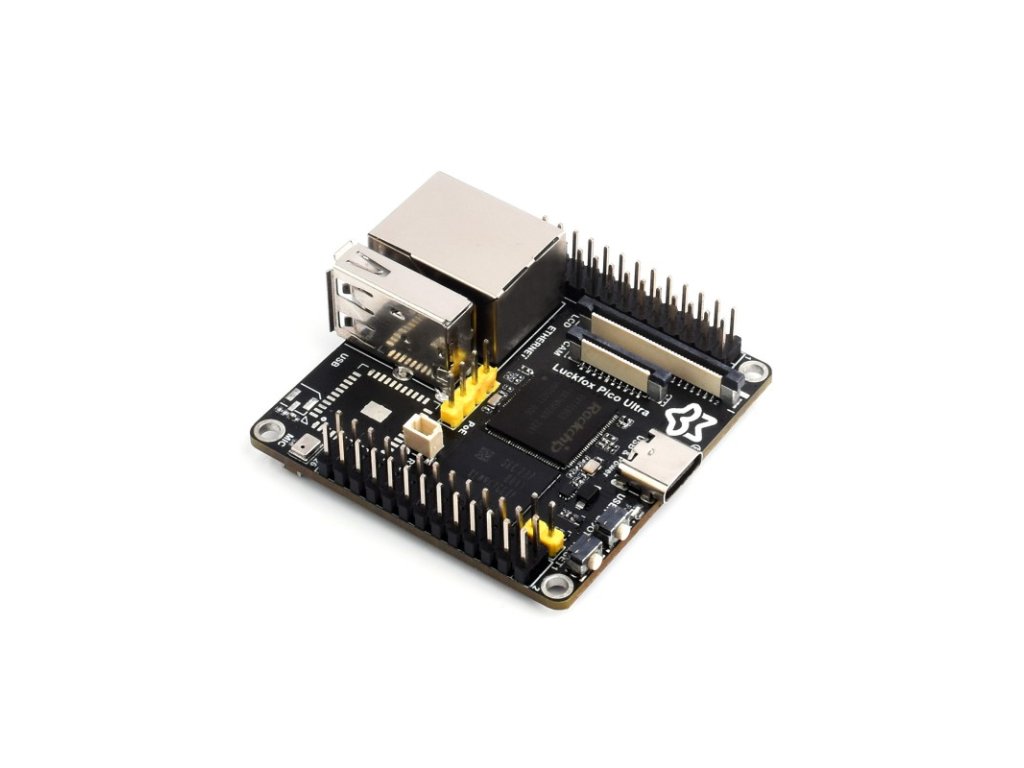

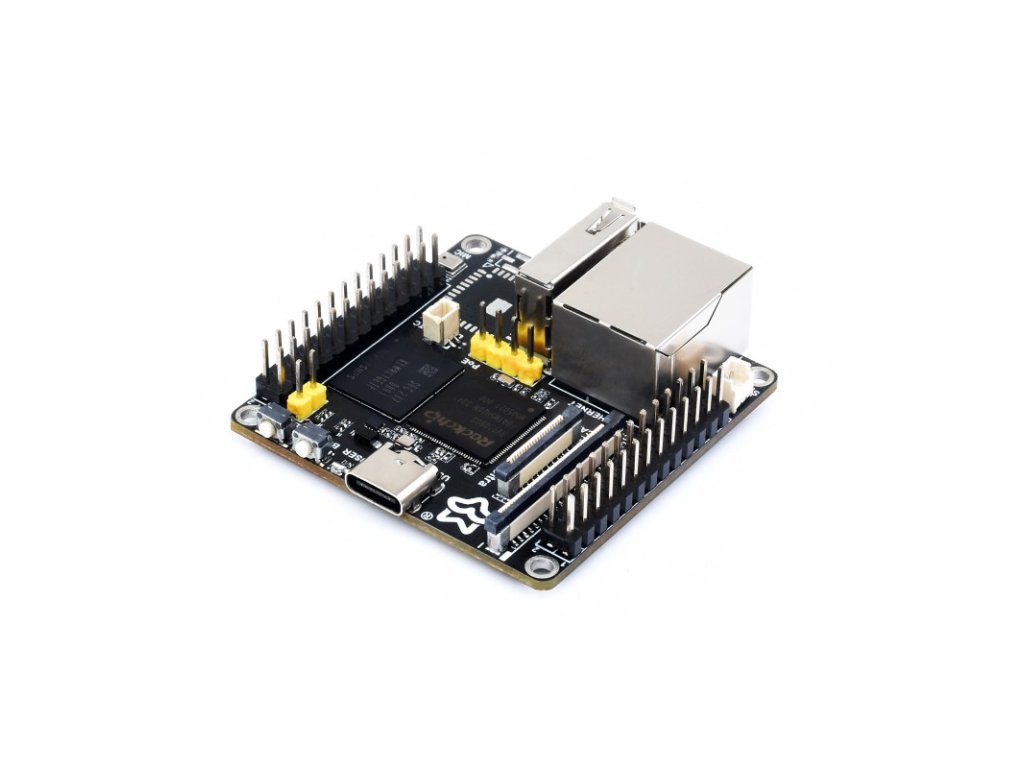

Luckfox Pico Ultra series, onboard components

USB Type-C connector
for power supply and program burning
USER-LED
for indicating system operation status in the default image, programmable indicator
BOOT button
Press it when powering on or resetting to enter download mode
RESET button
GPIO header
Onboard microphone
Antenna connector
WIFI/Bluetooth module
2.4G WiFi 6; BT5.2/BLE Bluetooth module
USB-A Interface
Switching with USB Type-C by chip, enabled automatically for USB communication when USB-C is not connected

RJ45 100M Ethernet port
Speaker header
MX1.25 2P connector, supports 8Ω 1W speaker
RGB LCD Interface
CSI camera interface
MIPI CSI 2-lane
RV1106G3
Vision processor SoC with built-in ARM Cortex-A7 core
KLM8G1GETF-B041
8GB EMMC
RTC battery connector
PoE module header
PoE module / external power supply header
for connecting external 5V power supply or PoE module power supply

Pin definition

outline dimensions

Luckfox Pico Product Selection

PRODUCT	Main chip	Memory	NPU	ISP	Default Storage	FEATURES
Luckfox Pico Mini A	RV1103G1	64MB	0.5TOPS, supports int4, int8 and int16	Input 4M @30fps (Max)	TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Mini B					SPI NAND FLASH (128MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico					TF card (Not included)	Onboard Type-C port, MIPI CSI Interface, GPIO, etc.
Luckfox Pico Plus					SPI NAND FLASH (128MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, etc.
Luckfox Pico Pro	RV1106G2	128MB		Input 5M @30fps (Max)	SPI NAND FLASH (256MB)	Onboard Type-C port, MIPI CSI Interface, GPIO, Ethernet port, RTC battery header, etc.
Luckfox Pico Max	RV1106G3	256MB	1TOPS, supports int4, int8 and int16		SPI NAND FLASH (256MB)
Luckfox Pico Ultra					EMMC(8GB)	Onboard PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
Luckfox Pico Ultra W					EMMC(8GB)	Onboard WiFi, PoE header, Type-C port, MIPI CSI Interface, GPIO, Ethernet port, speaker header, RTC battery header, etc.
